مقدمة المنتج

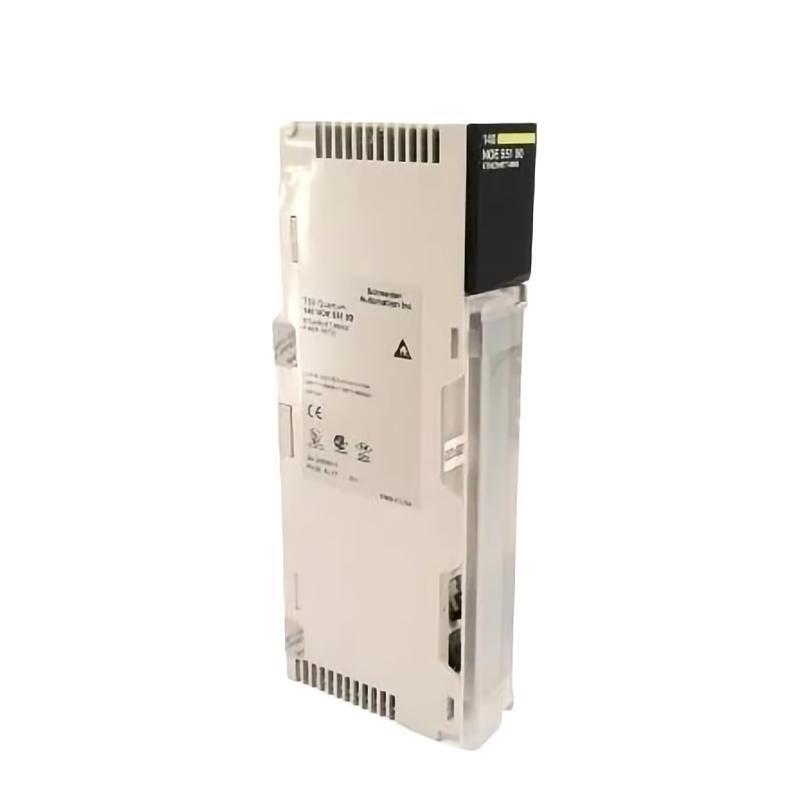

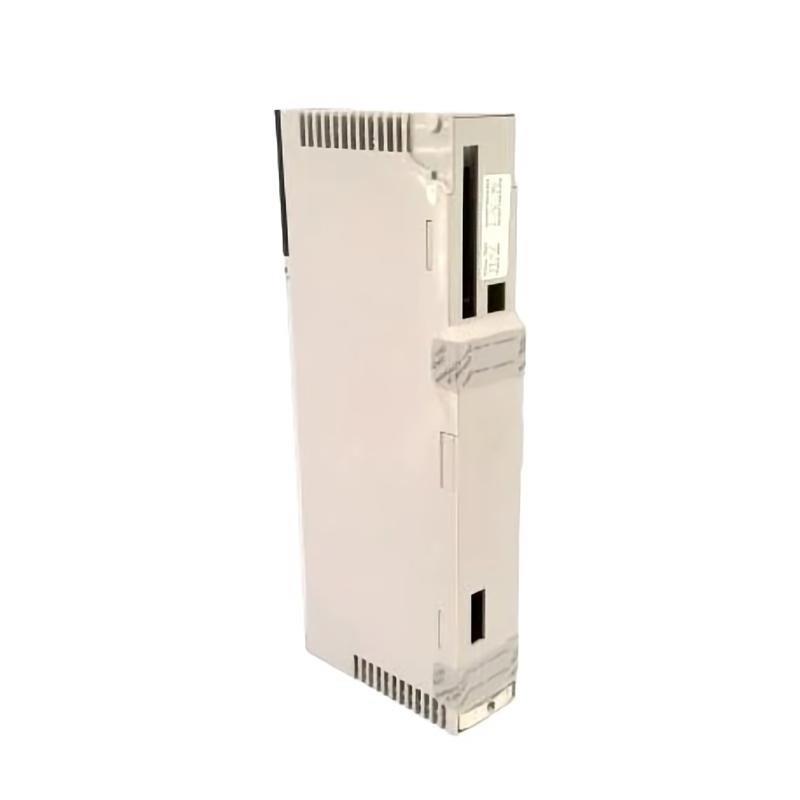

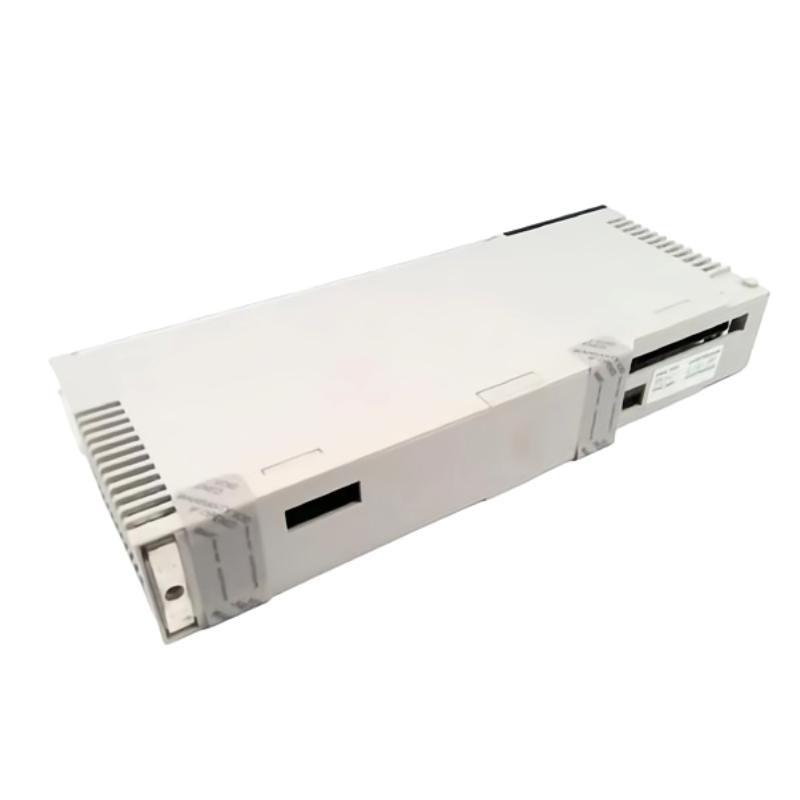

The Schneider 140NOE55100C Ethernet Module is a high-performance communication interface designed for the Modicon Quantum automation platform. It provides reliable Ethernet TCP/IP networking for industrial control systems, enabling seamless integration with SCADA, MES, and other enterprise-level applications. This module supports fast data exchange, remote monitoring, and secure communication over standard Ethernet networks, making it an excellent choice for demanding automation environments where real-time control and high availability are critical.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Ethernet Communication Module |
| الطراز Number | 140NOE55100C |
| Communication Interface | Ethernet 10/100 Mbps (Single Channel) |
| الدعمed Protocols | Modbus TCP/IP, Ethernet/IP, SNMP, HTTP |
| PLC Compatibility | Modicon Quantum Series |
| Configuration | Web-based interface and وحدةy Pro sمنtware |
| Power Supply | 5 V DC from Quantum backplane |
| Power Consumption | Approx. 3.5 W |
| Network Topology | Star, Ring, or Daisy Chain |
| IP Address Assignment | Static or DHCP |
| Built-in Diagnostics | Web diagnostics with traffic statistics and error logs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H × W × D) | 103.9 × 40.3 × 250 mm |
| الوزن | 0.54 kg |
| Mounting | Standard Modicon Quantum rack |
| Certifications | CE, UL, CSA, Class I Div 2, RoHS compliant |
Applications
The 140NOE55100C is widely deployed in industrial automation networks where stable, high-speed Ethernet communication is essential. Key applications include:
-
Process Automation: Integrates Quantum PLCs with SCADA and DCS systems in industries such as power generation, chemical processing, and oil & gas.
-
Manufacturing Control: Ensures real-time monitoring and control for production lines, robotics, and automated assembly systems.
-
Infrastructure Management: Ideal for smart grid, water treatment facilities, and intelligent building systems requiring continuous monitoring.
-
Remote Access and Data Acquisition: Facilitates secure remote programming, diagnostics, and historical data collection over Ethernet.
Advantages
-
High-Speed Ethernet Communication: الدعمs 10/100 Mbps full-duplex transmission for efficient data exchange.
-
Seamless Integration: Designed specifically for Modicon Quantum PLCs, enabling fast setup and easy maintenance.
-
Comprehensive Protocol الدعم: Works with Modbus TCP/IP, Ethernet/IP, and SNMP for flexible system integration.
-
Robust Design: Engineered to withstand industrial temperature ranges and high humidity conditions.
-
Advanced Diagnostics: Built-in web server with extensive monitoring, alarms, and diagnostic tools simplifies troubleshooting.
-
Cybersecurity Features: Includes password protection, user authentication, and IP-based access control to safeguard industrial networks.
FAQ
-
How is the 140NOE55100C configured for Ethernet communication?
Configuration is performed through the integrated web server or Schneider وحدةy Pro sمنtware by setting IP parameters and communication protocols. -
Which network protocols does the module support?
It supports Modbus TCP/IP, Ethernet/IP, SNMP, and HTTP for versatile industrial networking. -
Can the module obtain an IP address dynamically?
Yes, it supports both static IP configuration and DHCP for automatic IP assignment. -
Does it support redundant Ethernet network topologies?
Yes, it can operate in star, ring, or daisy chain topologies for redundancy and high availability. -
How can I monitor the module’s communication status?
A built-in web diagnostic interface provides real-time port status, traffic statistics, and error counters. -
Is firmware updating possible without removing the module?
Yes, firmware can be upgraded remotely through the Ethernet interface using Schneider’s firmware update utility. -
What type من Ethernet cable is recommended for installation?
Use Cat 5e or higher-rated shielded twisted-pair cables for optimal performance. -
Does it support SNMP for centralized network management?
Yes, SNMP is supported for network monitoring and device management. -
Can this module coexist with other Ethernet/IP devices on the same network?
Yes, it operates seamlessly with other Ethernet/IP devices when proper segmentation and addressing are applied. -
What security features help prevent unauthorized access?
User authentication, password protection, and IP-based access restrictions are included to secure communication.
Related الطرازs (Same Series/Family)
| الطراز Number | الوصف | Key Feature |
|---|---|---|
| 140NOE77101 | Quantum Ethernet TCP/IP Module | High-performance Ethernet networking |
| 140NOE77111 | Quantum Ethernet Module with Dual Port | Dual independent Ethernet ports |
| 140NOE77100 | Standard Ethernet TCP/IP Module | Reliable Ethernet connectivity |
| 140NOE77102 | Redundant Ethernet Communication Module | Redundant network support |
| 140NOE35100C | Fiber Optic Ethernet Module | Fiber optic communication capability |
| 140NOE35101 | Enhanced Fiber Ethernet Module | Advanced fiber optic network integration |
