مقدمة المنتج

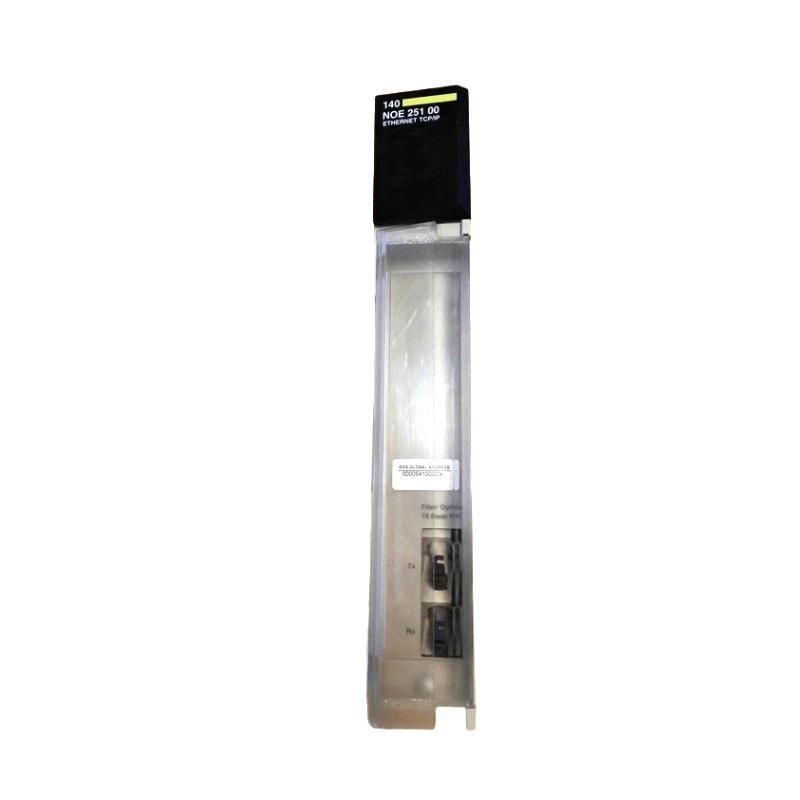

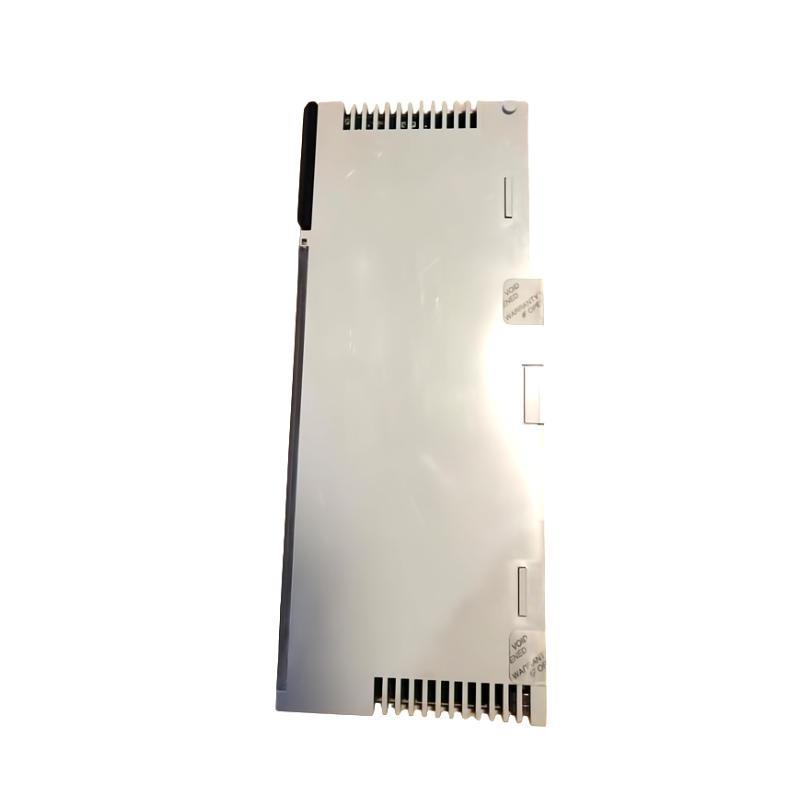

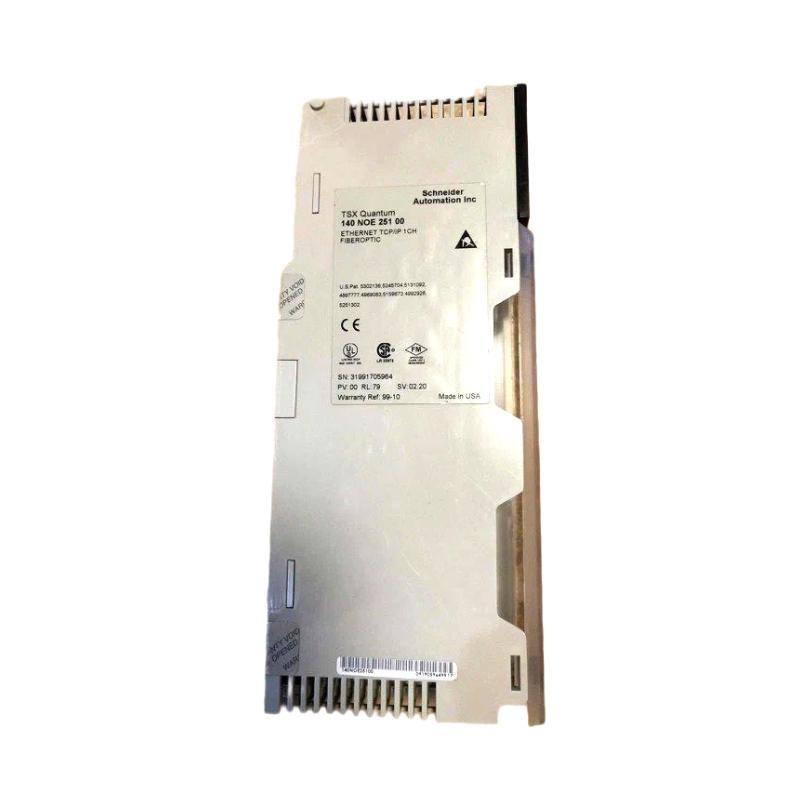

The Schneider Electric 140NOE25100C is a high-performance Ethernet communication module designed for the Modicon Quantum PLC platform. Engineered for industrial environments, it enables seamless network connectivity, reliable data exchange, and efficient integration من programmable controllers into larger automation systems.
This module supports 10/100 Mbps Ethernet communication, منfers web-based diagnostics, and facilitates remote maintenance, making it an ideal solution for modern, networked industrial operations. Equipped with a built-in web server and supporting standard network protocols such as TCP/IP, UDP, and HTTP, the 140NOE25100C greatly enhances system transparency and data accessibility.
Whether you are modernizing a legacy system or building a new one, this Ethernet module provides the flexibility and performance necessary to support high-speed, deterministic communication across automation layers.
Technical Specifications
| Parameter | Details |
|---|---|
| Product الطراز | 140NOE25100C |
| الشركة المصنعة | Schneider Electric |
| Product Type | Ethernet Communication Module |
| Platform Compatibility | Modicon Quantum PLC Series |
| Communication Port | 1 x Ethernet (RJ45) |
| الدعمed Protocols | TCP/IP, UDP, Modbus TCP/IP, HTTP |
| Transmission Speed | 10/100 Mbps (auto-sensing) |
| Web Server الدعم | Yes |
| SNMP الدعم | Yes |
| DHCP الدعم | Yes |
| Redundancy | Yes (depending on system configuration) |
| Mounting Type | Rack-mounted (Quantum Backplane) |
| Power Consumption | 3.2 Watts (typical) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 103.9 × 40.3 × 250 mm |
| الوزن | 0.5 kg |
| Certifications | CE, UL, CSA, ATEX, RoHS compliant |
Product Applications
The Schneider 140NOE25100C is widely deployed across diverse industries where deterministic Ethernet communication is critical. Typical application areas include:
-
Factory Automation: Integration with SCADA systems and centralized monitoring solutions.
-
Energy and Utilities: Remote control من power distribution and substations.
-
Oil and Gas: Reliable communication in hazardous environments with high availability needs.
-
Water and Wastewater Management: Networked PLC control for distributed stations.
-
Manufacturing: High-speed data acquisition and control for packaging and production lines.
-
Transport and Infrastructure: Monitoring and controlling ventilation, lighting, and signaling.
Product Advantages
-
High Reliability: Designed for 24/7 industrial operation with low latency and minimal packet loss.
-
Web-Based Diagnostics: Built-in web server allows for real-time diagnostics and configuration via a standard browser.
-
Versatile Integration: الدعمs multiple communication protocols for flexible application development.
-
Plug-and-Play Deployment: Simple installation into Modicon Quantum backplane with automatic detection.
-
Improved Maintenance: Enables remote diagnostics and firmware upgrades, reducing downtime.
-
Scalable Network Design: Easily integrates with larger SCADA and DCS systems across different network layers.
الأسئلة الشائعة (FAQ)
-
Q: What PLC series is the 140NOE25100C compatible with?
A: It is designed specifically for the Modicon Quantum series by Schneider Electric. -
Q: Can this module support remote configuration?
A: Yes, it supports remote diagnostics and configuration via its built-in web server. -
Q: What network speeds are supported?
A: It supports 10 Mbps and 100 Mbps Ethernet, with auto-negotiation. -
Q: Does this module support Modbus TCP/IP?
A: Yes, Modbus TCP/IP is fully supported. -
Q: Is redundancy available for the 140NOE25100C?
A: Yes, when configured within a redundant system architecture, it can support Ethernet redundancy. -
Q: Does it support SNMP for network management?
A: Yes, SNMP is supported for monitoring and management. -
Q: What is the power consumption من the device?
A: Approximately 3.2 Watts, making it energy-efficient. -
Q: What environmental conditions can it operate in?
A: It operates in temperatures from 0°C to 60°C and storage from -40°C to 85°C. -
Q: How is the module installed?
A: It installs directly into a Quantum rack backplane, without needing additional cabling. -
Q: Is the module hot-swappable?
A: No, the module must be installed or replaced with power منf to ensure system safety.
Related or Compatible الطرازs (Modicon Quantum Series)
| الطراز | الوصف | Communication | Application |
|---|---|---|---|
| 140NOE77101 | Ethernet TCP/IP module | 10/100 Mbps | Advanced Ethernet integration |
| 140NOE77111 | Ethernet TCP/IP module with extended diagnostics | 10/100 Mbps | High-end SCADA systems |
| 140CPU65150 | CPU with integrated Ethernet | Ethernet, Modbus | Complex process control |
| 140CPS12420 | Power supply module for Quantum | — | Powering Quantum backplanes |
| 140DAO84000 | Digital output module | — | High-density digital control |
| 140NOC78000 | Ethernet/IP communication module | Ethernet/IP | IP-based industrial control applications |
Popular Schneider Electric الطرازs
| الطراز | الوصف | Platform | Key Functionality |
|---|---|---|---|
| TM241CE24T | Modicon M241 Logic Controller | Modicon M241 | Compact PLC with Ethernet & USB |
| BMXNOE0100 | Ethernet communication module | Modicon M340 | Ethernet networking for M340 systems |
| TSXPSY2600 | Power supply module | Modicon Premium | 24VDC power supply for automation racks |
| HMISTU855 | HMI touch screen panel | Magelis HMI | Operator interface for machine control |
| ATV630D45N4 | Altivar Process Drive | Altivar 630 | Variable speed drive for motors |
| BMXP342020 | PLC CPU module | Modicon M340 | Programmable automation controller |
