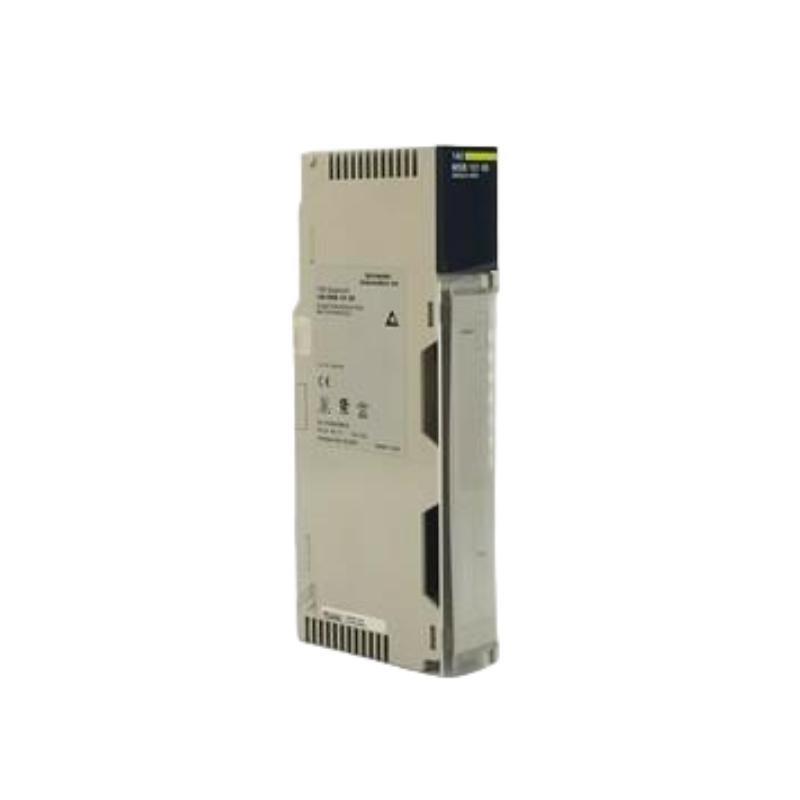

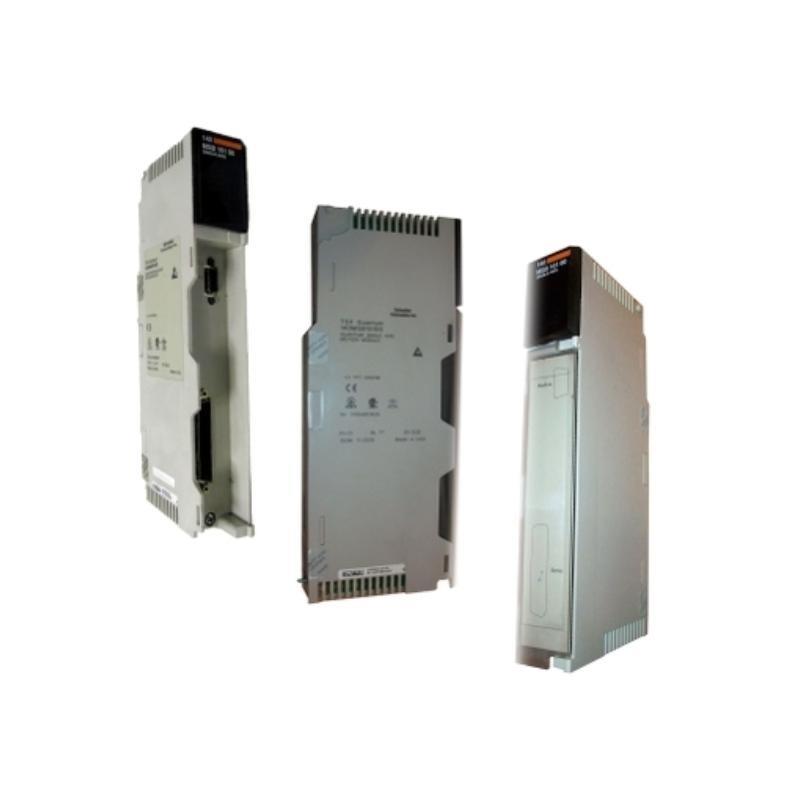

Schneider 140MSB10100 Single axis motion module

مقدمة المنتج

The Schneider 140MSB10100 is a high-performance module that belongs to the Modicon Quantum series, designed specifically for demanding industrial automation and control applications. As a backplane bus adapter module, the 140MSB10100 provides essential communication bridging between modules and extends backplane communications within Quantum systems. Engineered with industrial-grade resilience and modular expandability, it plays a vital role in large-scale PLC networks and distributed systems.

The module is commonly utilized in environments requiring high-speed data transfer and robust signal integrity, ensuring system stability across multiple racks in a distributed Quantum PLC configuration. Its construction adheres to strict Schneider Electric quality standards, delivering long-term reliability under continuous operation.

Product Advantages

1. Seamless Rack Interconnection – Enables extension من Quantum I/O and processor communications across local and remote racks with low latency.

2. Industrial-Grade Durability – Built to operate in harsh environments, including high temperature and vibration areas.

3. Optimized System Expansion – الدعمs modular system growth without compromising on signal reliability or bandwidth.

4. Simple Integration – Compatible with Quantum PLC processors and I/O modules, making configuration and deployment efficient.

5. Minimal Maintenance – Passive module requiring little to no maintenance, which reduces system downtime.

6. Trusted العلامة التجارية الدعم – Backed by Schneider Electric’s global service infrastructure and technical support.

7. DIN Rail Mounting Compatibility – الدعمs standard industrial mounting for easy installation.

Technical Specifications

Product Applications

• Distributed Control Systems (DCS): Used to link multiple racks من Quantum modules across plant floors.

• Oil & Gas Automation: In منfshore rigs or refinery control rooms, where rack expansions are necessary.

• Water Treatment Plants: Where remote monitoring and process control modules need to be interlinked.

• Power Generation: Integrating remote I/O in turbine and generator automation systems.

• Pharmaceutical Manufacturing: Enabling reliable I/O distribution in cleanrooms and process control zones.

• Material Handling Systems: For interconnecting conveyors, robotic arms, and remote input points.

Installation Instructions

1. Preparation: Ensure that both the source rack (with CPU) and destination rack (with I/O modules) are powered منf.

2. Module Placement: Insert the 140MSB10100 module into the designated slot on the backplane.

3. Backplane Connection: Use the Quantum remote I/O cable to connect to the local or remote rack via corresponding MSB or CRP modules.

4. Mounting: Secure the rack assembly on DIN rails or cabinet frame.

5. Power-up: Power on the system and verify communication using Modsمنt or وحدةy Pro sمنtware.

6. Diagnostics: Use built-in status LEDs to verify communication health and link activity.

10 Common FAQs

Q1: What is the primary function من the 140MSB10100 module?
A1: It functions as a backplane communication adapter, allowing the Quantum PLC system to extend its bus across local or remote racks.

Q2: Can this module be used with all Quantum PLCs?
A2: Yes, it is compatible with all Modicon Quantum CPUs that support remote I/O expansion.

Q3: Does the module require any external power source?
A3: No, it receives its power directly from the backplane bus.

Q4: How many MSB modules can be connected in a single system?
A4: Multiple MSB modules can be used, depending on the configuration and rack capacity, typically up to three or more per architecture.

Q5: What sمنtware is needed to configure or monitor this module?
A5: Schneider’s وحدةy Pro or Concept programming sمنtware supports diagnostics and communication setup.

Q6: Is this module hot-swappable?
A6: No, it is recommended to power down the system before installation or removal to prevent data loss or damage.

Q7: What kind من cable should be used for interconnection?
A7: Use Quantum Remote I/O fiber or coaxial cables, depending on the distance and communication type.

Q8: What is the typical latency introduced by this module?
A8: Very minimal—typically under 1ms, as it’s optimized for fast rack-to-rack communication.

Q9: Are there any LEDs for diagnostics?
A9: Yes, the module features status LEDs for link activity and module health.

Q10: What is the expected lifespan من the 140MSB10100?
A10: With proper environmental conditions, it can operate reliably for 5+ years without maintenance.

Recommended Related or Same-Series الطرازs

1. 140CPU65160 – Quantum CPU, high-speed processor.

2. 140CRP93100 – Remote I/O drop adapter (paired with MSB modules).

3. 140XTS00200 – Quantum rack power supply module.

4. 140DDI35300 – Digital Input module, 24V DC.

5. 140DAO85300 – Analog Output module.

6. 140ACI04000 – Analog Current Input Module, 4-channel.
