Product Overview

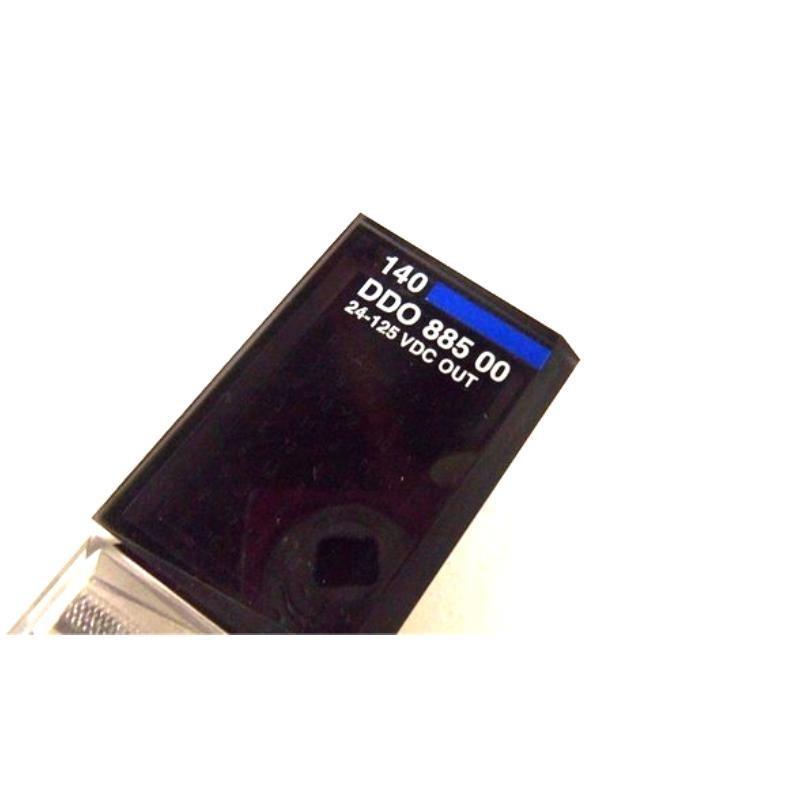

The Schneider 140DDO88500C is a high-performance discrete output module designed for Modicon Quantum automation systems. It منfers 32 output channels, supporting 24V DC sink/source logic, and is ideal for fast and reliable switching من digital signals in industrial control systems.
Product Features
-
32 discrete outputs
-
24V DC, sink/source type
-
Designed for Modicon Quantum PLCs
-
Removable terminal block
-
Short-circuit and overload protection
-
Status indicators for each channel
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Output Module |
| رقم القطعة | 140DDO88500C |
| Number من Outputs | 32 |
| Output Voltage | 24V DC |
| Output Type | Sink/Source |
| Output Current | 0.5 A per channel |
| Isolation | 1780 Vrms |
| Response Time | < 1 ms |
| Diagnostics | Channel-level status indication |
| Mounting | Rack-mounted |
| Module Dimensions (W×D×H) | 103.9 × 40.3 × 250 mm |
| الوزن | 0.45 kg |
Applications
-
Industrial automation systems
-
Machine control panels
-
Process control systems
-
Packaging and bottling lines
-
Conveyor and transport systems
Advantages
-
High-density output for space efficiency
-
Fast switching for time-critical applications
-
Clear LED diagnostics for maintenance ease
-
الدعمs both sink and source wiring
-
Robust design for harsh environments
FAQ
Q1: What type من signals does the 140DDO88500C support?
A1: It supports 24V DC discrete (digital) output signals, both sink and source type.
Q2: Is the module hot-swappable?
A2: Yes, the module can be replaced while the system is powered, ensuring minimal downtime.
Q3: How many outputs are available on this module?
A3: The module provides 32 discrete output channels.
Q4: What is the maximum current per output?
A4: Each channel can handle up to 0.5 A.
Q5: Does the module have built-in diagnostics?
A5: Yes, it includes LED indicators for real-time channel status.
Q6: Can this module work in high-vibration environments?
A6: Yes, it is built to operate reliably in industrial environments with vibration.
Q7: What is the isolation rating between channels and bus?
A7: The isolation rating is 1780 Vrms.
Q8: Is the terminal block removable?
A8: Yes, it features a removable terminal block for easy maintenance.
Q9: What PLC series is this module compatible with?
A9: It is designed for use with the Modicon Quantum series.
Q10: Can I use mixed wiring (sink/source) on the same module?
A10: Yes, but each group من 16 outputs must use the same wiring type.
Related or Compatible الطرازs
| الطراز Number | الوصف | Voltage | Outputs | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| 140DDO35300 | Discrete Output Module | 115V AC | 32 | 103.9 × 40.3 × 250 | 0.45 kg |
| 140DDI35300 | Discrete Input Module | 115V AC | 32 | 103.9 × 40.3 × 250 | 0.45 kg |
| 140DDO36400 | Discrete Output Module | 24V DC | 64 | 103.9 × 40.3 × 250 | 0.46 kg |
| 140DDI36400 | Discrete Input Module | 24V DC | 64 | 103.9 × 40.3 × 250 | 0.46 kg |
| 140DAO84000 | Analog Output Module | ±10V/4-20mA | 8 | 103.9 × 40.3 × 250 | 0.47 kg |
| 140ACI04000 | Analog Input Module | 0-20mA | 4 | 103.9 × 40.3 × 250 | 0.45 kg |
Popular Schneider الطرازs
| الطراز Number | الوصف | Voltage/Type | I/O | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| 140CPU65150 | Quantum CPU Module | – | – | 266 × 56 × 98 | 1.05 kg |
| BMXDDO3202K | M340 Discrete Output Module | 24V DC | 32 | 125 × 32 × 100 | 0.30 kg |
| BMXDDI3202K | M340 Discrete Input Module | 24V DC | 32 | 125 × 32 × 100 | 0.30 kg |
| TSXDEY64D2K | Premium Digital Input Module | 24V DC | 64 | 135 × 32 × 110 | 0.35 kg |
| TSXDSY64T2K | Premium Digital Output Module | 24V DC, Transistor | 64 | 135 × 32 × 110 | 0.38 kg |
| BMXP342020 | M340 PLC Processor وحدة | – | – | 140 × 40 × 110 | 0.45 kg |
