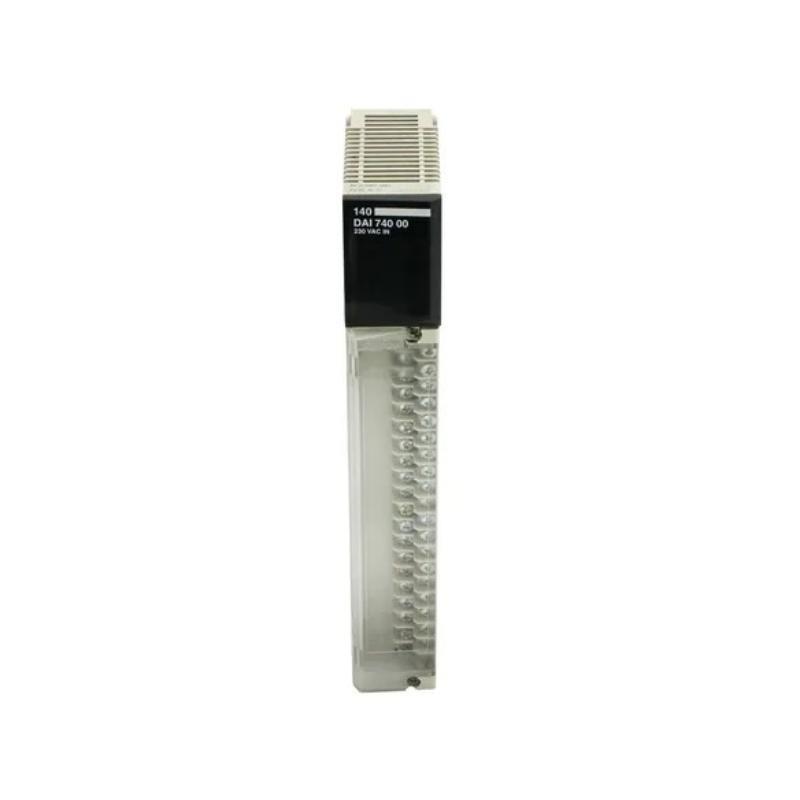

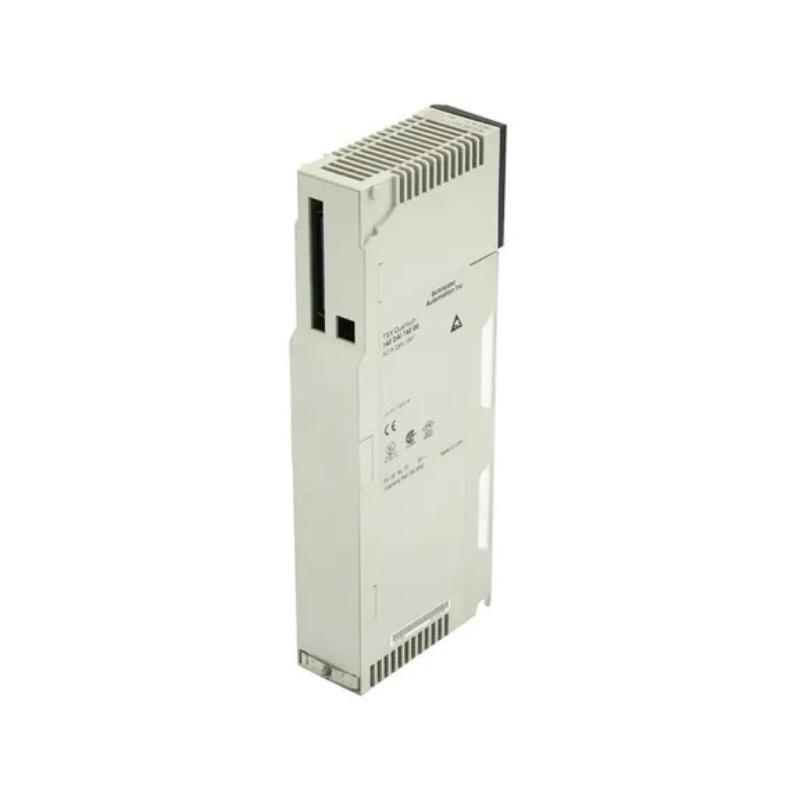

Schneider 140DAI74000C Discrete Input Module Introduction
The Schneider 140DAI74000C is a high-reliability discrete input module designed for the Modicon Quantum series PLC systems. It provides fast and accurate acquisition من 120 V AC input signals, enabling precise monitoring من field devices in industrial automation processes. Its robust construction ensures long service life in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Input Module |
| الطراز Number | 140DAI74000C |
| Input Voltage | 120 V AC |
| Number من Inputs | 32 |
| Input Type | Sink |
| Input Current | 10 mA @ 120 V AC |
| Isolation | 2500 V RMS |
| Response Time | ≤ 1 ms |
| Dimensions (W × D × H) | 103.9 × 40.3 × 250 mm |
| الوزن | 0.35 kg |
| Operating Temperature | 0 to 60 °C |
Applications
The 140DAI74000C is widely used in industrial automation systems for monitoring discrete signals such as push buttons, limit switches, and contactors. It is particularly suited for manufacturing plants, power generation facilities, and large-scale process control systems requiring reliable input acquisition.
Advantages
-
High-speed response for real-time signal monitoring
-
Compact design saves panel space
-
High isolation voltage for better protection
-
Easy integration with Modicon Quantum PLCs
-
Durable and stable performance in harsh environments
FAQ
Q1: What is the input voltage range من the 140DAI74000C?
A1: The input voltage is 120 V AC nominal.
Q2: How many input channels does it have?
A2: The module has 32 discrete input channels.
Q3: What is the module’s response time?
A3: The typical response time is less than 1 millisecond.
Q4: Is this module compatible with Modicon Quantum PLCs?
A4: Yes, it is fully compatible with Modicon Quantum PLCs.
Q5: Can it operate in high-temperature environments?
A5: It can operate in temperatures ranging from 0 to 60 °C.
Q6: Does it provide galvanic isolation?
A6: Yes, it provides 2500 V RMS isolation between channels and system.
Q7: What is the weight من the module?
A7: The weight من the module is 0.35 kg.
Q8: What are its physical dimensions?
A8: The dimensions are 103.9 × 40.3 × 250 mm.
Q9: What type من input signal does it accept?
A9: It accepts 120 V AC sink type signals.
Q10: Is the installation process complicated?
A10: No, it is designed for easy installation in standard Quantum racks.
Related or Same Series الطرازs
| الطراز | الوصف | Inputs/Outputs | Voltage | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| 140DAI74010 | Discrete Input Module | 16 inputs | 120 V AC | 103.9 × 40.3 × 250 | 0.35 |
| 140DDI35300 | Discrete Input Module | 32 inputs | 24 V DC | 103.9 × 40.3 × 250 | 0.35 |
| 140DDI84100 | Discrete Input Module | 64 inputs | 24 V DC | 103.9 × 40.3 × 250 | 0.40 |
| 140DAI55300 | Discrete Input Module | 32 inputs | 48 V AC | 103.9 × 40.3 × 250 | 0.35 |
| 140DAO84000 | Discrete Output Module | 64 outputs | 24 V DC | 103.9 × 40.3 × 250 | 0.40 |
| 140DDO35300 | Discrete Output Module | 32 outputs | 24 V DC | 103.9 × 40.3 × 250 | 0.35 |
Popular Schneider الطرازs
| الطراز | الوصف | Inputs/Outputs | Voltage | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| 140CPU65150 | Quantum CPU | – | – | 147 × 50 × 240 | 0.65 |
| 140CPU67160 | Quantum CPU | – | – | 147 × 50 × 240 | 0.75 |
| BMXP342020 | M340 CPU | – | – | 90 × 71.5 × 130 | 0.40 |
| BMXDDO1602 | Discrete Output Module | 16 outputs | 24 V DC | 32.5 × 100 × 110 | 0.15 |
| BMXDDI1602 | Discrete Input Module | 16 inputs | 24 V DC | 32.5 × 100 × 110 | 0.15 |
| BMXNOE0110 | Ethernet Communication Module | – | – | 32.5 × 100 × 110 | 0.18 |
