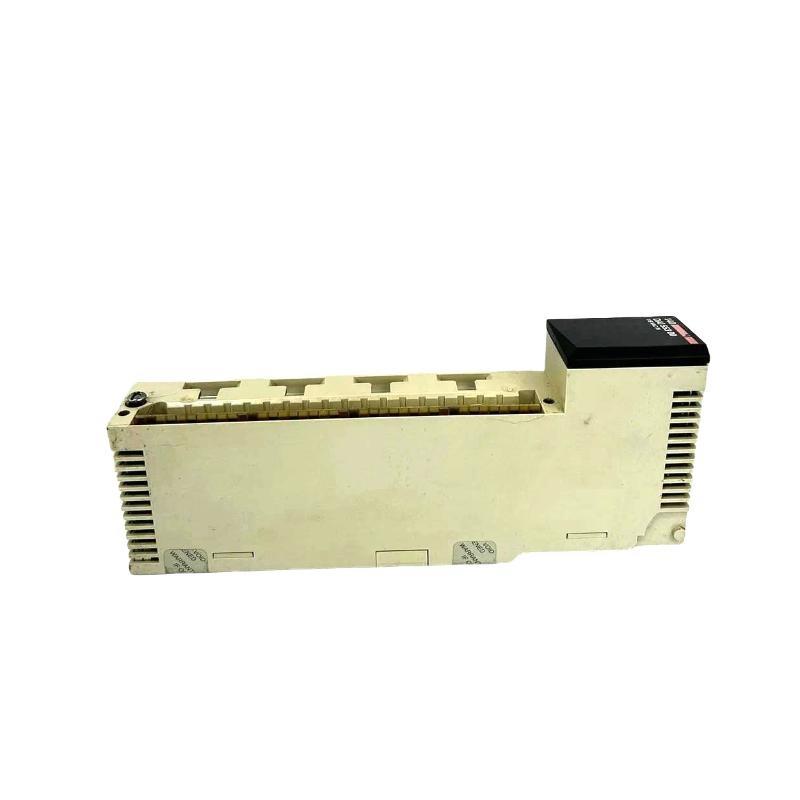

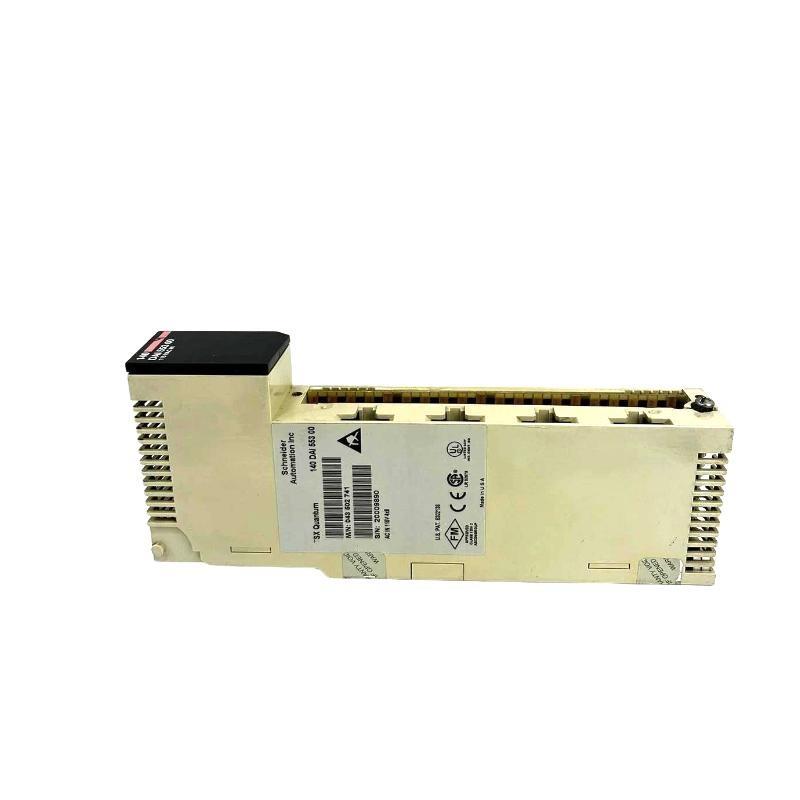

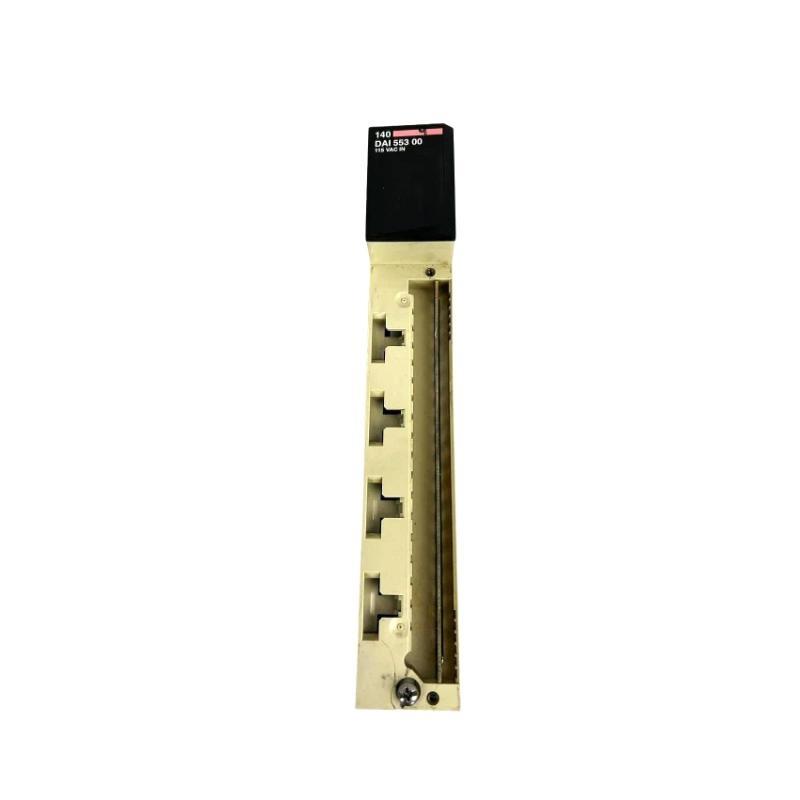

Schneider 140DAI55300C Discrete Input Module
The Schneider 140DAI55300C is a discrete input module designed for Modicon Quantum automation systems. It provides reliable and fast digital signal acquisition for industrial control applications. This module is suitable for harsh environments, ensuring accurate data collection and system stability.
Technical Specifications
| Parameter | Value |
|---|---|
| الشركة المصنعة | Schneider Electric |
| الطراز | 140DAI55300C |
| Type | Discrete Input Module |
| Input Type | Digital (24 VDC sink/source) |
| Number من Channels | 32 |
| Input Voltage | 24 VDC nominal |
| Input Current | 7 mA per point |
| Response Time | ≤ 1 ms |
| Isolation | 500 V between channels and bus |
| Power Consumption | 3 W |
| Dimensions | 103.9 × 40.3 × 250 mm |
| الوزن | 0.33 kg |
Applications
-
Factory automation
-
Material handling systems
-
Process control
-
Energy and utility monitoring
-
Infrastructure and building management
Advantages
-
High-density input with 32 channels
-
Fast response time for real-time applications
-
Compact size, saving cabinet space
-
Robust and reliable in industrial environments
-
Easy integration with Modicon Quantum PLCs
FAQ
Q1: What is the input voltage range for the 140DAI55300C?
A1: The input voltage is nominally 24 VDC.
Q2: How many discrete inputs does this module support?
A2: It supports 32 discrete input channels.
Q3: Is the module isolated from the bus?
A3: Yes, it provides 500 V isolation between inputs and bus.
Q4: Can this module work in high-speed applications?
A4: Yes, with a response time من ≤1 ms, it is suitable for high-speed control.
Q5: What are its physical dimensions?
A5: The dimensions are 103.9 × 40.3 × 250 mm.
Q6: How much does the module weigh?
A6: It weighs 0.33 kg.
Q7: Is it compatible with all Quantum PLCs?
A7: Yes, it is fully compatible with Modicon Quantum series PLCs.
Q8: Does it support both sink and source inputs?
A8: Yes, it can handle both sink and source configurations.
Q9: What type من connector does it use?
A9: It uses standard Modicon Quantum backplane connectors.
Q10: Is it hot-swappable?
A10: Yes, it supports hot-swapping within a powered rack.
Recommended Related الطرازs
| الطراز | Type | Channels | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| 140DAI54000 | Discrete Input Module | 16 | 103.9 × 40.3 × 250 | 0.33 kg |
| 140DAO84000 | Discrete Output Module | 32 | 103.9 × 40.3 × 250 | 0.33 kg |
| 140DDO35300 | Discrete Output Module | 32 | 103.9 × 40.3 × 250 | 0.33 kg |
| 140DDI35300 | Discrete Input Module | 32 | 103.9 × 40.3 × 250 | 0.33 kg |
| 140DAI45300 | Discrete Input Module | 32 | 103.9 × 40.3 × 250 | 0.33 kg |
| 140DDI84100 | Discrete Input Module | 64 | 103.9 × 40.3 × 250 | 0.33 kg |
Popular Schneider الطرازs
| الطراز | Type | Channels | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| 140CPU65160 | CPU Module | — | 103.9 × 40.3 × 250 | 0.33 kg |
| 140NOE77101 | Ethernet Communication | — | 103.9 × 40.3 × 250 | 0.33 kg |
| 140CPS11420 | Power Supply | — | 103.9 × 40.3 × 250 | 0.33 kg |
| 140CRA31200 | Remote I/O Adapter | — | 103.9 × 40.3 × 250 | 0.33 kg |
| 140ACI04000 | Analog Input Module | 8 | 103.9 × 40.3 × 250 | 0.33 kg |
| 140AII33010 | Analog Input Module | 16 | 103.9 × 40.3 × 250 | 0.33 kg |
