Product الوصف

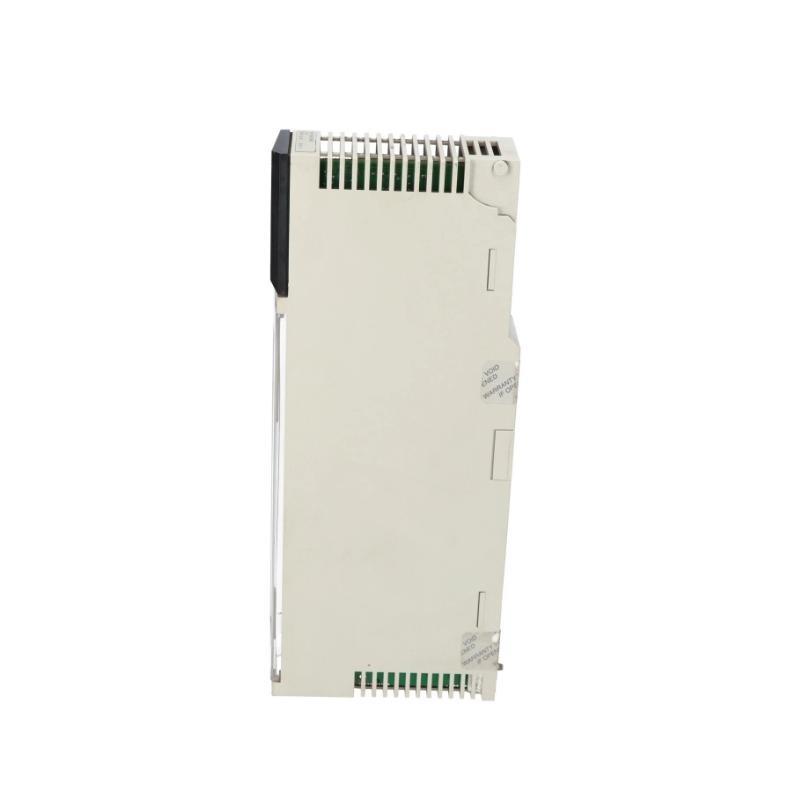

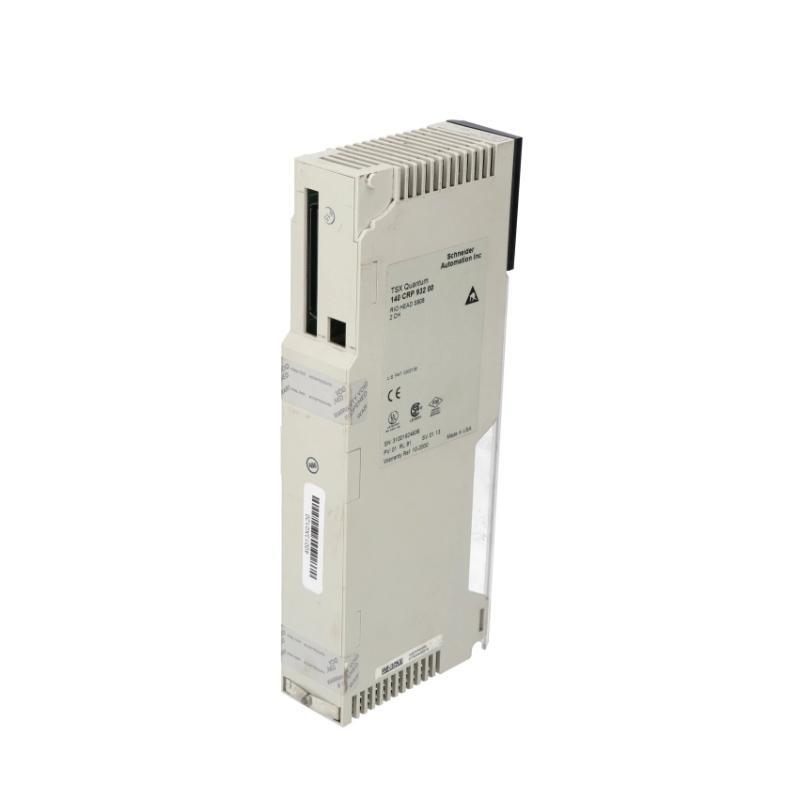

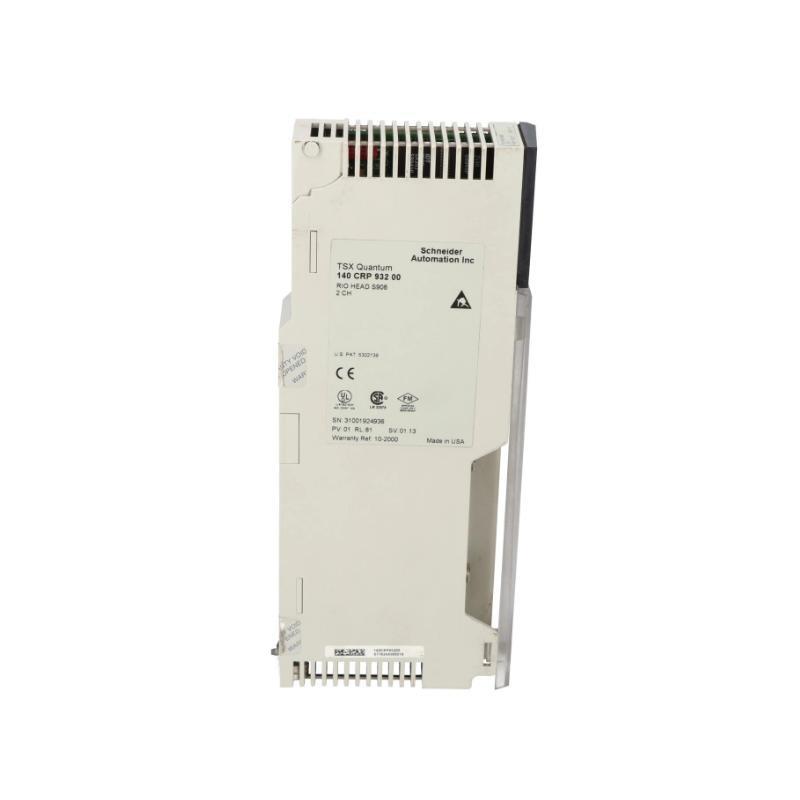

The Schneider 140CRP93200C is a Remote I/O (RIO) head-end adaptor module designed for the Modicon Quantum automation platform. It acts as the main communication interface between the Quantum controller and distributed I/O drops. This module enables high-speed and reliable data transfer via the RIO network using coaxial cable.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | 140CRP93200C |
| Product Type | RIO Head-end Adaptor Module |
| Network Type | Remote I/O (RIO) |
| Communication Medium | Coaxial Cable |
| Interface Ports | BNC (for RIO) |
| Number من Remote Drops | Up to 31 |
| Data Rate | 1.54 Mbps |
| Power Consumption | 1.5 W |
| Voltage Requirement | 5 VDC (via backplane) |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Dimensions (W x H x D) | 50 × 165 × 310 mm |
| الوزن | 0.531 kg |
Applications
-
Factory automation
-
Process control systems
-
Distributed I/O network management
-
SCADA and PLC communication
-
Integration من legacy and modern systems
Advantages
-
Seamless integration with Modicon Quantum PLCs
-
الدعمs multiple RIO drops for scalable systems
-
High-speed communication for real-time data exchange
-
Compact design suitable for panel installations
-
Reliable performance in industrial environments
FAQ
1. What is the primary function من the 140CRP93200C?
It serves as the head-end adaptor for a Remote I/O network, enabling Quantum PLCs to communicate with distributed I/O modules.
2. Which cable type is required for this module?
It requires a coaxial cable for RIO communication.
3. How many RIO drops can it support?
It supports up to 31 remote drops.
4. Is this module hot-swappable?
No, it should be inserted and removed with power منf.
5. What platform is it compatible with?
It is compatible with the Modicon Quantum series.
6. What is the typical use case for this module?
Used in large automation systems requiring distributed I/O control.
7. What is the power supply requirement?
It draws 5 VDC from the backplane.
8. Can it be used in hazardous environments?
It is intended for standard industrial environments; for hazardous areas, consult additional certifications.
9. Does it support redundancy?
No, redundancy is not supported in the module itself.
10. How is it mounted?
It is rack-mounted in the Quantum backplane.
Related Schneider الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| 140CRP93100 | RIO Head-end Module (earlier version) | 50 × 165 × 310 | 0.530 |
| 140CRA31200 | Remote I/O Drop Adapter (S908) | 50 × 165 × 310 | 0.520 |
| 140CRP81200 | Compact RIO Head Adapter | 50 × 165 × 310 | 0.525 |
| 140CRA93100 | RIO Drop Adapter with coaxial port | 50 × 165 × 310 | 0.540 |
| 140CRA93200 | RIO Drop Adapter with extended range | 50 × 165 × 310 | 0.535 |
| 140CRP93210 | RIO Head Adapter with diagnostics | 50 × 165 × 310 | 0.533 |
Popular Schneider الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| 140CPU65160 | Quantum CPU Module, 1MB RAM | 50 × 165 × 310 | 0.700 |
| 140CPU67261 | Quantum CPU with Ethernet | 50 × 165 × 310 | 0.710 |
| BMXP342020 | M340 CPU Module | 32 × 100 × 110 | 0.350 |
| TSXPSY2600 | Power Supply Module for TSX Series | 50 × 165 × 310 | 0.600 |
| TSXP574634M | Premium CPU, 4MB RAM | 50 × 165 × 310 | 0.690 |
| 140DDO84300 | 32-pt Digital Output Module | 50 × 165 × 310 | 0.540 |
