مقدمة المنتج：

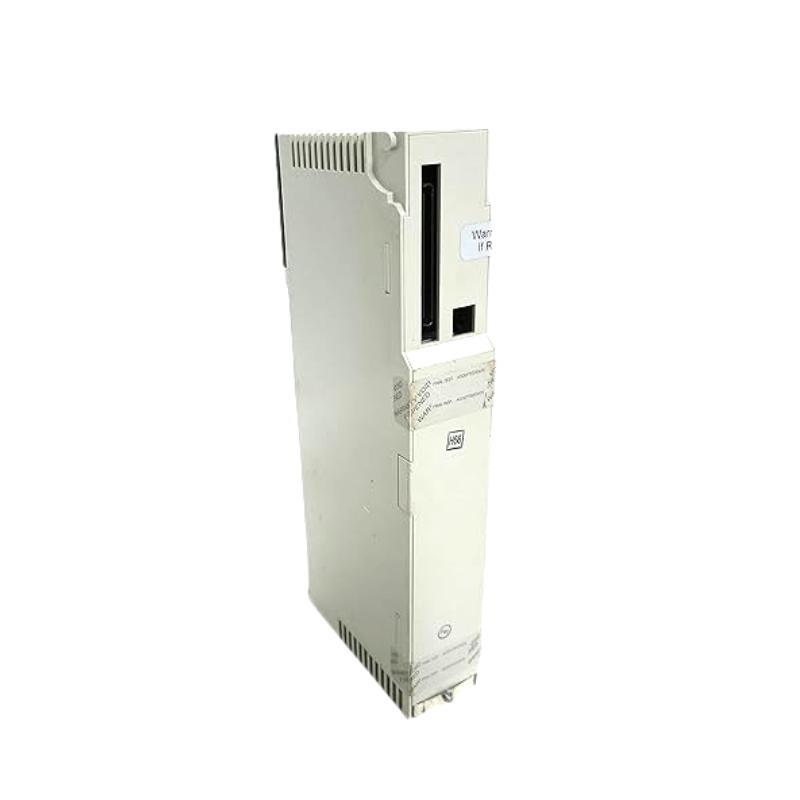

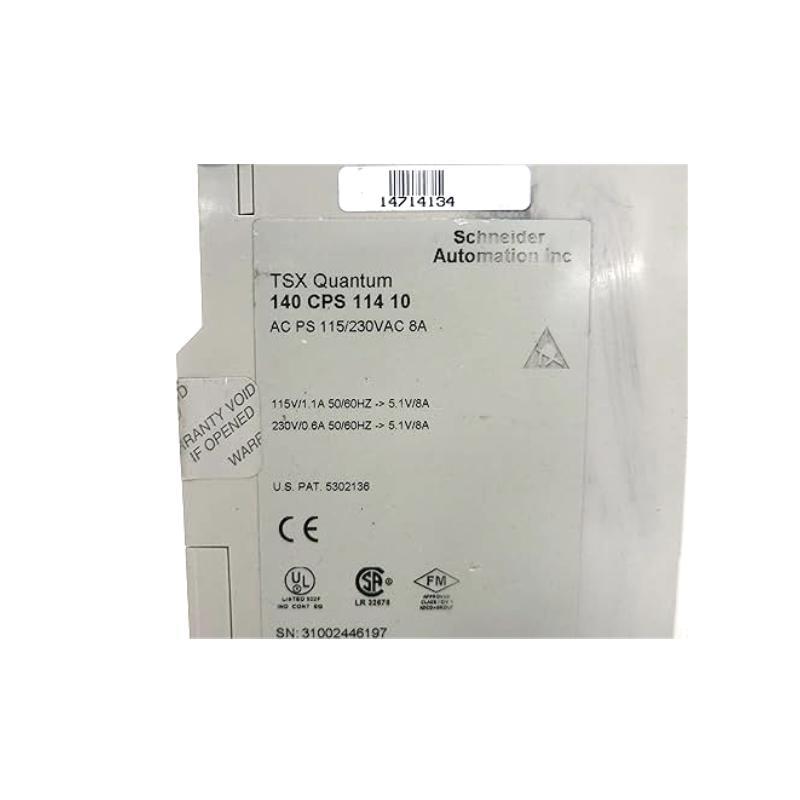

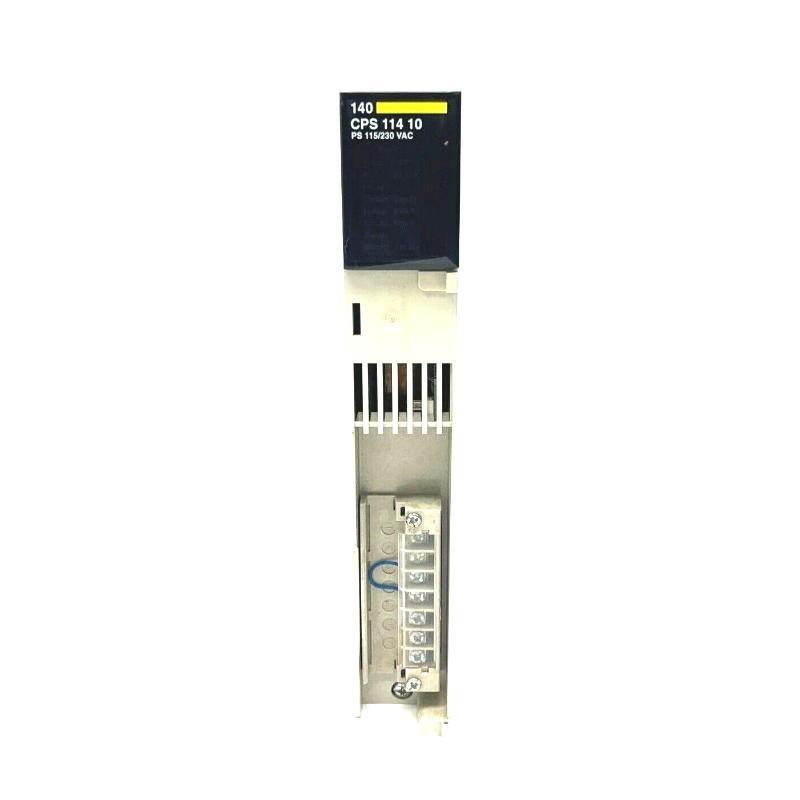

The Schneider Electric 140CPS11410 is an AC power supply module from the Modicon Quantum series, designed to provide reliable power to programmable logic controllers (PLCs) and associated modules in industrial automation systems.This module ensures stable operation من control systems by delivering consistent power, making it essential for maintaining the performance and reliability من industrial processes.
مواصفات المنتج:
| Specification | Details |
|---|---|
| الطراز Number | 140CPS11410 |
| Series | Modicon Quantum |
| Input Voltage Range | 85–265 V AC or 100–375 V DC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 V DC |
| Output Current | 5 A |
| Power Consumption | 120 W (maximum) |
| Efficiency | Approximately 85% |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Rating | IP20 |
| Mounting | DIN rail |
| Dimensions | 103.9 × 40.3 × 250 mm |
| الوزن | 0.65 kg |
Applications:
The 140CPS11410 power supply module is utilized in various industrial automation applications, including:
- Manufacturing: Supplying power to PLCs that control machinery and production lines.
- Energy Management: Ensuring reliable operation من control systems in power generation and distribution.
- Process Control: Maintaining stability in systems that monitor and control chemical, pharmaceutical, and food processing operations.
- Infrastructure: الدعمing automation in water treatment plants, transportation systems, and building management.
Advantages:
- High Reliability: Designed to provide consistent power to critical control systems, minimizing downtime.
- Wide Input Voltage Range: Capable من operating with various AC and DC input voltages, منfering flexibility in different environments.
- Compact Design: Its dimensions allow for easy integration into existing control panels without requiring significant space.
- Efficiency: With an efficiency من approximately 85%, it reduces energy losses and operational costs.
- Protection Features: Equipped with overcurrent protection and a normally closed relay contact rated at 220 V AC, 6 A / 30 V DC, 5 A, enhancing safety and equipment protection.
FAQs
-
What is the input voltage range for the Schneider 140CPS11410 Power Supply Module?
- The input voltage range for the 140CPS11410 module is 115V/230V AC.
-
What is the output voltage for the Schneider 140CPS11410?
- The module provides a 24V DC output.
-
Can the Schneider 140CPS11410 Power Supply be used in parallel configurations?
- Yes, the 140CPS11410 can be used in summable configurations, allowing multiple power supplies to be used together for higher power capacity.
-
What is the current output rating من the 140CPS11410 Power Supply Module?
- The module provides an output من 5 A at 24V DC.
-
Is the Schneider 140CPS11410 Power Supply Module compatible with other Modicon systems?
- Yes, it is designed to be fully compatible with the Modicon Quantum and Modicon Premium PLC systems.
-
What protection features are included with this power supply?
- The power supply is equipped with protection against overvoltage, overcurrent, and short-circuit conditions.
-
What is the operating temperature range for the 140CPS11410?
- The operating temperature range is between 0°C to 60°C.
-
Does the Schneider 140CPS11410 Power Supply have a diagnostic feature?
- Yes, the power supply has built-in diagnostics to ensure proper operation and provide feedback if there are any faults.
-
What is the size and weight من the Schneider 140CPS11410 Power Supply Module?
- The dimensions are 103.9 × 40.3 × 250 mm, and it weighs 0.65 kg.
-
Is the Schneider 140CPS11410 Power Supply suitable for use in harsh industrial environments?
- Yes, the module is designed for use in industrial environments, منfering a robust design that is durable and reliable under varying operating conditions.
10 Recommended الطرازs from the Same Series or Related الطرازs:
| الطراز Number | الوصف |
|---|---|
| 140CPS11420 | AC Power Supply Module, 115/230 V AC, non-summable |
| 140CPS12420 | DC Power Supply Module, 24/48 V DC, non-summable |
| 140CPS51100 | AC Power Supply Module, 115/230 V AC, summable |
| 140CPS52400 | DC Power Supply Module, 48/60 V DC, summable |
| 140CPS52410 | DC Power Supply Module, 48/60 V DC, summable with diagnostics |
| 140CPU11302 | Quantum CPU Module with 286 Processor |
| 140CPU43412A | Quantum CPU Module, 486 Processor, with extended memory |
| 140DPS11400 | Quantum Power Supply Module, 24 V DC Output, summable |
| 140CPS21400 | Quantum Power Supply Module, 120/230 V AC Input, 24 V DC Output |
| 140CPU11303 | Quantum CPU Module, with Ethernet, for Modicon PLC Systems |
10 Popular الطرازs from Schneider Electric:
| الطراز Number | الوصف |
|---|---|
| 140AIO63000 | Modicon Quantum 16 AI, 16-bit Analog Input Module |
| 140DDI35300 | Modicon Quantum Digital Input Module, 32 Channels |
| 140DRA84000 | Modicon Digital Output Relay Module, 8 Channels |
| 140CPS11410 | Modicon Quantum Power Supply, 115/230 V AC, 24 V DC Output |
| 140CPU67060 | Modicon M580 CPU Module with Ethernet Port |
| 140DAI85400 | Modicon Digital Input Module, 8 Channels, 24 V DC |
| 140AIO35000 | Modicon Quantum 16 AI, 16-bit Analog Input Module, 24 V DC |
| 140CRP31200 | Modicon Compact Control Relay Module |
| 140XBP02000 | Modicon Communication Adapter for Universal Protocols |
| 140MMS3120 | Modicon MMS PLC Module with Integrated I/O |
