مقدمة المنتج

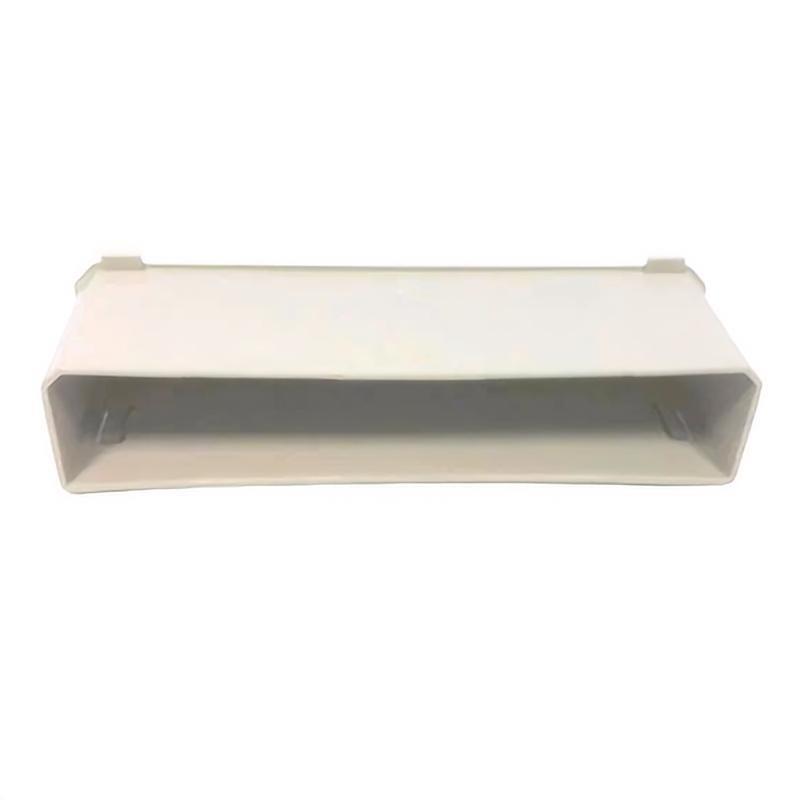

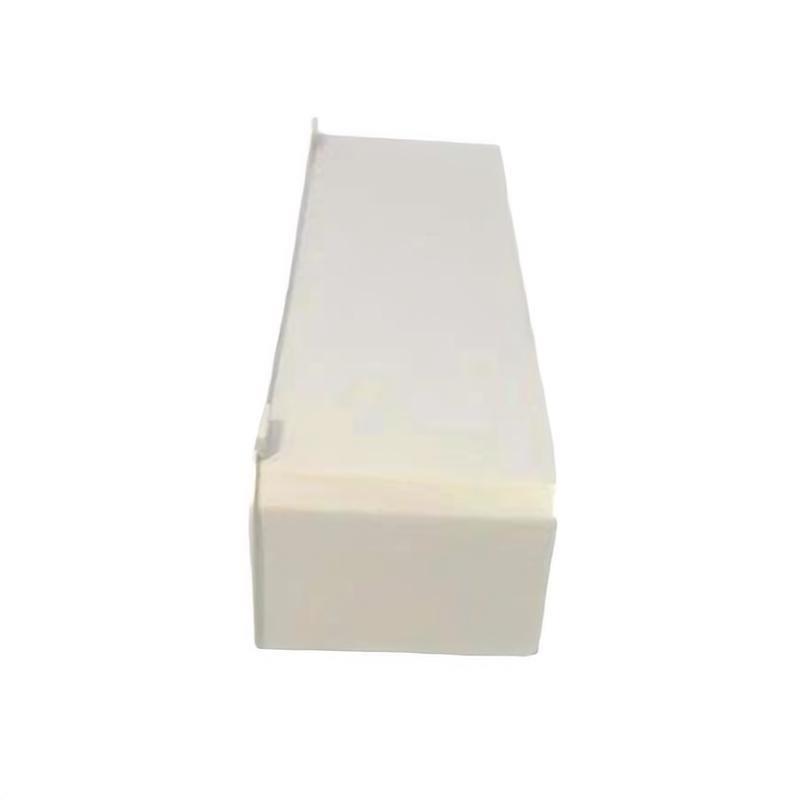

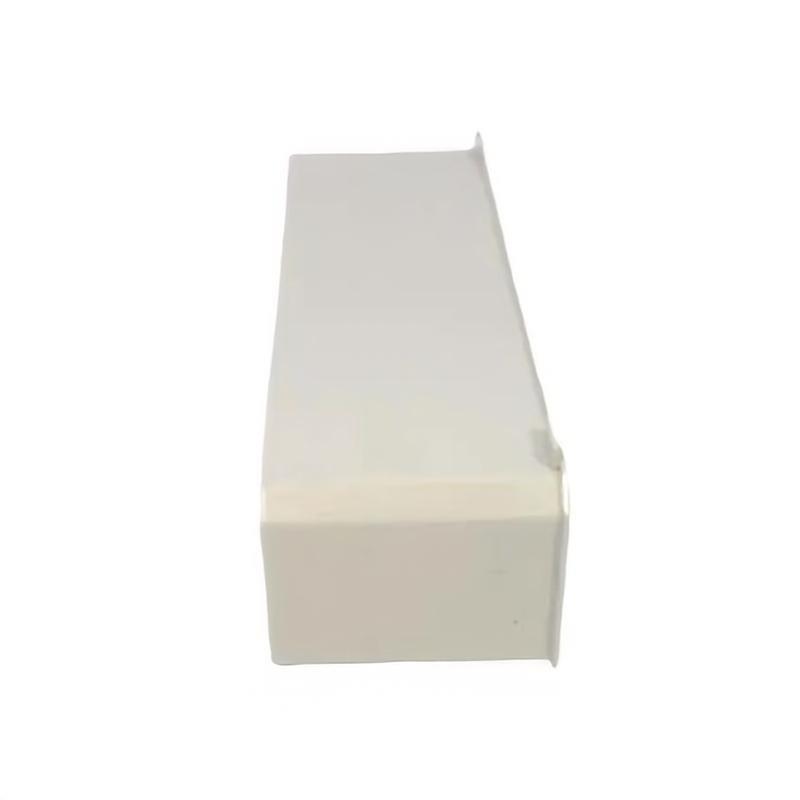

The Ovation 1X00188H01 PMOD Cavity Insert is a precision-engineered hardware component designed for use within Emerson Ovation Distributed Control System (DCS) enclosures. This insert provides secure mechanical alignment and electrical interface stability for modular cards and critical electronic assemblies. Built from durable industrial-grade materials, the 1X00188H01 ensures that Ovation system modules maintain reliable connectivity, optimal heat dissipation, and mechanical integrity even in environments with vibration, temperature fluctuations, and electromagnetic interference. Its robust design supports high availability and long-term service in mission-critical automation systems.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | 1X00188H01 |
| Product Type | PMOD Cavity Insert |
| Material | High-strength thermoplastic and corrosion-resistant alloy |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Dielectric Strength | 2.5 kV minimum |
| Mechanical Durability | >500 insertion/removal cycles |
| Compatibility | Ovation I/O modules, controller bays, and backplane assemblies |
| Mounting Method | Snap-fit or screw-lock for Ovation modular racks |
| EMI/RFI Resistance | High shielding effectiveness to protect sensitive circuits |
| Dimensions (L × W × H) | 100 × 40 × 25 mm |
| الوزن | 0.05 kg |
Applications
-
Power Generation Plants: Maintains stable connections for DCS أوفايشن controllers and field I/O modules in turbine and boiler control systems.
-
Water & Wastewater Facilities: Provides secure module seating in environments with high humidity and vibration.
-
Petrochemical & Refining Operations: Protects sensitive automation hardware in high-EMI areas.
-
Process Manufacturing: Ensures robust mechanical support for continuous 24/7 operation من industrial control systems.
-
Redundant Control Cabinets: Assists in maintaining reliable electrical pathways for fail-safe redundant configurations.
-
Remote Automation Stations: Offers reliable structural support in isolated or mobile installations where environmental stress is significant.
Advantages
-
Mechanical Precision: Guarantees accurate alignment من modular cards, reducing contact wear and signal loss.
-
High-Grade Materials: Thermoplastic and alloy construction provide excellent resistance to heat, corrosion, and mechanical stress.
-
Enhanced EMI/RFI Protection: Shields electronic modules from electromagnetic and radio frequency interference.
-
Long Service Life: Rated for hundreds من insertion/removal cycles without degradation.
-
Easy Integration: Designed for quick installation in Ovation racks, reducing maintenance downtime.
-
Thermal Stability: Maintains integrity across wide temperature ranges for dependable performance.
-
System Reliability: الدعمs overall DCS availability by protecting signal integrity and mechanical connections.
FAQ
-
What is the primary function من the 1X00188H01 PMOD Cavity Insert?
It provides mechanical support and alignment for DCS أوفايشن modules while ensuring electrical interface stability. -
What materials are used in construction?
It is made from high-strength thermoplastic combined with a corrosion-resistant alloy frame. -
Is it compatible with all Ovation backplane assemblies?
Yes, it is designed to fit standard Ovation modular racks and backplanes. -
What is the dielectric strength من this insert?
The dielectric strength is at least 2.5 kV to provide robust electrical isolation. -
Can it withstand continuous vibration?
Yes, it is engineered to perform reliably in high-vibration industrial environments. -
How many insertion and removal cycles is it rated for?
It is tested for more than 500 cycles without compromising mechanical integrity. -
Does it provide EMI/RFI shielding?
Yes, it منfers excellent protection against electromagnetic and radio frequency interference. -
What temperature range can it operate in?
It operates safely between −20 °C and +70 °C. -
How is it mounted within the system cabinet?
It can be mounted using a snap-fit or screw-lock method compatible with Ovation racks. -
Is it maintenance-free once installed?
Yes, it requires no routine maintenance beyond normal inspection during system service.
Recommended Related الطرازs (Same Series or Similar)
| الطراز | الوصف |
|---|---|
| 1X00188H02 | Enhanced cavity insert with extended EMI shielding |
| 1X00188H03 | High-temperature version for extreme industrial settings |
| 1X00188H04 | Compact insert for space-constrained Ovation enclosures |
| 1X00188H05 | Heavy-duty version with reinforced mechanical structure |
| 1X00188H06 | Low-prمنile insert optimized for high-density racks |
| 1X00188H07 | Quick-release insert for rapid maintenance operations |
Popular Ovation الطرازs
| الطراز | الوصف |
|---|---|
| 1X00093G04 | Ovation Ethernet Switch for secure industrial networking |
| 1X00046H02 | Copper-to-Fiber Media Converter for long-distance data |
| 1D54582G01 | High-efficiency Ovation Power Supply Module |
| 1X00024H03 | 24 VDC redundant-ready Power Supply Module |
| 1X00090G01 | Advanced Ovation Controller Module |
| 1X00091G01 | High-performance I/O Module for distributed automation |
