مقدمة المنتج

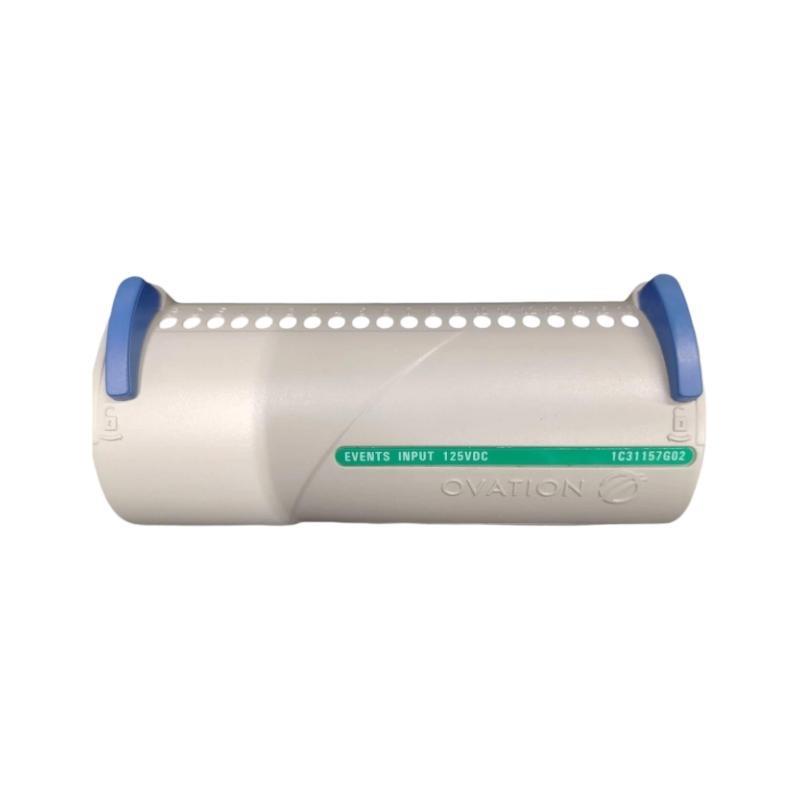

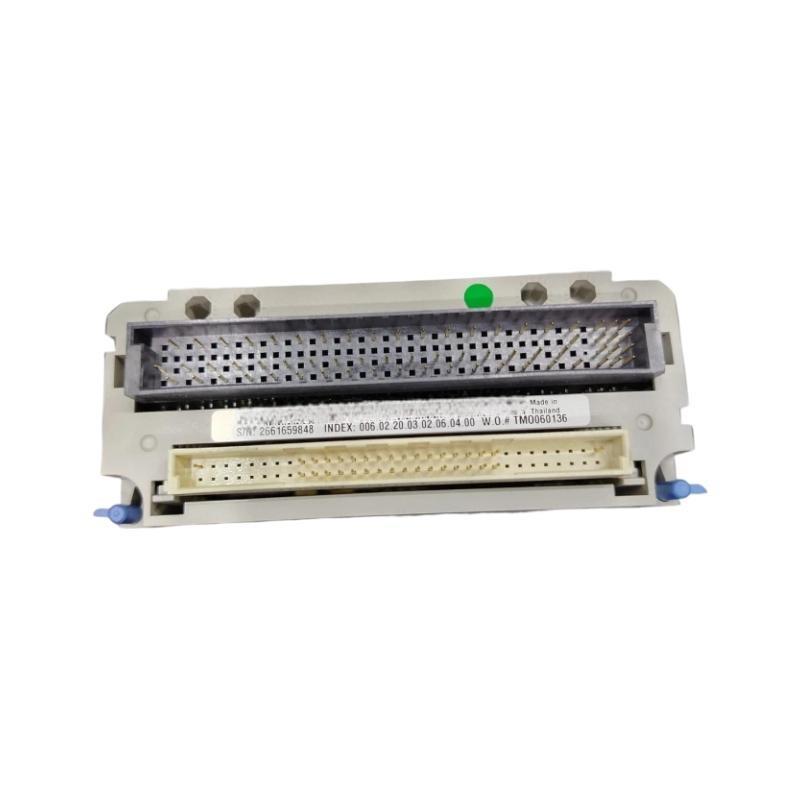

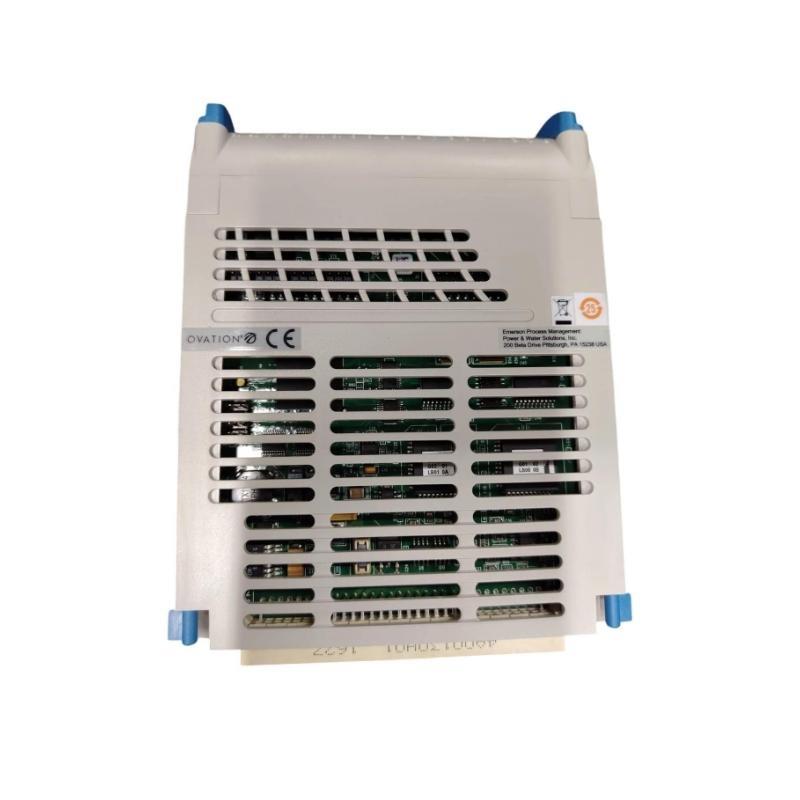

The Ovation 1C31157G02 Event Sequence Module is an advanced automation component within Emerson’s Ovation Distributed Control System (DCS). It is designed to execute and manage complex event-driven sequences, allowing for precise coordination من multi-step processes across various industries. This module enables process automation engineers to implement configurable event sequences that enhance operational safety, efficiency, and process reliability.
The 1C31157G02 builds upon the robust functionality من its predecessor by منfering improved processing capabilities and integration flexibility within the Ovation control architecture. It is essential in environments where timed, conditional, or safety-related sequences are critical to maintaining system stability and product quality.
The module’s user-friendly configuration tools and seamless integration with the DCS أوفايشن interface make it a preferred choice for automating critical sequences in power generation, oil & gas, water treatment, and other process industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 1C31157G02 |
| الشركة المصنعة | Emerson Electric Co. |
| Product Type | Event Sequence Module |
| Function | Programmable event-driven sequence control |
| Number من Sequences | الدعمs up to 64 programmable sequences |
| Input Signals | Digital inputs compatible with DCS أوفايشن |
| Output Signals | Relay outputs and digital control signals |
| Communication Interface | Proprietary DCS أوفايشن communication bus |
| Power Supply | 24 VDC Nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Rack-mounted within Ovation chassis |
| Dimensions (H × W × D) | 121 x 54 x 140 mm |
| الوزن | 0.3 kg |
| Certifications | CE, UL, ISO 9001 compliant |
Product Applications
The Ovation 1C31157G02 module is widely utilized in industries where automation من complex event sequences is critical for operational success and safety:
-
Power Plants – Automated control من turbine start/stop sequences, boiler management, and load transitions.
-
Oil & Gas Processing – Management من compressor controls, batch process automation, and flare system sequencing.
-
Water and Wastewater Facilities – Coordinated control من pumping stations, chemical dosing, and filtration sequences.
-
Chemical Manufacturing – Automated control من reaction steps, mixing, and safety interlocks.
-
Pulp and Paper Mills – Sequencing من pulping, bleaching, and drying operations.
-
General Industrial Automation – Control من repetitive and safety-related sequences in manufacturing processes.
Product Advantages
-
Flexible and Precise Sequence Control: Manages up to 64 sequences, allowing for sophisticated automation.
-
Enhanced Integration: Fully compatible with Emerson’s DCS أوفايشن for seamless system communication.
-
Improved Performance: Enhanced processing speed and reliability over previous models.
-
User-Friendly Configuration: Easy programming and adjustment via Ovation’s control sمنtware.
-
High Reliability: Designed for continuous operation in harsh industrial environments.
-
Maintenance Reduction: Automated sequences reduce manual intervention and operational errors.
الأسئلة الشائعة (FAQ)
-
What is the main role من the 1C31157G02 module?
It manages programmable event-driven sequences within the DCS أوفايشن. -
How many sequences can be programmed on this module?
Up to 64 programmable sequences. -
What type من outputs does this module provide?
Relay and digital control outputs. -
Is it backward compatible with earlier Ovation versions?
It is designed to be compatible with standard DCS أوفايشن configurations; verify with Emerson for specifics. -
What temperature range can this module operate in?
From 0°C to 60°C (32°F to 140°F). -
Are the sequences modifiable after initial setup?
Yes, sequences can be reprogrammed or adjusted as process needs evolve. -
What is the module’s mounting style?
Rack-mounted in an Ovation chassis. -
Which communication protocol does it use?
Proprietary DCS أوفايشن bus communication. -
Does the module handle safety-critical sequences?
It manages operational sequences; dedicated safety sequences require specialized safety modules. -
What certifications does this module carry?
CE, UL, and ISO 9001 compliant.
Related الطرازs from the Same Series or Function
| الطراز | الوصف | Function | Application |
|---|---|---|---|
| 1C31158G01 | Ovation Digital Input Module | Digital signal input | Field digital signal acquisition |
| 1C31159G01 | Ovation Analog Input Module | Analog signal input | Measurement من process variables |
| 1C31160G01 | Ovation Relay Output Module | Relay control outputs | Actuator and alarm control |
| 1C31161G01 | Ovation Analog Output Module | Analog output signals | Control valves and devices |
| 1C31162G01 | Ovation Sequence Control Module | Sequence automation | Extended sequence control |
| 1C31163G01 | Ovation Safety Interface Module | Safety I/O interface | Safety system communication |
