Product Introduction

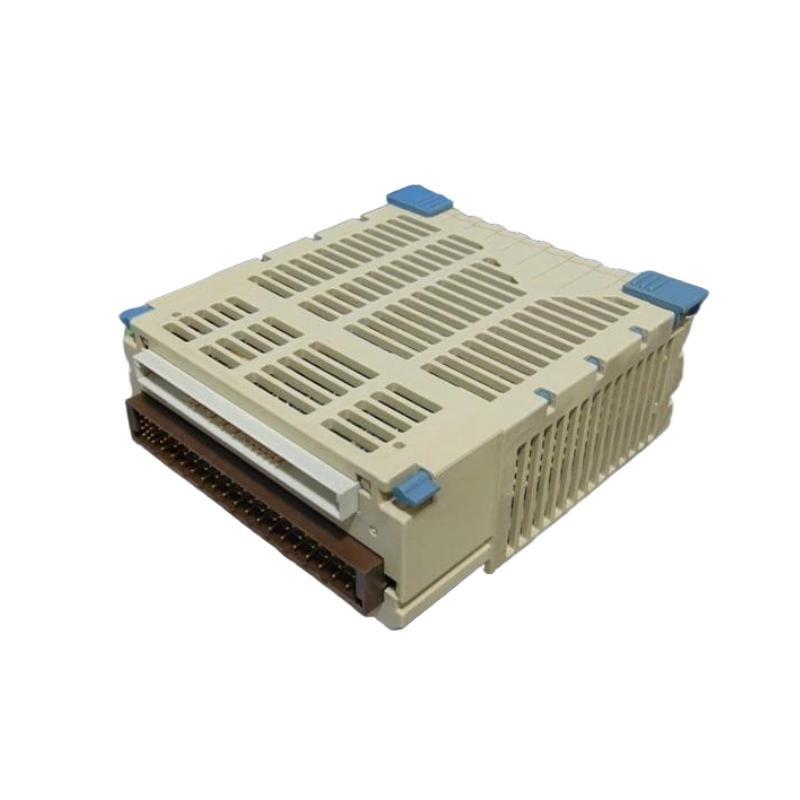

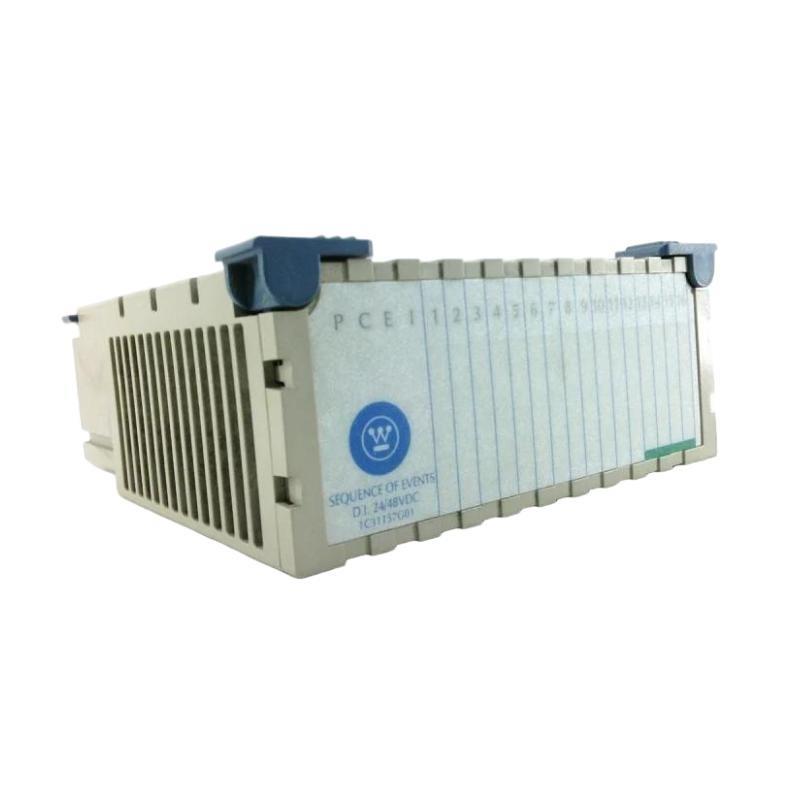

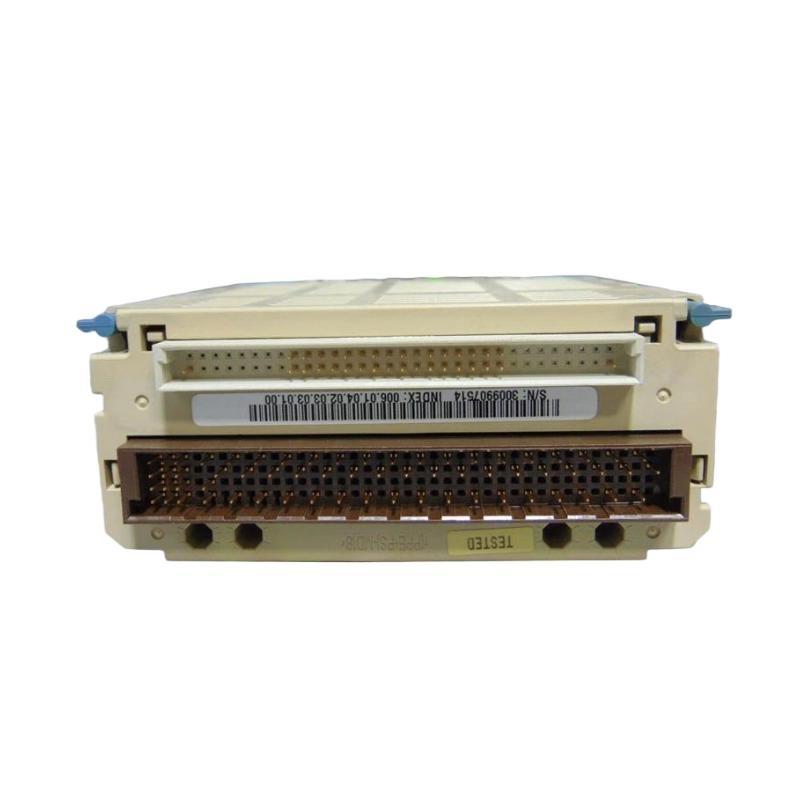

The Ovation 1C31157G01 Event Sequence Module is a critical component من Emerson’s Ovation Distributed Control System (DCS), designed to facilitate precise and reliable execution من event-driven sequences in complex industrial processes. This module enables users to automate multi-step processes by controlling and sequencing events based on logical conditions, timing, and external inputs.
Engineered for high availability and robust performance, the 1C31157G01 module integrates seamlessly into the Ovation architecture, providing operators with deterministic control over event sequences. This is essential for industries where precise timing and order من operations affect safety, efficiency, and product quality.
The module supports configurable sequences, which can be programmed and adjusted as process requirements evolve, ensuring flexibility and scalability in automation strategies.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 1C31157G01 |
| الشركة المصنعة | Emerson Electric Co. |
| Product Type | Event Sequence Module |
| Function | Controls and executes complex event-driven sequences |
| Number من Sequences | Up to 64 programmable sequences |
| Input Signals | Digital inputs compatible with Ovation control system |
| Output Signals | Relay outputs and digital control signals |
| Communication Interface | DCS أوفايشن proprietary communication bus |
| Power Supply | 24 VDC Nominal |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting | Rack-mounted within Ovation chassis |
| Dimensions (H × W × D) | 121 x 54 x 140 mm |
| الوزن | 0.3 kg |
| Certifications | CE, UL, ISO 9001 compliant |
Product Applications
The Ovation 1C31157G01 Event Sequence Module is widely deployed in industries that demand precise automation من sequences to improve operational safety, efficiency, and consistency. Typical applications include:
-
Power Generation Plants – Automation من turbine start-up/shutdown sequences, boiler control, and safety interlocks.
-
Oil and Gas Facilities – Control من batch processes, compressor sequences, and flare system operations.
-
Water and Wastewater Treatment – Sequencing من pumps, valves, and chemical dosing operations.
-
Chemical Manufacturing – Managing complex reaction and mixing sequences to optimize product quality.
-
Pulp and Paper Mills – Automation من pulping, bleaching, and drying sequences.
-
Industrial Automation – General sequence control in various manufacturing and process industries.
Product Advantages
-
Precise Sequence Control: الدعمs up to 64 programmable sequences for complex automation needs.
-
Seamless Integration: Fully compatible with Emerson’s DCS أوفايشن environment.
-
Flexible Configuration: Sequences can be easily programmed and modified to meet changing process requirements.
-
High Reliability: Designed for industrial environments with robust construction and long service life.
-
User-Friendly Interface: Integration with Ovation operator interfaces simplifies monitoring and control.
-
Reduced Downtime: Automated sequencing improves process consistency and reduces manual intervention errors.
الأسئلة الشائعة (FAQ)
-
What is the primary function من the Ovation 1C31157G01 module?
It controls and executes complex event-driven sequences within the DCS أوفايشن. -
How many sequences can this module handle?
It supports up to 64 programmable sequences. -
What type من outputs does the module provide?
Relay outputs and digital control signals. -
Is the module compatible with all Ovation system versions?
It is compatible with standard DCS أوفايشن configurations; check system version compatibility with Emerson documentation. -
What is the operating temperature range?
0°C to 60°C (32°F to 140°F). -
Can the sequences be modified after deployment?
Yes, sequences are fully configurable and can be updated as needed. -
How is the module mounted?
It is rack-mounted within the Ovation chassis. -
What communication protocol does it use?
It communicates via the proprietary DCS أوفايشن bus system. -
Does the module support safety-related sequences?
While it manages operational sequences, safety-critical sequences typically involve dedicated safety modules. -
What certifications does this product hold?
CE, UL, and ISO 9001 compliance.
Related الطرازs from the Same Series or Function
| الطراز | الوصف | Function | Application |
|---|---|---|---|
| 1C31158G01 | Ovation Digital Input Module | Digital signal acquisition | Field digital input for DCS أوفايشن |
| 1C31159G01 | Ovation Analog Input Module | Analog signal acquisition | Field analog input for process variables |
| 1C31160G01 | Ovation Relay Output Module | Relay control outputs | Control actuators and alarms |
| 1C31161G01 | Ovation Analog Output Module | Analog signal outputs | Control valves and actuators |
| 1C31162G01 | Ovation Sequence Control Module | Sequence automation | Extended sequence management |
| 1C31163G01 | Ovation Safety Interface Module | Safety-related input/output | Interface for safety instrumented systems |
