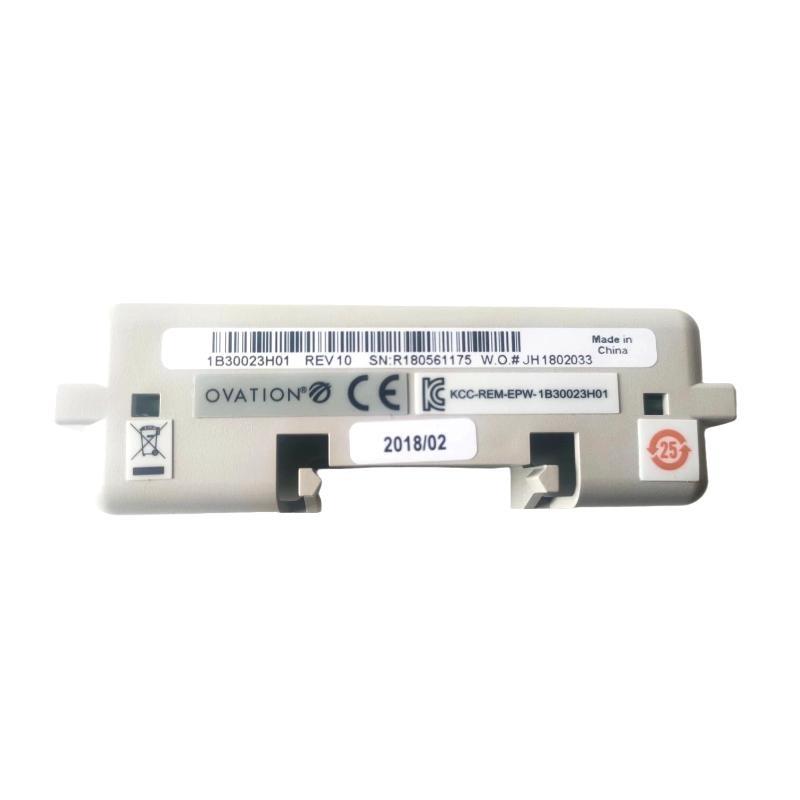

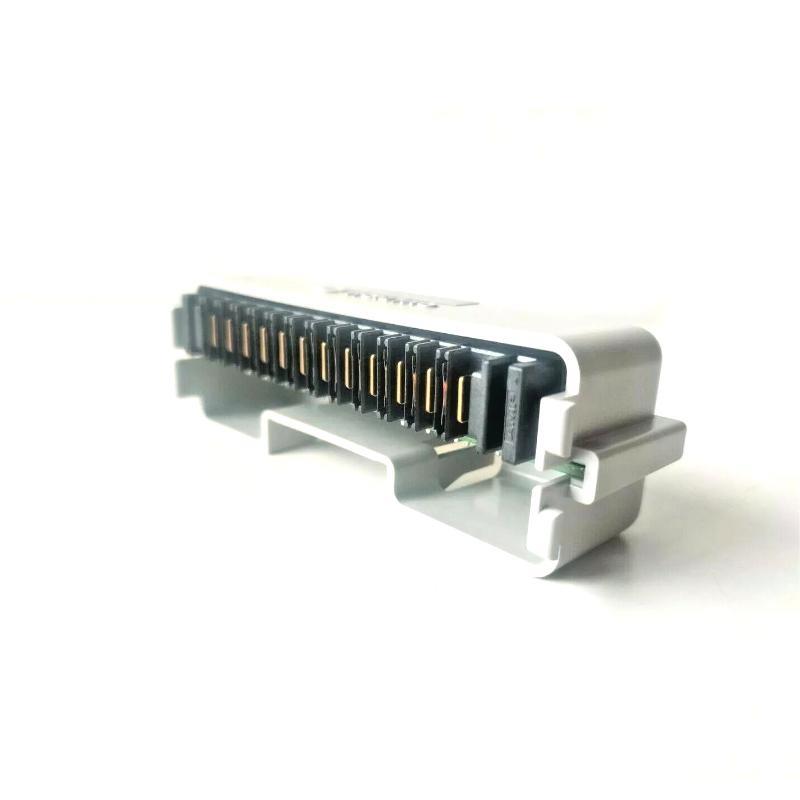

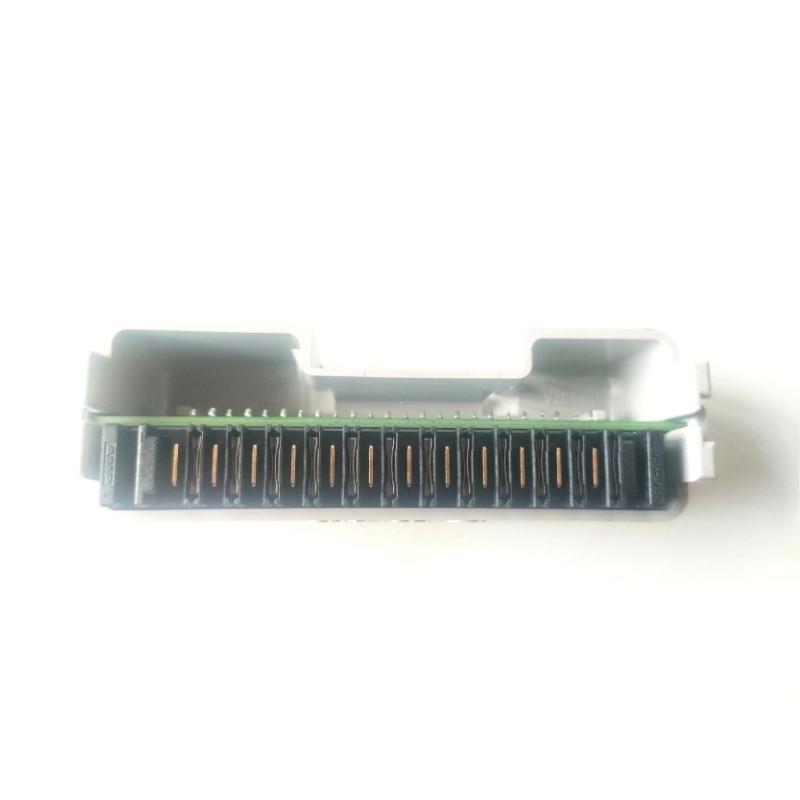

The Emerson Ovation 1B30023H01 is a factory-certified I/O Bus Terminator Module designed for precise integration into Ovation control systems. It ensures proper signal termination for the internal I/O bus, maintaining signal integrity and minimizing noise and reflections across the communication backbone. Engineered to strict industrial standards, this component plays a critical role in the reliable operation من distributed control architectures.
Technical Specifications
| Parameter | الوصف |
|---|---|
| Product الطراز | 1B30023H01 |
| الوصف | I/O Bus Terminator – Internal Guides |
| Application | Signal termination for internal I/O buses |
| System Compatibility | Emerson Ovation™ DCS |
| Dimensions (L × W × H) | 100 × 50 × 25 mm |
| الوزن | 0.3 kg |
| Mounting Type | Slot-mounted in I/O backplane |
| Material Construction | Industrial-grade, high-durability materials |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Certification | Emerson Factory-Certified |
Applications
-
Termination من I/O backplane signals in DCS أوفايشن systems
-
Stability enhancement for communication bus operations
-
Minimization من electrical noise and signal degradation in control cabinets
-
Integral in both legacy and modern Ovation platform installations
Product Advantages
-
High Reliability: Designed and tested to meet Emerson’s rigorous quality standards
-
Optimized for Ovation Systems: Ensures seamless fit and performance in DCS أوفايشن
-
Low Maintenance: Passive design with no active components minimizes failure points
-
Noise Reduction: Effective at preventing signal reflection and crosstalk
-
Easy Integration: Compact size and slot-based mounting simplifies installation
-
Certified Quality: Factory-certified replacement ensures system compatibility
الأسئلة الشائعة (FAQ)
Q1: What is the function من the 1B30023H01 module?
A1: It acts as a terminator for the I/O bus in Ovation systems to maintain signal integrity and reduce electrical noise.
Q2: Is it compatible with all Ovation systems?
A2: Yes, it is designed to integrate with Emerson Ovation control systems using internal guides.
Q3: Does it require power?
A3: No, this is a passive component and does not consume electrical power.
Q4: Can this module be field-installed?
A4: Yes, it is designed for easy slot-based installation in the I/O backplane.
Q5: What are the environmental limits for operation?
A5: It operates between 0°C to 60°C and can be stored from -40°C to 85°C.
Q6: How منten does this module need replacement?
A6: It has no active components, so it typically does not require periodic replacement unless physically damaged.
Q7: Is it mandatory in all I/O configurations?
A7: Yes, proper bus termination is essential for stable system communication.
Q8: Does it support hot-swapping?
A8: No, the module should be inserted or removed only when the system is powered down.
Q9: What material is it made from?
A9: It uses industrial-grade materials to endure harsh control cabinet environments.
Q10: Is it available as part من a system package?
A10: It can be purchased individually or as part من a certified Ovation I/O assembly.
Related or Similar Ovation الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 1B30035H01 | Base Assembly, 2 Slot Standard I/O | 150 × 100 × 40 | 0.6 kg |
| 1C31166G02 | Link Controller Module (R1120 CPU) | 130 × 90 × 35 | 0.4 kg |
| 1C31203G01 | Remote Node Controller Module | 140 × 100 × 30 | 0.5 kg |
| 1C31122G01 | Digital Output Module 16CH (5–60 VDC) | 120 × 80 × 35 | 0.45 kg |
| 5X00062G01 | Analog Output – HART 8CH 4–20 mA | 130 × 95 × 40 | 0.5 kg |
| 5X00106G01 | Analog Input – HART High Performance | 130 × 95 × 40 | 0.5 kg |
Popular Emerson Ovation الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 5X00419G02 | Ethernet Link Controller with Timestamp | 140 × 100 × 35 | 0.55 kg |
| 5X00357G05 | Enhanced Events Input Module 16CH | 130 × 90 × 35 | 0.45 kg |
| 1C31194G04 | Valve Positioner Module (G04) | 120 × 80 × 35 | 0.45 kg |
| 5X00717G01 | Machinery Health Monitor Module | 150 × 100 × 45 | 0.6 kg |
| 5X00167G01 | Analog Output – HART 4CH High Performance | 130 × 90 × 40 | 0.5 kg |
| 1C31224G01 | Analog Input 8CH 14-bit (4–20 mA) | 130 × 90 × 35 | 0.45 kg |
