مقدمة المنتج

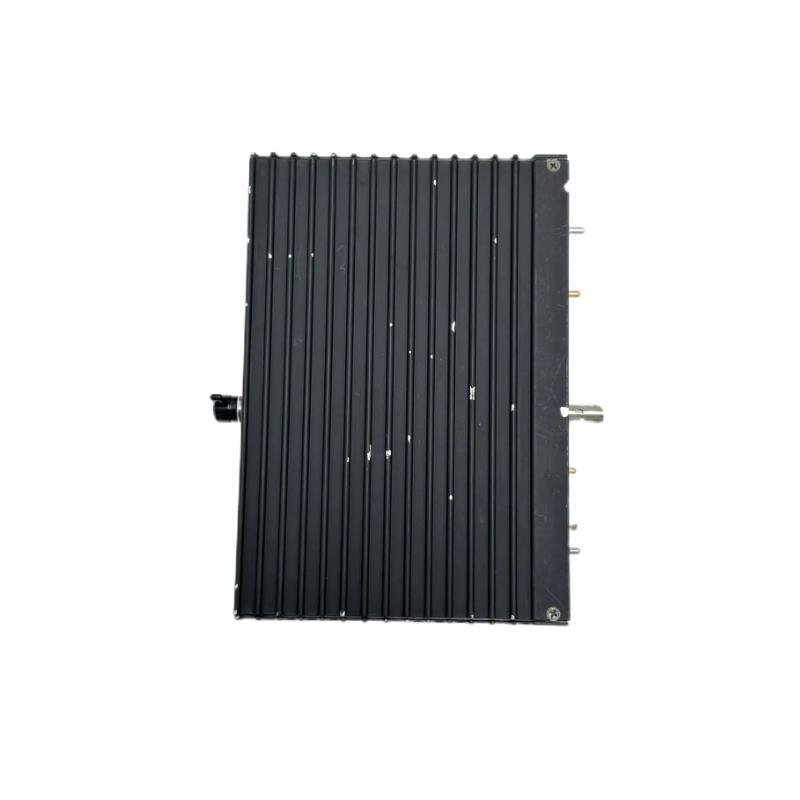

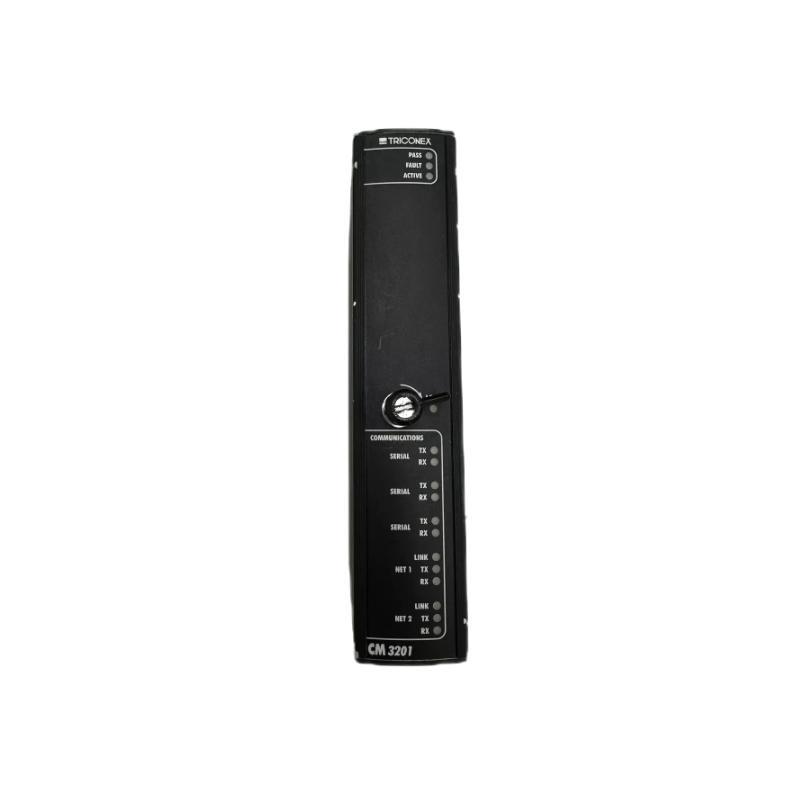

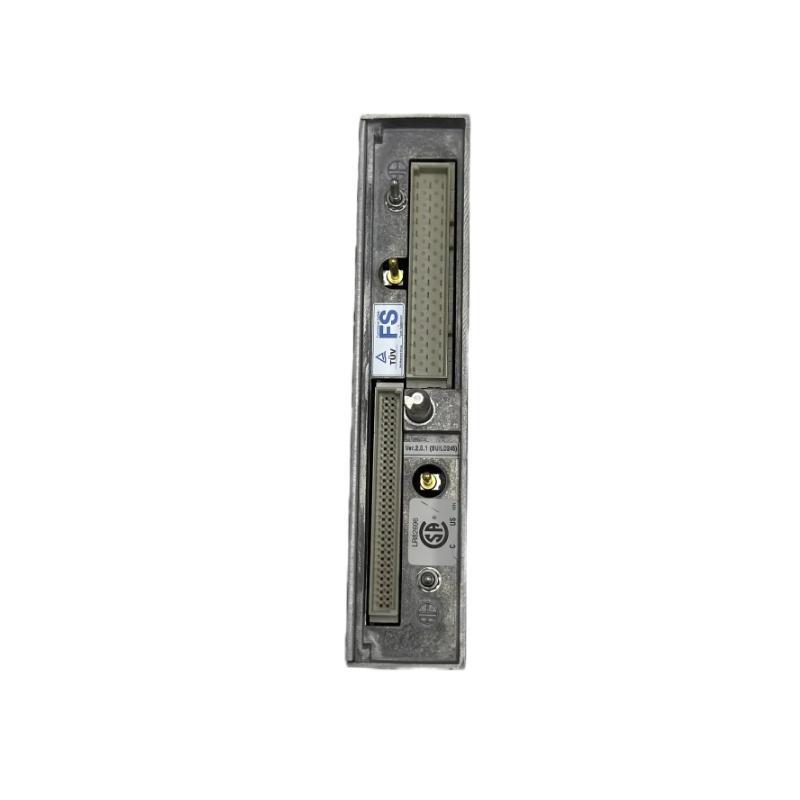

The إنفينسيس ترايكونيكس 3201 Communication Module is a vital component within the Triconex safety and critical control systems. Designed to facilitate seamless communication between the Triconex system and external devices or networks, this module ensures reliable data exchange essential for maintaining operational safety and efficiency in various industrial applications.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | 3201 |
| Type | Communication Module |
| Nominal Input Voltage | 24 V DC |
| Specified Operating Voltage Range | 24 V DC –15% or +20% + 5% AC ripple (19.2 to 30 V DC) |
| Absolute Maximum Input Voltage | 33 V DC |
| Input Power Interruption Time | 1 ms maximum |
| Repetition Rate | 1 sec minimum |
| Dimensions (L x W x H) | 220 x 169 x 44 mm |
| الوزن | 5 kg |
| Communication Ports | 3 RS-232 or RS-485 serial ports; 2 Ethernet ports |
| Port Isolation | 500 V DC |
| Mounting | Compatible with Triconex system baseplates |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Compliance | Designed to meet industrial standards for safety and performance |
Applications
The Triconex 3201 Communication Module is utilized across various industries to ensure safe and efficient operations:
-
Oil and Gas Industry: Manages communication between safety systems and control networks in exploration, production, and refining processes.
-
Chemical and Petrochemical Plants: Ensures reliable data exchange for process safety and control systems.
-
Power Generation Facilities: Integrates safety instrumented systems with plant control networks to maintain operational integrity.
-
Manufacturing Industries: Facilitates communication between safety controllers and automation systems to protect personnel and equipment.
-
Pharmaceutical Industry: Maintains stringent safety protocols by ensuring accurate data transmission between control systems.
Advantages
-
High Reliability: Ensures continuous operation من safety-critical systems through robust communication protocols.
-
Versatile Connectivity: الدعمs multiple communication interfaces, including serial and Ethernet ports, for flexible integration.
-
Fast Response Time: Minimal input power interruption time (<1 ms) ensures prompt data transmission.
-
Electrical Isolation: Port isolation up to 500 V DC enhances system protection against electrical interference.
-
Compact Design: Optimized dimensions facilitate easy installation within existing control systems.
-
Wide Operating Range: Designed to function effectively in diverse environmental conditions, supporting global applications.
-
Compliance with Standards: Meets industrial safety and performance standards, ensuring compatibility and reliability.
-
Redundant Communication: الدعمs redundant configurations to enhance system availability and fault tolerance.
-
Scalability: Easily integrates into existing systems, allowing for future expansion and upgrades.
-
الشركة المصنعة الدعم: Backed by إنفينسيس ترايكونيكس’s expertise, منfering technical support and resources.
Latest News Titles
-
“إنفينسيس ترايكونيكس 3201 Module Enhances Safety in Chemical Plants” – Published: March 2025
-
“Oil & Gas Sector Adopts Triconex 3201 for Improved Communication” – Published: February 2025
-
“Triconex 3201 Module Receives Industry Safety Certification” – Published: January 2025
-
“New Firmware Update Boosts Triconex 3201 Performance” – Published: December 2024
-
“Global Manufacturing Plants Integrate Triconex 3201 for Safety” – Published: November 2024
الأسئلة الشائعة (FAQs)
1. What is the primary function من the Triconex 3201 Communication Module?
The 3201 module facilitates communication between Triconex safety systems and external devices or networks, ensuring reliable data exchange.
2. Which communication protocols does the 3201 module support?
It supports multiple protocols, including Ethernet and serial communications (RS-232/RS-485), for versatile connectivity.
3. Can the 3201 module operate in hazardous environments?
Yes, it is designed to meet industrial safety standards, making it suitable for use in various industrial settings.
4. How does the module ensure data integrity during power fluctuations?
The module has an input power interruption tolerance من up to 1 ms, maintaining data integrity during brief power disturbances.
5. Is the 3201 module compatible with other Triconex system components?
Yes, it is designed for seamless integration with other Triconex modules and controllers.
6. What are the mounting requirements for the 3201 module?
The module is compatible with Triconex system baseplates, facilitating straightforward installation.
7. Does the module support redundant communication configurations?
Yes, it supports redundant setups to enhance system reliability and fault tolerance.
8. What maintenance is required for the 3201 module?
Regular inspections and firmware updates as recommended by the manufacturer ensure optimal performance.
9. How does the module handle electrical interference?
It features port isolation up to 500 V DC, protecting against electrical noise and interference.
9. How does the module handle electrical interference?
It features port isolation up to 500 V DC, protecting against electrical noise and interference.
9. How does the module handle electrical interference?
It features port isolation up to 500 V DC, protecting against electrical noise and interference.
10. What is the input power requirement for the Triconex 3201 module?
The module operates at 24V DC nominal input voltage with a tolerance range من 19.2V to 30V DC and an absolute maximum input voltage من 33V DC. It is built to handle power interruptions من up to 1 ms without affecting performance.
