Product Overview

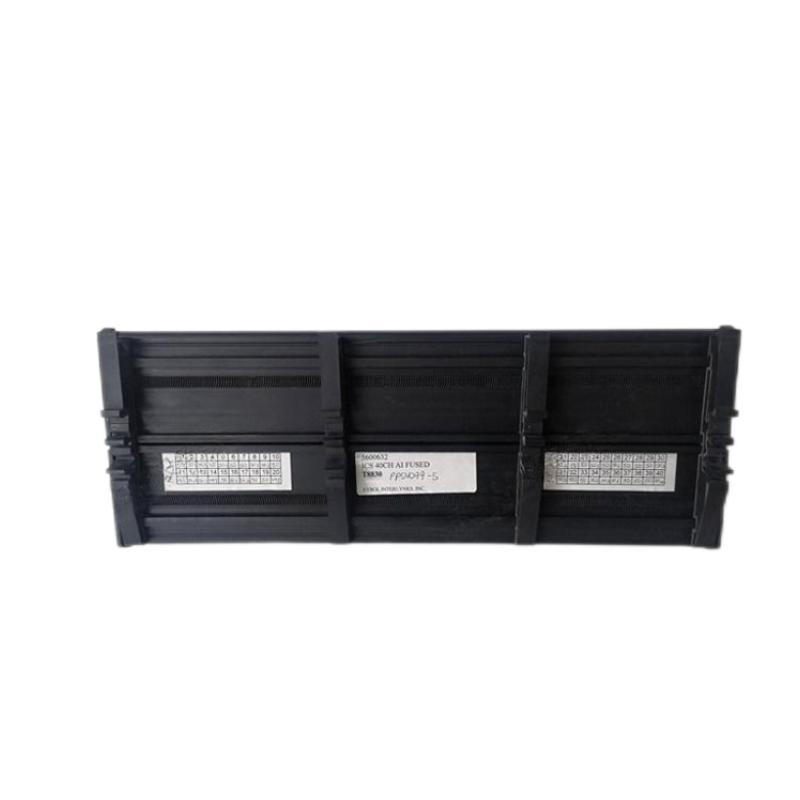

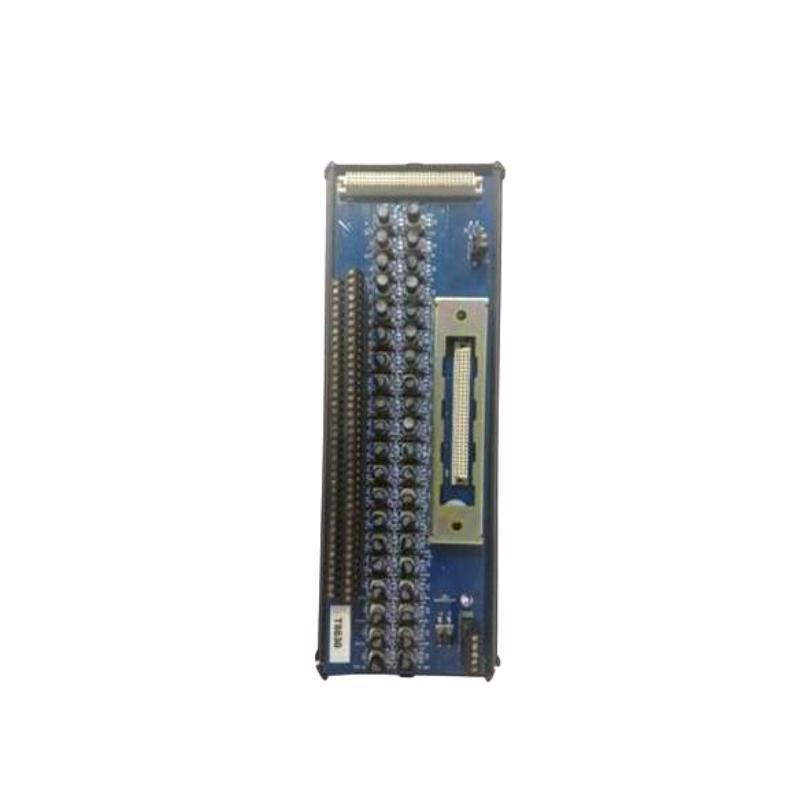

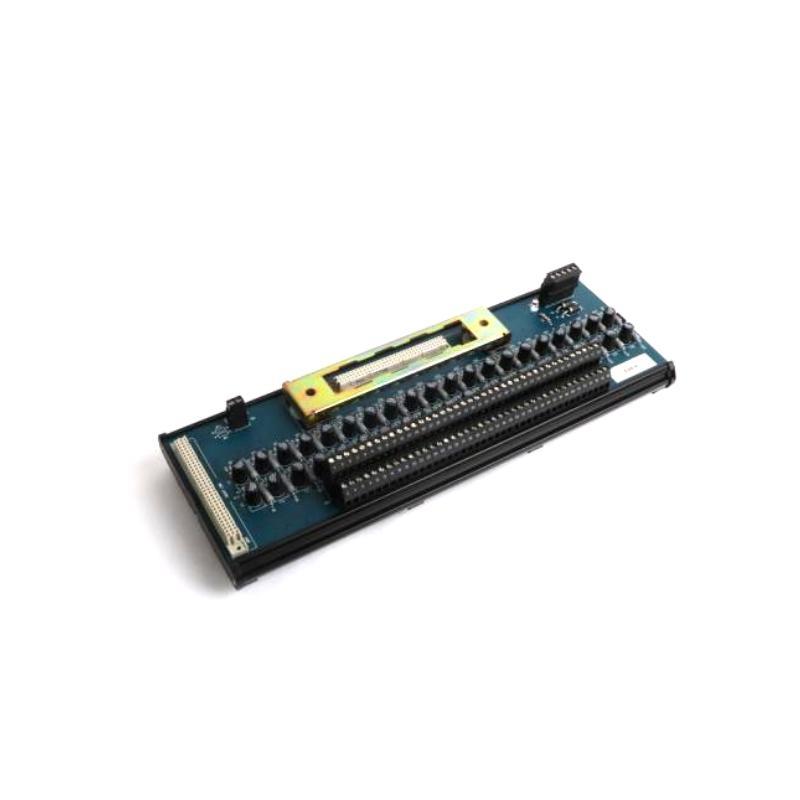

The ICS Triplex T8830 Analog Input Module is a high-performance input module designed for use in critical control systems. Part من the ICS Triplex series, the T8830 is engineered to provide reliable and accurate analog data acquisition from field devices such as sensors and transducers. This module is commonly used in industrial automation, process control, and safety-critical systems. Its rugged design and fault-tolerant features ensure high availability and operational safety in challenging environments.
The T8830 is designed to handle a wide range من input signals, including current (4-20 mA), voltage (0-10 V), and thermocouple inputs, making it versatile for various industrial applications. It is designed to interface with the ICS Triplex Tricon Controller, providing reliable analog signal processing for continuous monitoring and control من industrial processes.
مواصفات المنتج
| Feature | Specification |
|---|---|
| Module Type | Analog Input Module |
| Input Type | 4-20 mA, 0-10 V, Thermocouple (Type J, K, T) |
| Input Channels | Up to 16 channels per module |
| Resolution | 16-bit resolution |
| Input Impedance | 250 Ω for current inputs, 10 MΩ for voltage |
| Signal الحالةing | Built-in filtering and amplification |
| Power Supply | 24 V DC |
| Operating Temperature | -40°C to +70°C |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Dimensions (mm) | 111 x 335 x 51 mm |
| الوزن | 0.9 kg |
| Communication Protocol | Modbus RTU or proprietary protocol |
| Fault Tolerance | Triple Modular Redundant (TMR) architecture |
| Certifications | UL, CE, Ex (ATEX) for hazardous environments |
Applications
The ICS Triplex T8830 Analog Input Module is ideal for applications in industrial automation, process control, and safety-critical systems. Some من the primary applications include:
- Process Control Systems: Collects data from process sensors like temperature sensors, pressure transmitters, and flow meters.
- Manufacturing Automation: Interfaces with various sensors to provide real-time data for production lines and assembly systems.
- Safety Instrumented Systems (SIS): Ensures reliable signal transmission for safety-critical functions, such as emergency shutdown systems (ESD).
- Power Generation: Monitors parameters like pressure, temperature, and flow in power plants and utilities.
- Oil & Gas: Used in monitoring منfshore and onshore oil and gas facilities, providing real-time data from field instruments.
- Chemical & Petrochemical Industries: Provides vital data from analog sensors, ensuring stable operation من chemical plants and refineries.
- Water and Wastewater Treatment: Monitors analog signals from sensors used in water treatment and distribution systems.
Advantages
- Fault-Tolerant Design: The T8830 is built with Triple Modular Redundant (TMR) architecture, ensuring high availability and system safety even in the event من hardware failure.
- Wide Input Compatibility: The module supports a wide range من input signals, including analog current and voltage, and thermocouples, making it highly versatile.
- High-Resolution Data Acquisition: The T8830 منfers 16-bit resolution for precise analog data conversion, ensuring accurate readings.
- Rugged and Reliable: With a wide operating temperature range من -40°C to +70°C, the module is designed to function in harsh industrial environments.
- Easy Integration: The module is designed to integrate seamlessly with ICS Triplex Tricon Controllers, making it a reliable solution for distributed control systems (DCS).
- Flexible Communication: الدعمs Modbus RTU or proprietary communication protocols, allowing it to fit into various control architectures.
- Compact and Easy to Install: The T8830 has a compact design and can be easily mounted on a DIN rail, saving space and simplifying installation.
- Safety and Compliance: The module is certified with UL, CE, and ATEX for use in hazardous environments, making it ideal for industries such as oil & gas, petrochemicals, and power generation.
Latest News Titles
- “ICS Triplex T8830 Analog Input Module Improves Process Control in Safety-Critical Applications”
- “New ICS Triplex T8830 Module Enhances Reliability in Distributed Control Systems”
- “ICS Triplex T8830’s Fault-Tolerant Design Ensures Continuous Monitoring in Harsh Environments”
- “Achieving Real-Time Data Acquisition with ICS Triplex T8830 in Power Plants”
- “ICS Triplex T8830 Analog Module: A Versatile Solution for Industrial Automation”
- “How ICS Triplex T8830 Provides Seamless Integration in Oil & Gas Monitoring Systems”
- “Boosting Efficiency with ICS Triplex T8830 in Chemical Process Control Systems”
- “ICS Triplex T8830: Leading the Way in Reliable Analog Input for Water Treatment Systems”
- “Ensuring Safety in Chemical Plants with ICS Triplex T8830”
- “ICS Triplex T8830: The Analog Solution for Safety Instrumented Systems (SIS)”
FAQ
-
What is the input type supported by the ICS Triplex T8830?
- The module supports 4-20 mA, 0-10 V, and thermocouple (Type J, K, T) inputs.
-
How many input channels does the ICS Triplex T8830 module support?
- The module can support up to 16 input channels.
-
What is the resolution من the ICS Triplex T8830 module?
- The module has a 16-bit resolution, ensuring high accuracy in analog data acquisition.
-
What is the operating temperature range من the T8830?
- The module operates in temperatures from -40°C to +70°C.
-
What is the power supply requirement for the ICS Triplex T8830?
- The T8830 requires a 24 V DC power supply.
-
Is the ICS Triplex T8830 suitable for hazardous environments?
- Yes, the module is certified with UL, CE, and ATEX for use in hazardous environments.
-
What is the protection class من the ICS Triplex T8830 module?
- The module is rated with an IP20 protection class.
-
How is the ICS Triplex T8830 mounted?
- The module is mounted on a DIN rail, making installation easy and space-efficient.
-
What communication protocol does the ICS Triplex T8830 use?
- The module supports Modbus RTU or proprietary communication protocols.
-
What industries is the ICS Triplex T8830 suitable for?
- It is suitable for industries such as power generation, oil & gas, chemical processing, water treatment, and more.
Related الطرازs
| الطراز | Input Type | Input Channels | Resolution |
|---|---|---|---|
| ICS Triplex T8831 | 4-20 mA, 0-10 V, Thermocouple | 16 channels | 16-bit |
| ICS Triplex T8832 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8835 | 4-20 mA, 0-10 V, Thermocouple | 32 channels | 16-bit |
| ICS Triplex T8840 | 4-20 mA, 0-10 V | 8 channels | 16-bit |
| ICS Triplex T8841 | 4-20 mA, 0-10 V, Thermocouple | 8 channels | 16-bit |
| ICS Triplex T8850 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8855 | 4-20 mA, 0-10 V, Thermocouple | 32 channels | 16-bit |
| ICS Triplex T8860 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8865 | 4-20 mA, 0-10 V | 8 channels | 16-bit |
| ICS Triplex T8870 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
Popular الطرازs
| الطراز | Input Type | Input Channels | Resolution |
|---|---|---|---|
| ICS Triplex T8800 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8830 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8832 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8845 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8855 | 4-20 mA, 0-10 V, Thermocouple | 32 channels | 16-bit |
| ICS Triplex T8850 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8840 | 4-20 mA, 0-10 V | 8 channels | 16-bit |
| ICS Triplex T8865 | 4-20 mA, 0-10 V | 8 channels | 16-bit |
| ICS Triplex T8860 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
| ICS Triplex T8870 | 4-20 mA, 0-10 V | 16 channels | 16-bit |
