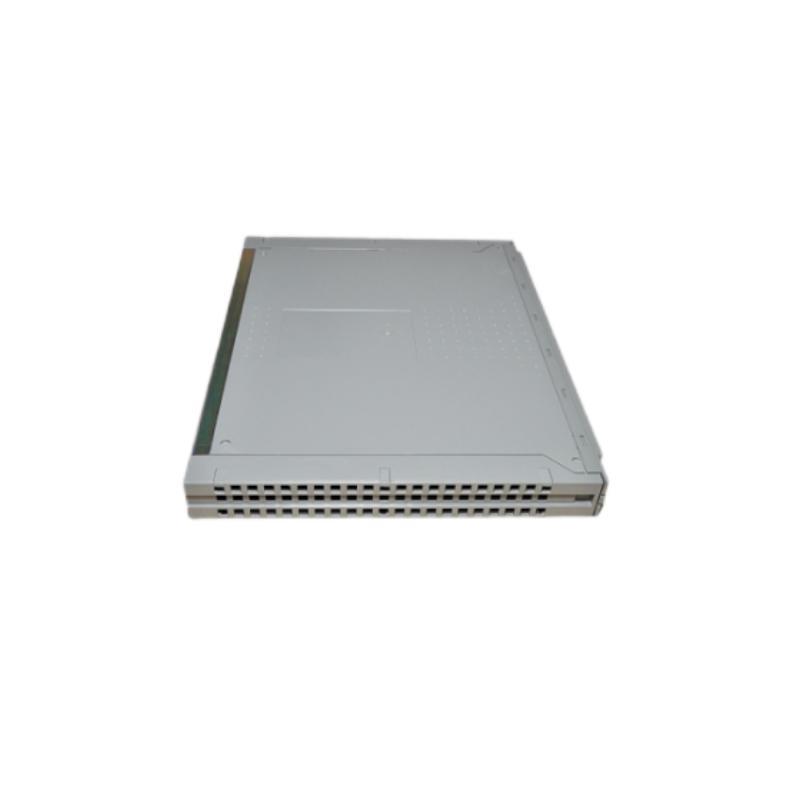

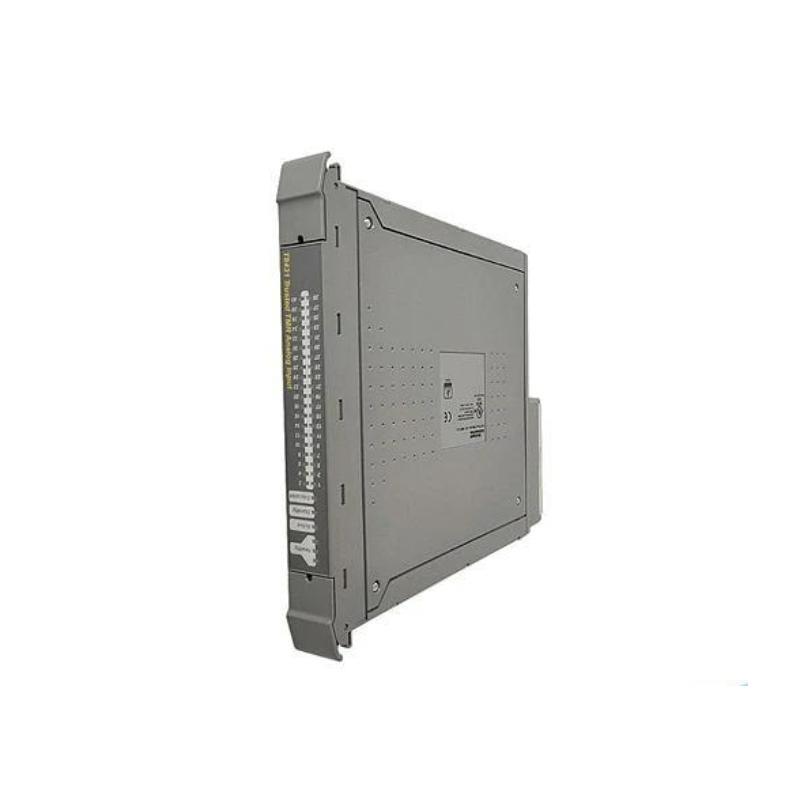

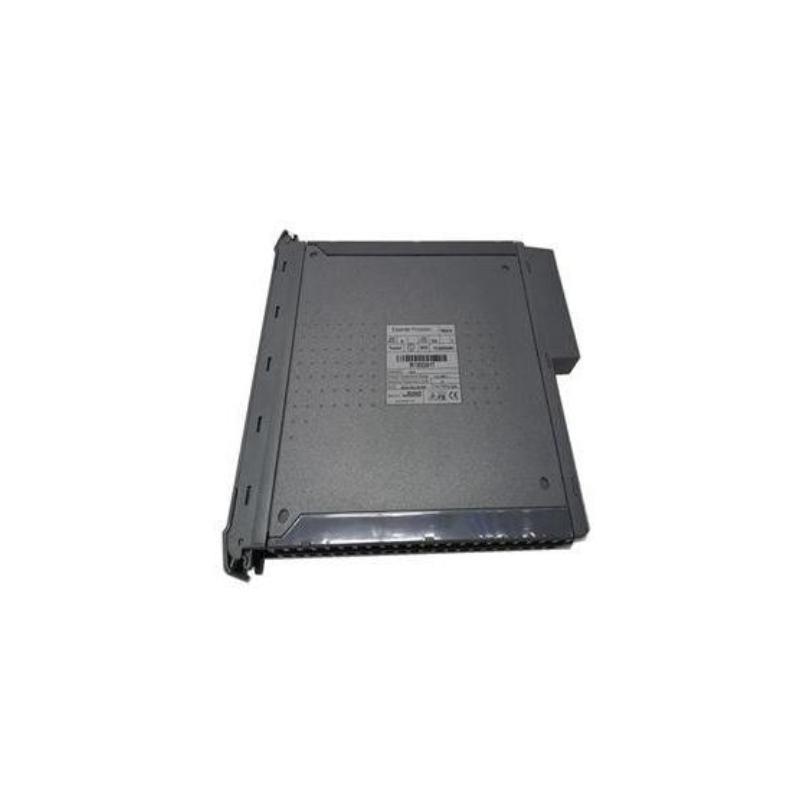

ICS Triplex T8431 Analog Input Module

مقدمة المنتج

The ICS Triplex T8431 Analog Input Module is a high-performance component designed for industrial automation systems, particularly within the Trusted® Triple Modular Redundant (TMR) architecture. This module interfaces with up to 40 sourcing field input devices, acting as a current sink for each. It is engineered to ensure fault tolerance and reliability in critical industrial applications, making it an essential part من safety and control systems.

مواصفات المنتج

Below is a detailed table outlining the key specifications من the T8431 module:

Applications

The T8431 Analog Input Module is utilized across various industries due to its reliability and precision. Key applications include:

• Process Control Systems: Monitoring and controlling variables such as temperature, pressure, and flow in industries like oil and gas, chemical processing, and pharmaceuticals.

• Power Generation: Managing and monitoring critical parameters in power plants to ensure efficient and safe operations.

• Manufacturing Automation: Integrating with automated systems to monitor machinery performance and product quality.

• Safety Instrumented Systems (SIS): Implementing in safety-critical applications where reliable data acquisition is paramount to prevent hazardous situations.

Advantages

The T8431 module منfers several advantages that make it suitable for demanding industrial environments:

1. Triple Modular Redundancy (TMR): Ensures fault tolerance by using three parallel modules to compare and validate data, enhancing system reliability.

2. High Channel Density: الدعمs up to 40 input channels per module, allowing for efficient use من space and resources.

3. Comprehensive Diagnostics: Performs automatic diagnostic tests on each input channel to detect and report faults promptly.

4. Selectable Line Monitoring: Offers configurable line monitoring per channel to detect open and short circuit conditions in field wiring.

5. Robust Isolation: Features a 2500V impulse withstand opto/galvanic isolation barrier, protecting the system from electrical noise and surges.

6. Fast Update Rate: Provides a sample update time من 0.5 ms, ensuring timely data acquisition for real-time control applications.

7. High Resolution and Accuracy: Delivers a resolution من 3.9 µA and safety accuracy من ±1% full scale, suitable for precise measurements.

8. Hot-Swappable: Allows for module replacement without shutting down the system, minimizing downtime.

9. Wide Operating Range: Designed to operate in a broad temperature range and high humidity conditions, making it versatile for various environments.

10. Compact Design: Its dimensions and weight make it easy to integrate into existing systems without requiring significant space.

Latest News

1. “ICS Triplex Enhances T8431 Module with Advanced Diagnostics”: The latest firmware update introduces improved diagnostic capabilities for real-time fault detection.

2. “T8431 Module Certified for Use in Hazardous Environments”: The module now meets stringent safety standards, allowing deployment in explosive atmospheres.

3. “Integration من T8431 with Industry 4.0 Systems”: ICS Triplex announces compatibility من the T8431 module with modern industrial IoT platforms.

4. “ICS Triplex Releases T8431 Module with Enhanced Cybersecurity Features”: New security measures have been implemented to protect against cyber threats.

5. “T8431 Module Achieves SIL3 Certification”: The module has been certified to Safety Integrity Level 3, ensuring high reliability for safety-critical applications.

الأسئلة الشائعة

1. What type من signals does the ICS Triplex T8431 module support?
   The T8431 module is designed to handle analog input signals, including current (0-22mA) and voltage (0-6V DC), making it suitable for various industrial applications.

2. How many input channels does the T8431 module have?
   This module supports up to 40 input channels, providing high-density signal acquisition in critical control and monitoring systems.

3. Can the T8431 module be hot-swapped?
   Yes, it is a hot-swappable module, allowing maintenance or replacement without shutting down the system, ensuring continuous operation.

4. What is the accuracy من the T8431 module?
   The module منfers high accuracy, with a resolution من 3.9 µA and a safety accuracy من ±1% من full scale, ensuring precise data collection.

5. Is the T8431 module compatible with other ICS Triplex modules?
   Yes, it is fully compatible with other ICS Triplex Trusted® system modules, allowing seamless integration into existing configurations.

6. What kind من fault detection features does the T8431 module provide?
   The module has built-in diagnostic capabilities, including fault detection for open and short circuits, overvoltage protection, and self-test mechanisms.

7. What are the environmental operating conditions for the T8431 module?
   The T8431 module operates within a temperature range من -5°C to 60°C and a humidity range من 10-95% RH (non-condensing).

8. What safety certifications does the T8431 module have?
   The module is SIL3-certified, meaning it meets stringent safety requirements for use in critical control systems.

9. What is the power consumption من the T8431 module?
   The module consumes between 15W and 18W من power, depending on the system configuration and load conditions.

10. What industries typically use the ICS Triplex T8431 module?
    It is commonly used in industries such as oil and gas, power generation, chemical processing, and manufacturing automation, where reliable data acquisition is essential for safety and efficiency.
