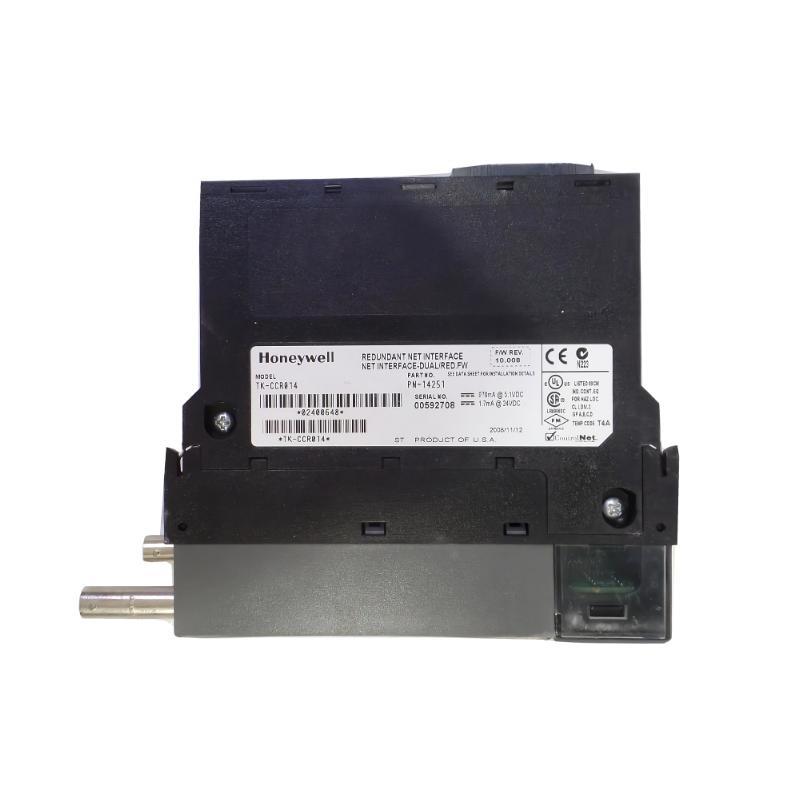

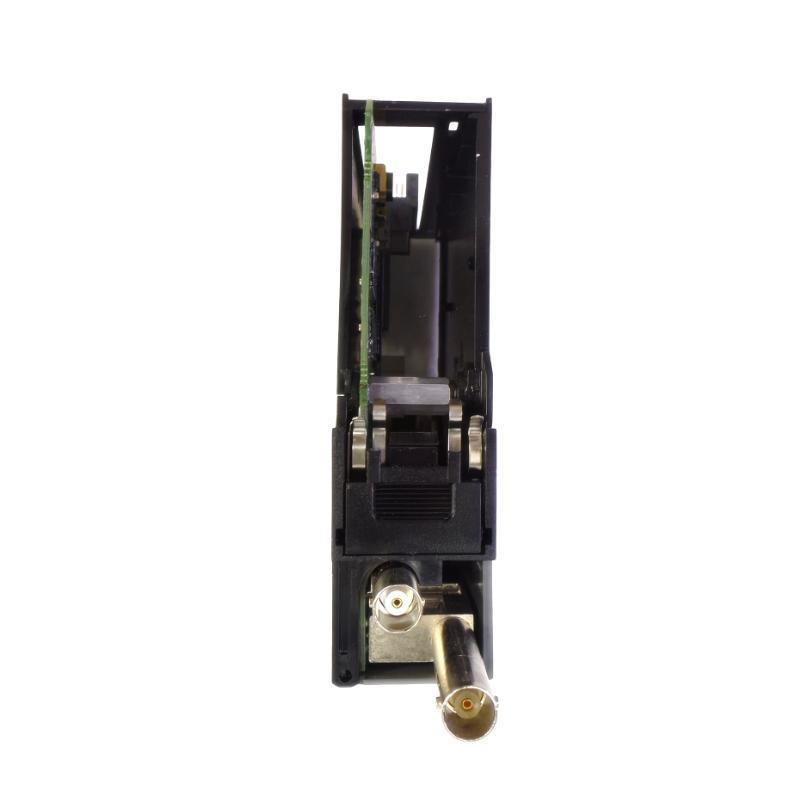

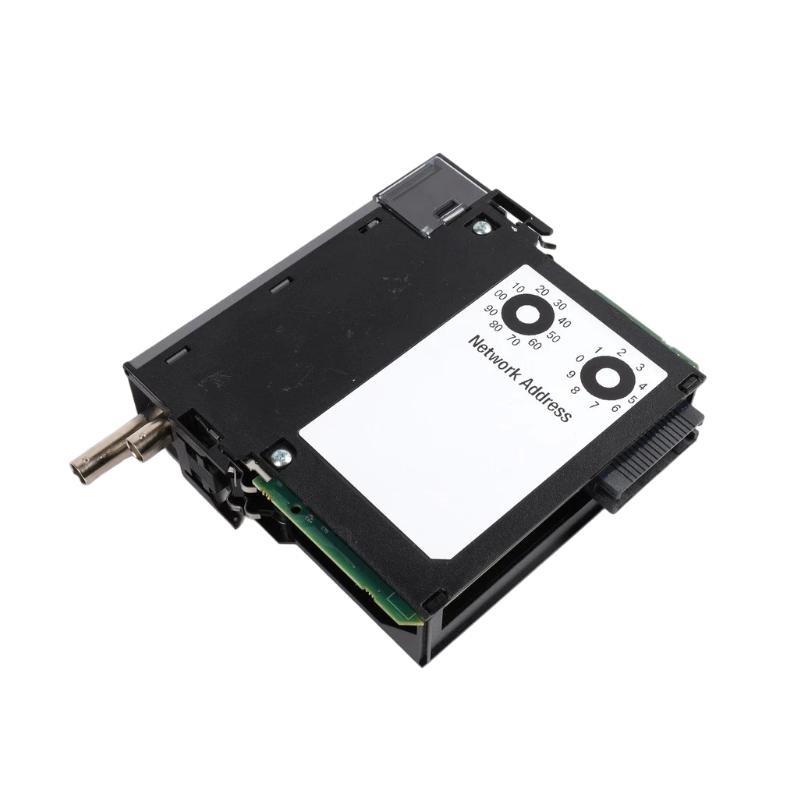

The Honeywell TK-CCR014 Redundant Net Interface Module is an industrial-grade communication module designed for integration into Honeywell’s TDC 3000 and Experion PKS Distributed Control Systems (DCS). Its primary role is to ensure high-speed and reliable communication across redundant networks, enabling continuous and fault-tolerant data transfer between controllers and remote field devices.
As a core component within critical process automation architectures, the TK-CCR014 helps ensure that even in the event من a primary network failure, the control system can continue operating seamlessly by switching to the redundant channel. It supports deterministic communication protocols and ensures integrity and synchronization across redundant networks.
With Honeywell’s robust industrial design, this module is engineered for 24/7 uptime, hot-swap capability, and long-term field performance, making it a key part من plant safety, availability, and control integrity.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | TK-CCR014 |
| Function | Redundant Network Interface Module |
| الدعمed Network | Control Network Redundancy (CNet) |
| Communication Speed | 10/100 Mbps Ethernet |
| Protocol الدعم | Honeywell proprietary CNet, TCP/IP |
| Mounting Type | Chassis Mounted |
| Hot-Swappable | Yes |
| Operating Voltage | Supplied via chassis backplane |
| Power Consumption | Approx. 5 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W × H × D) | 38 × 168 × 132 mm |
| الوزن | 0.45 kg |
| Certifications | CE, UL, RoHS, FCC-compliant |
| System Compatibility | TDC 3000, Experion PKS |
Applications
The TK-CCR014 module is designed for high-reliability, mission-critical automation environments, where communication uptime and fault tolerance are paramount. Key applications include:
-
Distributed Control Systems (DCS) – Backbone communication in Honeywell’s Experion PKS and TDC 3000 platforms
-
Redundant Network Architectures – Ensures uninterrupted control communications in case من link or module failure
-
Oil & Gas Refineries – Where safety and redundancy are critical for process continuity
-
Power Generation Plants – Real-time control من turbines, boilers, and auxiliaries
-
Pharmaceutical Manufacturing – Ensuring compliance and traceability with fault-tolerant systems
-
Chemical & Petrochemical Facilities – Continuous operation من batch and continuous processes
Key Advantages
-
Redundant Communication Assurance: Switches seamlessly between primary and backup networks without data loss
-
Hot-Swap Ready: Allows for in-service replacement without system downtime
-
Robust Protocol الدعم: Optimized for Honeywell’s proprietary communication stacks
-
System Compatibility: Integrates directly with legacy and modern DCS هانيويل platforms
-
Industrial-Grade Build: Withstands harsh environments, vibrations, and temperature variations
-
Low Power Consumption: Efficient and reliable without generating excessive heat
-
Compact Form Factor: Fits easily into existing system chassis with minimal footprint
الأسئلة الشائعة (FAQ)
-
What is the main function من the TK-CCR014 module?
It provides redundant network communication capabilities for DCS هانيويل systems. -
Can this module be hot-swapped?
Yes, it supports hot-swapping to allow replacement without shutting down the system. -
What networks does it support?
It supports Honeywell’s proprietary Control Network (CNet) protocols with redundancy. -
Is it compatible with TDC 3000?
Yes, it is fully compatible with both TDC 3000 and Experion PKS platforms. -
What happens during a network failure?
The module automatically switches to the redundant network path to maintain communication. -
Is special configuration sمنtware required?
Configuration is typically performed through Honeywell’s system configuration tools. -
Does it support Ethernet?
Yes, it supports 10/100 Mbps Ethernet communication speeds. -
How do I mount the TK-CCR014?
It is chassis-mounted and fits directly into Honeywell control system backplanes. -
What is the power requirement for this module?
It draws 5 watts from the system backplane. -
What kind من maintenance does it require?
Minimal. Regular diagnostic checks through system sمنtware are usually sufficient.
Related or Similar الطرازs
| الطراز Number | رقم القطعة | Function | Compatibility | Form Factor | الوزن |
|---|---|---|---|---|---|
| TK-CCR013 | 51308307-175 | Single Network Interface Module | Experion PKS | Chassis-mounted | 0.75 kg |
| TC-CCR012 | 51308301-175 | ControlNet Interface (Redundant) | TDC 3000 | Rack-mounted | 0.85 kg |
| TK-CCR015 | 51403988-150 | Enhanced Redundant Interface | Experion/TPS systems | Compact module | 0.8 kg |
| TK-FXX102 | 51305980-175 | Fiber Network Redundant Module | Experion LX | DIN rail | 0.7 kg |
| CC-NETI01 | 51401440-100 | Network Interface Module | ControlEdge Systems | Compact chassis | 0.9 kg |
| FC-NET-1103 | 51401445-100 | Redundant Network Adapter | Field Control Network | Slim module | 0.65 kg |
Popular Honeywell Modules (Same العلامة التجارية)
| الطراز Number | Type | Function | System Compatibility | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| CC-TDIL01 | Digital Input Module | 16-Channel DI | Experion PKS | 100 × 35 × 180 | 0.7 kg |
| CC-TAIX01 | Analog Input Module | 16-Channel AI | Experion PKS | 100 × 30 × 180 | 0.65 kg |
| CC-PCNT01 | Controller Module | Centralized Process Control | Experion/TDC 3000 | 130 × 40 × 190 | 0.85 kg |
| FC-SDO-0824 | Digital Output Module | 8-Channel DO | Safety Manager Systems | 110 × 40 × 180 | 0.75 kg |
| CC-PDOB01 | Digital Output Module | 16-Channel DO | Experion PKS | 100 × 35 × 180 | 0.7 kg |
| MU-TDID12 | Redundant DI Module | Dual DI Inputs | TDC 3000 Migration | 120 × 35 × 185 | 0.8 kg |
