Product الوصف

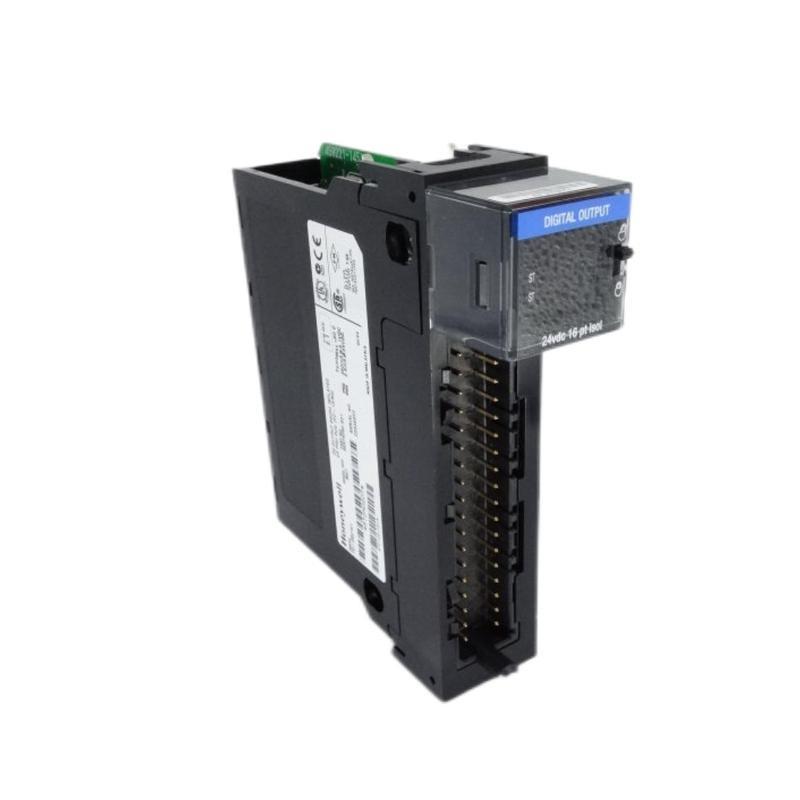

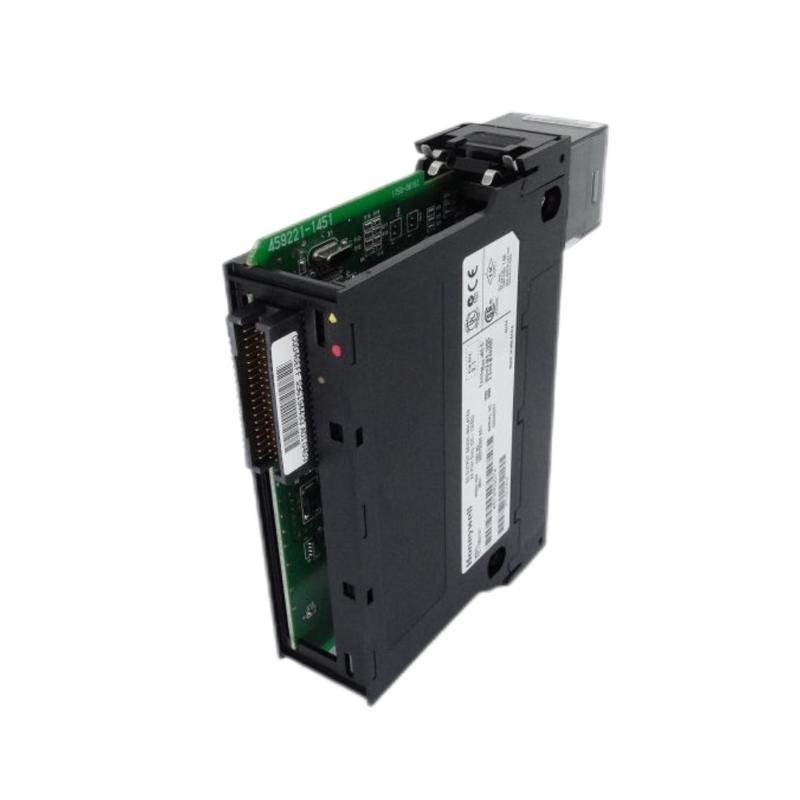

The Honeywell TC-ODI161 is a Digital Output Module designed for the Experion LS control system. It provides reliable control and monitoring من field output devices like actuators, relays, and solenoids. With high signal integrity and system compatibility, it ensures seamless integration in distributed automation environments.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | TC-ODI161 |
| Type | Digital Output Module |
| Output Channels | 16 |
| Output Type | Sourcing |
| Voltage Range | 24 VDC nominal |
| Max Load per Channel | 0.5 A |
| Response Time | <1 ms |
| Isolation | Channel-to-bus isolated |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Dimensions (W x H x D) | 100 x 120 x 30 mm |
| الوزن | 0.25 kg |
Applications
-
Discrete device control (valves, relays, indicators)
-
Factory automation
-
Building management systems
-
Safety interlock systems
-
Water treatment plants
-
Machine control panels
Advantages
-
Reliable digital output performance
-
Fast response for time-critical applications
-
Easy integration into Honeywell Experion LS
-
Compact and lightweight design
-
Channel isolation for safety
-
Simplified maintenance and diagnostics
FAQ
Q1: How many output channels does the TC-ODI161 provide?
A1: It provides 16 digital output channels.
Q2: What type من output signal does this module support?
A2: It supports sourcing type digital outputs.
Q3: Can the module be used in harsh environments?
A3: It is suitable for industrial environments with 0 to 60°C operating temperature.
Q4: Is each output channel isolated?
A4: Yes, each output is isolated from the system bus.
Q5: What is the nominal operating voltage?
A5: The module operates at 24 VDC nominal.
Q6: Can it drive inductive loads like solenoids?
A6: Yes, it is designed to drive inductive loads with protection.
Q7: What is the response time من the outputs?
A7: The typical response time is less than 1 millisecond.
Q8: Is it hot-swappable in the Experion LS system?
A8: Yes, the module supports hot-swapping for easy replacement.
Q9: Does it require a separate power supply for outputs?
A9: Yes, outputs require an external 24 VDC supply.
Q10: What is the size and weight من the TC-ODI161?
A10: The module measures 100 x 120 x 30 mm and weighs 0.25 kg.
Related or Similar الطرازs
| الطراز | Type | Channels | Voltage | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| TC-ODI160 | Digital Output Module | 16 | 24 VDC | 100 x 120 x 30 | 0.25 kg |
| TC-ODI162 | Digital Output Module | 16 | 24 VDC | 100 x 120 x 30 | 0.25 kg |
| TC-ODI163 | Digital Output Module | 16 | 24 VDC | 100 x 120 x 30 | 0.25 kg |
| TC-IDC161 | Digital Input Module | 16 | 24 VDC | 100 x 120 x 30 | 0.25 kg |
| TC-IDC162 | Digital Input Module | 16 | 24 VDC | 100 x 120 x 30 | 0.25 kg |
| TC-PSU163 | Power Supply Module | — | 24 VDC | 100 x 120 x 30 | 0.30 kg |
