مقدمة المنتج

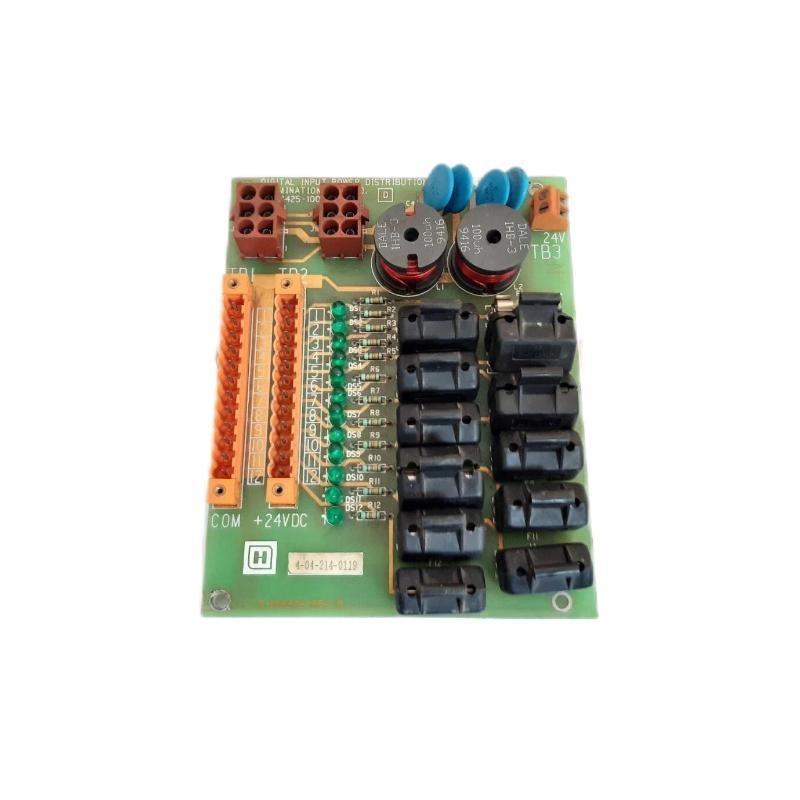

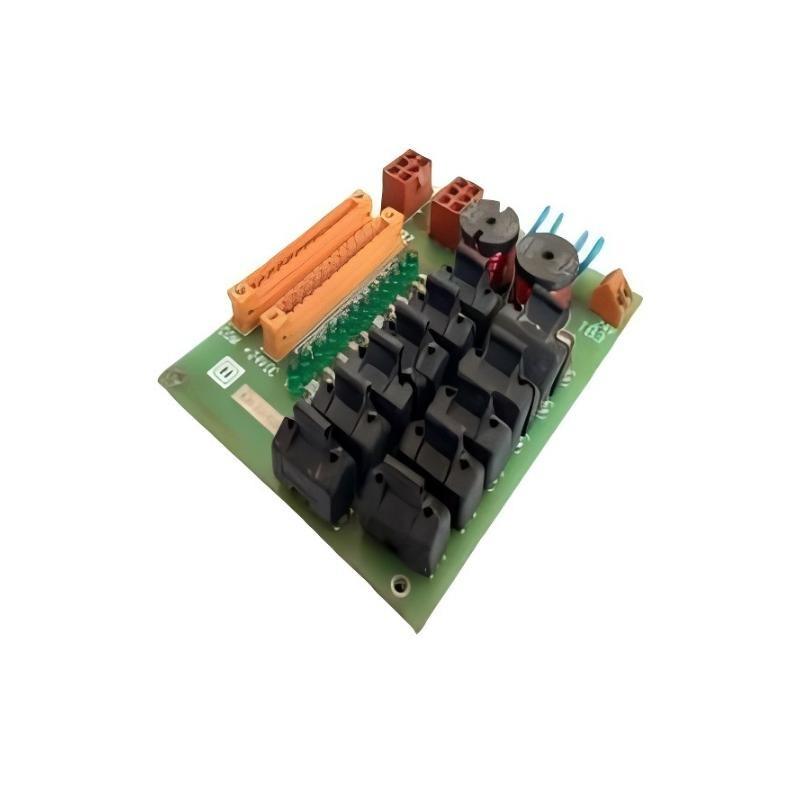

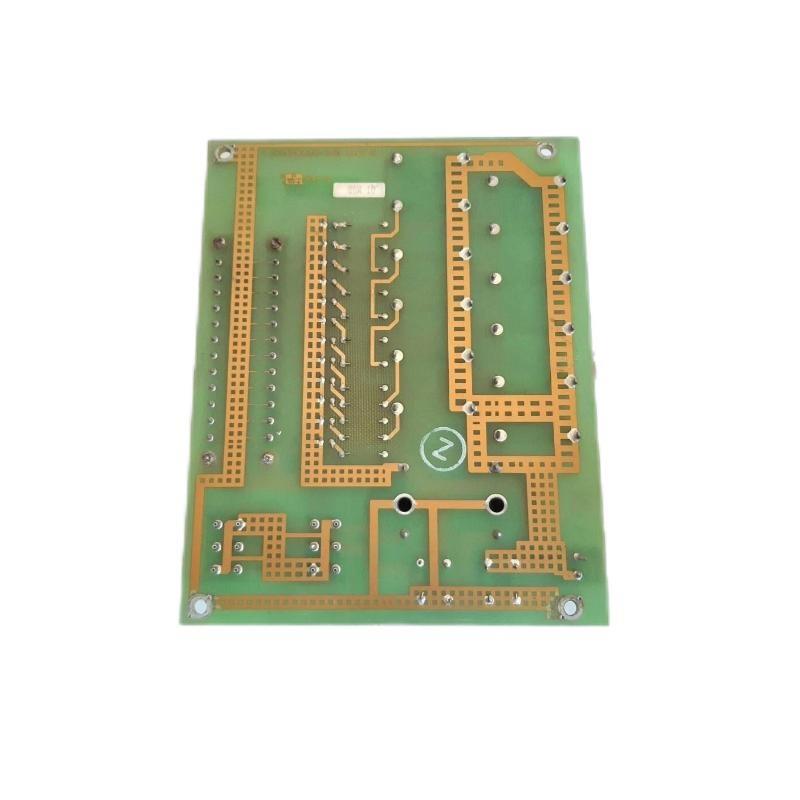

The Honeywell MU-TDPR02 51304425-125 DC Power Distribution Assembly Module is an integral component designed to efficiently distribute DC power to various devices within a control system. This module is specifically tailored for use in Honeywell’s industrial automation and control systems, providing reliable and stable power distribution to ensure the smooth operation من connected equipment.
Built with advanced technology, the MU-TDPR02 module is a crucial part من Honeywell’s DC power management solutions. It ensures that power is delivered consistently and without interruption to critical control and monitoring devices. The module’s compact design (dimensions من 152.4 × 120.7 mm) and lightweight nature (weighing only 0.28 kg) make it a flexible and space-efficient choice for modern industrial environments. Whether it is part من a new installation or an upgrade to existing systems, the MU-TDPR02 ensures optimal performance and minimal downtime.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز | MU-TDPR02 51304425-125 |
| Dimensions | 152.4 × 120.7 mm |
| الوزن | 0.28 kg |
| Power Supply | DC Power Input |
| Operating Voltage | 24 VDC |
| Operating Current | 5 A |
| Output Channels | Multiple outputs |
| Mounting Type | DIN Rail Mounted |
| Temperature Range | -20°C to +60°C |
| Protection Rating | IP20 |
| Certification | UL, CE |
| Compatibility | Honeywell Control Systems |
| Usage | Power distribution to control modules and equipment |
Product Applications
The Honeywell MU-TDPR02 51304425-125 DC Power Distribution Assembly Module is widely used across various industries that require stable and reliable DC power for control and automation systems. Its applications include:
-
Industrial Automation: The module is ideal for distributing DC power to control systems in manufacturing plants, including robotics, assembly lines, and production machines.
-
Process Control Systems: It ensures stable power supply to process control systems in industries such as oil and gas, petrochemicals, and water treatment facilities.
-
Energy Systems: The module is used to provide consistent DC power to equipment in energy generation and distribution systems, such as turbines, transformers, and electrical grids.
-
Building Automation: In building management systems, the MU-TDPR02 powers essential components such as lighting systems, HVAC systems, and security devices.
-
Telecommunication Systems: The module is used to support DC-powered communication devices, routers, and transmitters in telecom infrastructure.
-
Control Panels: The power distribution module is commonly used in control panels for industrial equipment, ensuring that all components are powered correctly and reliably.
Product Advantages
-
Efficient Power Distribution: The MU-TDPR02 provides reliable and efficient DC power distribution to various devices in control systems, ensuring that each device receives the appropriate voltage and current for optimal performance.
-
Compact and Lightweight Design: With dimensions من 152.4 × 120.7 mm and a weight من only 0.28 kg, the module is compact, easy to install, and well-suited for space-constrained environments.
-
Versatile Mounting Options: The module can be easily mounted on DIN rails, منfering flexibility and ease من integration into existing control systems.
-
Wide Temperature Range: The module operates in environments ranging from -20°C to +60°C, ensuring reliability in both cold and hot environments.
-
High-Quality Components: Built with high-quality materials, the MU-TDPR02 is designed to withstand the harsh conditions من industrial environments while maintaining its reliability and longevity.
-
Protection Rating: With an IP20 protection rating, the module is safeguarded against dust and objects larger than 12 mm, making it suitable for most indoor industrial environments.
-
Compliance with Standards: The module is certified by UL and CE, ensuring it meets international safety and quality standards.
-
Multiple Output Channels: The MU-TDPR02 supports multiple output channels, making it suitable for applications with diverse power requirements.
الأسئلة الشائعة (FAQs)
Q1: What are the dimensions من the MU-TDPR02 module?
A1: The MU-TDPR02 has dimensions من 152.4 × 120.7 mm.
Q2: How much does the Honeywell MU-TDPR02 weigh?
A2: The module weighs 0.28 kg, making it lightweight and easy to install.
Q3: What is the operating voltage for the MU-TDPR02?
A3: The module operates on 24 VDC power.
Q4: How many output channels does the MU-TDPR02 support?
A4: The MU-TDPR02 supports multiple output channels, allowing it to distribute power to various devices in the control system.
Q5: What is the temperature range in which the MU-TDPR02 can operate?
A5: The MU-TDPR02 operates in a temperature range from -20°C to +60°C.
Q6: What is the protection rating من the MU-TDPR02?
A6: The module has an IP20 protection rating, meaning it is protected against dust and objects larger than 12 mm but not waterproمن.
Q7: What certifications does the MU-TDPR02 have?
A7: The module is certified by UL and CE, ensuring it meets international safety standards.
Q8: How is the MU-TDPR02 mounted?
A8: The module is mounted on DIN rails, providing easy installation in control panels.
Q9: Is the MU-TDPR02 compatible with Honeywell’s other control systems?
A9: Yes, the module is fully compatible with Honeywell’s industrial control systems.
Q10: What is the maximum current the MU-TDPR02 can handle?
A10: The MU-TDPR02 can handle a maximum current من 5 A.
Recommended الطرازs
| الطراز | الوصف | Power Supply |
|---|---|---|
| MU-TDPR03 | DC power distribution module with enhanced output options | 24 VDC |
| MU-TDPR01 | Basic DC power distribution module | 24 VDC |
| MU-TDPR04 | High-current DC power distribution module | 24 VDC |
| MU-TDPR05 | Advanced power distribution module with remote monitoring | 24 VDC |
| MU-TDPR06 | Compact version for smaller control systems | 24 VDC |
| MU-TDPR07 | DC power distribution module with additional surge protection | 24 VDC |
Popular الطرازs from Honeywell
| الطراز | الوصف | Dimensions (mm) |
|---|---|---|
| MU-TDIY22 | Digital input module, 8-channel, isolated | 130 x 100 x 40 |
| MU-TDOA13 | Digital output module, 16-channel, non-isolated | 130 x 100 x 42 |
| MU-TDOD12 | Digital input/output module, 8-channel, with redundancy support | 130 x 100 x 40 |
| MU-TDIY23 | Digital input module, 8-channel, with enhanced diagnostics | 130 x 100 x 40 |
| MU-TDOA14 | Digital output module, 16-channel, high-speed operation | 130 x 100 x 42 |
| MU-TDOD13 | Digital input/output module, 16-channel, high-voltage support | 130 x 100 x 42 |
