مقدمة المنتج

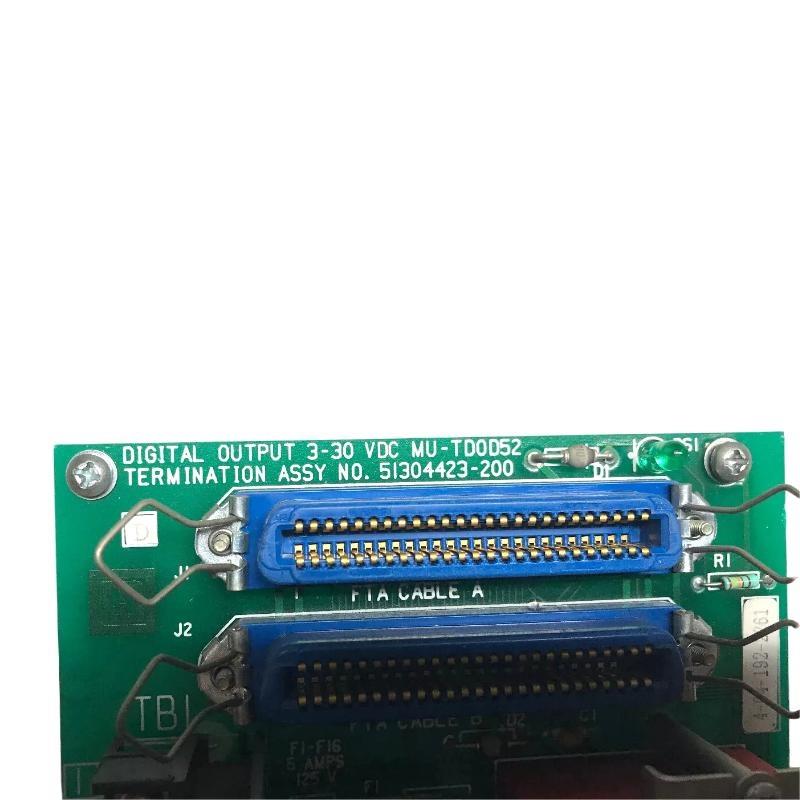

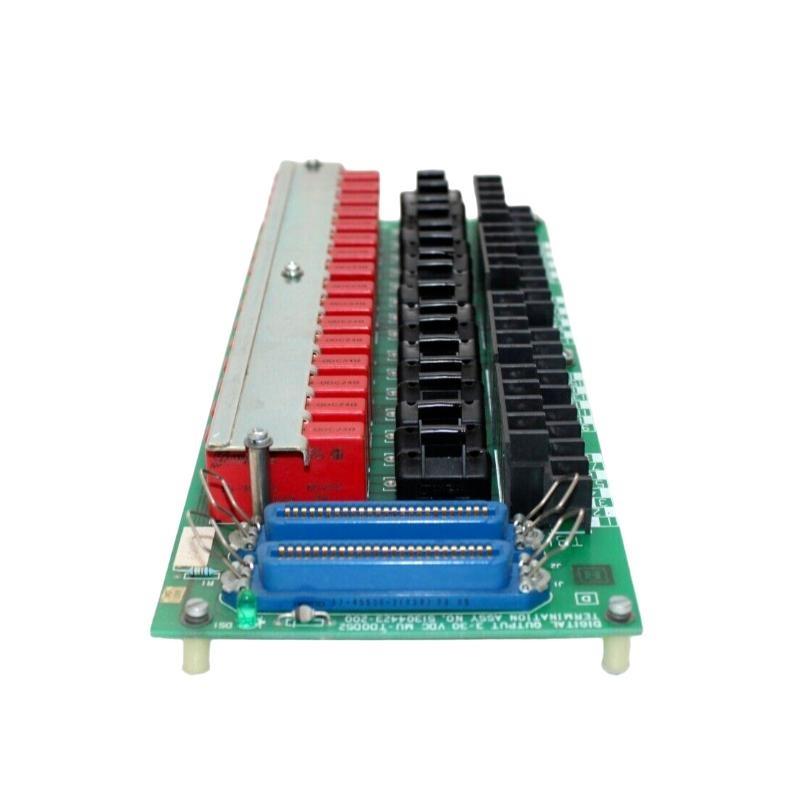

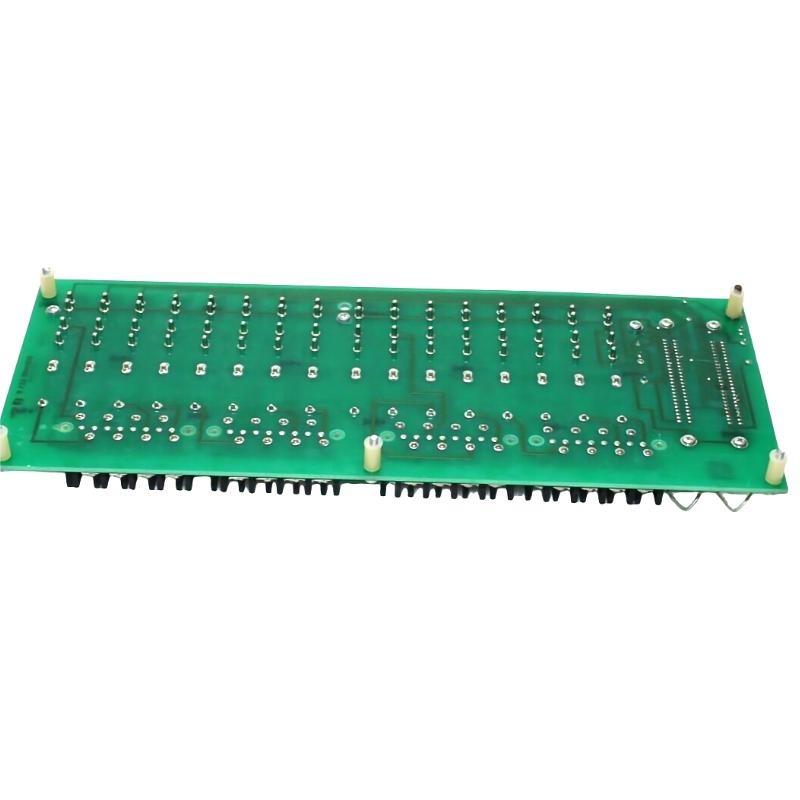

Honeywell’s MU-TDOD52 51304423-200 Digital Output Field Termination Assembly is a high-performance module designed to connect digital output signals from Honeywell distributed control systems (DCSs) to field devices in demanding process automation environments. As part من Honeywell’s Experion PKS and TDC 3000 platforms, the MU-TDOD52 ensures accurate and reliable transmission من discrete control signals to solenoid valves, relays, actuators, and safety devices.
Designed for high-density output configurations, this field termination assembly integrates isolation and surge protection to safeguard both the controller and field devices. Engineered to withstand industrial environments, the MU-TDOD52 ensures consistent performance in applications where safety, accuracy, and uptime are critical.
مواصفات المنتج
| scope | value |
|---|---|
| model | MU-TDOD52 51304423-200 |
| الشركة المصنعة | Honeywell |
| Product Type | Digital Output Field Termination Assembly |
| System compatibility | Honeywell Experion PKS/TDC 3000 |
| Output Channel | 32 isolated digital output channels |
| Output voltage | 24 VDC (nominal, site dependent) |
| Output current per channel | Up to 0.5 A |
| isolation | Electrical and optical isolation between channels and system bus |
| Surge Protection | Integrated transient voltage suppression |
| Diagnostics | Channel status LEDs |
| Power Supply Voltage | 24 VDC |
| Connector Type | Plug-in field terminal blocks |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Safety Certifications | CE, UL, CSA |
| Dimensions (W × H × D) | 255 × 140 × 55 mm |
| الوزن | 0.58 kg |
Product Applications
-
Distributed Control Systems (DCS): Provides reliable termination between controller digital output modules and field devices.
-
Process Automation: Drives solenoids, actuators, and motor control relays in industrial plants.
-
Safety Instrumented Systems (SIS): Ensures secure and precise activation من emergency shutdown equipment.
-
Power Generation: Controls turbine auxiliaries, circuit breakers, and field relays.
-
Oil & Gas: الدعمs critical pipeline control, pump systems, and refinery safety devices.
-
Chemical & Pharmaceutical: Provides reliable discrete outputs for batch processing and safety loops.
-
Manufacturing Automation: Controls production machinery, conveyor systems, and packaging equipment.
Product Advantages
-
High-Density Design: 32 digital output channels in a compact assembly, reducing cabinet space.
-
Integrated Surge Protection: Protects field devices and controllers from transient voltage spikes.
-
Reliable Channel Isolation: Electrical and optical isolation prevent cross-channel interference.
-
LED Diagnostics: Real-time channel indicators facilitate quick troubleshooting and system checks.
-
Honeywell System Optimization: Fully compatible with Experion PKS and TDC 3000 DCS platforms.
-
Industrial Durability: Built for harsh process conditions with extended temperature and vibration tolerance.
-
Simplified Installation: Plug-in terminal blocks streamline wiring and reduce commissioning time.
-
Maintenance Efficiency: Robust design minimizes failure points and lowers overall downtime.
FAQ
-
How many digital output channels does the MU-TDOD52 support?
It supports 32 isolated digital output channels for high-density termination applications. -
What type من isolation is implemented in this assembly?
The module uses both electrical and optical isolation to protect channels and the control system. -
What is the maximum current rating per output channel?
Each output channel can supply up to 0.5 A for field devices. -
Does the MU-TDOD52 include integrated surge protection?
Yes, it features built-in transient voltage suppression to prevent electrical damage. -
Is the MU-TDOD52 designed for redundant DCS architectures?
Yes, it can be implemented in redundant control system configurations to achieve high availability. -
What is the nominal output voltage من the MU-TDOD52?
The nominal output voltage is 24 VDC, depending on the site wiring and system setup. -
Are there diagnostic indicators on this module?
Yes, LED indicators provide real-time feedback on the status من each output channel. -
What type من connector interface does the MU-TDOD52 use?
It uses plug-in field wiring terminals to simplify installation and maintenance. -
Does the MU-TDOD52 comply with industrial EMC standards?
Yes, it complies with the EN 61000-6-2 immوحدةy standard and the EN 61000-6-4 emissions standard for industrial environments. -
What grounding method is recommended for this field-terminated assembly?
A dedicated shield ground should be used to ensure EMI suppression and maintain system stability.
