مقدمة المنتج

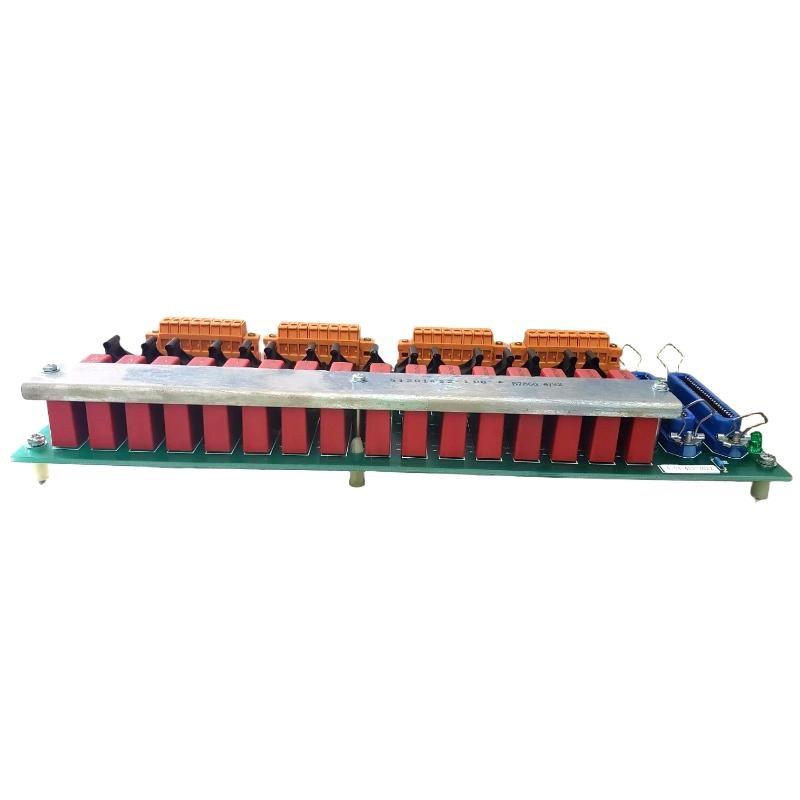

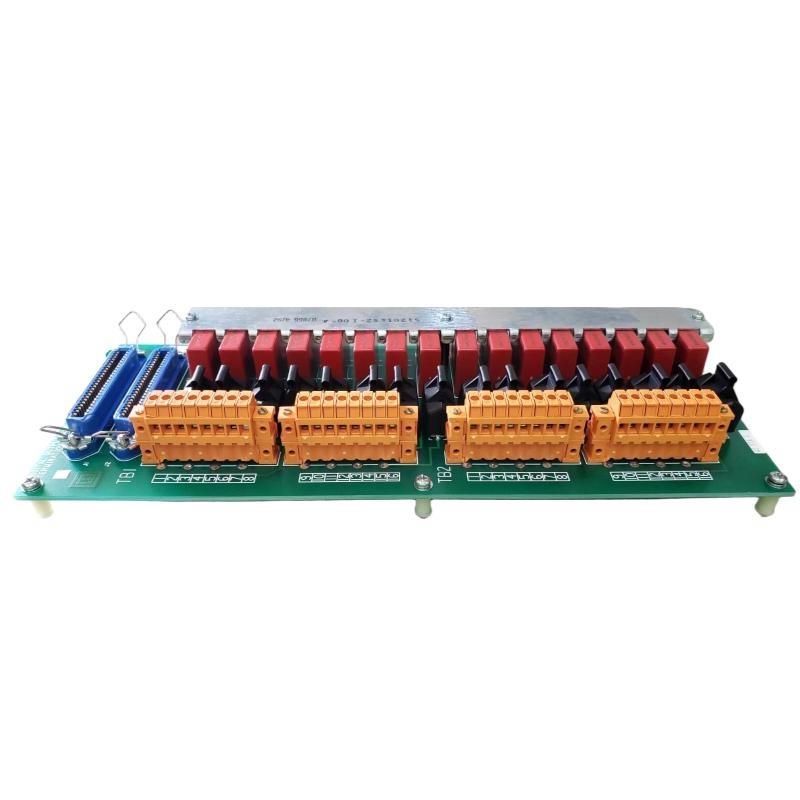

The Honeywell MU-TDOD12 51304423-100 Digital Output Field Termination Assembly is an advanced interface module designed to connect digital output signals from Honeywell Distributed Control Systems (DCS) to field devices in industrial automation environments. This assembly ensures reliable transmission من discrete control signals to actuators, solenoids, relays, and other output-driven equipment.
Built for Honeywell’s Experion PKS and TDC 3000 platforms, the MU-TDOD12 provides high-density digital output channel termination with integrated surge protection and isolation, minimizing the risk من electrical interference and enhancing system stability. It is engineered to operate in harsh process environments where reliability and precision are critical.
مواصفات المنتج
| Parameter | Value |
|---|---|
| الطراز Number | MU-TDOD12 51304423-100 |
| الشركة المصنعة | Honeywell |
| Product Type | Digital Output Field Termination Assembly |
| System Compatibility | Honeywell Experion PKS / TDC 3000 |
| Output Channels | 32 isolated digital output channels |
| Output Voltage | 24 VDC (nominal, field dependent) |
| Output Current per Channel | Up to 0.5 A |
| Isolation | Electrical/optical isolation between channels and control bus |
| Surge Protection | Integrated transient voltage suppression |
| Diagnostics | Channel status LEDs |
| Power Supply Voltage | 24 VDC |
| Connector Type | Plug-in field terminal blocks |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Safety Certifications | CE, UL, CSA |
| Dimensions (W × H × D) | 250 × 140 × 50 mm |
| الوزن | 0.55 kg |
Product Applications
-
Distributed Control Systems (DCS): Interfaces digital output modules with field devices for precise control.
-
Process Automation: Provides reliable discrete output for solenoids, contactors, and motor starters.
-
Emergency Shutdown Systems: Ensures safe and reliable signal delivery to critical shutdown devices.
-
Power Generation: Controls breakers, valves, and auxiliary turbine equipment.
-
Oil & Gas: Drives pump relays, safety interlocks, and refinery control devices.
-
Manufacturing Automation: Powers actuators, conveyors, and packaging equipment in production lines.
-
Chemical & Pharmaceutical: الدعمs batch control systems requiring high-density digital outputs.
Product Advantages
-
High Channel Density: 32 output channels in a single compact assembly, reducing cabinet space.
-
Integrated Surge Protection: Protects downstream devices from voltage transients and spikes.
-
Reliable Isolation: Channel-to-bus isolation enhances safety and prevents cross-interference.
-
Diagnostic Indicators: Built-in LEDs for quick channel status monitoring and troubleshooting.
-
Optimized for Honeywell Systems: Fully compatible with Experion PKS and TDC 3000 controllers.
-
Rugged Design: Built for industrial environments with temperature and vibration resilience.
-
Simplified Installation: Plug-and-play terminal blocks reduce wiring complexity and errors.
-
Low Maintenance: Durable components ensure long-term reliability with minimal upkeep.
FAQ
-
How many digital output channels does the MU-TDOD12 provide?
It منfers 32 isolated digital output channels for high-density applications. -
What type من isolation is implemented in this module?
The module features both electrical and optical isolation between channels and the system bus. -
What is the maximum current supported per channel?
Each digital output channel can handle up to 0.5 A. -
Does the MU-TDOD12 include built-in surge protection?
Yes, it has integrated transient voltage suppression to safeguard field devices. -
Is this module compatible with redundant DCS configurations?
Yes, it supports redundant paths when used with compatible Honeywell controllers. -
What is the standard output voltage for this termination assembly?
The nominal output voltage is 24 VDC, depending on the system wiring. -
Does the module provide status diagnostics?
Yes, it includes LED indicators to show real-time channel status and help with troubleshooting. -

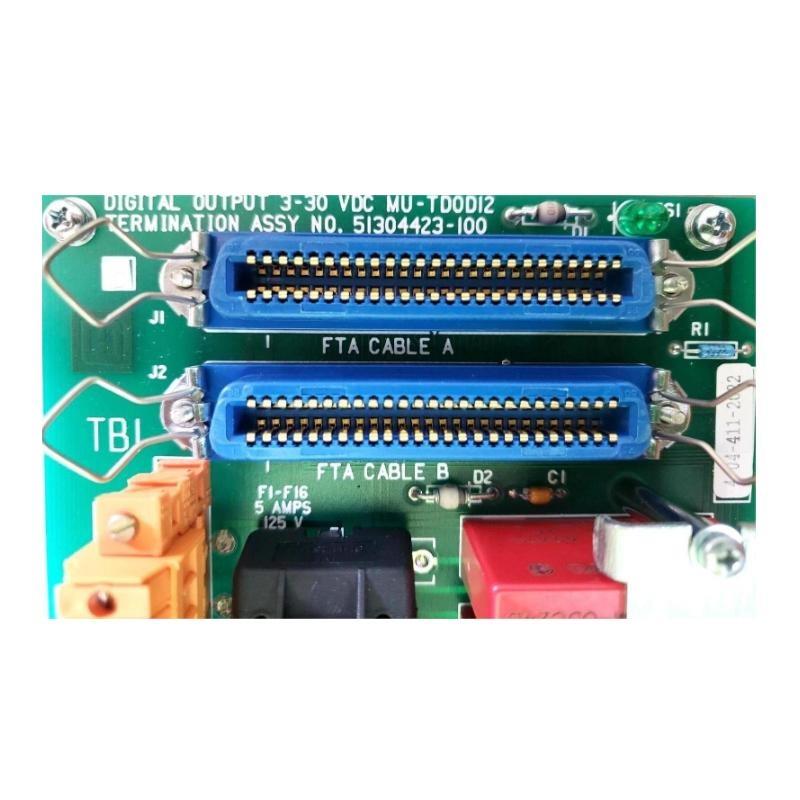

What type من connector interface does the MU-TDOD12 use?
It uses plug-in field terminal blocks for easy installation and maintenance. -
Can the module be used in high-noise industrial environments?
Yes, it complies with EMC standards EN 61000-6-2 and EN 61000-6-4 for immوحدةy and emission control. -
What grounding method is recommended for this module?
A dedicated shield ground should be used to ensure proper EMI suppression and safety.
Recommended Related الطرازs (Same Series or Functional Equivalents)
| الطراز Number | الوصف | Key Features |
|---|---|---|
| MU-TDOA13 51304648-100 | Digital Output Field Termination Assembly | 16-channel version with isolation and LEDs |
| MU-TDIA12 51304584-100 | Digital Input Field Termination Assembly | 16-channel digital input interface |
| MU-TDOA12 51304586-100 | Digital Output Field Termination Assembly | Compact 8-channel output version |
| MU-TDOD14 51304660-200 | High-Density Digital Output Assembly | 64-channel output termination for large DCS |
| MU-TAOA13 51304660-100 | Analog Output Field Termination Assembly | 8-channel analog output interface |
| MU-TAIA12 51304591-100 | Analog Input Field Termination Assembly | High-resolution analog input termination |
Recommended Popular Honeywell الطرازs
| الطراز Number | الوصف | Main Application |
|---|---|---|
| CC-PDIL01 | Pulse Input Module | Digital pulse signal acquisition |
| CC-TDIL01 | Digital Input Module | 24 VDC discrete signal monitoring |
| CC-PAIH01 | Analog Input Module | High-resolution process variable acquisition |
| CC-PAOH01 | Analog Output Module | Output control for field actuators |
| CC-PCNT01 | Controller Processor Module | Central processing وحدة for DCS هانيويل |
| CC-PAON01 | Digital Output Module | Reliable discrete output control |
