Product Overview

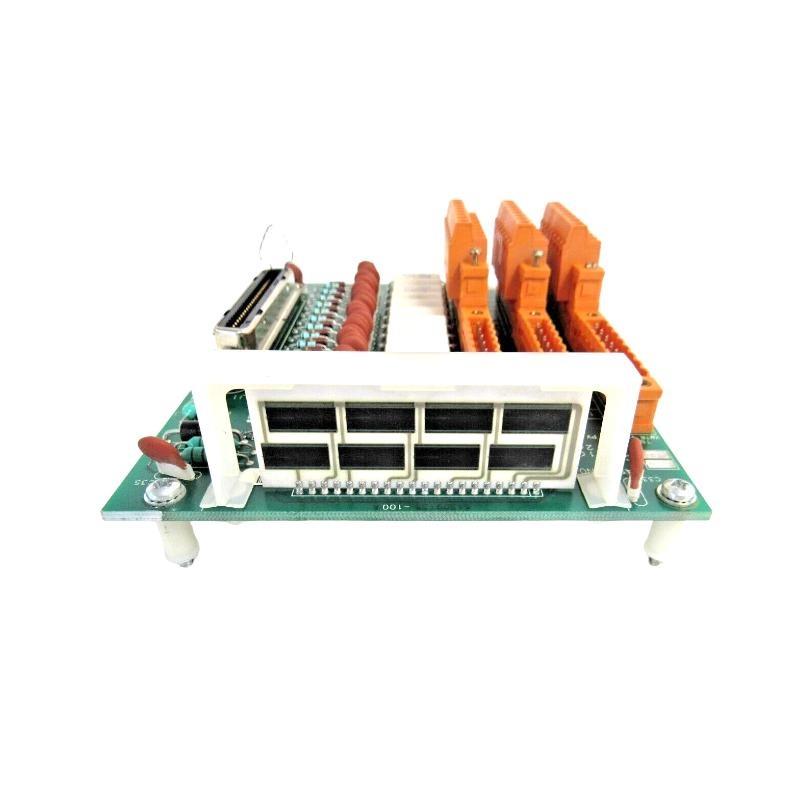

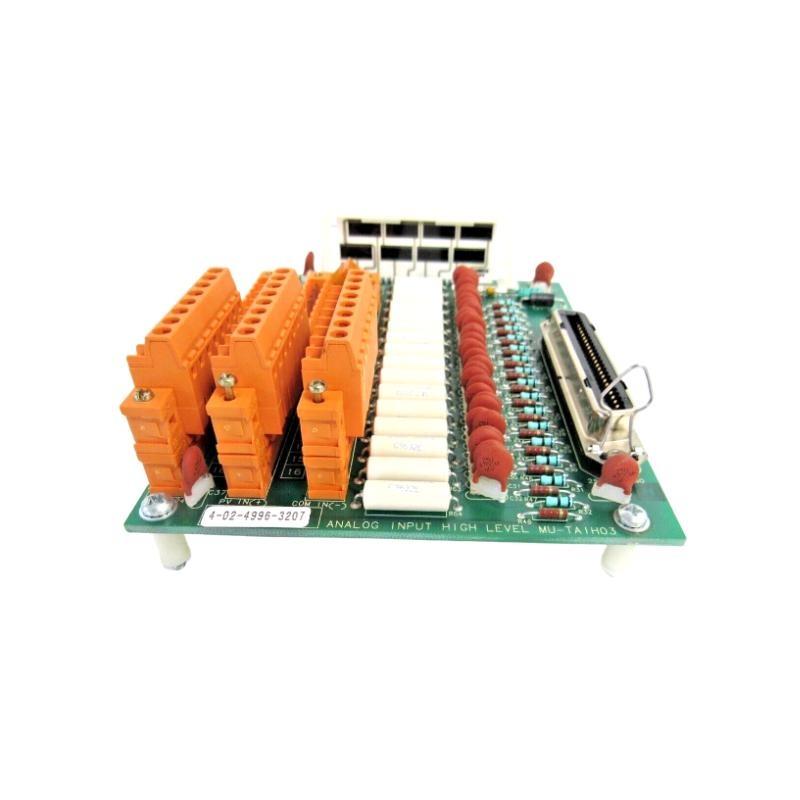

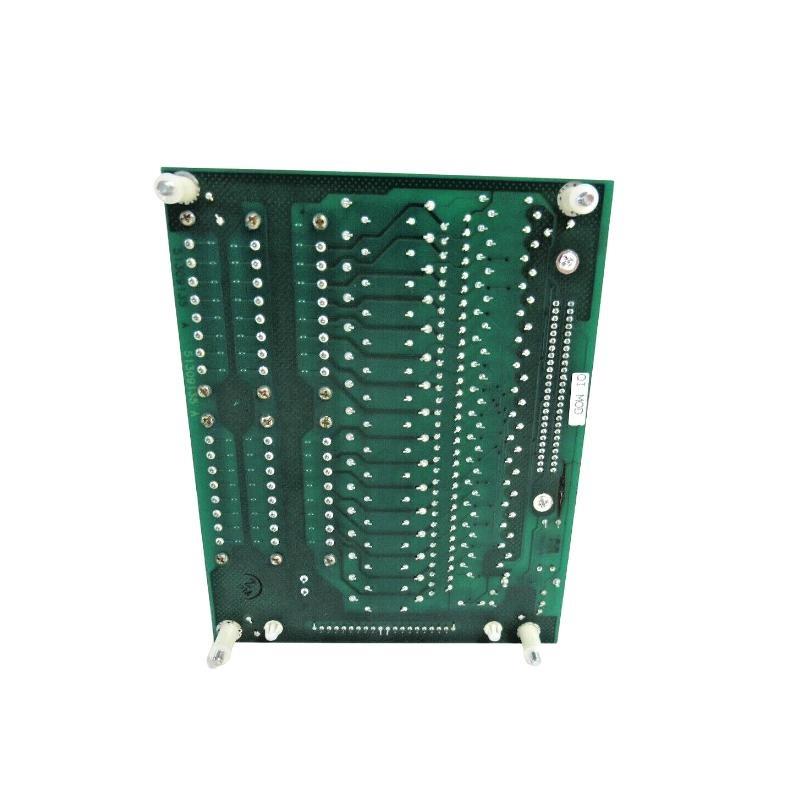

The Honeywell MU-TAIH03 51309136-125 is a high-level analog input module designed for use within the High-Performance Process Manager (HPM) architecture. It enables precise acquisition من analog process signals and supports single-ended or differential inputs. This module is essential for interfacing analog field devices such as pressure, flow, and temperature transmitters within Honeywell’s TPS (TotalPlant Solution) systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product الطراز | MU-TAIH03 |
| رقم القطعة | 51309136-125 |
| Input Type | High-Level Analog Inputs (HLAI) |
| Signal Range | 0–5 VDC / 4–20 mA configurable |
| Input Channels | 8 (differential or single-ended) |
| Isolation | Channel-to-channel and channel-to-ground |
| Signal الحالةing | Integrated |
| Interface | Connects to IOP via FTA |
| Mounting | Field Termination Assembly (FTA) |
| Dimensions (W×H×D) | 26 × 242 × 175 mm |
| الوزن | 0.2 kg |
| Operating Temperature | 0°C to 60°C |
| Compliance | CE Certified |
Applications
-
Chemical and petrochemical plants
-
Oil & gas upstream/downstream instrumentation
-
Power generation process control
-
Water treatment and distribution systems
-
Pulp and paper manufacturing
-
Pharmaceutical production environments
Product Advantages
-
الدعمs both single-ended and differential input configurations
-
High noise immوحدةy and input isolation for robust signal integrity
-
Seamless integration with HPM subsystems and FTAs
-
CE compliance ensures suitability for regulated industrial environments
-
الدعمs redundancy configurations for increased system reliability
الأسئلة الشائعة (FAQ)
Q1: What type من signals does the MU-TAIH03 support?
A1: It supports high-level analog signals, including 0–5 VDC and 4–20 mA.
Q2: How many input channels are available?
A2: The module supports up to 8 input channels.
Q3: Can the module be configured for differential inputs?
A3: Yes, it supports both single-ended and differential input configurations.
Q4: Is the MU-TAIH03 compatible with redundant IOP setups?
A4: Yes, it supports redundancy for high-availability systems.
Q5: What kind من field devices can be connected?
A5: It is commonly used with transmitters for pressure, temperature, flow, and level.
Q6: What is the standard operating temperature range?
A6: The module operates between 0°C and 60°C.
Q7: Does the MU-TAIH03 include isolation features?
A7: Yes, it provides channel-to-channel and channel-to-ground isolation.
Q8: How is the module integrated into the system?
A8: It connects through a dedicated Field Termination Assembly (FTA) and communicates with the Input/Output Processor (IOP).
Q9: Is this module CE certified?
A9: Yes, the MU-TAIH03 is CE compliant.
Q10: What kind من maintenance is required?
A10: The module is designed for minimal maintenance; periodic inspection من wiring and status LEDs is recommended.
Related or Similar Honeywell الطرازs
| الطراز Number | الوصف | Input Type | Channels | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| MU-TAIH02 | High Level Analog Input Module | Voltage/Current | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-TAIH04 | HLAI with Advanced Isolation | Voltage/Current | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-GAIH13 | Galvanically Isolated HLAI FTA | Voltage/Current | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-GAIH12 | HLAI/Smart Transmitter Interface | Voltage/Smart | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-GAIH14 | HLAI with Handheld Comm الدعم | Voltage/Smart | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-GAIH22 | Enhanced HLAI for Critical Environments | Voltage/Current | 8 | 26 × 242 × 175 | 0.2 kg |
Popular Honeywell الطرازs
| الطراز Number | الوصف | Function Type | Channels | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| MU-GDID12 | Digital Input Module | 24 Vdc Digital Input | 16 | 26 × 242 × 175 | 0.2 kg |
| MU-GAOX02 | Analog Output Module | 4–20 mA Output | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-GDOD12 | Digital Output Module | 24 Vdc Output | 16 | 26 × 242 × 175 | 0.2 kg |
| MU-STIM01 | Smart Transmitter Interface Module | HART/Smart Input | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-GAIH83 | Galvanically Isolated HLAI FTA | Analog Input | 8 | 26 × 242 × 175 | 0.2 kg |
| MU-GDID13 | Galvanically Isolated Digital Input Module | 24 Vdc Digital Input | 16 | 26 × 242 × 175 | 0.2 kg |
