مقدمة المنتج

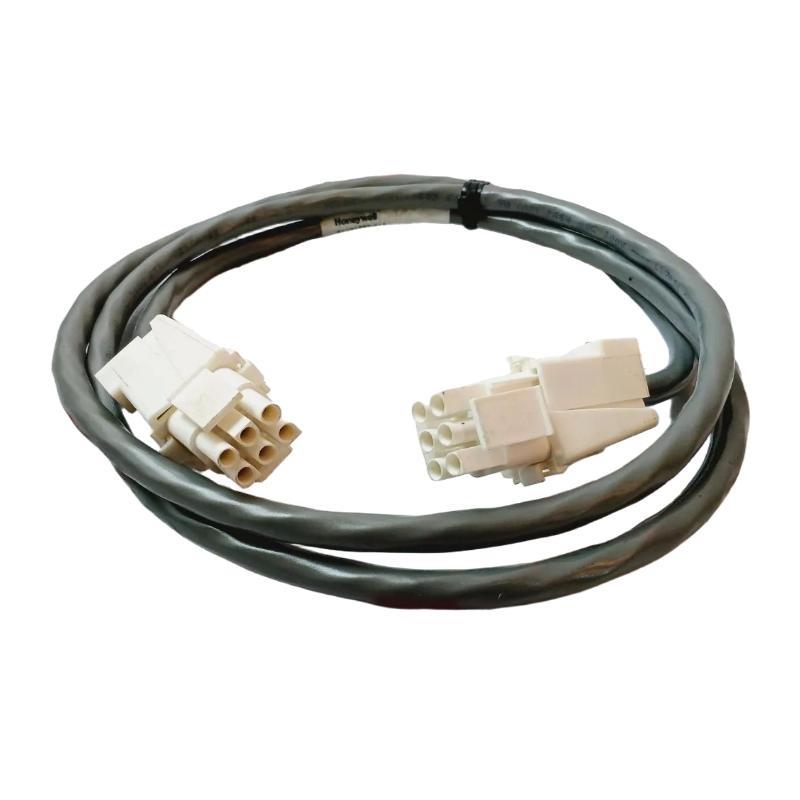

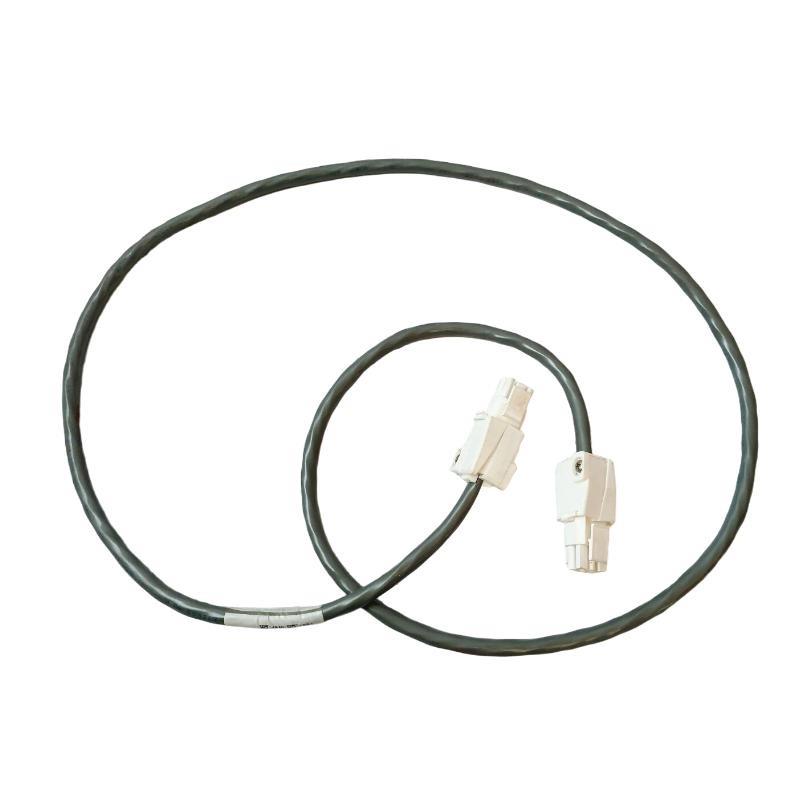

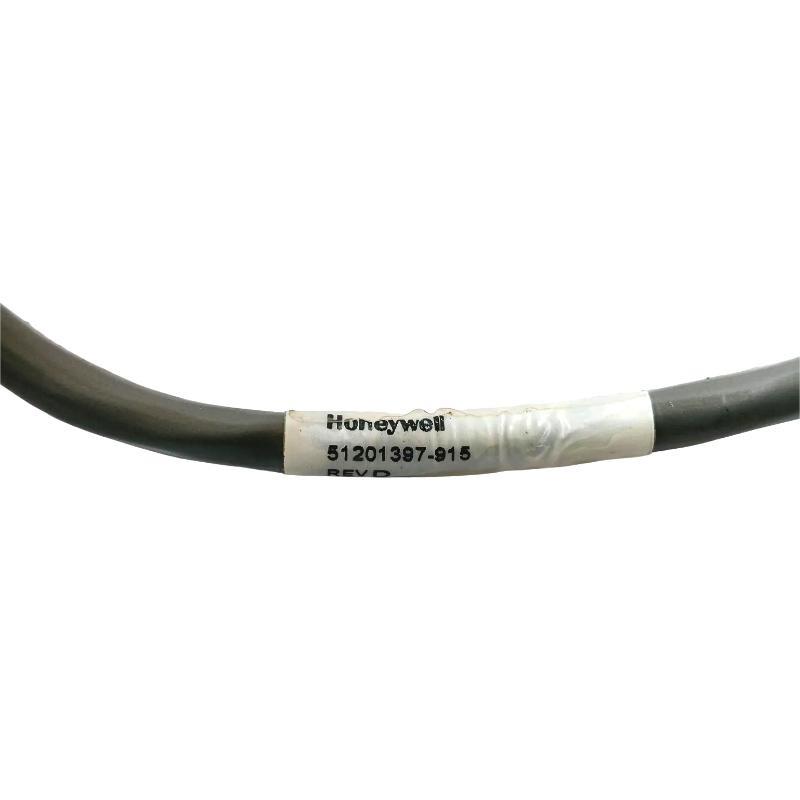

The Honeywell MU-KDPR00 MU-KDPR915 51201397-915 Power Cable is a precision-engineered industrial-grade cable assembly designed for Honeywell Distributed Control Systems (DCS) and critical process automation environments. This cable provides secure and stable power transmission between controllers, I/O modules, and power distribution وحدةs.
Manufactured using high-purity copper conductors and advanced shielding technology, the MU-KDPR915 ensures low resistance, superior electromagnetic interference (EMI) protection, and long-term durability in demanding operating conditions. It is pre-terminated with Honeywell-specific connectors to guarantee plug-and-play compatibility with Honeywell hardware, reducing installation time and minimizing wiring errors.
مواصفات المنتج
| Parameter | Value |
|---|---|
| الطراز Number | MU-KDPR00 MU-KDPR915 51201397-915 |
| الشركة المصنعة | Honeywell |
| Product Type | Industrial Power Cable Assembly |
| Cable Type | Shielded multi-core power cable |
| Cable Length | 1.5 meters |
| Voltage Rating | 300 V / 600 V (system dependent) |
| Current Rating | Up to 10 A (typical for DCS applications) |
| Conductor Material | High-purity stranded copper |
| Insulation Material | Industrial-grade PVC / XLPE (heat and chemical resistant) |
| Shielding | Braided and foil shielding for EMI/RFI suppression |
| Connector Type | Factory-terminated Honeywell-specific connectors |
| Operating Temperature | -20°C to +80°C |
| Storage Temperature | -40°C to +90°C |
| Humidity Range | 5%–95% non-condensing |
| Fire Resistance | Meets IEC 60332-3 flame-retardant standards |
| Mechanical Protection | Abrasion and oil-resistant outer jacket |
| Certifications | UL, CE, RoHS, CSA |
| Mounting Type | Plug-and-play integration with DCS هانيويل modules |
| الوزن | 0.222 kg |
Product Applications
The Honeywell MU-KDPR915 Power Cable is designed for reliable power transmission in a wide range من industrial and process automation environments:
-
Distributed Control Systems (DCS): Provides secure power connections between controllers, I/O modules, and power supply وحدةs.
-
Process Automation: Ensures consistent power delivery to instrumentation panels and field devices.
-
Power Generation: Connects turbine control وحدةs, auxiliary modules, and backup power systems.
-
Oil & Gas: Used in wellhead automation, compressor station control, and pipeline monitoring systems.
-
Chemical & Pharmaceutical: Powers batch control وحدةs and critical process automation panels.
-
Water & Wastewater: Supplies power to SCADA panels, pumps, and control cabinets for reliable operation.
Product Advantages
-
Stable Power Delivery: High-conductivity copper ensures low resistance and minimal voltage drop.
-
ممتاز EMI/RFI Protection: Dual-layer shielding prevents electrical noise in sensitive control environments.
-
Industrial Durability: Withstands mechanical stress, vibration, and harsh environmental conditions.
-
Pre-Terminated for Honeywell Systems: Plug-and-play connectors reduce installation errors and save time.
-
Safety Compliance: Meets flame-retardant and insulation standards for industrial use.
-
Compact Length for Panel Integration: 1.5 m length is ideal for cabinet and rack-mounted installations.
-
Low Maintenance: Robust design reduces the risk من failure and maintenance requirements.
-
Optimized for DCS: Designed to maintain reliable power in mission-critical Honeywell control systems.
FAQ
-
What is the maximum current handling capacity من the MU-KDPR915 cable?
It is rated to handle up to 10 A under standard DCS operating conditions. -
How is the shielding configured to minimize electromagnetic interference?
The cable uses a dual-layer shielding system combining foil and braided copper to suppress EMI and RFI effectively. -
Does the cable support redundant power configurations in DCS هانيويل systems?
Yes, it is designed to function in both primary and redundant power distribution setups. -
What type من grounding is recommended for this cable assembly?
A dedicated earth ground connection is recommended to maintain shielding effectiveness and system safety. -
How does the cable maintain low signal loss during power transmission?
It uses high-purity stranded copper conductors and optimized impedance to reduce resistance and minimize power loss. -
Is the cable compatible with hot-swappable power supply modules?
Yes, it is engineered for safe operation with Honeywell systems that allow hot-swappable power modules. -
What level من electrical noise immوحدةy does the MU-KDPR915 provide?
It meets industrial EMI immوحدةy standards (IEC 61000-4 series), ensuring stable operation in noisy environments. -
Can the cable be used in systems requiring both AC and DC power lines in the same harness?
Yes, it supports mixed AC/DC configurations as long as the installation follows Honeywell wiring guidelines. -
Does the cable incorporate strain relief to protect terminations under mechanical stress?
Yes, factory terminations include integrated strain relief to ensure connector integrity in high-vibration environments. -
What are the insulation resistance and dielectric strength ratings من the cable?
It provides insulation resistance greater than 100 MΩ/km and dielectric strength exceeding 2 kV as per industrial safety standards.
Recommended Related الطرازs
| الطراز Number | الوصف | Key Features |
|---|---|---|
| MU-KDPR04 51201397-004 | Power Cable Assembly | Shorter version for compact installations |
| MU-KDPR06 51201397-006 | Shielded Power Cable | Enhanced EMI/RFI suppression |
| MU-KDPR08 51201397-008 | Power Cable Assembly | Longer version for large control panels |
| MU-KDPR10 51201397-010 | Heavy-Duty Power Cable | Higher current capacity, rugged jacket |
| MU-KDPR12 51201397-012 | Industrial Power Cable | Designed for high-load applications |
| MU-KDPR14 51201397-014 | Extended-Length Power Cable | Suitable for distributed installations |
Recommended Popular Honeywell الطرازs
| الطراز Number | الوصف | Main Application |
|---|---|---|
| CC-PDIL01 | Pulse Input Module | Accurate pulse signal acquisition |
| CC-TDIL01 | Digital Input Module | 24 VDC discrete signal monitoring |
| CC-PAIH01 | Analog Input Module | High-resolution process variable acquisition |
| CC-PAOH01 | Analog Output Module | Field actuator control signal output |
| CC-PCNT01 | Controller Processor Module | Central processing وحدة for DCS هانيويل |
| CC-PAON01 | Digital Output Module | Reliable discrete output control |
