مقدمة المنتج

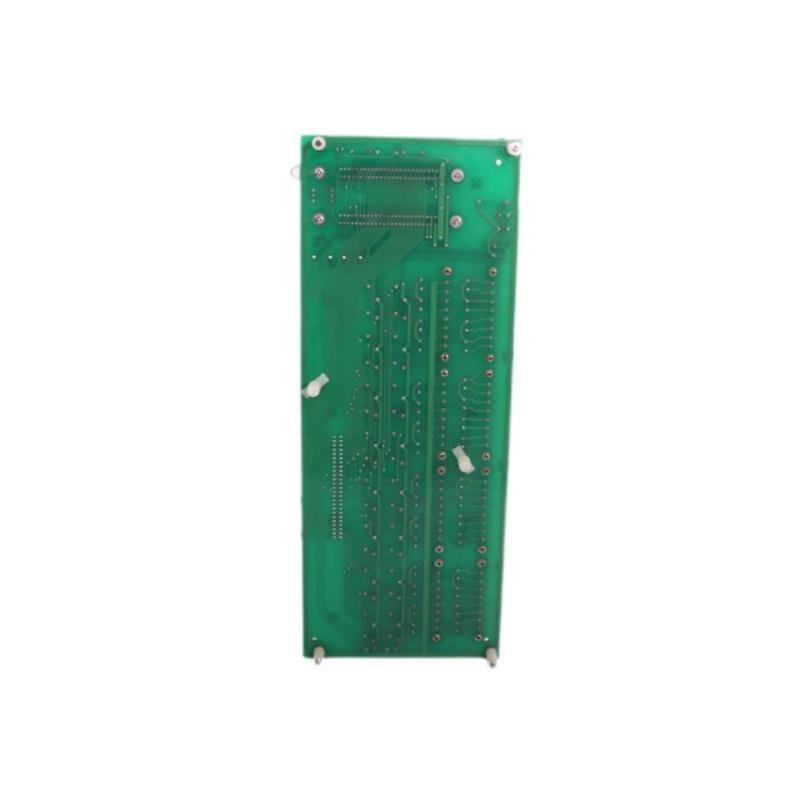

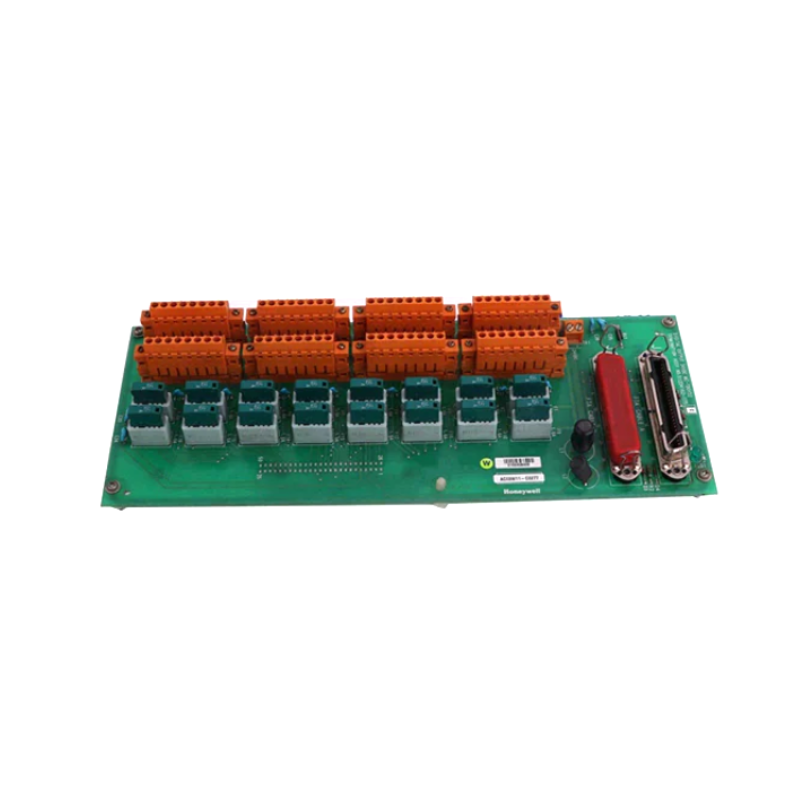

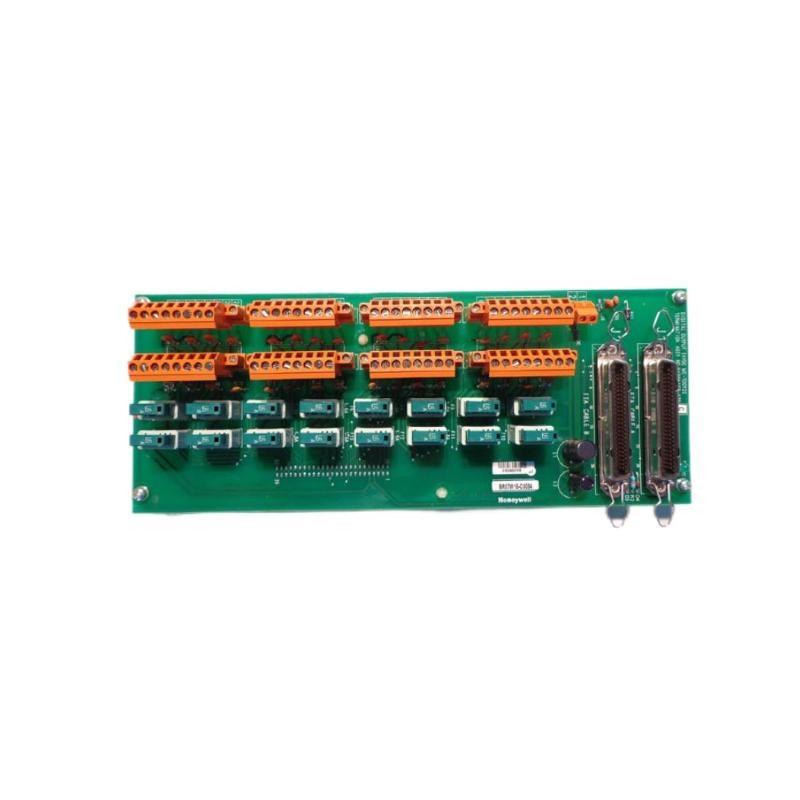

The Honeywell MC-TDOY22 51204162-175 Digital Output Module is an advanced digital output module designed to integrate seamlessly into industrial control systems. Known for its high reliability and performance, this module is specifically engineered for use in process automation and control systems. It plays a crucial role in controlling external field devices such as solenoids, motors, relays, and other equipment that require digital signals for operation.
The MC-TDOY22 module is part من Honeywell’s Total Automation Solutions and is widely recognized for its robust construction, which allows it to withstand the demands من industrial environments. Featuring a reliable 24 V DC digital output, the module ensures accurate signal transmission with high reliability. This makes it suitable for a variety من applications across industries, including chemical processing, oil and gas, power generation, and water treatment systems.
With its easy installation on a DIN rail and integration capabilities with Honeywell’s DCS systems, the MC-TDOY22 منfers both flexibility and scalability. The module’s compact design allows for efficient use من panel space, reducing the need for large or complicated wiring setups.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | MC-TDOY22 51204162-175 |
| Module Type | Digital Output Module |
| Output Type | 24 V DC Digital Output |
| Channels | 16 Digital Output Channels |
| Voltage Rating | 24 V DC ±10% |
| Current Output per Channel | 0.5 A Max |
| Response Time | < 5 ms |
| Isolation | Channel-to-Channel Isolation 250 V AC |
| Dimensions (H x W x D) | 107 x 50 x 20 mm |
| الوزن | 0.608 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail |
| Compliance | CE, UL, RoHS |
| Certifications | Ex-rated versions available upon request |
| Electrical Connection | Screw Terminal or Spring Terminal |
Product Applications
The Honeywell MC-TDOY22 Digital Output Module is widely utilized in various industrial applications where precise control and reliable digital signal transmission are necessary. Some من the key applications include:
-
Industrial Automation: The module is integral to controlling solenoids, motors, and other machinery in automated production lines, ensuring smooth operation in manufacturing plants.
-
Process Control Systems: In industries such as chemical manufacturing, oil refineries, and power plants, the MC-TDOY22 provides accurate control over processes that require high-speed switching and reliable performance.
-
Oil & Gas Industry: The module is used to control valves, actuators, and pumps in explosive environments, thanks to its rugged design and Ex-certified versions for hazardous areas.
-
Water Treatment Plants: It is used for controlling pumps, valves, and other equipment that regulate the flow and treatment من water and wastewater.
-
HVAC Systems: The module can be integrated into HVAC control systems to operate devices like dampers, actuators, and fans for efficient air circulation and temperature control.
-
Energy Management Systems: It is used to control various types من actuators, switches, and valves in energy generation and distribution systems, helping optimize energy consumption and improve operational efficiency.
Product Advantages
-
High Channel Density: With 16 channels in a single module, the MC-TDOY22 reduces the need for multiple modules, simplifying wiring and reducing panel space requirements.
-
Reliable Performance: Offering a response time من less than 5 milliseconds, the module ensures fast and reliable output in mission-critical applications.
-
Enhanced Isolation: The channel-to-channel isolation (250 V AC) minimizes interference and ensures that signals are transmitted without distortion or noise, even in electrically noisy environments.
-
Wide Temperature Range: The module operates in temperatures ranging from -20°C to +60°C, making it suitable for use in a variety من harsh industrial environments.
-
Compact Design: The MC-TDOY22’s small form factor (107 x 50 x 20 mm) allows for efficient use من space in control panels, reducing the need for bulky hardware.
-
Easy Installation: The module’s DIN rail mounting system allows for simple and quick installation, ensuring minimal downtime during system setup.
-
Energy Efficient: Operating with a 24 V DC power supply, the module is energy-efficient, making it a cost-effective solution for long-term use.
-
Versatility: This module is suitable for a wide range من industrial applications, from control systems to automated machinery.
الأسئلة الشائعة (FAQ)
-
Q: What is the purpose من the Honeywell MC-TDOY22 Digital Output Module?
A: The MC-TDOY22 is designed to provide reliable 24 V DC digital output signals for controlling field devices such as solenoids, relays, and motors in industrial automation and process control systems. -
Q: How many channels does the MC-TDOY22 support?
A: The module supports 16 digital output channels. -
Q: What is the maximum current output per channel?
A: Each channel can output a maximum current من 0.5 A. -
Q: What is the response time من the MC-TDOY22?
A: The module has a fast response time من less than 5 milliseconds. -
Q: Can the MC-TDOY22 module be used in hazardous environments?
A: Yes, Ex-rated versions من the MC-TDOY22 are available for use in hazardous areas with explosive gases or dust. -
Q: What is the operating temperature range من the module?
A: The MC-TDOY22 operates within a temperature range من -20°C to +60°C. -
Q: What is the isolation rating من the MC-TDOY22?
A: The module provides channel-to-channel isolation من 250 V AC. -
Q: How is the MC-TDOY22 mounted?
A: The module can be mounted on a DIN rail, allowing for easy and flexible installation. -
Q: What certifications does the MC-TDOY22 have?
A: The module is CE, UL, and RoHS certified, with Ex-rated versions available upon request. -
Q: What is the weight من the MC-TDOY22 module?
A: The MC-TDOY22 weighs 0.608 kg.
