مقدمة المنتج

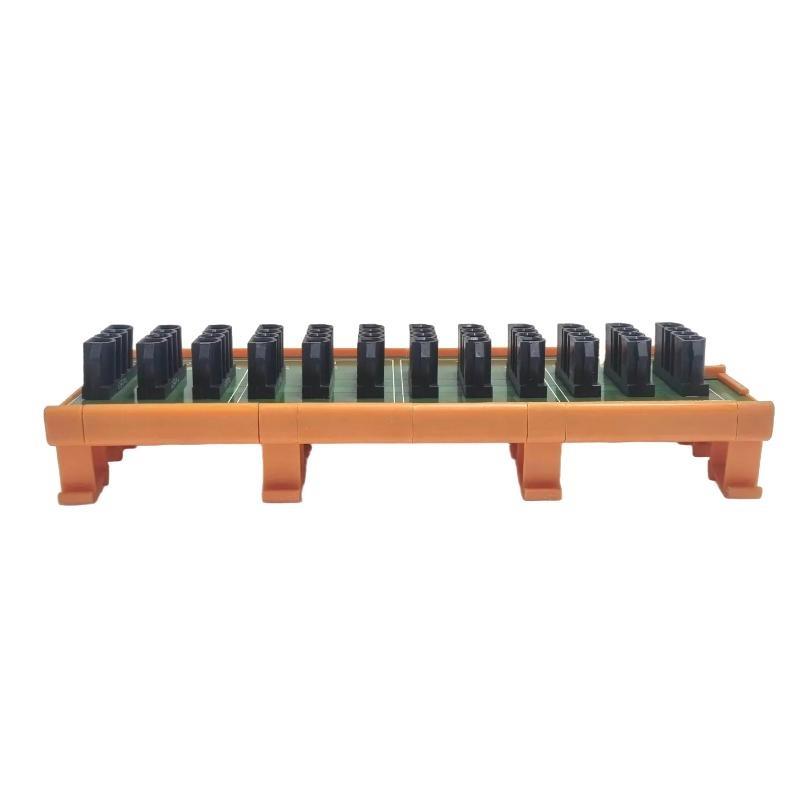

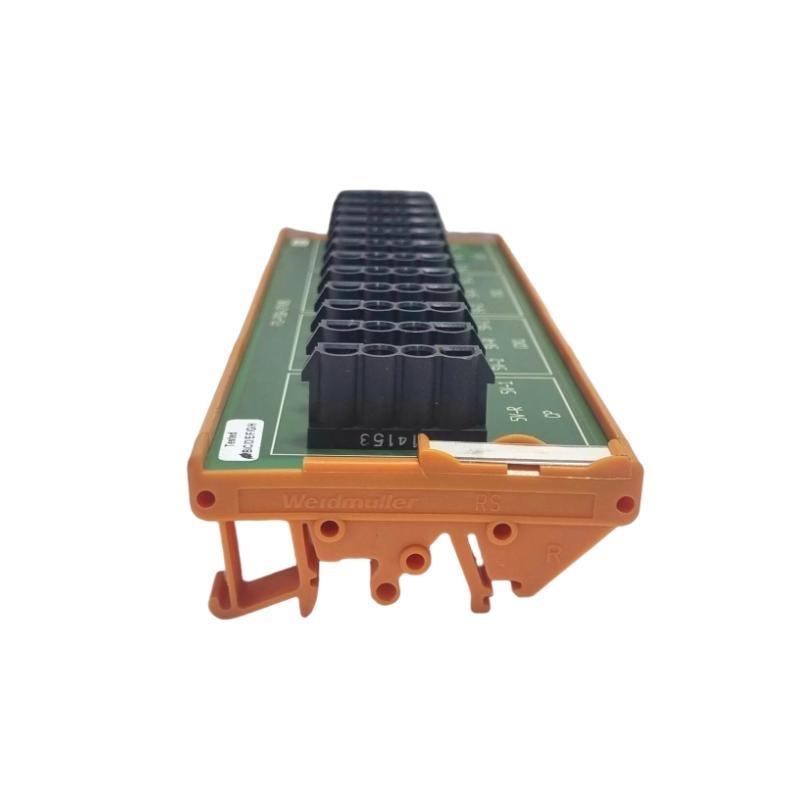

The Honeywell FS-PDB-CPX05 Power Distribution Board (PDB) Controller Cabinet is an industrial-grade cabinet designed for centralized power management and distribution in complex automation and control systems. It integrates multiple power distribution modules, protection circuits, and monitoring components in a single, organized enclosure.
This controller cabinet is engineered to simplify installation, improve system reliability, and provide centralized control over mains and low-voltage power distribution in industrial environments. It is widely used in control panels, PLC systems, data centers, and process automation facilities where robust and reliable power management is critical.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | FS-PDB-CPX05 |
| Type | Power Distribution Board Controller Cabinet |
| Input Voltage | 100–240 V AC |
| Frequency | 50/60 Hz |
| Maximum Current | 50 A total capacity |
| Protection | Overcurrent, short-circuit, and surge protection |
| Number من Distribution Outputs | 12–24 configurable |
| Monitoring | Integrated voltage, current, and fault indicators |
| Material | Powder-coated steel with internal aluminum mounting |
| Mounting | Floor or wall mountable |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| الوزن | 0.159 kg |
| Dimensions | 190 × 70 × 46 mm |
Applications
-
Industrial Control Rooms – centralized distribution من power to PLCs, sensors, and actuators.
-
Automation Racks – organized mains and low-voltage power delivery.
-
Process Control Plants – powering control and instrumentation devices with protection.
-
Data Centers – secure and monitored power distribution for critical systems.
-
Building Automation – distribution من power to HVAC, lighting, and security systems.
-
Renewable Energy Systems – management من distributed inverter and monitoring equipment.
Advantages
-
Centralized Power Management: Consolidates multiple power distribution modules in a single cabinet.
-
High Capacity: Total load up to 50 A supports multiple high-demand devices.
-
Protection Features: Overcurrent, short-circuit, and surge protection ensure device safety.
-
Integrated Monitoring: Real-time voltage, current, and fault indication simplifies maintenance.
-
Durable Construction: Powder-coated steel and aluminum ensure mechanical and thermal resilience.
-
Flexible Mounting Options: Can be mounted on the floor or wall depending on site requirements.
-
Ease من Integration: Compatible with Honeywell automation and control systems.
الأسئلة الشائعة (FAQ)
-
What is the total maximum current capacity من the FS-PDB-CPX05?
It can handle up to 50 A across all distribution outputs. -
Which input voltage ranges are supported?
The cabinet accepts 100–240 V AC at 50/60 Hz. -
Does it provide overcurrent protection?
Yes, integrated overcurrent protection is included on each output module. -
Can it monitor voltage and current for each output?
Yes, it has integrated monitoring for voltage, current, and fault conditions. -
Is it suitable for wall or floor installation?
Yes, it can be mounted either on the floor or on a wall. -
What materials are used in the cabinet construction?
The enclosure is powder-coated steel with internal aluminum mounting. -
How many outputs can be configured?
The cabinet supports 12–24 configurable distribution outputs. -
Does it protect against short circuits and surges?
Yes, both short-circuit and surge protection are integrated. -
Can it integrate with Honeywell PLC and automation modules?
Yes, it is fully compatible with Honeywell automation systems. -
What is the operating temperature range?
It operates reliably between -20°C and +60°C.
Related الطرازs (Same Series or Similar)
| الطراز Number | الوصف |
|---|---|
| FS-PDB-CPX01 | Smaller power distribution cabinet with 25 A capacity |
| FS-PDB-CPX02 | Medium-sized cabinet with 35 A capacity and integrated monitoring |
| FS-PDB-CPX03 | High-density cabinet for 50 A distribution with surge protection |
| FS-PDB-CPX04 | Modular cabinet for 24–48 outputs with remote monitoring |
| FS-PDB-CPX06 | Large cabinet for 60 A total load with multiple DIN rail sections |
| FS-PDB-CPX07 | Integrated cabinet with hybrid AC/DC power distribution capabilities |
Popular Honeywell الطرازs
| الطراز Number | الوصف |
|---|---|
| HC900 | Hybrid Control System for process automation |
| UDC3200 | Universal Digital Controller for process monitoring |
| Experion PKS I/O | Distributed I/O system for process automation |
| FS-MB-0001 | Standard mains power rail for industrial panels |
| FS-MB-0002 | High-current mains power rail for automation systems |
| FS-PS-0005 | Power supply module for Honeywell control cabinets |
