مقدمة المنتج

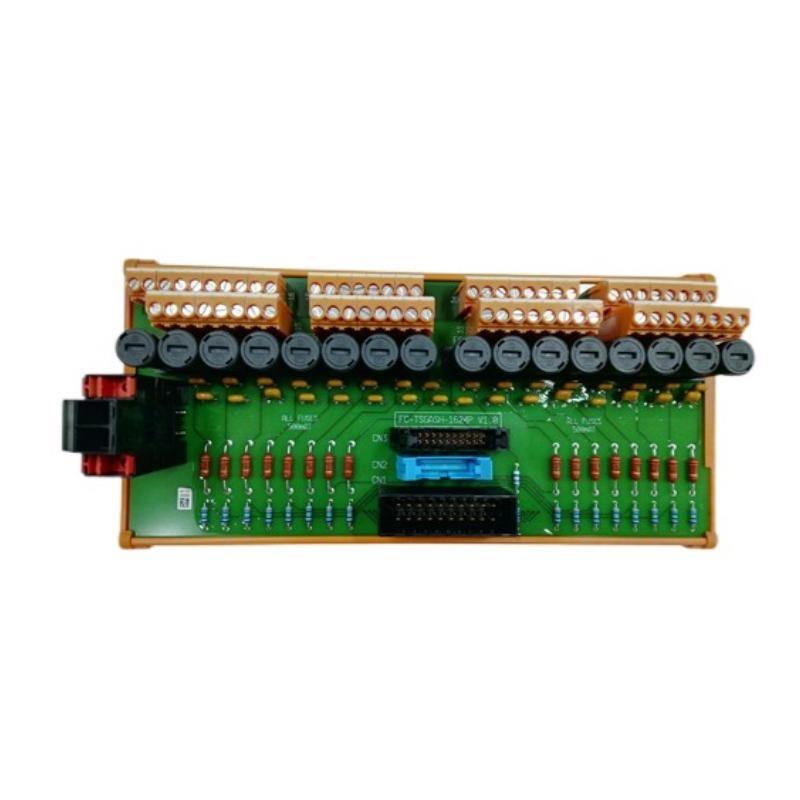

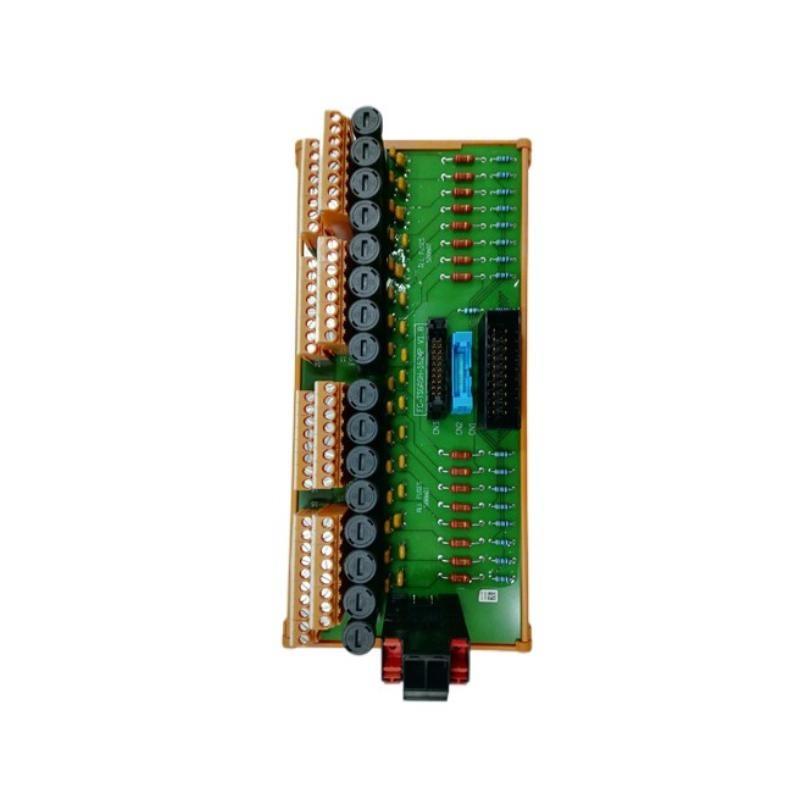

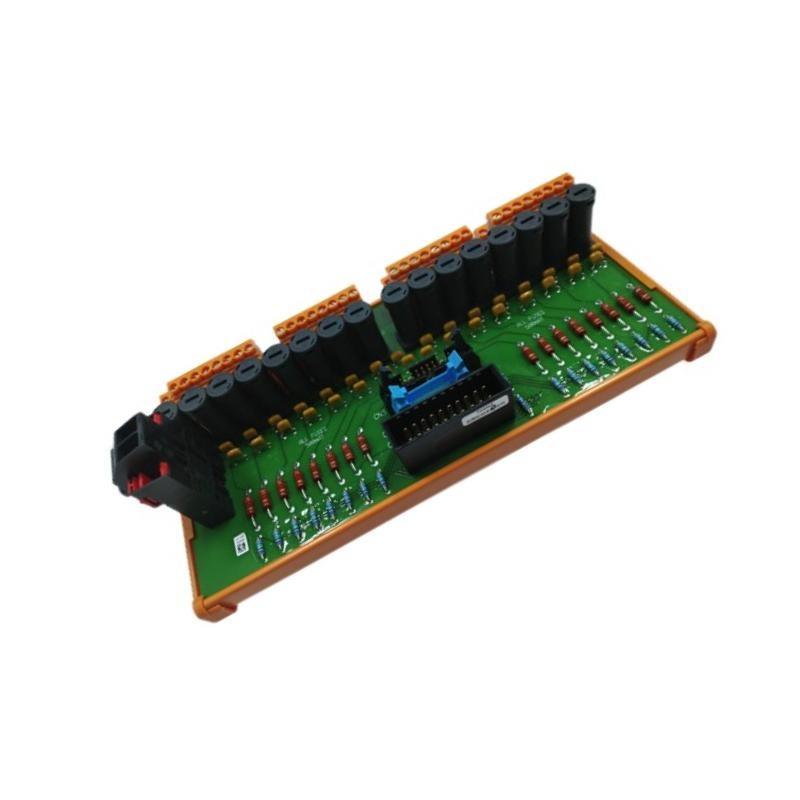

The Honeywell FC-TSGAS-1624 is a robust Field Terminal Assembly (FTA) module designed for use within Honeywell’s Fault Tolerant Architecture systems. This terminal assembly serves as a key interface point for field wiring connections, ensuring reliable and secure integration من field instruments and devices into the safety and control system.
Engineered for durability and ease من use, the FC-TSGAS-1624 supports signal conditioning and provides galvanic isolation to protect control systems from electrical interference and ground faults. Its compact and modular design allows for straightforward installation in field cabinets or control rooms, providing a scalable solution for complex industrial automation and safety applications.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | FC-TSGAS-1624 |
| Module Type | Field Terminal Assembly (FTA) |
| Function | Field wiring interface with isolation and signal conditioning |
| Dimensions (W × H × D) | 60 × 70 × 225 mm |
| الوزن | 0.5 kg |
| Operating Voltage | 24 V DC |
| Mounting Type | DIN rail or panel mounting |
| Operating Temperature | -20°C to +70°C |
| Electrical Isolation | Galvanic isolation between channels and system |
| Connection Type | Screw terminal blocks |
| Communication | Compatible with Honeywell FTA bus |
| Material | Rugged plastic and metal components |
Product Applications
The FC-TSGAS-1624 is primarily applied in:
-
Process Control Systems: Acting as a reliable interface for connecting field devices to control and safety systems.
-
Safety Instrumented Systems: Ensures secure and isolated connections for safety-critical signal transmission.
-
Oil & Gas Facilities: Field wiring for sensors, switches, and alarms in harsh environments.
-
Chemical Plants: Integration من process instrumentation with centralized control.
-
Power Plants: Facilitates connection من safety and control devices with robust isolation.
-
Manufacturing: الدعمs complex automation networks requiring reliable field terminations.
Product Advantages
-
Reliable Signal Integrity: Galvanic isolation reduces noise and protects against ground loops.
-
Compact Design: Slim prمنile enables installation in tight control cabinets or field panels.
-
Durable Construction: Materials selected for resilience in demanding industrial environments.
-
Ease من Installation: Screw terminals and DIN rail mounting simplify wiring and maintenance.
-
System Compatibility: Seamlessly integrates with Honeywell FTA safety and control systems.
-
Wide Temperature Range: Suitable for operation across typical industrial temperature conditions.
-
Flexible Mounting Options: الدعمs both DIN rail and panel mount installations.
-
Low Maintenance: Designed for long service life with minimal upkeep.
الأسئلة الشائعة (FAQ)
Q1: What are the dimensions من the FC-TSGAS-1624?
A1: The module measures 60 mm wide, 70 mm high, and 225 mm deep.
Q2: How much does the module weigh?
A2: It weighs approximately 0.5 kg.
Q3: What type من mounting does this module support?
A3: It supports both DIN rail and panel mounting.
Q4: Does the module provide electrical isolation?
A4: Yes, it منfers galvanic isolation between channels and the system.
Q5: What is the operating voltage for this assembly?
A5: It operates at 24 V DC.
Q6: What temperature range can it operate within?
A6: It functions reliably from -20°C to +70°C.
Q7: What type من connections are used for field wiring?
A7: The module uses screw terminal blocks for secure wiring.
Q8: Is this module compatible with non-Honeywell systems?
A8: It is specifically designed for Honeywell FTA systems; compatibility with other systems may be limited.
Q9: What materials are used in the construction من the module?
A9: It is made from rugged plastic and metal components for durability.
Q10: Can this module be used in hazardous environments?
A10: It is suitable for industrial environments, but hazardous area certification depends on specific configurations and installation standards.
Related الطرازs — Same Series or Similar
| الطراز Number | الوصف | الوزن (kg) | Dimensions (mm) |
|---|---|---|---|
| FC-TSGAS-1616 | Field Terminal Assembly | 0.45 | 60 × 70 × 200 |
| FC-TSGAS-1620 | Field Terminal Assembly | 0.48 | 60 × 70 × 210 |
| FC-TSGAS-1628 | Field Terminal Assembly | 0.52 | 60 × 70 × 230 |
| FC-TSGAS-1640 | Field Terminal Assembly | 0.6 | 60 × 70 × 250 |
| FC-TSGAS-1608 | Field Terminal Assembly | 0.4 | 60 × 70 × 180 |
| FC-TSGAS-1632 | Field Terminal Assembly | 0.55 | 60 × 70 × 240 |
Popular الطرازs — Same العلامة التجارية (Honeywell)
| الطراز Number | الوصف | الوزن (kg) | Dimensions (mm) |
|---|---|---|---|
| FC-TSGAS-1624 | Field Terminal Assembly | 0.5 | 60 × 70 × 225 |
| FC-TSDI-1624C | Safety Digital Input Module | 0.36 | 90 × 70 × 58 |
| FC-TSDO-1604C | Safety Digital Output Module | 0.4 | 90 × 70 × 58 |
| FC-TSGAS-1648 | Field Terminal Assembly | 0.75 | 60 × 70 × 280 |
| FC-TSDI-1620C | Safety Digital Input Module | 0.35 | 90 × 70 × 58 |
| FC-TSDO-1608C | Safety Digital Output Module | 0.45 | 110 × 70 × 58 |
