Product Overview

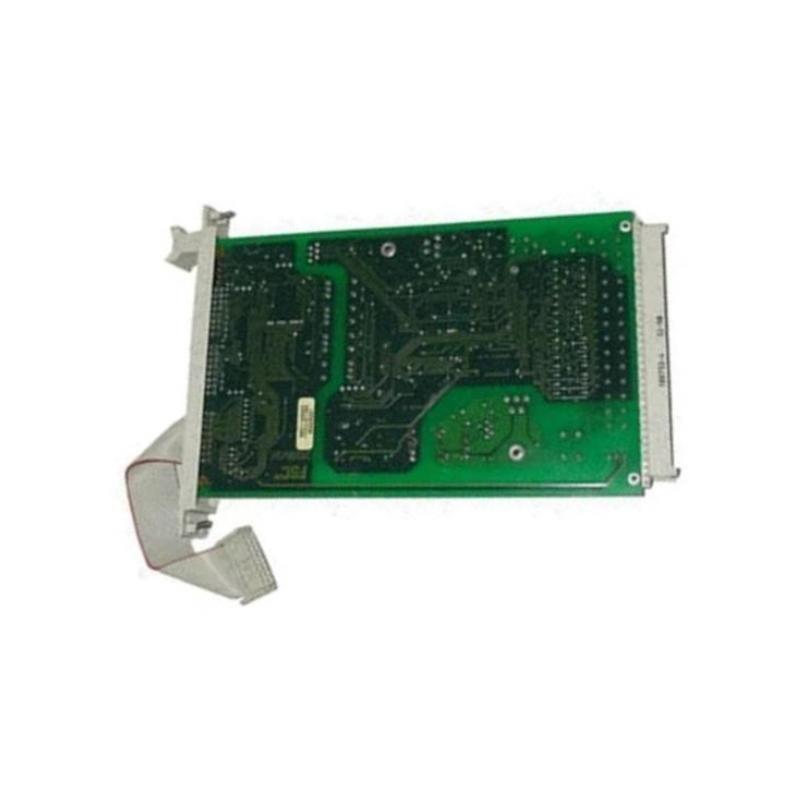

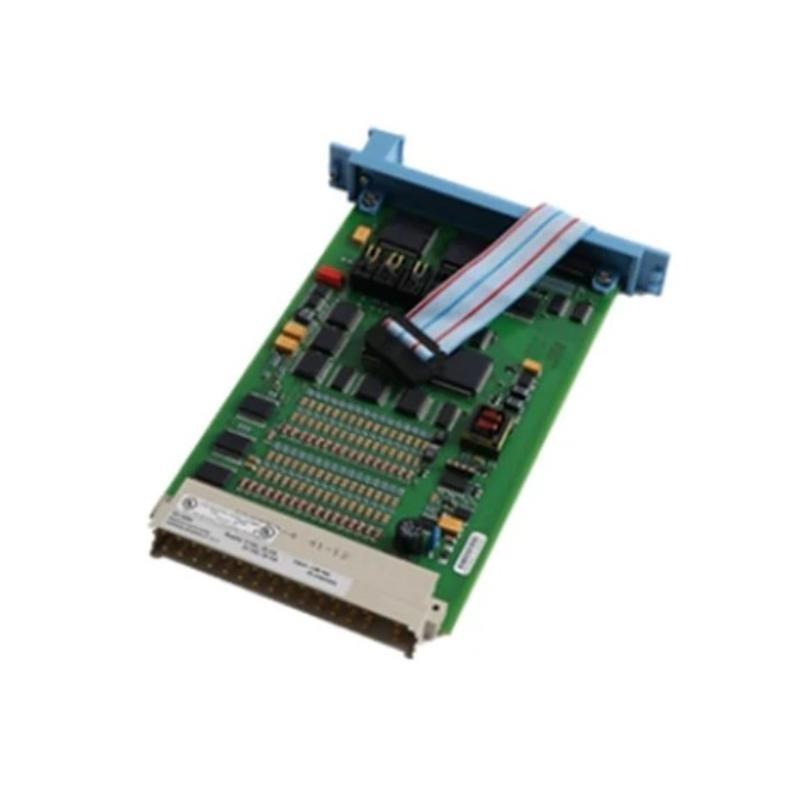

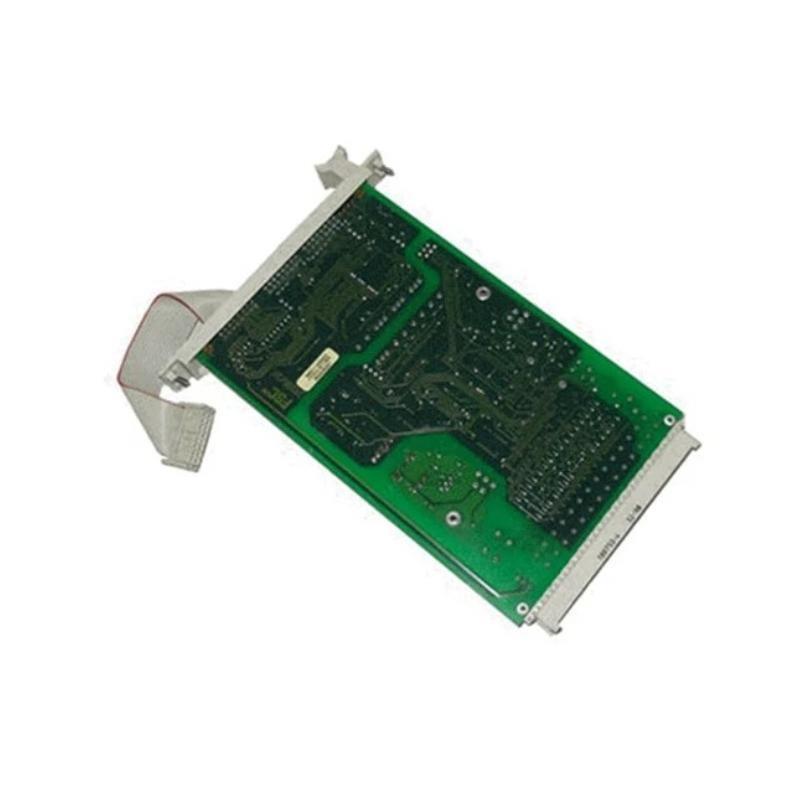

The Honeywell FC-SDI-1624M is a Safety Digital Input Module designed for use in Honeywell’s Safety Manager and Experion Process Knowledge System (PKS). It provides highly reliable, fail-safe digital input processing to meet stringent safety standards in industrial environments. The module enables safe and secure acquisition من discrete signals from field devices, ensuring safety instrumented functions (SIF) are executed accurately and reliably.
Key Features
-
16 channel digital input capability
-
Designed for safety-critical applications with SIL 3 compliance
-
Compatible with Honeywell Safety Manager and Experion PKS
-
High noise immوحدةy and signal integrity
-
Diagnostics for input status and module health
-
Hot-swappable and redundant capable
-
Compact DIN rail mounting design
-
LED indicators for channel and module status
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Safety Digital Input Module |
| الطراز Number | FC-SDI-1624M |
| الشركة المصنعة | Honeywell |
| Number من Channels | 16 digital input channels |
| Input Voltage Range | 24 VDC nominal |
| Input Type | Discrete digital inputs |
| Safety Integrity Level | SIL 3 certified (IEC 61508) |
| Diagnostics | Input status and module health monitoring |
| Mounting | DIN rail |
| Hot Swappable | Yes |
| Redundancy الدعم | Yes |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 100 × 160 × 20.32 mm |
| الوزن | 0.5 kg |
| Certifications | CE, UL, CSA, ATEX, SIL 3 |
Industry Applications
-
Safety Instrumented Systems (SIS)
-
Emergency Shutdown Systems (ESD)
-
Process Automation in Oil & Gas
-
Chemical and Petrochemical Plants
-
Power Generation Facilities
-
Pharmaceutical Manufacturing
-
Food and Beverage Safety Control
-
Water and Wastewater Treatment
Product Advantages
-
High Safety Integrity: SIL 3 compliance ensures reliable safety input processing
-
Robust Diagnostics: Provides continuous monitoring من input and module health
-
Compatibility: Fully compatible with Honeywell Safety Manager and Experion PKS
-
Redundancy and Hot Swap: الدعمs redundant architectures and hot swapping for maximum uptime
-
Compact and Durable: DIN rail mountable with rugged industrial design
-
Enhanced Noise Immوحدةy: Ensures accurate digital signal detection in harsh environments
-
Visual Indicators: LED status for quick diagnostics and troubleshooting
الأسئلة الشائعة (FAQ)
1. How many input channels does the FC-SDI-1624M support?
It supports 16 digital input channels.
2. What safety certification does this module have?
It is SIL 3 certified according to IEC 61508.
3. Is the module compatible with Honeywell Safety Manager?
Yes, it integrates fully with the Safety Manager system.
4. Can this module be used in redundant configurations?
Yes, it supports redundancy to ensure continuous operation.
5. Does it support hot-swapping?
Yes, it can be replaced without shutting down the system.
6. What is the input voltage range?
The nominal input voltage is 24 VDC.
7. What diagnostic features are available?
It monitors input status and module health continuously.
8. What are the operating temperature limits?
The module operates between 0°C and +60°C.
9. How is the module mounted?
It is designed for DIN rail mounting.
10. What certifications does the module hold?
It holds CE, UL, CSA, ATEX, and SIL 3 certifications.
