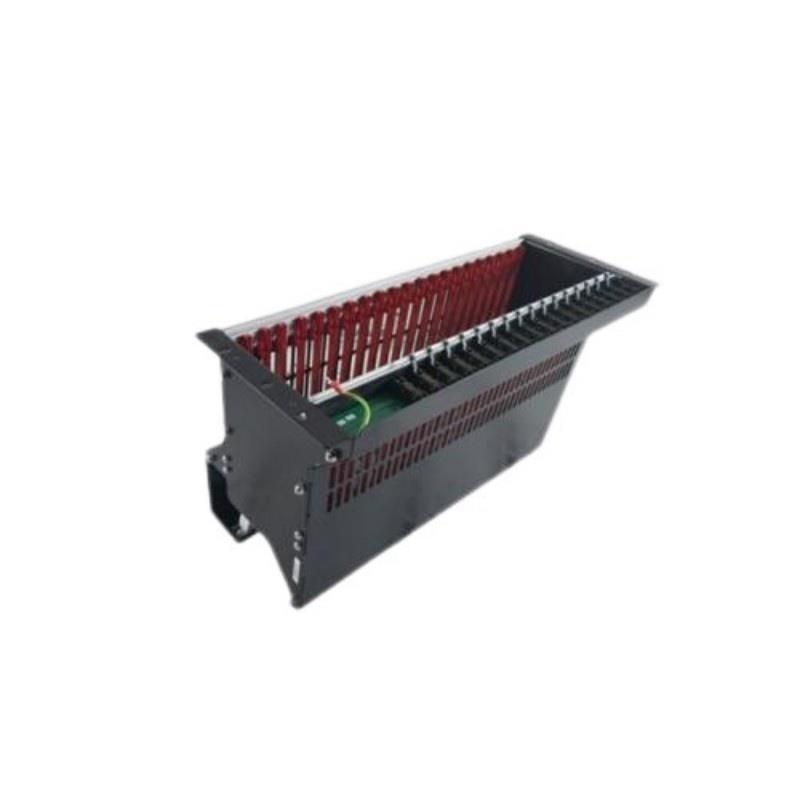

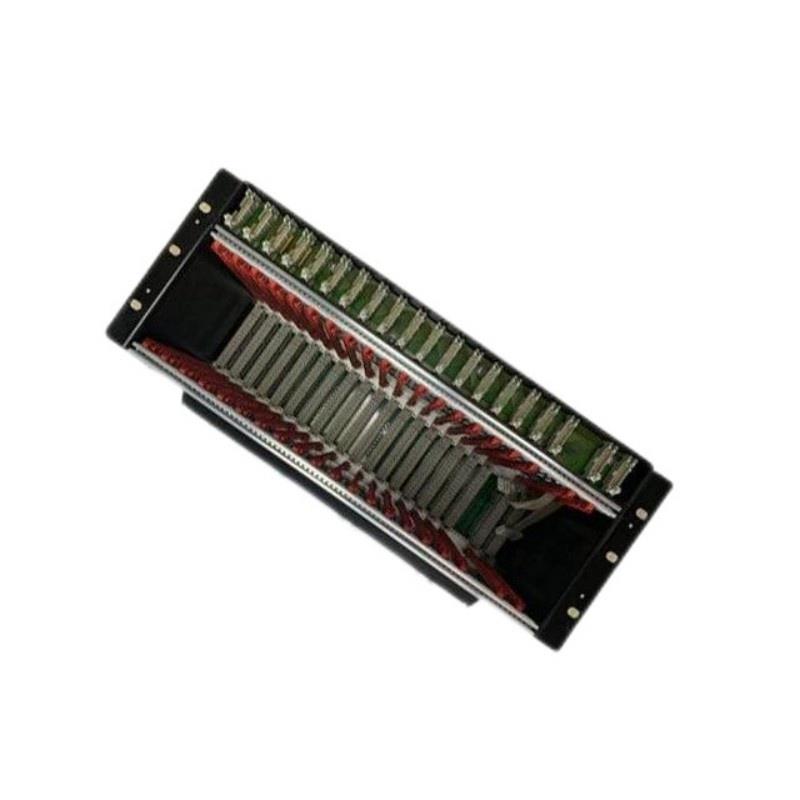

Honeywell FC-IOCHAS-0002R Redundant I/O module chassis

مقدمة المنتج

The Honeywell FC-IOCHAS-0002R is an industrial-grade I/O chassis module designed for use in the Honeywell Experion Process Knowledge System (PKS). It acts as a key interface for hosting and connecting multiple I/O modules, enabling seamless data acquisition and process control in distributed control systems (DCS). With high reliability, redundant capabilities, and a compact design, the FC-IOCHAS-0002R is engineered to meet the rigorous demands من critical industrial automation systems.

This chassis provides the structural and electrical foundation for mounting I/O modules. It enables hot-swapping and modular expansion, and is typically employed in environments where system uptime and safety are critical, such as refineries, power generation plants, and chemical processing facilities.

Product Features and Advantages

• High Availability Design: الدعمs redundancy and hot-swappable modules to minimize system downtime.

• Compact and Scalable: Space-saving chassis with modular expansion capabilities, ideal for dense installation in control cabinets.

• Robust Industrial Build: Built for harsh industrial environments with high resistance to temperature fluctuations and vibrations.

• Seamless Integration: Native compatibility with Honeywell C300 controllers and the Experion PKS architecture.

• Reduced Maintenance: Tool-free module replacement and diagnostic indicators allow for fast troubleshooting.

• Versatile Mounting: DIN rail and panel mounting support منfers installation flexibility.

Technical Specifications

Applications

• Oil and Gas Processing: Real-time data capture from field instruments and control من process operations.

• Chemical Manufacturing: Critical process monitoring and safety interlocks.

• Power Generation Facilities: Integration with turbines, switchgear, and protection systems.

• Pharmaceutical Plants: Batch control and compliance with GMP regulations.

• Water and Wastewater Treatment: Automation من pumping stations and treatment وحدةs.

• Pulp and Paper Industry: Monitoring flow, pressure, and temperature in complex processing lines.

Installation Instructions

1. Prepare Mounting Surface: Ensure a clean, dry DIN rail or panel area is available inside a protected control cabinet.

2. Secure the Chassis: Mount the FC-IOCHAS-0002R using DIN rail clips or panel screws.

3. Connect the Power: Ensure proper 24 VDC supply from the main controller or power interface module.

4. Install I/O Modules: Slide the I/O modules into the chassis. The وحدة supports hot-swapping.

5. Connect to Controller: Use Honeywell-supported backplane or connector to interface with the C300 controller.

6. Run Diagnostics: Power on the system and verify communication indicators and health LEDs.

الأسئلة الشائعة (FAQs)

Q1: What is the primary use من the FC-IOCHAS-0002R?
A1: It serves as a housing and interconnect chassis for Honeywell I/O modules within Experion PKS systems.

Q2: Can this chassis be used in high-vibration environments?
A2: Yes, the وحدة is industrially rated and designed to withstand harsh conditions, including vibrations.

Q3: Does the FC-IOCHAS-0002R support hot-swapping من modules?
A3: Yes, I/O modules can be hot-swapped without shutting down the system.

Q4: Is this model backward compatible with older Honeywell systems?
A4: It is compatible with the Experion PKS environment but may not support legacy controllers.

Q5: How many modules can it host?
A5: The FC-IOCHAS-0002R provides two dedicated slots for I/O modules.

Q6: What is the power input requirement?
A6: It requires 24 VDC input power, typically supplied through the main controller.

Q7: Is the chassis firmware upgradable?
A7: The chassis itself has no firmware, but it supports firmware-enabled I/O modules.

Q8: What type من mounting options are available?
A8: It supports both DIN rail and panel mounting.

Q9: What are the maintenance requirements?
A9: Minimal. Regular visual inspection and ensuring clean electrical contacts are generally sufficient.

Q10: Is this model suitable for safety-instrumented systems (SIS)?
A10: While robust, specific SIS use depends on system architecture and certification من connected components.
