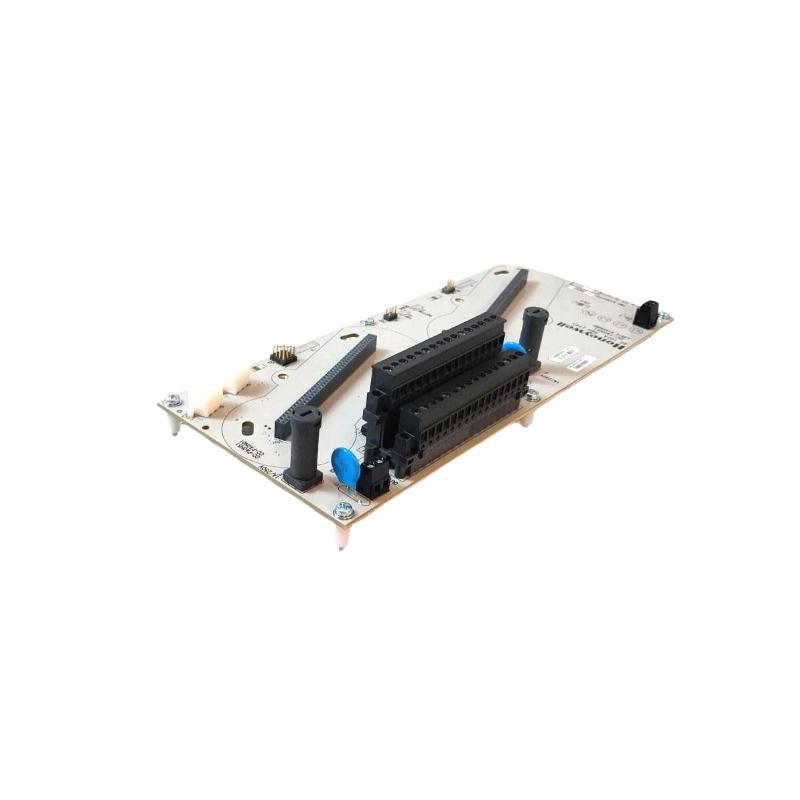

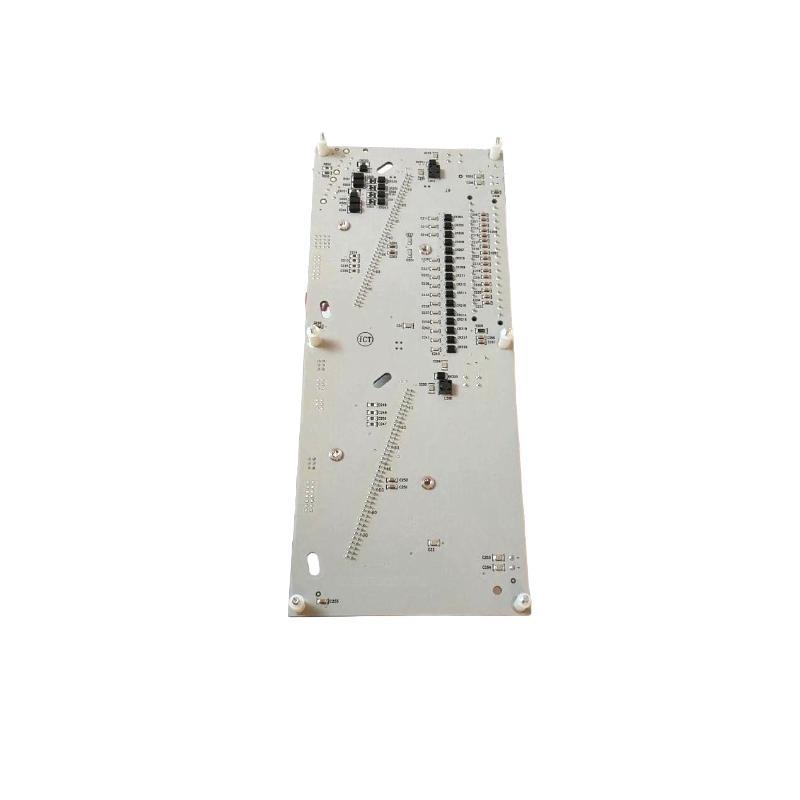

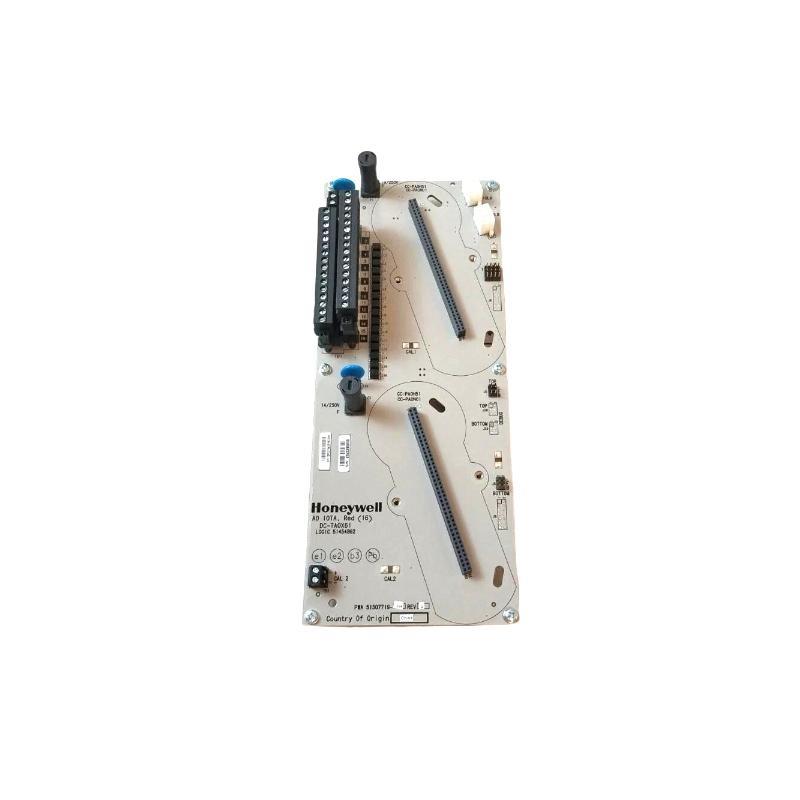

The Honeywell DC-TAOX51 51307717-175 is a high-performance 16-channel analog output module designed for use in the Honeywell Experion Series-C control systems. It provides reliable 4–20 mA current loop outputs for actuators and recording devices, with optional redundancy and self-diagnostics to enhance system availability.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | DC-TAOX51 51307717-175 |
| Output Type | 4–20 mA analog current |
| Channels | 16 |
| Resolution | ±0.05% من full scale |
| Calibrated Accuracy | ±0.35% من full scale at 25 °C |
| Output Ripple | < 100 mV peak-to-peak |
| Response Time | ≤ 80 ms |
| Maximum Resistive Load | 800 Ω |
| Maximum Open Circuit Volt | 22 V |
| Operating Temperature | -40 °C to +70 °C |
| Dimensions | 156 × 66 × 30 mm |
| الوزن | 0.45 kg |
Applications
-
Industrial process automation
-
Actuator and valve control
-
Data acquisition systems
-
Redundant critical control loops
-
Plant monitoring and management
Advantages
-
High-density: 16 output channels in a compact module
-
Redundancy-ready for high availability systems
-
Safe-state configuration per channel
-
Open-wire detection for improved reliability
-
Fast response and low output ripple
-
Easy integration with Series-C IOTA and C300 systems
FAQ
Q1: How many channels does the DC-TAOX51 support?
A1: It supports 16 independent analog output channels.
Q2: What is the output signal type?
A2: The module outputs standard 4–20 mA current signals.
Q3: Does the DC-TAOX51 support redundancy?
A3: Yes, it can be configured for redundant operation.
Q4: What is the maximum load resistance?
A4: The maximum resistive load is 800 Ω per channel.
Q5: Is open-wire detection available?
A5: Yes, the module can detect and indicate open field wiring.
Q6: How fast does the module respond to input changes?
A6: Response time is typically within 80 ms.
Q7: What is the operating temperature range?
A7: It operates reliably between -40 °C and +70 °C.
Q8: Does it require external power?
A8: No, it draws power from the IOTA to which it is connected.
Q9: Can each channel be set to a safe state?
A9: Yes, safe-state behavior is configurable per channel.
Q10: What systems is the DC-TAOX51 compatible with?
A10: It is designed for Honeywell Experion Series-C and C300 systems.
Related الطرازs
| الطراز | Type | Channels | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| DC-TAOX01 | Analog Output | 16 | 156×66×30 | 0.45 |
| DC-TAOX11 | Analog Output Red. | 16 | 304×66×30 | 0.90 |
| DC-TAON01 | Analog Output | 16 | 156×66×30 | 0.45 |
| DC-TAON11 | Analog Output Red. | 16 | 304×66×30 | 0.90 |
| DC-PAOH51 | AO w/ HART | 16 | 156×66×30 | 0.45 |
| DC-PAOH01 | AO w/ HART | 16 | 156×66×30 | 0.45 |
Popular Honeywell الطرازs
| الطراز | Type | Channels | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| CC-PAIH51 | Analog Input w/ HART | 16 | 156×66×30 | 0.45 |
| CC-PAIN01 | Analog Input | 16 | 156×66×30 | 0.45 |
| CC-PAIM01 | Low Level Analog Mux | 64 | 156×66×30 | 0.45 |
| CC-PDIL01 | Digital Input 24 VDC | 32 | 228×66×30 | 0.60 |
| CC-PDOB01 | Digital Output 24 VDC | 32 | 228×66×30 | 0.60 |
| CC-PUIO01 | Universal I/O | 32 | 304×66×30 | 0.90 |
