مقدمة المنتج

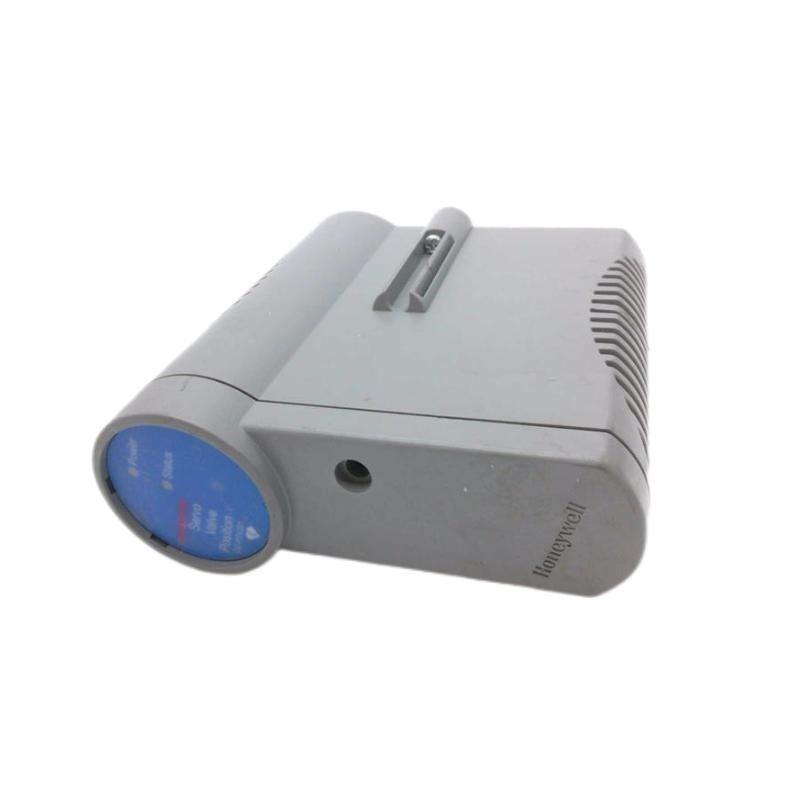

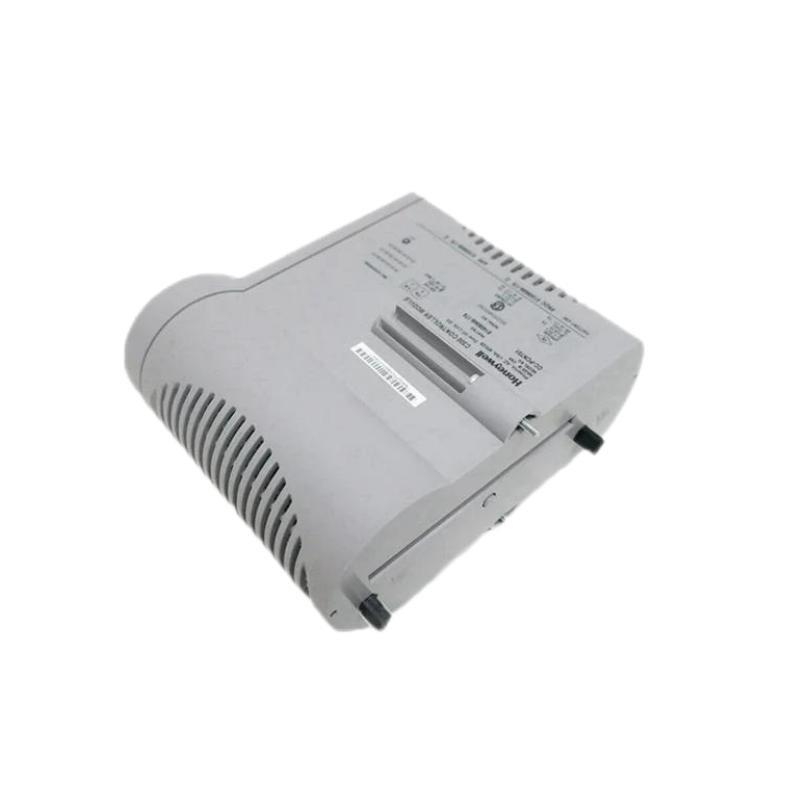

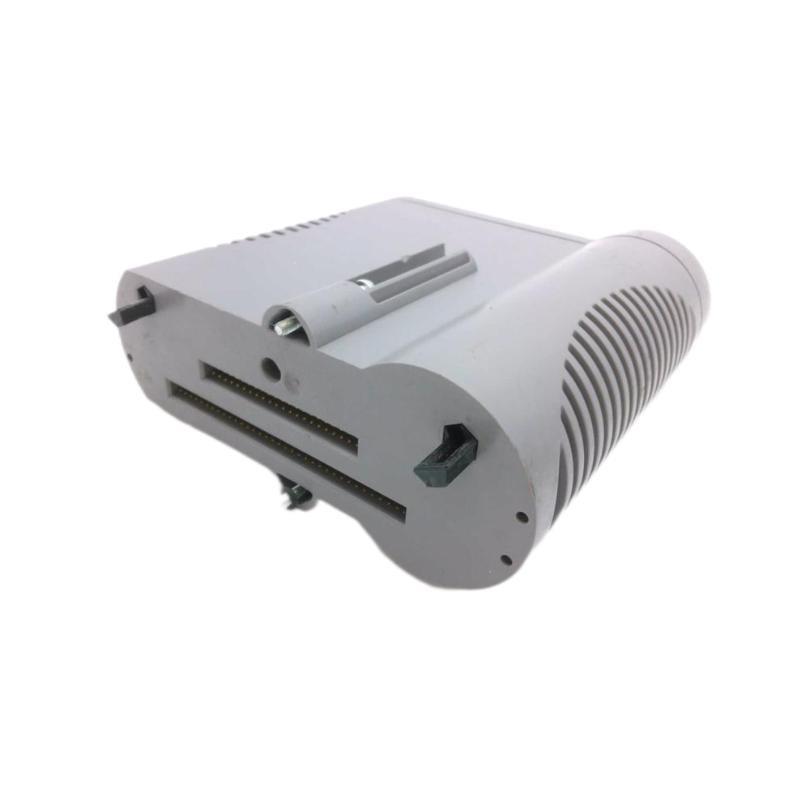

The Honeywell CC-PSV201 Servo Valve Positioner Module is an advanced module designed for precise control and positioning من servo-actuated valves within Honeywell’s Experion PKS and C300 Process Control System environments. It delivers high accuracy, rapid response, and reliable feedback, making it essential for controlling complex industrial processes where valve actuation speed and accuracy are critical for operational efficiency and safety.
The CC-PSV201 is fully compatible with Honeywell’s control architecture and leverages robust digital communication protocols to ensure seamless integration. Its rugged design enables dependable operation even in harsh industrial settings, making it an ideal choice for industries such as oil & gas, petrochemicals, pharmaceuticals, and power generation.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | CC-PSV201 |
| Function | Servo Valve Positioner Module |
| الدعمed Systems | Honeywell Experion PKS, C300 Controller |
| Valve Types الدعمed | Pneumatic and Hydraulic Servo Valves |
| Control Signal | Digital Command from C300 / Experion PKS |
| Feedback Signal | 4–20 mA, Digital Feedback, or Encoder |
| Response Time | < 50 ms |
| Position Accuracy | ± 0.1% من Full Stroke |
| Power Supply | 24 VDC typical |
| Power Consumption | Approx. 5 W |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x H x D) | 152 x 84 x 45 mm |
| الوزن | 0.44 kg |
| Mounting | Rack-mounted, Modular |
| Compliance | CE, FCC, UL, SIL2 Suitable (IEC 61508) |
Applications
The CC-PSV201 Servo Valve Positioner Module is widely used across industries where accurate valve actuation is essential for process performance and safety:
-
Oil & Gas (Upstream and Downstream):
For controlling valves in separation systems, gas turbines, compressor stations, and refining وحدةs. -
Chemical and Petrochemical Plants:
Accurate control من valves in reactors, heat exchangers, and distillation columns. -
Power Generation:
Regulates steam and gas flow in boilers, turbines, and auxiliary systems. -
Pharmaceutical Manufacturing:
Precision control من flow valves in batch processing and clean-in-place (CIP) operations. -
Water and Wastewater Treatment:
Automated control من flow and pressure regulation valves for optimized treatment processes. -
Pulp and Paper Industry:
Controls consistency and flow valves in paper production lines.
Advantages
-
High Positioning Accuracy:
Offers ± 0.1% accuracy to ensure precise valve positioning. -
Fast Response Time:
Response in less than 50 ms guarantees rapid control even in dynamic process environments. -
Broad Valve Compatibility:
الدعمs both pneumatic and hydraulic servo valve types for flexible deployment. -
Noise and EMI Immوحدةy:
Digital control ensures immوحدةy to EMI/RFI common in industrial environments. -
Compact Modular Design:
Space-efficient, easily installed in Honeywell racks. -
Diagnostic and Monitoring Features:
Advanced diagnostics for valve performance and health status monitoring. -
SIL2 Suitability:
Meets safety standards for applications requiring SIL2 compliance. -
Minimal Maintenance:
Rugged design minimizes the need for routine service and reduces lifecycle costs. -
Low Power Consumption:
Efficient energy use supports green plant operation. -
Global Certification:
CE, FCC, and UL certified for international deployment.
الأسئلة الشائعة (FAQ)
-
What is the CC-PSV201 primarily used for?
It is used for controlling and positioning servo-actuated valves within industrial process control systems. -
Which systems is it compatible with?
Fully compatible with Honeywell Experion PKS and C300 controllers. -
Can it control both pneumatic and hydraulic valves?
Yes, the CC-PSV201 supports both pneumatic and hydraulic servo valve types. -
What feedback signals does it accept?
It supports 4–20 mA analog feedback, digital feedback, and encoder-based feedback. -
How accurate is valve positioning?
± 0.1% من full stroke for highly precise control. -
What is the response time من this module?
Less than 50 ms, allowing very fast actuation. -
What are its physical dimensions?
152 x 84 x 45 mm. -
How much does the module weigh?
0.44 kg. -
Does it meet industrial safety standards?
Yes, it is suitable for SIL2 applications and certified for global use. -
Is it easy to maintain?
Yes, designed for minimal maintenance with advanced diagnostic capabilities.
Recommended Similar الطرازs (Same Series or Related)
| الطراز Number | Function | Key Feature |
|---|---|---|
| CC-PSV201 | Servo Valve Positioner Module | Standard servo valve control |
| CC-PSV202 | Servo Valve Positioner Module | Extended diagnostics |
| CC-TAOX01 | Analog Output Module | High-accuracy analog output |
| CC-PAOH01 | Analog Output Module | Enhanced temperature range |
| CC-TAIH01 | Analog Input Module | Multi-channel analog input |
| CC-TDIL01 | Digital Input Module | Fast digital input processing |
Popular Honeywell الطرازs (Same العلامة التجارية)
| الطراز Number | Type | الوصف |
|---|---|---|
| CC-PCF901 | Fiber Network Interface Module | High-speed fiber network communication |
| CC-PAIH01 | Analog Input Module | Versatile high-accuracy input module |
| CC-PDOB01 | Digital Output Module | Rugged industrial digital output |
| CC-TAOX01 | Analog Output Module | High-performance analog output |
| CC-TCF901 | Fiber Converter Module | Fiber-to-copper media converter |
| CC-TAIH01 | Analog Input Module | Advanced input module for dynamic signals |
