مقدمة المنتج

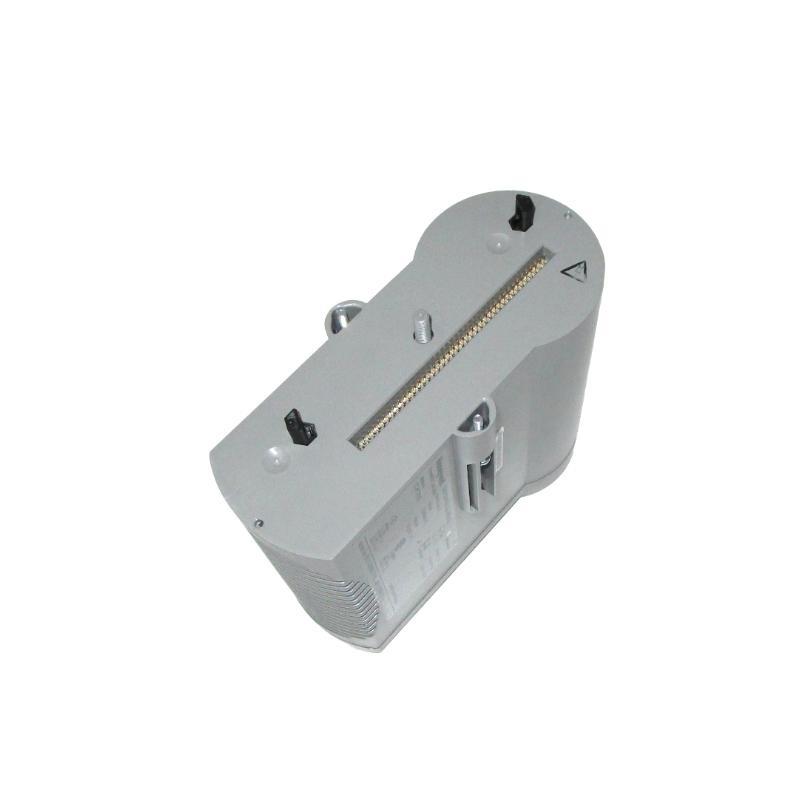

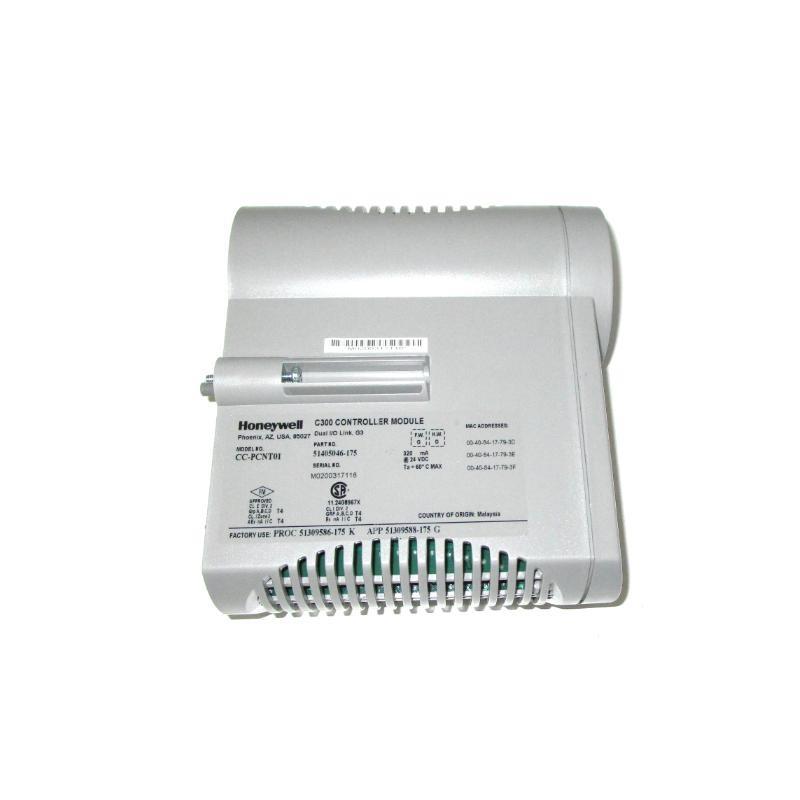

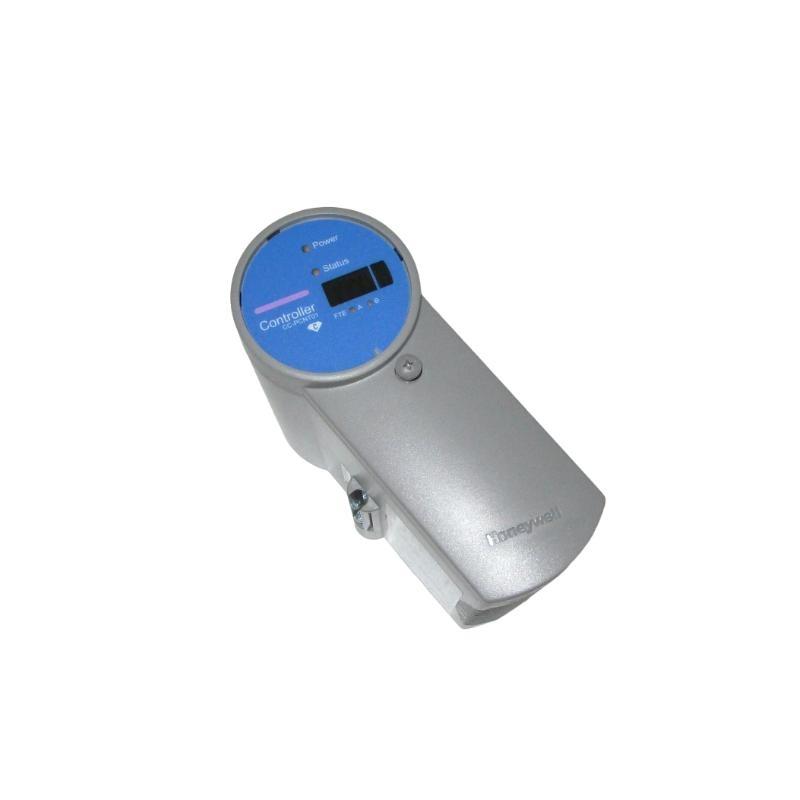

The Honeywell CC-PCNT01 51405046-175 C300 Controller Module is a central processing component designed for the Honeywell C300 controller family, widely used in distributed control systems (DCS) for industrial automation. This module acts as the core computational وحدة responsible for executing control strategies, logic operations, and communication tasks essential for process control and monitoring.
Engineered to provide high-speed and reliable control performance, the C300 controller module integrates advanced processing power with robust diagnostics to ensure continuous and safe operation من critical processes. Its architecture supports flexible configuration, redundancy, and scalability, making it ideal for complex applications in industries such as oil and gas, power generation, chemical production, and manufacturing.
With enhanced processing capability and compatibility with a variety من input/output modules, the CC-PCNT01 supports a seamless control environment to meet stringent operational demands while maintaining high availability and safety standards.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | CC-PCNT01 51405046-175 |
| Module Type | Controller Module (C300 family) |
| Processor | 32-bit microprocessor |
| Memory | 8 MB RAM (typical) |
| Communication Interface | Ethernet, serial ports |
| Power Supply | 24 V DC (from control rack) |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions (W × H × D) | 68 x 162 x 165 mm |
| الوزن | 0.48 kg |
| Mounting | Rack-mounted in Honeywell C300 chassis |
| Certifications | CE, UL, CSA |
Product Applications
-
Distributed Control Systems (DCS): Acts as the central control processor in Honeywell C300 systems, coordinating process control logic and communication.
-
Oil and Gas Industry: Controls refinery processes, pipeline operations, and gas processing plants with high reliability.
-
Power Generation: Manages turbine control, boiler operations, and grid interface with real-time control responsiveness.
-
Chemical Manufacturing: الدعمs precise process automation for mixing, reaction control, and safety interlocks.
-
Pharmaceutical Industry: Provides the computing backbone for automated production and quality control systems.
-
Water and Wastewater Treatment: Enables automated monitoring and control من treatment processes ensuring regulatory compliance.
Product Advantages
-
Robust Processing Power: Equipped with a 32-bit microprocessor for fast and efficient execution من control algorithms.
-
High Reliability: Designed with industrial-grade components and diagnostics to minimize downtime.
-
Modular Design: Easily integrates with Honeywell C300 I/O modules and communication interfaces for flexible system architecture.
-
Redundancy الدعم: Compatible with redundant configurations to enhance system availability.
-
Wide Environmental Tolerance: Operates reliably under broad temperature and humidity ranges, suitable for harsh environments.
-
Advanced Diagnostics: Built-in monitoring functions facilitate proactive maintenance and fault detection.
-
Seamless Communication: الدعمs multiple industrial communication protocols, enabling smooth integration into existing infrastructure.
-
Compact and Space-Saving: Rack-mount design optimizes control room space utilization.
الأسئلة الشائعة (FAQ)
-
What is the main function من the Honeywell CC-PCNT01 module?
It serves as the central processing وحدة من the Honeywell C300 controller system, executing control logic and communication tasks. -
How does this module connect to other system components?
It interfaces via Ethernet and serial ports, connecting with I/O modules, operator stations, and network devices. -
What power supply does the module require?
It operates on 24 V DC power supplied through the control rack. -
Is this module suitable for hazardous environments?
While designed for industrial use, specific hazardous location certifications need to be confirmed per installation requirements. -
Can the module be used in redundant configurations?
Yes, it supports redundant controller setups to ensure high availability. -
What kind من diagnostics does the module provide?
It monitors system health, communication status, and internal errors, enabling proactive maintenance. -
What are the dimensions and weight من this module?
Dimensions are 68 x 162 x 165 mm, weighing 0.48 kg. -
What is the operating temperature range?
The module operates reliably between 0°C and 60°C. -
Is the module compatible with Honeywell Experion PKS?
The CC-PCNT01 is primarily designed for the Honeywell C300 system but can interface with Experion PKS under certain configurations. -
What industries commonly use this controller module?
It is widely used in oil and gas, power generation, chemical manufacturing, pharmaceuticals, and water treatment industries.
Recommended الطرازs – Same Series or Related
| الطراز Number | الوصف | Key Features |
|---|---|---|
| CC-PCNT02 | C300 Controller Module with enhanced memory | Larger RAM and processing speed |
| CC-PAIX01 | Analog Input Module | الدعمs multiple analog inputs |
| CC-PAON01 | Analog Output Module | Provides precise analog outputs |
| CC-PDIX01 | Digital Input Module | Handles digital status inputs |
| CC-PDOX01 | Digital Output Module | Controls digital output signals |
| CC-PCNT03 | Advanced Controller Module | Increased processing capability |
Recommended Popular الطرازs – Honeywell العلامة التجارية
| الطراز Number | الوصف | Typical Application |
|---|---|---|
| Experion PKS R430 | Distributed control system platform | Large-scale process automation |
| HC900 | Hybrid controller | Flexible and modular control |
| SmartLine TDC3000 | Temperature transmitter | Precision temperature sensing |
| Triconex 3500 | Safety instrumented system | High-integrity safety control |
| SmartLine Vortex Flow Meter | Flow measurement device | Accurate flow measurement |
| OneWireless Gateway | Wireless communication interface | Industrial wireless networking |
