Product Overview

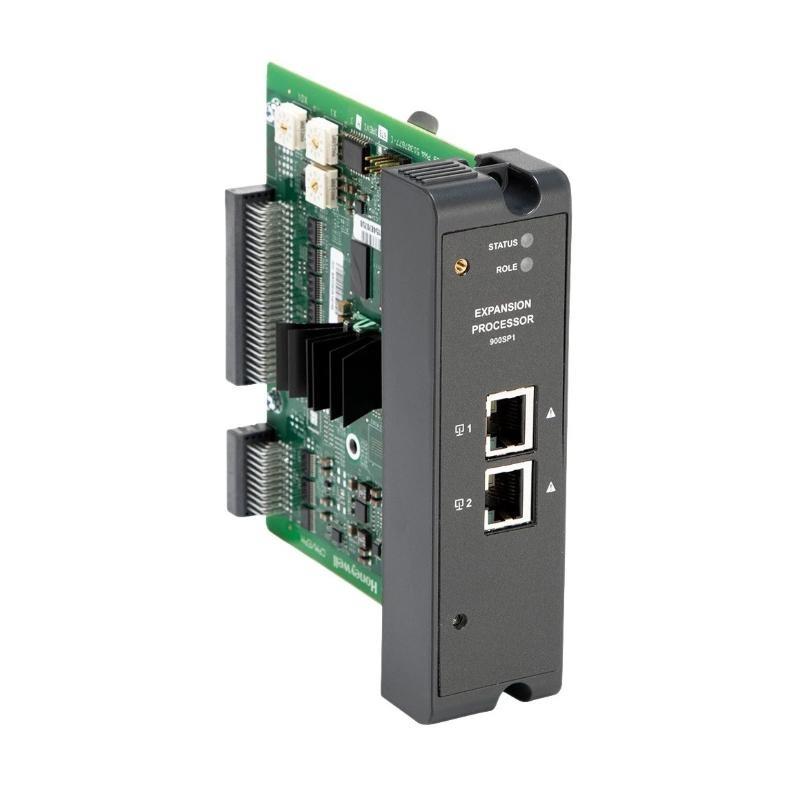

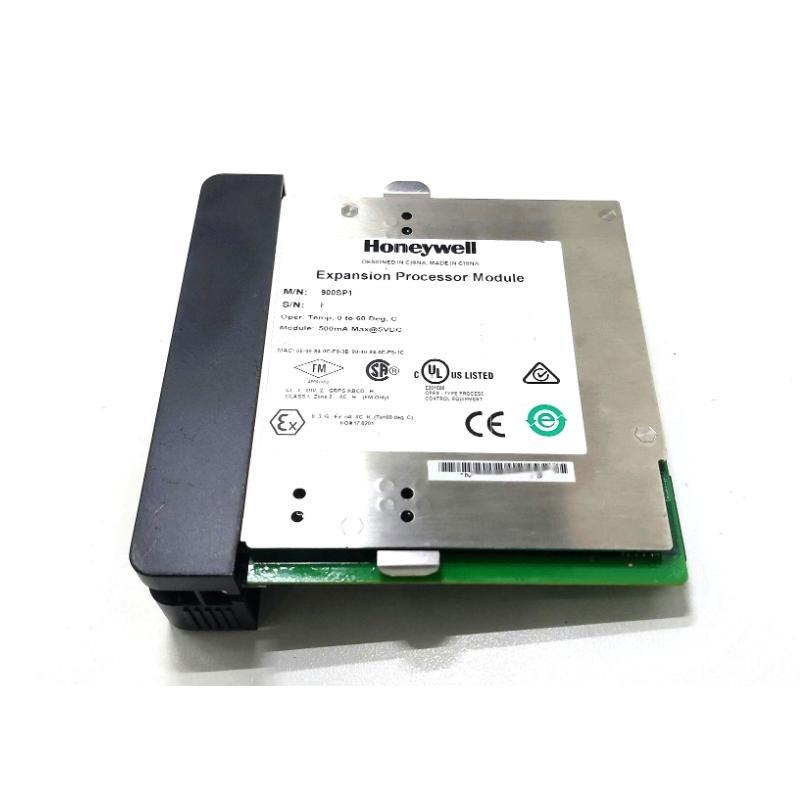

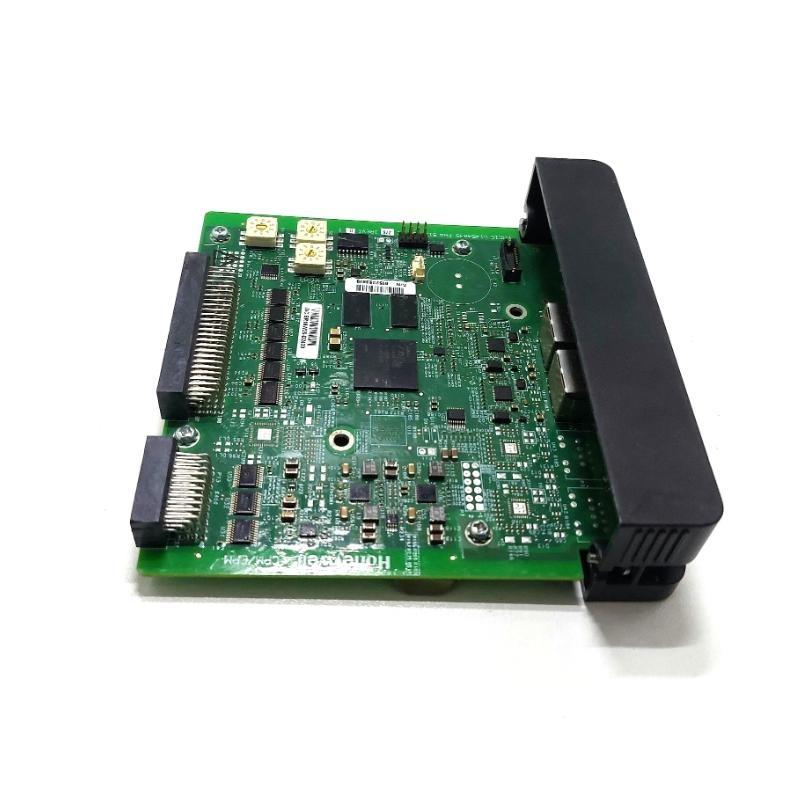

Honeywell 900SP1-0300 is an Expansion Processor Module designed for ControlEdge HC900 systems, tailored for extended temperature environments. It interfaces between the expansion I/O racks and the main control processor module (CPM). This module ensures seamless data communication across racks in large or distributed automation systems.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 900SP1-0300 |
| Type | Expansion Processor Module (Extended Temp) |
| Processor | Dual Core ARM Cortex-A9 (32-bit) 667 MHz |
| Ethernet Ports | 2 (Shielded RJ45, 10/100BaseTx) |
| Communication Protocol | I/O Communication |
| LED Indicators | 2 LEDs (3-color) |
| Rotary Address Switch | Range 1 to 99 |
| Network Isolation | 1500 V RMS, 60 Hz, 1 min |
| Transient Protection | 600W peak pulse (10×1000µs waveform) |
| Dimensions (W × D × H) | 137 × 38.1 × 151.7 mm |
| الوزن | 0.32 kg |
| Operating Temperature | -40°C to +70°C |
Applications
-
Expansion من I/O capacity in distributed ControlEdge HC900 systems
-
Industrial process automation requiring modular scalability
-
Systems operating in extreme environmental conditions
-
Multi-rack configurations for large control architectures
Product Advantages
-
Extended temperature tolerance for harsh environments
-
Reliable rack-to-rack communication with minimal latency
-
Simple configuration via rotary address switch
-
Dual Ethernet ports support flexible topologies (Star, Ring, DLR)
-
Status LEDs allow quick diagnostics
FAQ – الأسئلة الشائعة
Q1: What is the primary function من the 900SP1-0300?
A1: It acts as an interface for expansion I/O racks to communicate with the main control processor module.
Q2: Can it operate in extreme temperatures?
A2: Yes, it supports a range من -40°C to +70°C.
Q3: How is the rack address configured?
A3: Through a built-in rotary address switch (range 1–99).
Q4: Does it support redundant systems?
A4: Yes, it’s compatible with both redundant and non-redundant configurations.
Q5: How many Ethernet ports are available?
A5: Two shielded RJ45 10/100BaseTx ports.
Q6: What topologies are supported for network connection?
A6: Star, Ring, and Device Level Ring (DLR) topologies.
Q7: What diagnostics are provided?
A7: LED indicators for module status and communication activity.
Q8: Is transient voltage suppression included?
A8: Yes, 600W peak pulse protection is built-in.
Q9: Can it be used with fiber optics?
A9: Yes, when used with recommended MOXA converters.
Q10: What protocol does it use for communication?
A10: I/O communication specific to Honeywell ControlEdge systems.
Related الطرازs (Same Series)
| الطراز | الوصف | Temperature Range | Ethernet Ports | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| 900SP1-0200 | Expansion Processor Module | 0°C to 55°C | 2 | 137 × 38.1 × 151.7 | 0.32 kg |
| 900CP1-0300 | Control Processor Module (Extended Temp) | -40°C to 70°C | 4 | 137 × 38.1 × 151.7 | 0.34 kg |
| 900ES1-0100 | Serial Communication Module | -40°C to 70°C | RS232/RS485 | 137 × 38.1 × 151.7 | 0.31 kg |
| 900P24-0501 | 24VDC Power Supply Module | -40°C to 70°C | – | 137 × 38.1 × 151.7 | 0.40 kg |
| 900U01-0100 | Universal Input/Output Module (UIO) | -40°C to 70°C | – | 137 × 38.1 × 151.7 | 0.36 kg |
| 900CP2-0100 | High Performance Control Processor Module | 0°C to 55°C | 4 | 137 × 38.1 × 151.7 | 0.35 kg |
Popular Honeywell الطرازs
| الطراز | الوصف | Application Area | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| C300 | Experion PKS Controller | Distributed Control | 170 × 45 × 150 | 0.5 kg |
| HC900 | Hybrid Controller | Batch & Continuous Process | 250 × 100 × 200 | 1.5 kg |
| 8C-PCNT01 | C300 Controller Module | Process Control | 137 × 38.1 × 151.7 | 0.32 kg |
| 8C-PAON01 | Analog Output Module | Output Processing | 137 × 38.1 × 151.7 | 0.30 kg |
| 8C-PAIHA1 | Analog Input Module with HART | Input Processing | 137 × 38.1 × 151.7 | 0.31 kg |
| 8C-TAIXA1 | Analog Input IOTA | Termination Assembly | 137 × 38.1 × 151.7 | 0.28 kg |
