Product Overview

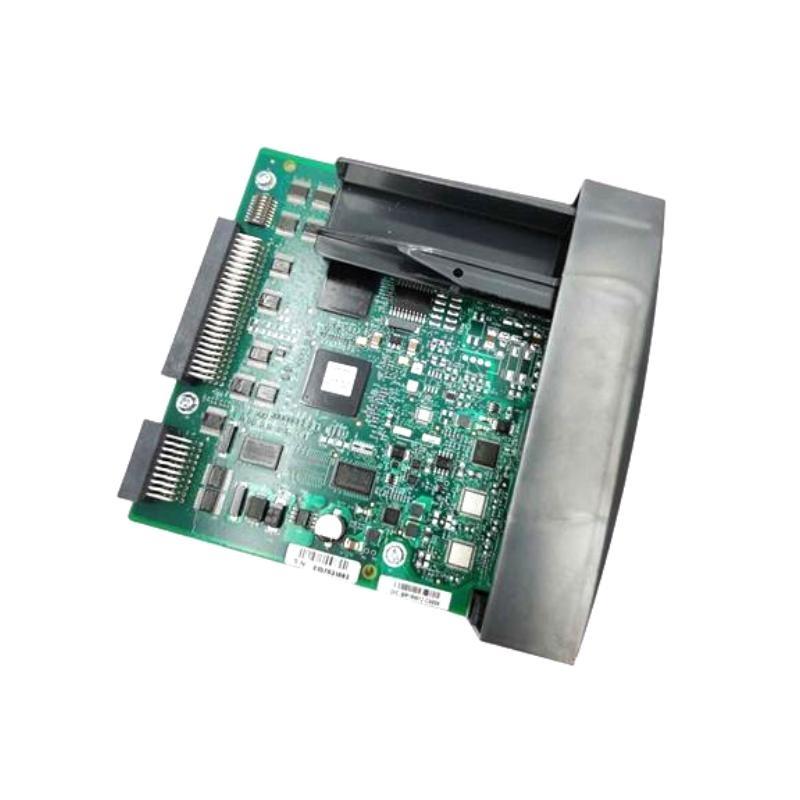

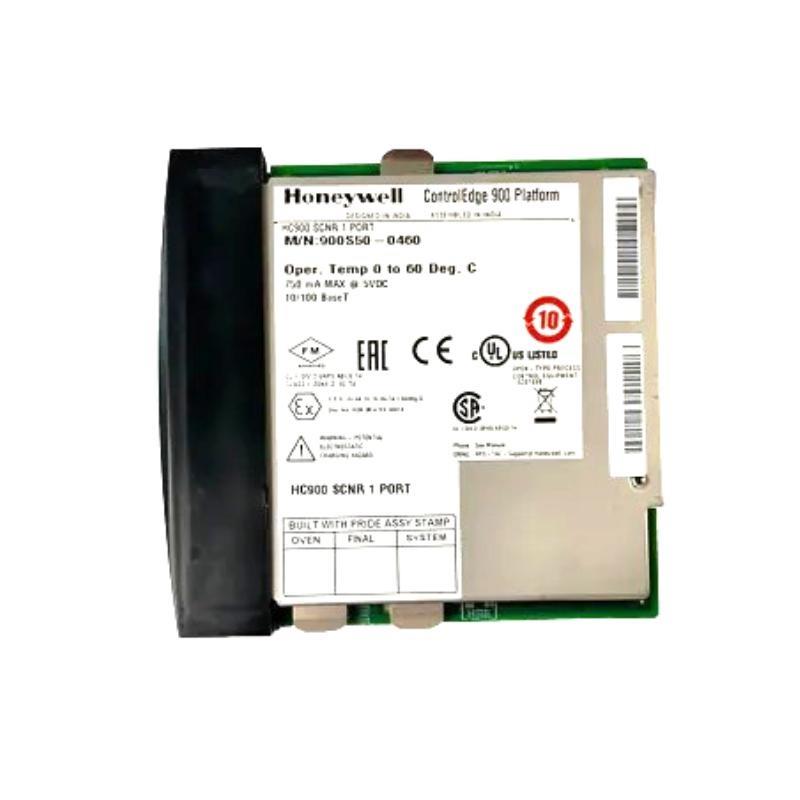

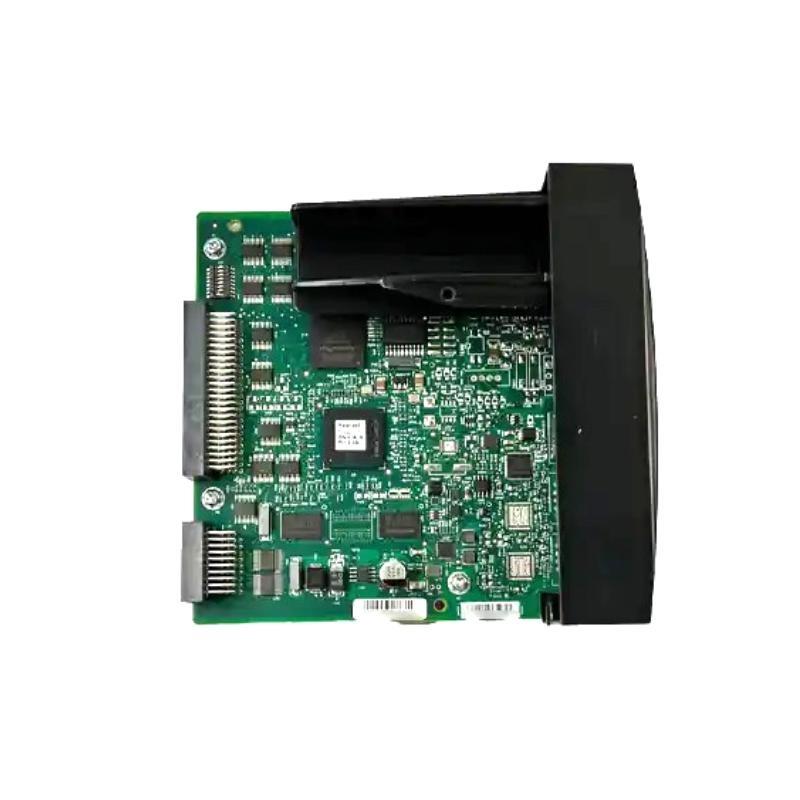

The Honeywell 900S50-0460 is a single-port I/O Scanner Module designed for the ControlEdge HC900 system. It allows communication between remote I/O racks and the main controller, enabling decentralized architecture for process control. This module facilitates data exchange through deterministic protocols to support high-reliability industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | 900S50-0460 |
| Product Type | I/O Scanner Module for Remote Rack |
| Port Configuration | Single-Port Ethernet |
| Mounting Type | DIN Rail (35 mm) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10%–90% non-condensing |
| Dimensions (H × W × D) | 137 × 38.1 × 137.16 mm |
| الوزن | 0.36 kg |
| Status Indicators | Tri-color LED (Green/Amber/Red) |
| Certification | CE, UL, CSA, ATEX, FM |
| Isolation | Galvanic Isolation to Logic |
| Hot Swap الدعم | Yes |
Applications
-
Remote process monitoring and control
-
Distributed I/O installations
-
Large-scale DCS systems in chemical, food, water treatment, and energy sectors
-
Remote equipment interfacing in modular process وحدةs
Product Advantages
-
Modular Scalability: Enables flexible system expansion through remote racks
-
Hot-Swap Capability: Insert/remove without powering down the system
-
Deterministic Communication: Real-time I/O updates with minimal latency
-
Robust Build: Withstands harsh industrial environments (G3 conformal coating)
-
Integrated Diagnostics: LED indicators for status and fault detection
الأسئلة الشائعة (FAQs)
Q1: What communication protocol does the 900S50-0460 support?
A1: It uses Ethernet-based deterministic protocols suitable for remote I/O communication.
Q2: Can the module be inserted or removed under power?
A2: Yes, the module supports hot insertion/removal without system shutdown.
Q3: What is the maximum operating temperature?
A3: The maximum operating temperature is 60°C.
Q4: How many ports are on the 900S50-0460?
A4: It is equipped with one Ethernet port.
Q5: Is this scanner module suitable for safety applications?
A5: Yes, it supports failsafe values and conforms to industrial safety standards.
Q6: What does the status LED indicate?
A6: Green = OK, Red = Fault, Amber = Override (Force mode).
Q7: Does it support field wiring terminal blocks?
A7: Yes, it is compatible with Euro and barrier style terminal blocks.
Q8: What is the form factor من the module?
A8: Compact form with dimensions من 137 × 38.1 × 137.16 mm.
Q9: Is the 900S50-0460 compliant with RoHS?
A9: Yes, it complies with RoHS 2, excluding power supply modules.
Q10: Can it be used in vibration-prone environments?
A10: Yes, it meets vibration standards up to 1g acceleration (15.77–250 Hz).
Related ControlEdge HC900 الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| 900S75-0460 | Dual-port I/O Scanner | 137 × 38.1 × 137.16 | 0.40 |
| 900C30-0460 | CPU Module, Standard | 137 × 38.1 | 0.35 |
| 900P01-0301 | AC Power Supply, 60W | 137 × 72.6 | 0.82 |
| 900A01-0202 | Analog Input Module (8 Ch) | 137 × 35.6 | 0.21 |
| 900B01-0301 | Analog Output Module (4 Ch) | 137 × 35.6 | 0.41 |
| 900G32-0101 | Digital Input Module (32 Ch) | 137 × 35.6 | 0.18 |
Popular Honeywell الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| 8C-PCNT01 | C300 Controller Module | 143.5 × 47 × 137 | ~0.6 |
| 8C-PAONA1 | Analog Output Module | 143.5 × 47 × 137 | ~0.6 |
| 8C-TAIDA1 | Analog Input IOTA | 143.5 × 47 × 137 | ~0.6 |
| 8C-TAOXA1 | Analog Output I/O Termination Assembly | 143.5 × 47 × 137 | ~0.6 |
| FC-IO-0001 | I/O Extended Module | 143.5 × 47 × 137 | ~0.6 |
| 8C-PDILA1 | Digital Input Module | 143.5 × 47 × 137 | ~0.6 |
