Product Overview

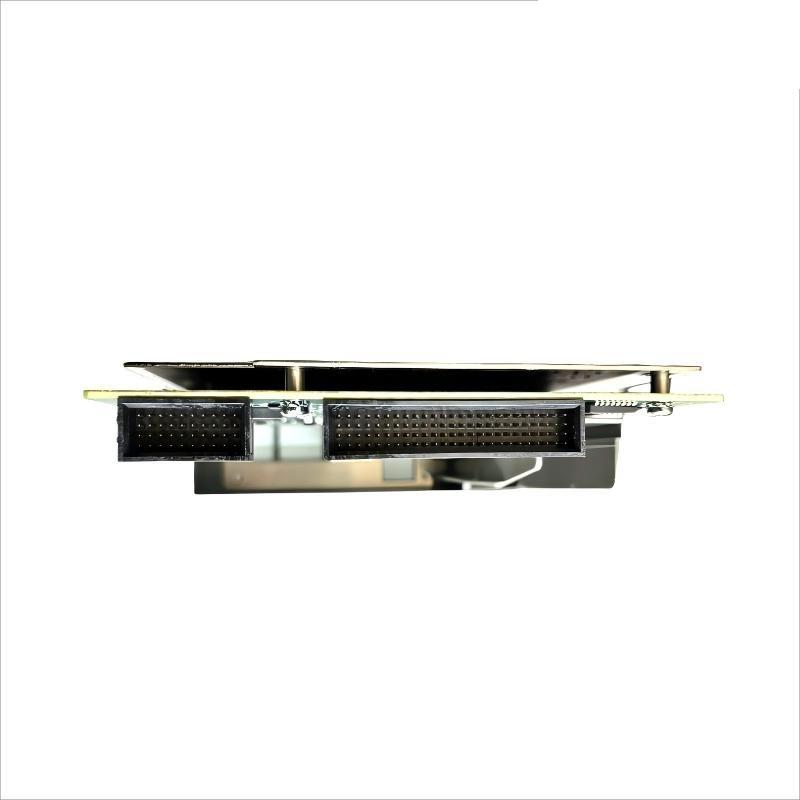

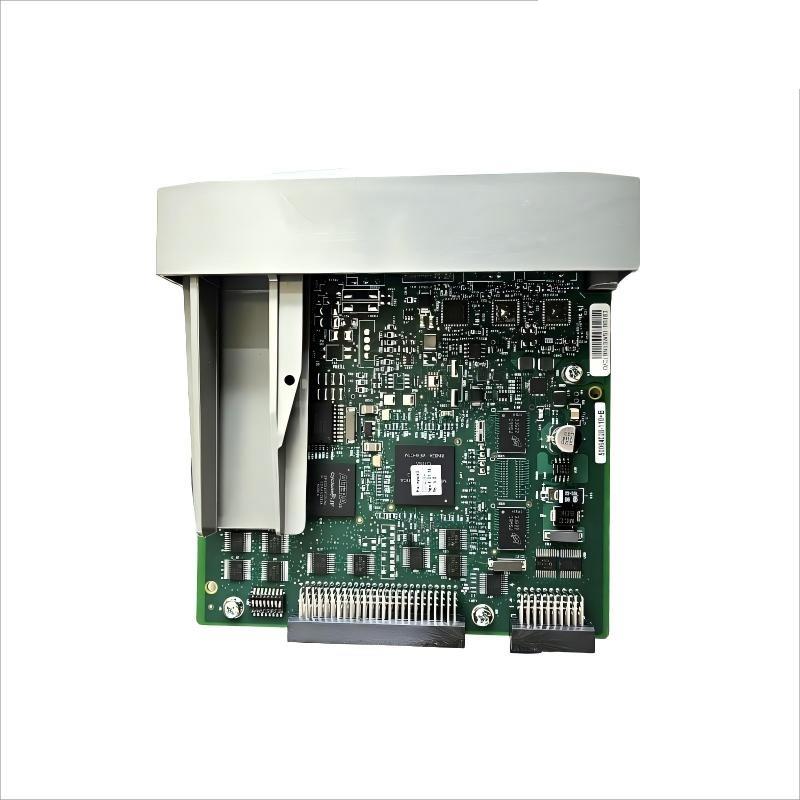

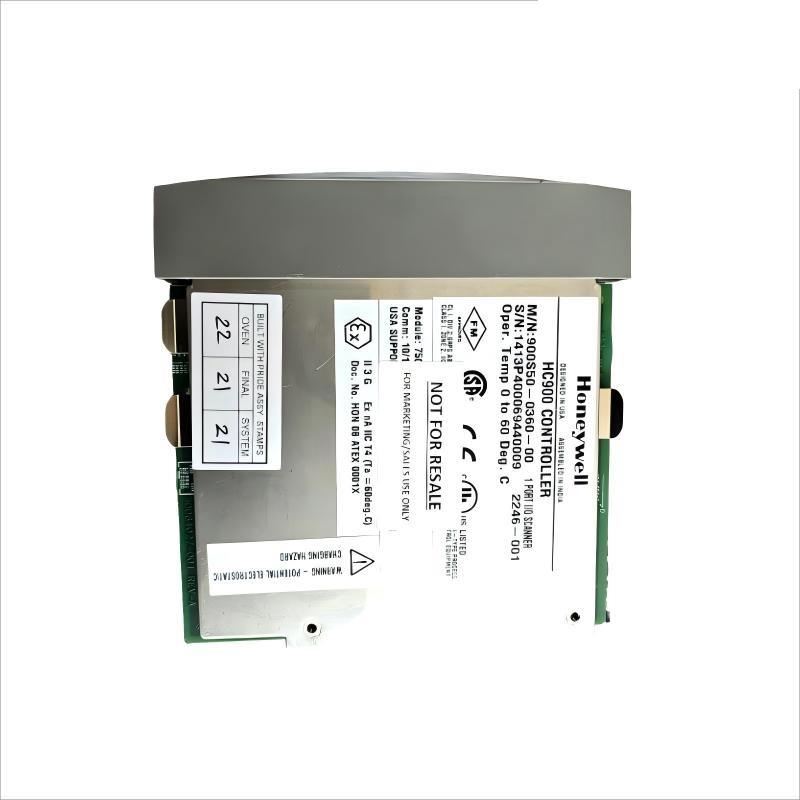

The Honeywell 900S50-0360-00 is a single-port I/O Scanner module designed for the ControlEdge HC900 controller. It allows communication between remote I/O and the controller across Ethernet networks, ensuring real-time I/O data exchange.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | 900S50-0360-00 |
| الوصف | ControlEdge HC900 Single-Port I/O Scanner |
| Function | I/O Scanner for remote I/O communication |
| Communication | Ethernet (1 Port) |
| Power Consumption | 3.9 W |
| Mounting | 35mm DIN Rail |
| Dimensions (H×W×D) | 137 × 38.1 × 137.16 mm |
| الوزن | 0.36 kg |
| Isolation | Galvanically isolated |
| Redundancy | الدعمed with optional module |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 70 °C |
| Certifications | CE, UL, ATEX, CSA, FM |
Application Scenarios
-
Remote I/O Communication in process automation
-
Redundant Systems requiring secure I/O data handling
-
Batch Control Systems needing modular I/O expansion
-
Industrial Ethernet Communication in manufacturing plants
-
Real-time Process Monitoring via distributed I/O
Key Advantages
-
Hot-swap support: Modules can be inserted or removed under power
-
Compact Design: حفظs panel space with a narrow 38.1mm width
-
High Reliability: الدعمs redundancy for critical operations
-
Seamless Integration: Compatible with ControlEdge HC900 architecture
-
Industrial Certifications: Ensures compliance with global standards
-
Low Power Consumption: Efficient design at only 3.9 W
الأسئلة الشائعة (FAQ)
Q1: What is the main function من the 900S50-0360-00 module?
A1: It acts as a scanner to manage communication between the HC900 controller and remote I/O modules over Ethernet.
Q2: Can the scanner be hot-swapped during operation?
A2: Yes, the scanner supports insertion and removal under power without affecting system operation.
Q3: Is redundancy supported with this module?
A3: Yes, redundancy is supported using an additional scanner module for fault tolerance.
Q4: What are the power requirements?
A4: It consumes approximately 3.9 W.
Q5: What type من networks does it support?
A5: It supports industrial Ethernet for remote I/O connectivity.
Q6: What certifications does it carry?
A6: The module is certified by CE, UL, CSA, FM, and ATEX.
Q7: Can it be mounted on a standard DIN rail?
A7: Yes, it is DIN rail mountable (35 mm width).
Q8: What is the environmental operating range?
A8: It operates from 0 to 60 °C and stores between -40 to 70 °C.
Q9: How does the module indicate operational status?
A9: A tri-color LED indicates normal operation, fault, or override condition.
Q10: Is it compatible with other HC900 modules?
A10: Yes, it is designed specifically for integration with the ControlEdge HC900 system.
Recommended Related الطرازs (Same Series)
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 900S75-0460 | HC900 I/O Scanner, Dual-Port | 137 × 38.1 × 137.16 | 0.40 kg |
| 900R04-0200 | 4-slot I/O Rack | 137 × 266.7 × 151.7 | 2.1 kg |
| 900A01-0202 | Universal Analog Input (8 Ch) | 137 × 35.6 × 137.16 | 0.21 kg |
| 900G32-0101 | 32-Channel Digital Input Module | 137 × 35.6 × 137.16 | 0.18 kg |
| 900B08-0202 | Analog Output Module, 8 Ch | 137 × 35.6 × 137.16 | 0.40 kg |
| 900P24-0301 | 24VDC Power Supply Module | 137 × 72.6 × 137.16 | 0.79 kg |
Popular Honeywell الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 8C-PCNT01 | C300 Controller | 229 × 45 × 152 | 1.1 kg |
| 8C-PAOHA1 | Analog Output HART Module | 229 × 45 × 152 | 0.9 kg |
| 8C-PAINA1 | Analog Input HART Module | 229 × 45 × 152 | 0.9 kg |
| 8C-PDODA1 | Digital Output Module | 229 × 45 × 152 | 0.85 kg |
| 8C-PDILA1 | Digital Input Module | 229 × 45 × 152 | 0.85 kg |
| 8C-TAIXA1 | Analog Input Termination Assembly | 229 × 45 × 152 | 0.75 kg |
