Product Overview

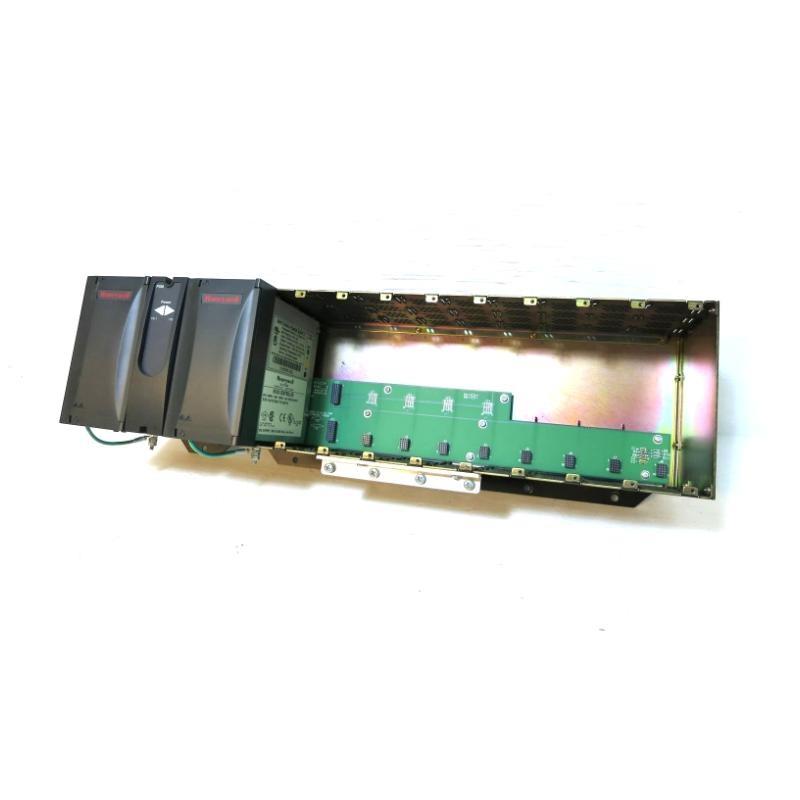

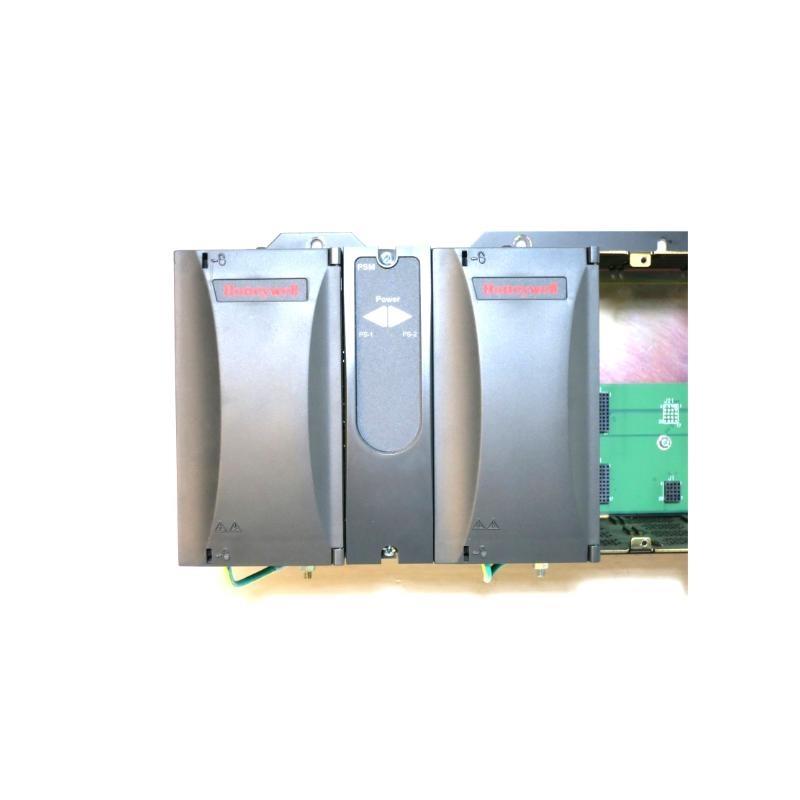

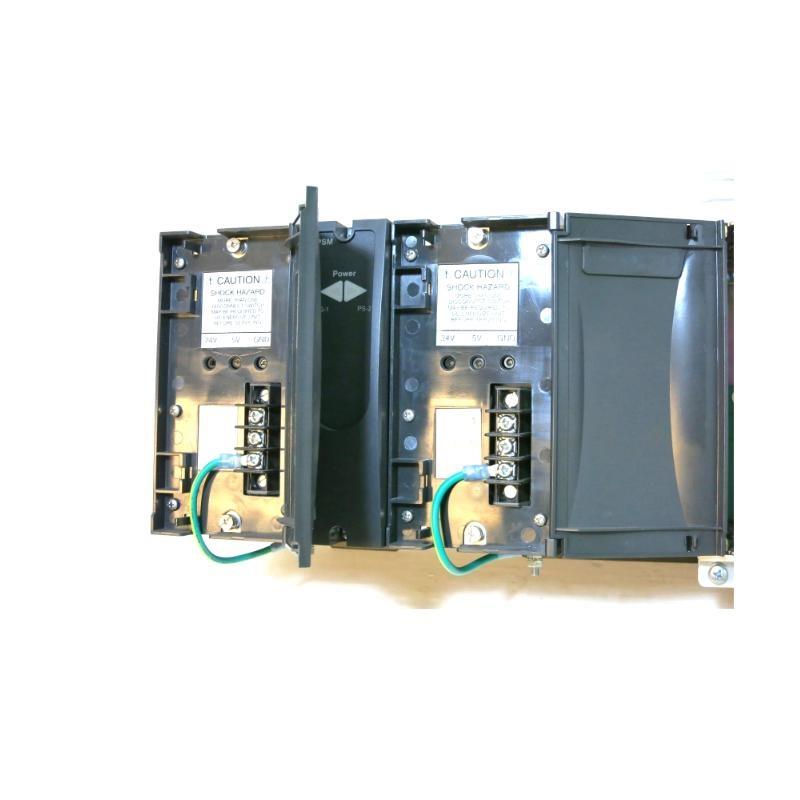

The Honeywell 900R08R-0200 is an 8-slot I/O rack for the ControlEdge HC900 system, designed to support redundant power supplies. It منfers a robust and modular solution for industrial automation, allowing for high reliability and availability in control applications where downtime is unacceptable.
Applications
-
Continuous process control (e.g., chemical, pharmaceuticals)
-
Batch control in food & beverage manufacturing
-
Heat treatment systems
-
Power generation control systems
-
Furnace and kiln monitoring
-
OEM machine automation
Product Advantages
-
Redundant Power الدعم: Increases system uptime by ensuring uninterrupted operation
-
Modular Expansion: Up to 8 I/O modules can be installed for tailored configurations
-
Hot-swappable Modules: Enables I/O insert/removal under power for efficient maintenance
-
DIN Rail Mounting: Easy installation in standard industrial cabinets
-
Robust Build: Conformal coating and certifications for harsh industrial environments
-
Status Indicators: LED diagnostics for each module and point
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | 900R08R-0200 |
| I/O Slot Capacity | 8 slots |
| Redundant Power الدعم | Yes |
| Mounting | Standard 35mm DIN Rail |
| Dimensions (H x W x D) | 137 × 530.9 × 151.7 mm |
| الوزن | 4.422 kg |
| Material | Tray and end caps: Polyvinyl Chloride (PVC), UL94-V0 flame retardant |
| Certifications | CE, UL, FM, ATEX, CSA, IECEx, UKCA |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | –40 to 70°C |
| Humidity | 10–90% (Operating), 5–95% (Storage), non-condensing |
| Environmental Protection | Conformal coated to G3 harsh environment standard |
الأسئلة الشائعة (FAQ)
Q1: What type من power redundancy is supported?
A1: It supports dual redundant power supplies to ensure uninterrupted system operation.
Q2: Can I replace I/O modules without shutting down the system?
A2: Yes, modules are hot-swappable and can be inserted or removed under power.
Q3: Is it compatible with all ControlEdge HC900 I/O modules?
A3: Yes, it supports all I/O modules within the ControlEdge HC900 platform.
Q4: What is the rack made من?
A4: It’s constructed from flame-retardant PVC material (UL94-V0).
Q5: Is this rack suitable for harsh environments?
A5: Yes, it features conformal coating to meet G3 environmental standards.
Q6: How is the rack mounted?
A6: It mounts on a standard 35mm DIN rail.
Q7: Are LED indicators available?
A7: Yes, individual LEDs indicate I/O status and diagnostics for each module.
Q8: What industries use this rack?
A8: It’s used across power, chemical, food processing, and OEM machine automation industries.
Q9: Does it support safety applications?
A9: Yes, with failsafe configurations and T-class temperature ratings per module.
Q10: How many modules can be installed per rack?
A10: Up to 8 I/O modules, including analog, digital, and specialty I/O types.
Related الطرازs in the Same Series
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 900R04-0300 | 4-slot I/O Rack | 137 × 266.7 × 151.7 | 2.104 kg |
| 900R08-0300 | 8-slot I/O Rack (no redundant power) | 137 × 419.1 × 151.7 | 3.126 kg |
| 900R12-0300 | 12-slot I/O Rack | 137 × 571.5 × 151.7 | 4.072 kg |
| 900R12R-0300 | 12-slot Rack with Redundant Power | 137 × 683.3 × 151.7 | 5.252 kg |
| 900RR0-0300 | Redundant Controller Rack | 137 × 261.6 × 151.7 | 1.751 kg |
| 900P24-0501 | 24VDC Power Supply (for redundancy) | 137 × 72.6 × 151.7 (WxH) | 0.792 kg |
Popular Honeywell ControlEdge الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 900C50-0460 | HC900 Controller CPU | 137 × 38.1 | 360 g |
| 900A01-0202 | 8-Ch Universal Analog Input Module | 137 × 35.6 | 210 g |
| 900A16-0103 | 16-Ch High-Level Analog Input Module | 137 × 35.6 | 397 g |
| 900B08-0202 | 8-Ch Analog Output Module | 137 × 35.6 | 400 g |
| 900H01-0202 | 8-Ch Relay Output Module | 137 × 35.6 | 425 g |
| 900G32-0301 | 32-Ch Digital Input Module | 137 × 35.6 | 175 g |
