Product الوصف

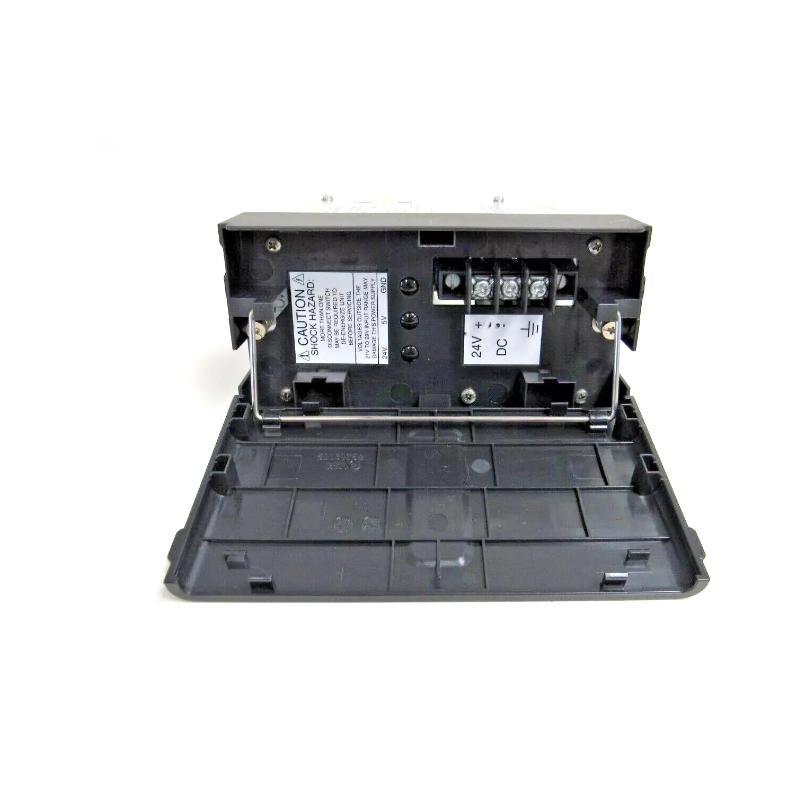

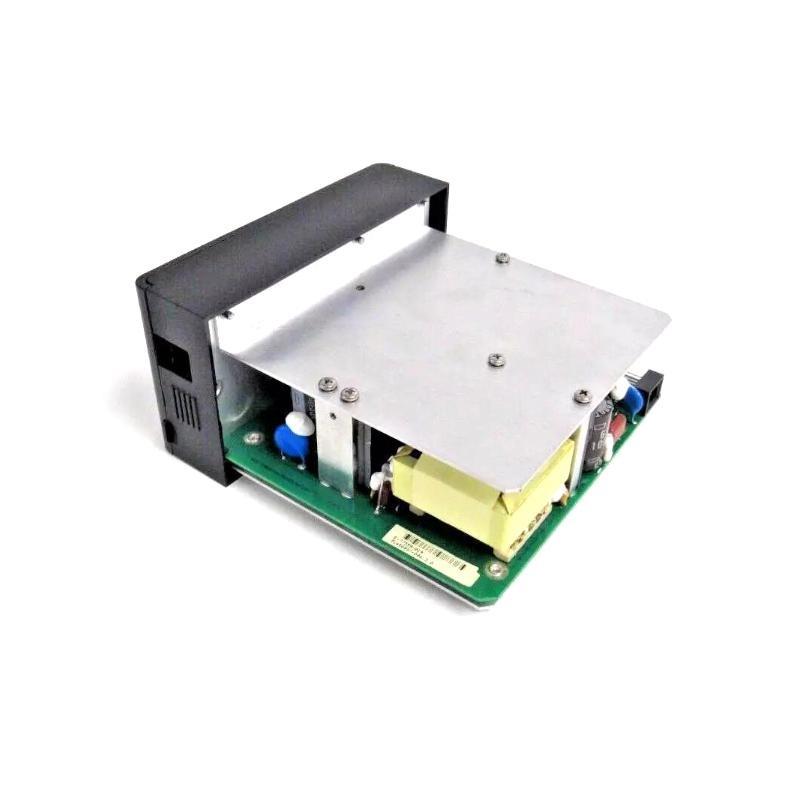

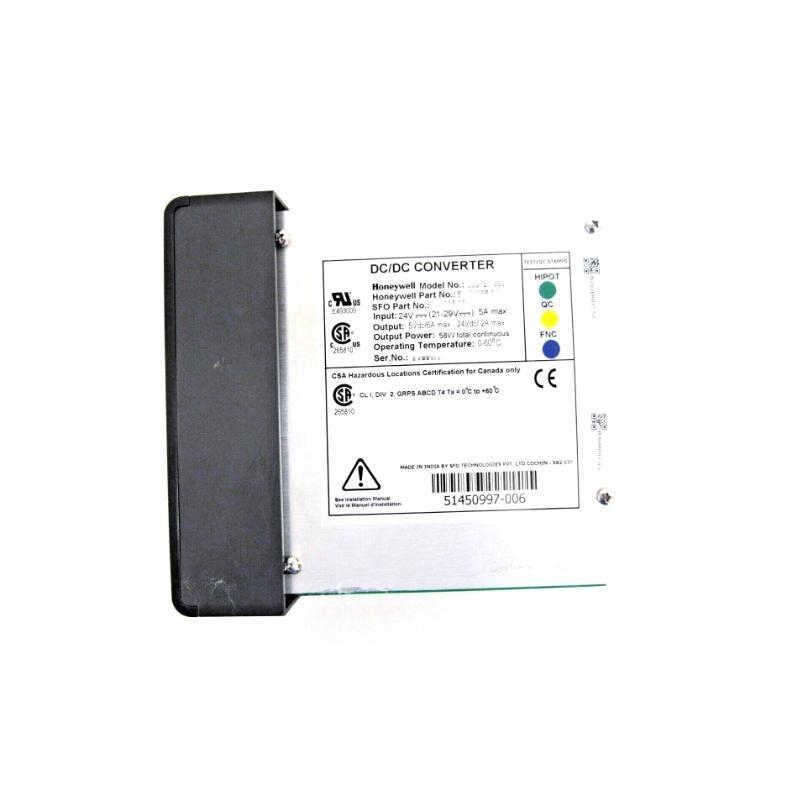

The Honeywell 900P24-0601 is a 24VDC power supply module designed for the HC900 Controller system. It delivers 5VDC and 24VDC output with a total power capacity من 60W, supporting both controller and I/O module needs in a single rack. Engineered for robustness and reliability, this module is essential for powering HC900 components under demanding industrial conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | 900P24-0601 |
| Input Voltage Range | 21–29 VDC |
| Output Voltages | 5VDC and 24VDC |
| Output Power | 60W |
| Inrush Current | 30 A for 3 ms @ 29 VDC |
| Fuse | Internal, non-replaceable |
| Dimensions (H x W x D) | 137 x 72.6 x 151 mm |
| الوزن | 0.65 kg |
| Mounting | DIN rail |
| Terminal Type | Screw terminals (12-22 AWG) |
| Environmental Rating | Operating: 0°C to 60°C, Storage: -40°C to 70°C |
| Certification | CE, UL, CSA, FM, ATEX compliant |
Applications
-
Process Control Systems
-
Distributed I/O in Automation Networks
-
Redundant Controller Powering
-
Industrial Manufacturing Facilities
-
Remote I/O Stations
-
SCADA System Integration
Product Advantages
-
Stable Dual Output (5V & 24V) ensures all critical modules receive adequate and regulated power.
-
Compact Size fits into standard HC900 controller racks without requiring additional space.
-
High Reliability with internal fuse and low inrush current, ideal for continuous industrial use.
-
Quick Installation using DIN rail mounting and screw terminals.
-
Failsafe Architecture prevents overcurrent damage during fault conditions.
-
Field-Proven Compatibility with HC900 controllers and I/O modules.
الأسئلة الشائعة (FAQ)
Q1: What voltage does the 900P24-0601 require for input?
A1: It operates with a 24VDC input ranging from 21 to 29 VDC.
Q2: What type من output does this module provide?
A2: It supplies both 5VDC and 24VDC output with a total من 60W.
Q3: Is this power supply module hot-swappable?
A3: No, power should be removed before handling terminal connections.
Q4: Does the module include an external fuse?
A4: No, it includes a non-replaceable internal fuse.
Q5: What is the purpose من the 900P24-0601 in the HC900 system?
A5: It powers both the controller and the I/O modules within the rack.
Q6: Can this power supply be used in redundant configurations?
A6: Yes, it supports redundant controller racks.
Q7: What is the peak inrush current for this وحدة?
A7: It reaches up to 30A for 3 milliseconds at 29VDC.
Q8: What mounting method is used for this module?
A8: Standard 35mm DIN rail mounting.
Q9: Is it suitable for harsh industrial environments?
A9: Yes, it operates reliably in industrial temperatures and has safety certifications.
Q10: Can it be used with other Honeywell ControlEdge modules?
A10: Yes, it is fully compatible with the HC900 ControlEdge platform.
Related الطرازs (Same Series or Compatible)
| الطراز Number | الوصف | Voltage | Output Power | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| 900P24-0401 | SIL-rated 24VDC PSU | 24VDC | 60W | 137 x 72.6 x 151 | 0.65 |
| 900P24-0301 | Standard 24VDC PSU | 24VDC | 60W | 137 x 72.6 x 151 | 0.79 |
| 900P01-0301 | Universal AC PSU | 90–264VAC | 60W | 137 x 72.6 x 151 | 0.82 |
| 900P01-0401 | SIL-rated Universal AC PSU | 90–264VAC | 60W | 137 x 72.6 x 151 | 0.65 |
| 900PSM-0200 | Power Status Module | — | — | 137 x 35.6 x 151 | 0.45 |
| 900R08R-0200 | 8-slot rack with redundant power | — | — | 137 x 530.9 x 151 | 4.42 |
Popular Honeywell الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف | Application Type | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| 8C-PCNT01 | C300 Controller | Controller | 127 x 41 x 153 | 0.45 |
| 8C-PAOHA1 | Analog Output with HART | Analog Output | 127 x 45 x 153 | 0.42 |
| 8C-TAIDA1 | Analog Input IOTA | Analog Input | 127 x 45 x 153 | 0.43 |
| 8C-PDILA1 | Digital Input Module | Digital Input | 127 x 45 x 153 | 0.41 |
| 8C-PDODA1 | Digital Output Module | Digital Output | 127 x 45 x 153 | 0.40 |
| FC-IO-0001 | I/O Expansion Module | I/O Extension | 130 x 45 x 160 | 0.46 |
