مقدمة المنتج

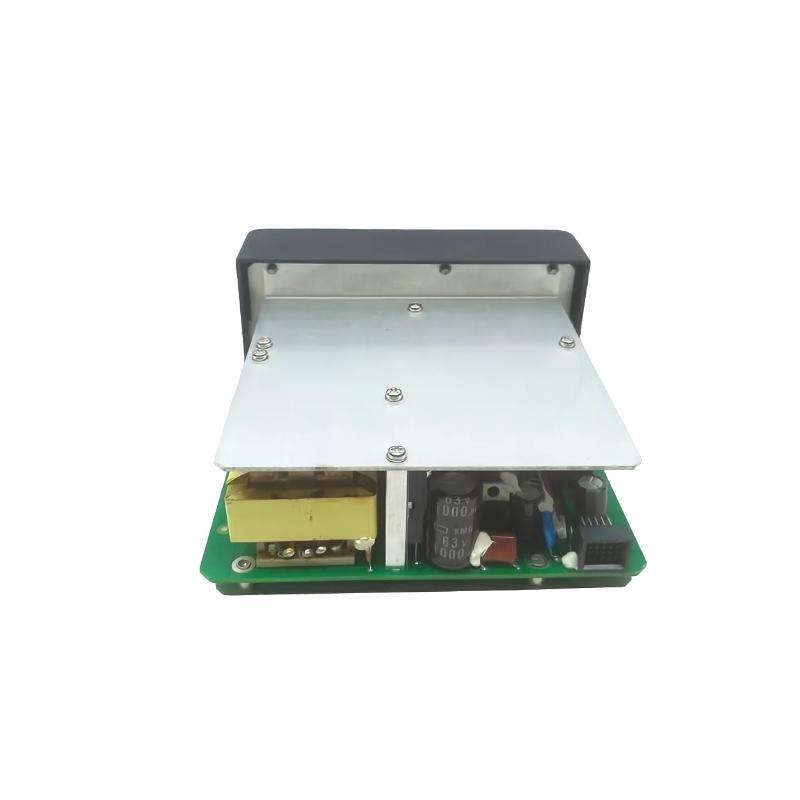

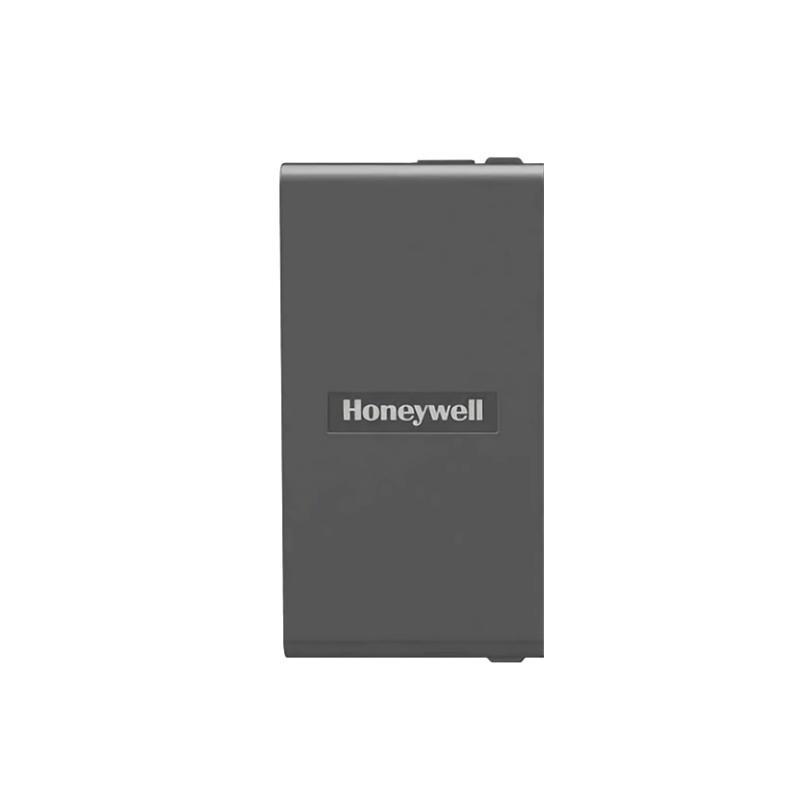

The Honeywell 900P01-0301 Power Supply Module is a high-performance component within the HC900 Hybrid Controller System, delivering reliable and regulated power to controller CPUs, I/O modules, and communication interfaces. Engineered specifically for demanding industrial environments, this power supply ensures continuous operation and stability for mission-critical applications such as batch processing, thermal control, and safety systems.
The 900P01-0301 model is known for its high output current capacity, enhanced thermal design, and extended environmental tolerances, making it a preferred choice in systems requiring higher I/O loads or redundant power configurations. It supports installation into standard HC900 I/O bases and is fully compatible with other modules in the HC900 platform.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز Number | 900P01-0301 |
| Product Type | Power Supply Module |
| System Compatibility | Honeywell HC900 Control System |
| Input Voltage Range | 18 VDC – 30 VDC |
| Nominal Input Voltage | 24 VDC |
| Output Voltage | 5 VDC (regulated) |
| Output Current Capacity | 12 A (maximum continuous load) |
| Power Output | Up to 60 Watts |
| Efficiency | >88% |
| Status Indicators | Power OK, Overload, Fault LED |
| Protection Features | Overvoltage, short circuit, thermal protection |
| Cooling Method | Convection (passive) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% – 95% RH (non-condensing) |
| Installation Method | DIN rail or rack-mounted in HC900 base |
| Construction Material | High-strength industrial-grade thermoplastic |
| Certifications | CE, UL, CSA, RoHS |
| Dimensions (H x W x D) | 137 x 72.6 mm |
| الوزن | 0.82 kg |
Product Applications
-
Hybrid Control Systems: Integral part من the HC900 platform, powering CPUs, I/O modules, and network interfaces.
-
Safety Instrumented Systems (SIS): Powers SIL2-compliant configurations for critical safety applications.
-
Batch and Continuous Process Control: Used in industries such as chemical, pharmaceutical, food and beverage, and paper manufacturing.
-
Thermal Control Systems: Ideal for power-critical applications like furnace, boiler, and oven control.
-
OEM Integration: Embedded in industrial machines and systems requiring reliable power supply modules.
-
Utility & Infrastructure Automation: Applied in water treatment, HVAC, and energy management systems.
Product Advantages
-
High Output Capacity: Capable من delivering up to 12 A, allowing more I/O modules and complex configurations.
-
Enhanced Durability: Built with robust materials for reliable operation in harsh industrial environments.
-
Advanced Protection: Integrated overload, overvoltage, and thermal safeguards to prevent system damage.
-
Modular Integration: Seamlessly fits into the HC900 I/O base without requiring system redesign.
-
LED Diagnostics: Real-time status indicators reduce troubleshooting time and enhance maintainability.
-
Compact Design: Slim prمنile and lightweight build ensure space-saving installation.
-
International Approvals: Meets global safety and performance standards for industrial applications.
-
Energy Efficient: High conversion efficiency reduces heat generation and energy waste.
الأسئلة الشائعة (FAQ)
-
Q: What is the maximum output current من the 900P01-0301 module?
A: The module supports up to 12 amps من regulated 5 VDC output, suitable for high-load configurations. -
Q: Is this power supply compatible with all HC900 bases?
A: Yes, it is fully compatible with all standard HC900 I/O bases and racks. -
Q: Can the 900P01-0301 be used in redundant configurations?
A: Absolutely. It supports redundant power supply setups to ensure uninterrupted power in critical applications. -
Q: Does this power supply have built-in protection features?
A: Yes, it includes overload, overvoltage, and thermal shutdown protections. -
Q: What kind من diagnostics does the module provide?
A: It has LED indicators showing power OK, overload, and fault status for easier troubleshooting. -
Q: Can it be installed on a DIN rail?
A: Yes, the module supports both DIN rail and rack mounting in HC900 chassis systems. -
Q: What is the operating temperature range?
A: The وحدة operates reliably in temperatures from 0°C to 60°C. -
Q: How much space does the module occupy in the rack?
A: Its compact size من 137 x 72.6 mm makes it suitable for space-constrained installations. -
Q: Is it certified for use in international projects?
A: Yes, it is CE, UL, CSA, and RoHS certified, ensuring broad international applicability. -
Q: Is fan cooling required?
A: No, the وحدة uses passive convection cooling, eliminating moving parts and reducing maintenance.
Related الطرازs (Same Series or Similar Function)
| الطراز | الوصف | Function | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| 900P01-0001 | HC900 Standard Power Supply Module | 5VDC @ 8A | 130 x 50 x 120 | 0.6 |
| 900P01-0101 | Extended Temp Power Supply Module | 5VDC @ 8A | 130 x 50 x 120 | 0.6 |
| 900C52-0021 | HC900 C50 Controller CPU | CPU Module | 130 x 100 x 120 | 0.9 |
| 900G03-0101 | HC900 Ethernet Gateway Module | Comms Interface | 100 x 50 x 100 | 0.5 |
| 900R12-0101 | HC900 12-Slot Rack | Mounting Rack | 300 x 250 x 100 | 2.3 |
| 900N01-0101 | HC900 Redundancy Network Module | Redundant Comms | 130 x 70 x 100 | 0.7 |
Popular Honeywell الطرازs (Cross-Series Recommendations)
| الطراز | الوصف | Application | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| C300 Controller | DCS Controller in Experion PKS | Distributed Control | 200 x 180 x 120 | 2.4 |
| HC900-CPU70 | High-End CPU Module for HC900 | Complex Automation | 135 x 110 x 130 | 1.1 |
| UDC3500 | Universal Digital Controller | Temperature/Process Ctrl | 96 x 96 x 150 | 0.9 |
| ML200 | OEM Compact Logic Controller | Machine Automation | 120 x 100 x 60 | 0.5 |
| STT750 | Smart Temperature Transmitter | Field Temperature Meas. | 90 x 60 x 60 | 0.5 |
| ControlEdge HC900 | IIoT-Ready Hybrid Control System | Process & Safety Control | 150 x 100 x 120 | 1.2 |
