مقدمة المنتج

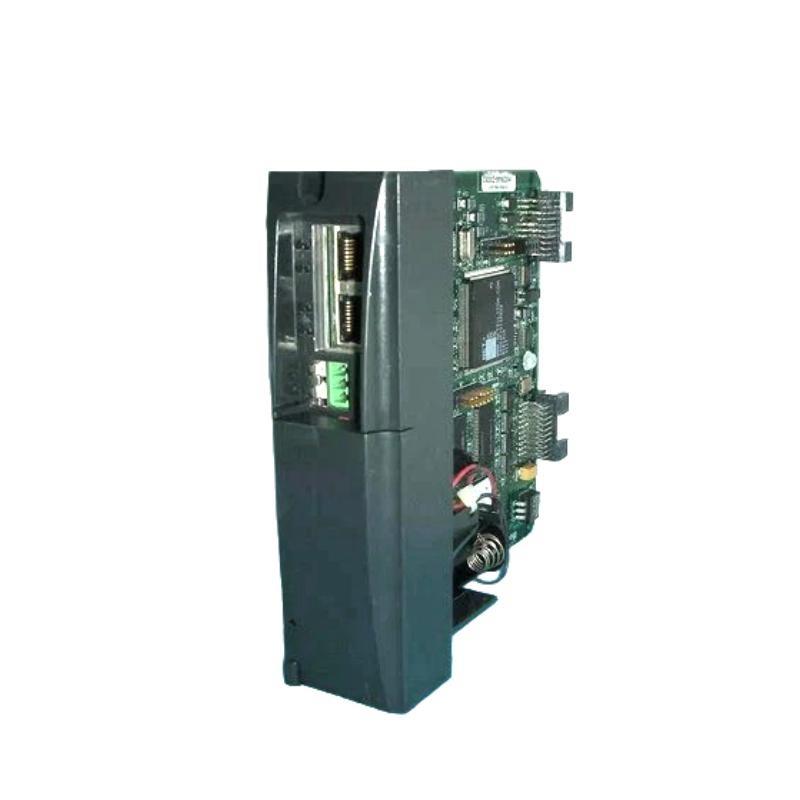

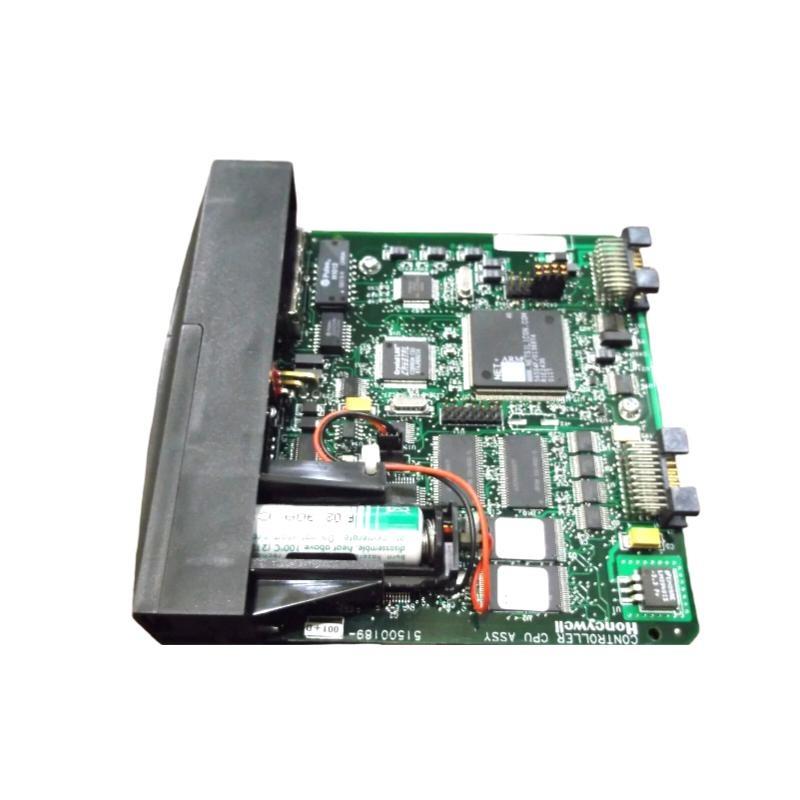

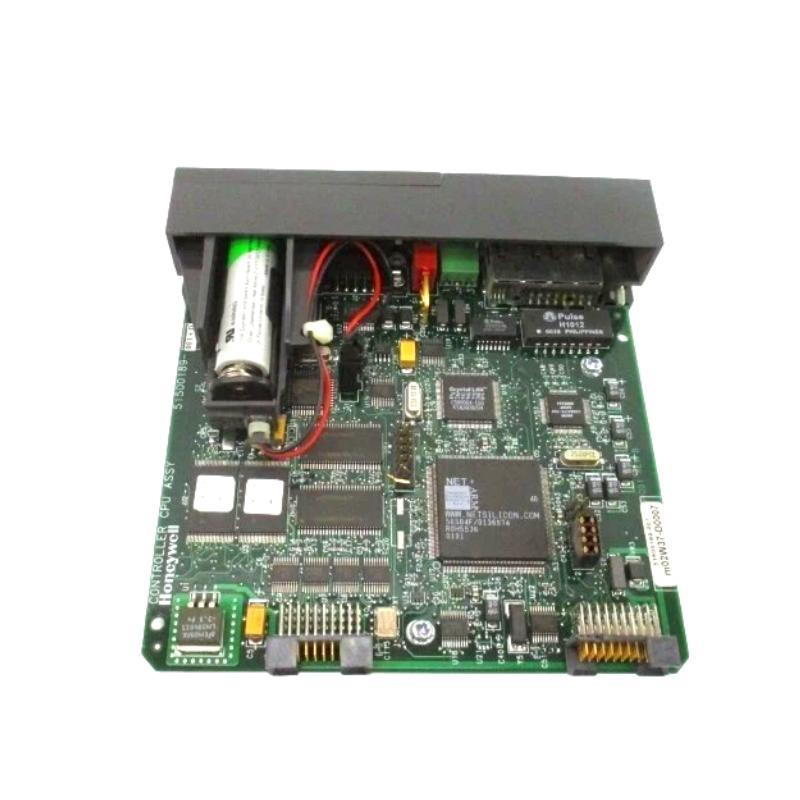

The Honeywell 900C51-0011 HC900 C50 Controller CPU is a high-performance control module designed to serve as the central processing وحدة for the Honeywell HC900 Hybrid Control System. This module is engineered for applications requiring precise process control, data acquisition, and machine control in industries like chemical processing, food and beverage, pharmaceuticals, and more.
The 900C51-0011 features powerful processing capabilities, redundancy options, and flexible configuration to meet complex automation demands. It provides seamless integration with I/O modules and supports multiple communication protocols, making it a robust and scalable control solution for both standalone and distributed systems.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | 900C51-0011 |
| Series | HC900 |
| Controller Type | C50 CPU Controller |
| CPU Memory | 20 MB Flash, 20 MB RAM |
| Communication Ports | 2 x Ethernet 10/100 Mbps, 1 x RS485, 1 x RS232 |
| الدعمed Protocols | Modbus TCP/IP, Modbus RTU, Ethernet/IP |
| I/O الدعم | Up to 2048 I/O points |
| Scan Rate | 25 ms typical |
| Power Supply | 24 VDC nominal (18–32 VDC range) |
| Programming Sمنtware | Hybrid Control Designer (HCD) |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, cUL, CSA, FM Class 1 Div 2 |
| Dimensions (W x H x D) | 114 x 176 x 114 mm |
| الوزن | 0.8 kg |
Applications
The Honeywell 900C51-0011 HC900 C50 CPU is suitable for a wide range من industrial automation applications, including:
-
Chemical & Petrochemical Processing: Control من temperature, flow, and pressure in batch and continuous processes.
-
Food & Beverage: Process control for pasteurization, fermentation, and packaging lines.
-
Pharmaceuticals: Compliance-oriented control for reactors, environmental monitoring, and batch processing.
-
Water & Wastewater: Pumping station automation, water treatment, and flow regulation.
-
Power & Energy: Boiler control, combustion control, and turbine monitoring.
-
OEM Machine Control: High-speed machine automation requiring modular and scalable design.
Product Advantages
-
High Performance: Fast processing and scan times enable quick response for complex processes.
-
Modular Design: Easily expandable with I/O modules based on project needs.
-
Network Flexibility: Dual Ethernet ports support multiple network topologies and protocols.
-
Enhanced Reliability: Optional redundancy for CPU and power ensures high availability.
-
Comprehensive Diagnostics: Built-in diagnostics reduce downtime and enhance maintainability.
-
Integrated Control & Visualization: Seamless integration with Experion HS or Panel PCs for HMI/SCADA use.
-
User-Friendly Sمنtware: Hybrid Control Designer (HCD) allows intuitive programming with drag-and-drop configuration.
الأسئلة الشائعة (FAQ)
-
Q: What is the maximum number من I/O points supported by the 900C51-0011 CPU?
A: It supports up to 2048 I/O points in a distributed I/O setup. -
Q: Can the 900C51-0011 be used in hazardous locations?
A: Yes, it is certified for FM Class 1 Div 2 environments. -
Q: What sمنtware is used to program the 900C51-0011?
A: The controller is programmed using Hybrid Control Designer (HCD). -
Q: Does the controller support redundant CPU configuration?
A: Yes, it supports redundancy for high-availability applications. -
Q: What communication protocols are supported?
A: Modbus TCP/IP, Modbus RTU, and Ethernet/IP are supported. -
Q: Is the controller suitable for temperature-critical applications?
A: Yes, it has a wide operating temperature range من 0°C to 60°C. -
Q: How is the وحدة mounted?
A: It is DIN rail-mounted for easy integration into control cabinets. -
Q: Can it interface with SCADA systems?
A: Yes, it can be integrated with SCADA platforms like Honeywell Experion HS. -
Q: What is the recommended power supply for the controller?
A: It requires a 24 VDC power supply, with an acceptable range من 18–32 VDC. -
Q: Is it possible to implement PID loops directly in the C50 controller?
A: Yes, it supports multiple PID loops out من the box, including advanced options like cascade and ratio control.
Related الطرازs in the Same Series
| الطراز Number | الوصف | Key Features |
|---|---|---|
| 900C52-0001 | HC900 C70 Controller CPU | Higher memory capacity, more I/O support |
| 900P01-0101 | HC900 Power Supply Module | 24 VDC input, powers CPU and I/O modules |
| 900R01-0201 | HC900 I/O Rack Module | الدعمs mounting من I/O modules |
| 900A01-0001 | HC900 Analog Input Module | 8-channel analog input |
| 900B01-0001 | HC900 Analog Output Module | 4-channel analog output |
| 900C53-0101 | HC900 Redundant Controller Base | Enables CPU redundancy setup |
Popular Honeywell الطرازs
| الطراز Number | الوصف | Application Area |
|---|---|---|
| C300 Controller | Experion PKS C300 Process Controller | Distributed control systems |
| HC900 C70 (900C52) | Advanced HC900 CPU for large-scale applications | Complex hybrid and batch processes |
| ML200 | Compact Logic Controller | OEM machine control |
| UDC3200 | Universal Digital Controller | Loop and temperature control |
| Experion LX | Distributed Control System (DCS) | Mid-sized continuous & batch applications |
| MasterLogic PLC | Modular PLC controller | High-speed logic control applications |
