Product Overview

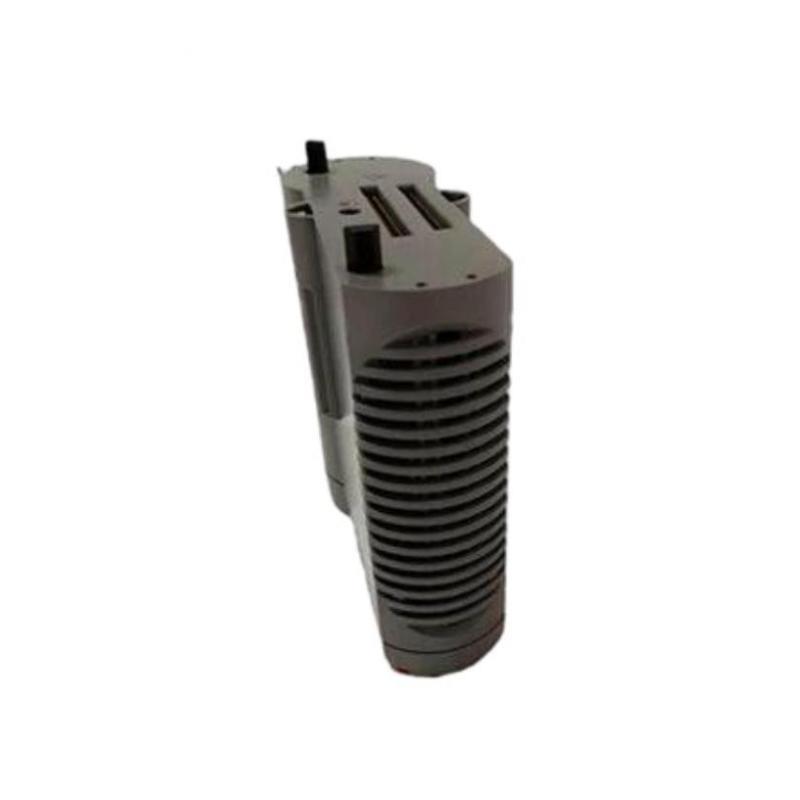

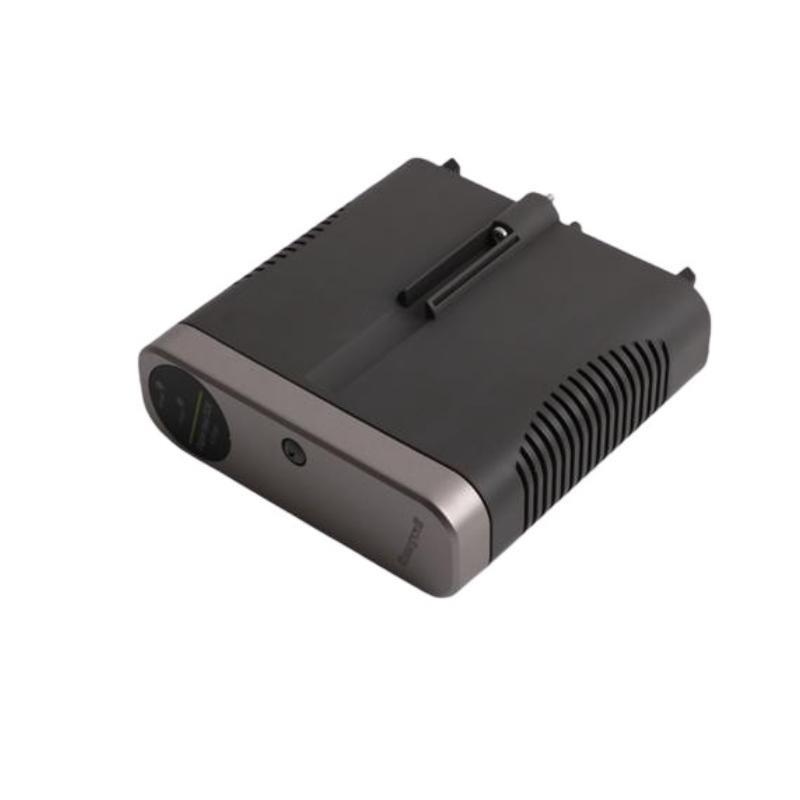

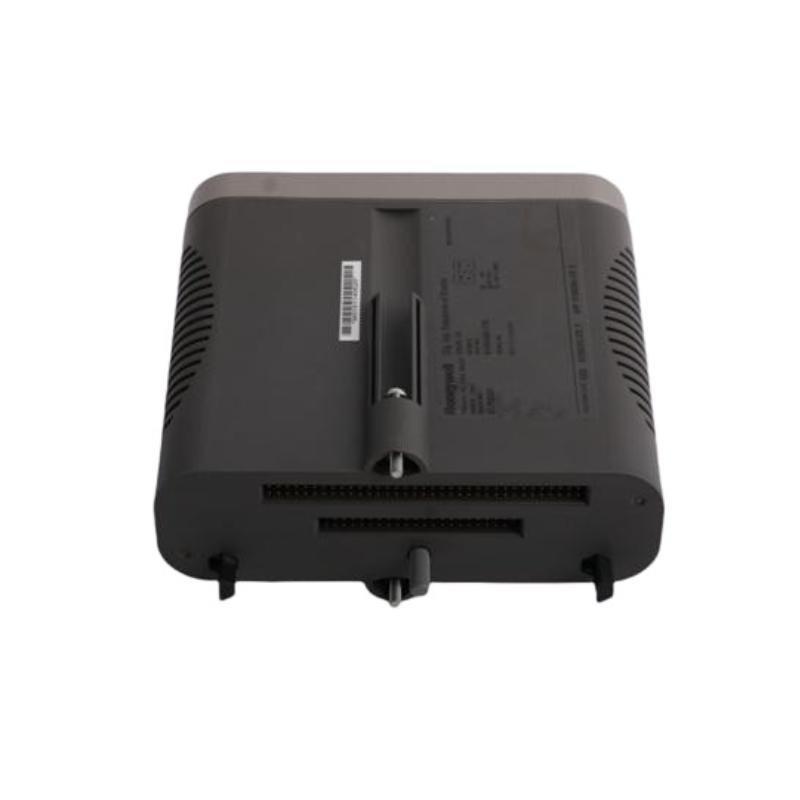

The Honeywell 8C-PDISA1 Digital Input Module is designed for high-performance signal acquisition in Honeywell Experion Process Knowledge System (PKS) and Safety Manager environments. It collects discrete on/منf signals from field devices such as pushbuttons, limit switches, and sensors, delivering them reliably to the control system. This module منfers high channel density, fast response times, and integrated diagnostics to ensure accurate and dependable operation in mission-critical applications. Its modular architecture simplifies installation, maintenance, and system expansion, making it a key component for modern industrial automation.
Key Features
-
High-density discrete input module for Experion PKS and Safety Manager
-
Reliable signal acquisition with fast processing
-
Integrated diagnostics for fault and line monitoring
-
Modular design for ease من replacement and scalability
-
Redundant I/O support for high availability
-
Rugged build for harsh industrial environments
-
Wide operating temperature range for versatile deployment
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 8C-PDISA1 |
| Module Type | Digital Input Module |
| الشركة المصنعة | Honeywell |
| Function | Acquires discrete on/منf signals from field devices |
| Input Channels | High-density configuration (system-dependent) |
| Input Type | Dry contact or voltage-type inputs |
| Input Voltage Range | Typically 24 VDC (consult system manual) |
| Response Time | Fast response suitable for real-time control |
| Diagnostics | Built-in fault and line monitoring |
| Power Supply | From system backplane |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 125 × 30 × 200 mm |
| الوزن | 0.38 kg |
| Certifications | CE, UL, CSA |
Industry Applications
-
Oil & gas exploration, refining, and transport
-
Chemical manufacturing and process industries
-
Power generation facilities
-
Water and wastewater treatment plants
-
Pharmaceutical manufacturing
-
Pulp and paper production
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من the 8C-PDISA1 module?
It captures and transmits discrete (on/منf) signals from field devices to the control system.
Q2: Does it support redundancy?
Yes, it works in redundant configurations to ensure continuous system operation.
Q3: What diagnostic features are included?
It منfers built-in fault detection and line monitoring capabilities.
Q4: Can the module be replaced without shutting down the system?
Yes, it is hot-swappable to minimize downtime during maintenance.
Q5: What input voltage does it accept?
Typically 24 VDC, though exact specifications depend on the system configuration.
Q6: Is a specific termination assembly required?
Yes, it must be connected to a compatible Honeywell termination assembly.
Q7: How many input channels are available?
It provides high-density input channels, depending on the configured system.
Q8: Is it suitable for safety-critical environments?
Yes, when installed and configured according to Honeywell safety guidelines.
Q9: What are the environmental limits for operation?
It operates from -40°C to +70°C and can handle 5% to 95% humidity non-condensing.
Q10: How does it receive power?
It is powered via the system backplane with no need for an external supply.
Related Modules
| الطراز Number | الوصف |
|---|---|
| 8C-PDILAI | Digital Input Module |
| 8C-POZSA1 | Digital Output Module |
| 8C-PAIMA1 | Analog Input Module |
| 8C-PAOHA1 | Analog Output Module |
| 8C-PAONA1 | Pulse Input Module |
