Product Overview

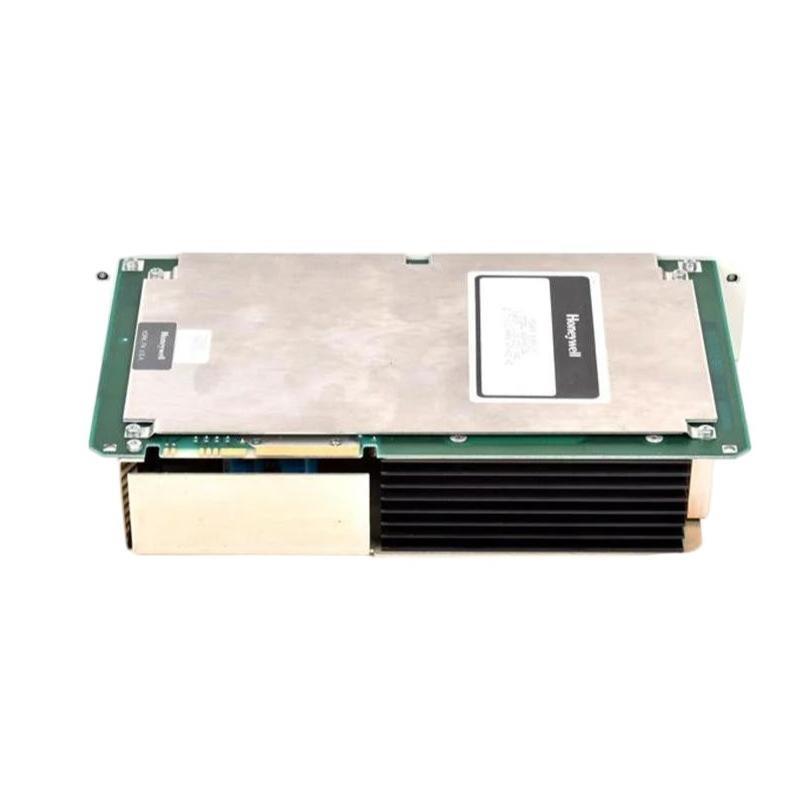

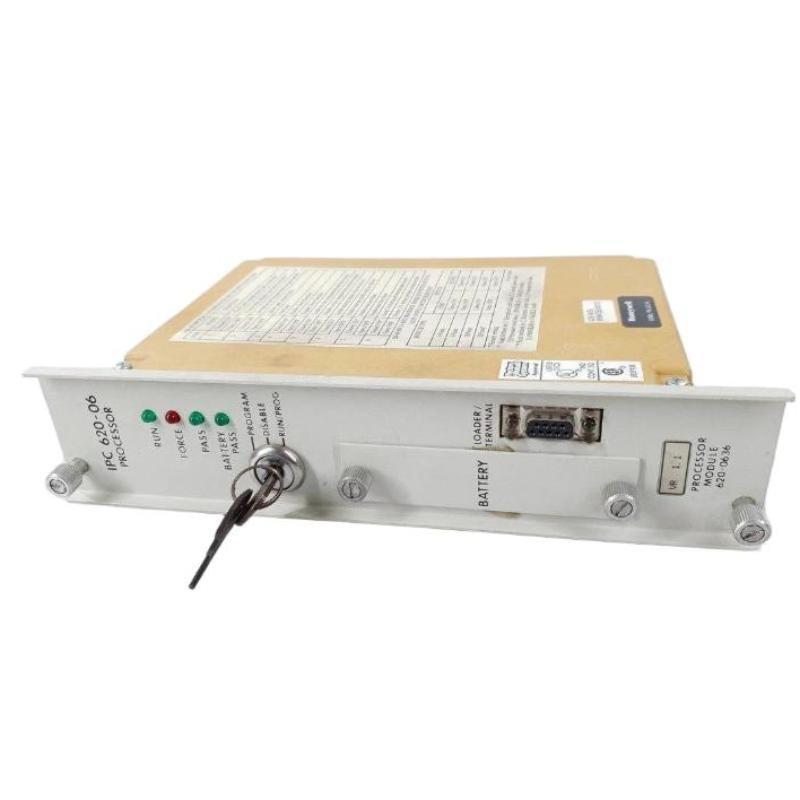

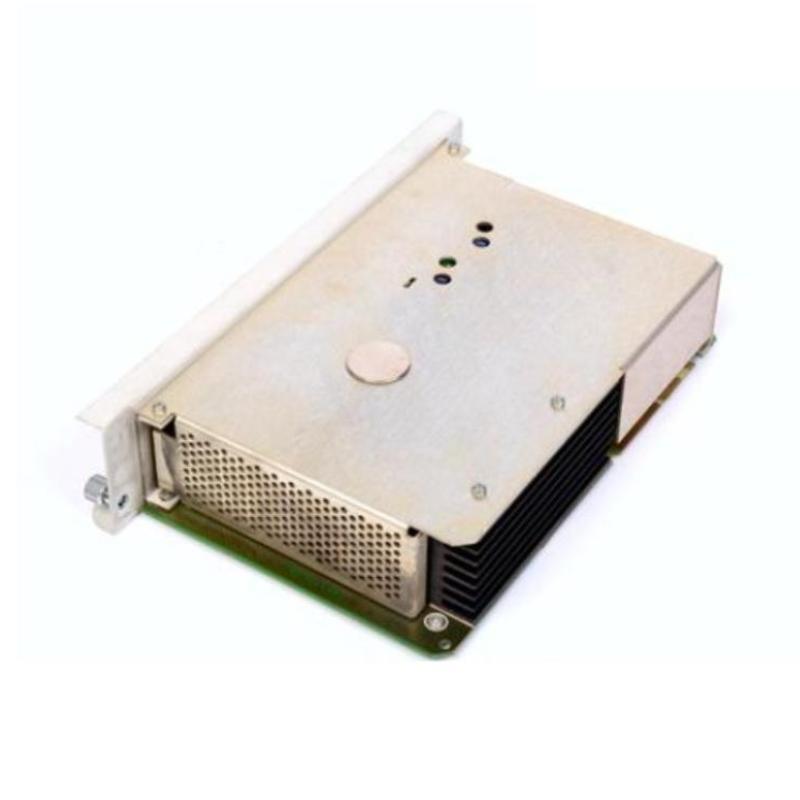

The Honeywell 620-0636 Processor Module is a high-performance central processing وحدة (CPU) designed for integration within the Honeywell 620 Series Distributed Control System (DCS), including the TDC 2000 and TDC 3000 platforms. As a core computational وحدة, the 620-0636 provides deterministic control logic execution, real-time processing من process data, and robust support for both analog and digital I/O.
This processor module enables plant-wide automation through a reliable and scalable architecture, designed for critical process industries such as oil & gas, chemicals, power generation, and more. Its industrial-grade construction ensures long-term operation under harsh environmental conditions.
Key Features
-
High-speed logic execution and real-time process control
-
Designed for Honeywell TDC 2000/TDC 3000 and 620 Series systems
-
الدعمs both analog and digital control schemes
-
Seamless integration with Honeywell’s I/O modules
-
Non-volatile memory for configuration retention
-
Rack-mounted installation with backplane interface
-
LED indicators for module and process status
-
Field-proven reliability and long operational life
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Honeywell |
| الطراز Number | 620-0636 |
| Product Type | Processor Module |
| System Compatibility | Honeywell 620 Series, TDC 2000, TDC 3000 |
| Processor Type | Embedded Industrial CPU |
| Memory Type | Non-volatile (battery-backed SRAM or EEPROM) |
| Input/Output الدعم | Digital and analog I/O via backplane bus |
| Communication Interface | Parallel or serial bus with control network support |
| Programming Environment | Honeywell LCN-based programming tools |
| Execution Speed | Real-time deterministic performance |
| Hot-Swappable | No |
| Status Indication | LED indicators for power, fault, and communication |
| Power Consumption | Approx. 20–25 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mounting Type | Rack-mounted (Honeywell 620 backplane) |
| Dimensions | 119.38 x 68.58 x 30.48mm |
| الوزن | 0.227 kg |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
The 620-0636 Processor Module is engineered to perform reliably in mission-critical applications requiring real-time control and system resilience, including:
-
Oil & Gas Refineries – Supervisory and logic control for processing وحدةs
-
Chemical Plants – Distributed control من batch and continuous processes
-
Power Generation – Real-time turbine and boiler control strategies
-
Pharmaceutical Manufacturing – Environmental monitoring and process integrity
-
Water & Wastewater Treatment – Centralized pump and valve control
-
Mining & Metals – Harsh-environment control for crushing and smelting operations
Product Advantages
-
High-Speed Processing – Executes control logic quickly and efficiently
-
System Integration – Fully compatible with legacy and modern Honeywell control platforms
-
Non-Volatile Configuration Memory – Ensures data retention even during power failures
-
Robust Hardware Design – Withstands industrial shock, vibration, and temperature extremes
-
Easy Maintenance – LED indicators and diagnostic feedback reduce troubleshooting time
-
Lifecycle الدعم – الدعمed within Honeywell’s long-term system migration path
-
Flexible Architecture – Ideal for both centralized and distributed control topologies
-
Proven Performance – Trusted by global industries for more than two decades
الأسئلة الشائعة (FAQ)
-
What does the 620-0636 Processor Module control?
It executes logic and handles real-time operations in Honeywell 620 Series control systems. -
Is it compatible with the TDC 2000 or TDC 3000 system?
Yes, it is compatible with both TDC 2000 and TDC 3000 platforms via the 620 backplane. -
Can I use this module with newer Honeywell systems?
It is designed for legacy systems but can be used in hybrid environments with proper integration. -
Does it support analog and digital I/O?
Yes, it supports both types through compatible backplane I/O modules. -
Is the module hot-swappable?
No, it requires the system to be powered down for safe installation or removal. -
How is configuration data retained?
Configuration is stored in non-volatile memory, ensuring settings are preserved during outages. -
What programming tools are used?
Honeywell’s LCN-based programming tools or configuration sمنtware. -
What does the LED status display indicate?
It shows module health, communication status, and fault conditions. -
Is this module still supported by Honeywell?
While classified as legacy, Honeywell منfers ongoing support and migration services. -
Where can I find spare parts or replacements?
Through Honeywell authorized distributors or reputable industrial automation suppliers.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 620-0083C | Processor Power Module |
| 620-0086 | Parallel Link Driver Module |
| 620-0088 | Parallel Link Driver Module (variant) |
| 620-0056 | Central Processor Module |
| 620-0095 | Digital Output Module |
| 620-0071 | Analog Input Module |
