Product Overview

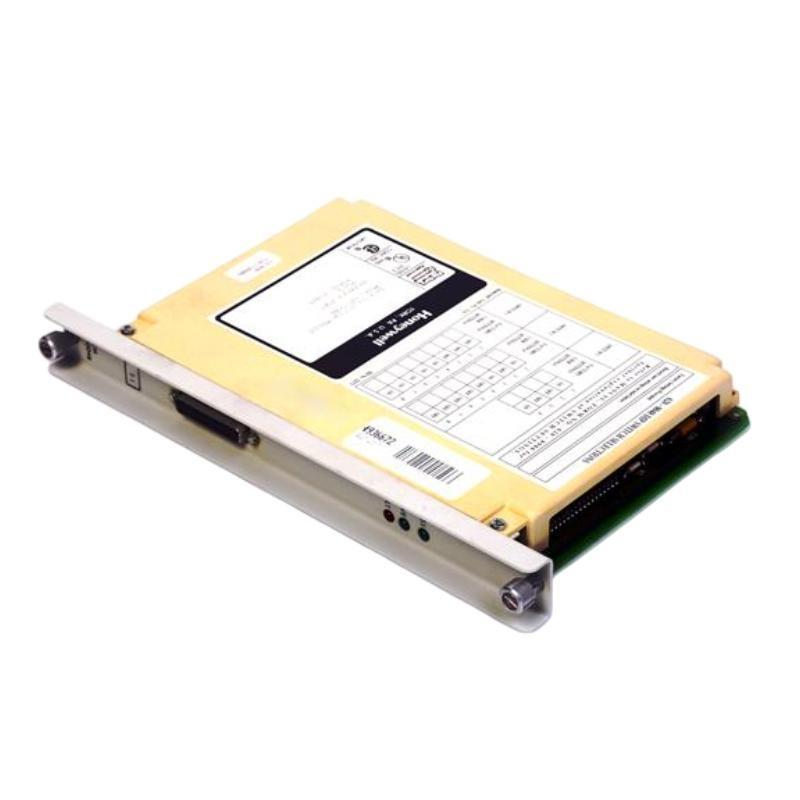

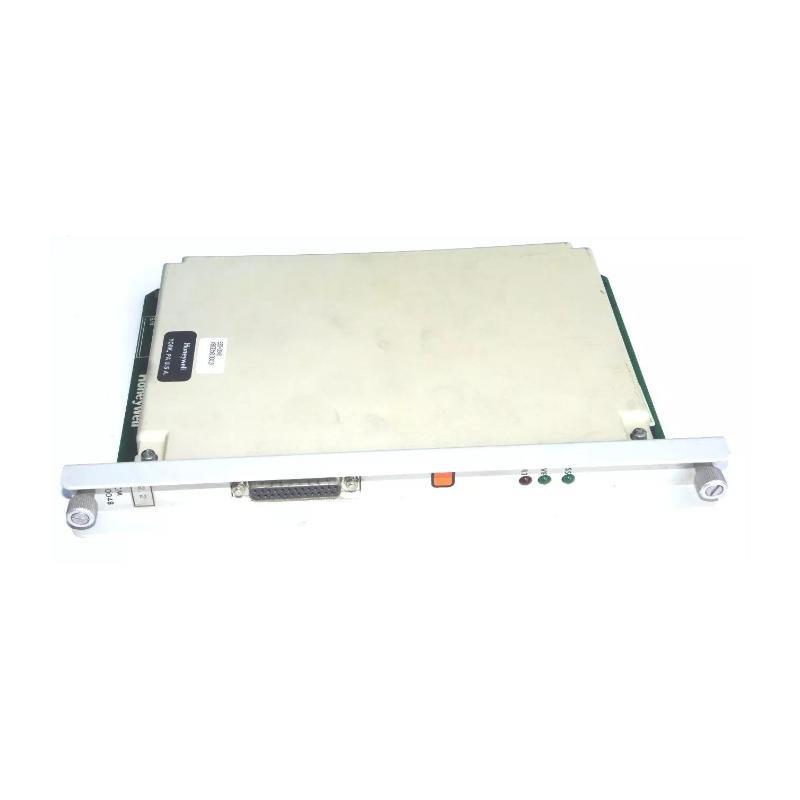

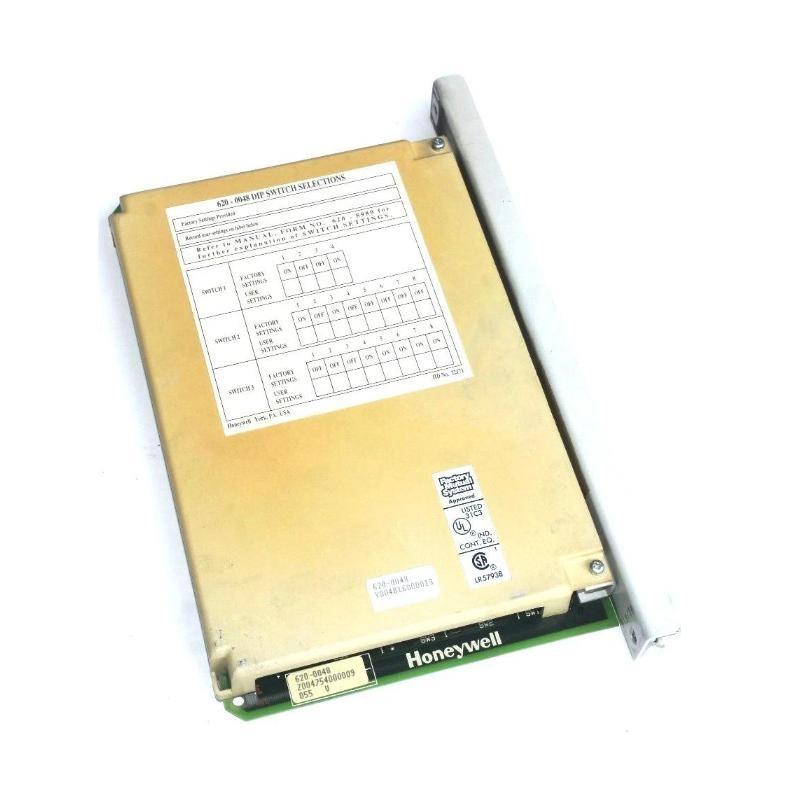

The Honeywell 620-0048 Data Collection Module is a powerful and versatile component designed for high-performance data acquisition and processing in industrial automation and control systems. With its robust construction and user-friendly interface, this module provides real-time collection, processing, and communication من vital data from various sources to ensure smooth, optimized operations.
This data collection module plays a crucial role in process control, condition monitoring, and predictive maintenance applications. It allows users to gather key operational data from field devices, sensors, and other industrial equipment, process it accurately, and transmit it to higher-level control systems for decision-making and analysis. The 620-0048 module is engineered for seamless integration into Honeywell’s automation systems, making it a reliable solution for industrial plants and systems.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 620-0048 |
| Dimensions | 200 x 120 x 55 mm |
| الوزن | 0.408 kg |
| Input Channels | 16 (digital or analog) |
| Output Channels | 4 (analog outputs) |
| Power Supply | 24 V DC ± 10% |
| Operating Temperature | -10°C to +60°C |
| Communication Protocol | Modbus RTU, TCP/IP |
| Mounting Type | DIN Rail |
| Protection Class | IP20 |
| Data Transfer Rate | 1 Mbps (max) |
| Signal Processing | Filtering, scaling, averaging, etc. |
| Compliance | CE, UL, RoHS |
Applications
The Honeywell 620-0048 Data Collection Module is a crucial part من various industrial and manufacturing systems, and it is used in several high-demand applications, including:
-
Industrial Automation: Collects data from sensors, actuators, and field devices for centralized control in automation systems.
-
الحالة Monitoring Systems: Monitors the health and performance من machines, detecting abnormal behaviors and enabling predictive maintenance.
-
Process Control Systems: Gathers data from production lines, reactors, and storage tanks for real-time control and optimization.
-
Energy Management: Facilitates real-time energy usage data collection to optimize energy consumption and reduce costs in industrial plants.
-
Building Automation: Works with HVAC systems, lighting controls, and other building systems to enhance building performance and reduce energy waste.
-
Oil & Gas: Used for monitoring well performance, pipeline conditions, and overall plant operations in oil and gas facilities.
This module enables seamless integration with other Honeywell equipment, making it a go-to solution for industries requiring reliable and accurate data acquisition.
Product Advantages
-
High Flexibility in Data Collection: The 620-0048 module can collect a wide range من data types, including digital, analog, and pulse signals, providing versatility across applications.
-
Real-Time Data Processing: It processes and filters incoming data in real time, ensuring that only relevant data is transmitted to higher-level systems.
-
Robust and Reliable Design: With an IP20 protection class and a wide operating temperature range من -10°C to +60°C, the module is designed to operate reliably in challenging industrial environments.
-
Easy Integration: Seamless integration with Honeywell’s automation platforms and other industry-standard communication protocols like Modbus RTU and TCP/IP allows quick system setup and minimal downtime.
-
Compact and Efficient: The compact design (200 x 120 x 55 mm) makes it suitable for installations in tight spaces, saving valuable panel space.
-
Enhanced Communication Capabilities: الدعمs high-speed data transfer up to 1 Mbps, ensuring fast and efficient communication with control systems.
-
Cost-Effective Solution: Offers a cost-effective way to collect, process, and transmit essential data without the need for multiple separate modules, reducing overall system complexity and cost.
الأسئلة الشائعة (FAQ)
Q1: What is the Honeywell 620-0048 Data Collection Module primarily used for?
A1: The module is used for collecting and processing data from various field devices, sensors, and equipment, and transmitting it to control systems for analysis, decision-making, and process optimization.
Q2: How does the 620-0048 module communicate with other devices?
A2: It supports Modbus RTU and TCP/IP communication protocols, allowing it to interface with a variety من control systems and industrial devices.
Q3: What is the maximum data transfer rate من this module?
A3: The module supports a maximum data transfer rate من 1 Mbps, ensuring efficient and timely communication with other systems.
Q4: Can I use this module in outdoor environments?
A4: The module is designed for indoor use with an IP20 protection rating, so it should not be used in outdoor environments where exposure to water or dust may occur.
Q5: How many input channels does the module support?
A5: The Honeywell 620-0048 supports up to 16 input channels, which can handle either digital or analog signals depending on the configuration.
Q6: What is the power supply requirement for the 620-0048 module?
A6: The module requires a 24 V DC power supply with a tolerance من ±10%, making it suitable for use with standard industrial power systems.
Q7: Is the 620-0048 module compatible with other brands من equipment?
A7: Yes, the module can be integrated with other industrial systems that support Modbus RTU or TCP/IP protocols, but the best performance is achieved when paired with Honeywell’s automation solutions.
Q8: What type من mounting is required for this module?
A8: The module can be easily mounted on a DIN rail, providing convenient installation in control panels or other industrial enclosures.
Q9: What is the operating temperature range من the 620-0048 module?
A9: The module operates within a temperature range من -10°C to +60°C, making it suitable for a wide range من industrial environments.
Q10: Does this module support signal processing?
A10: Yes, the 620-0048 module منfers built-in signal processing features such as filtering, scaling, and averaging, which help enhance the quality and relevance من the data being collected.
Recommended Related الطرازs (Same Series or Type)
| الطراز | الوصف | Dimensions | الوزن |
|---|---|---|---|
| 620-0049 | Data Collection Module, 32 Input Channels | 250 x 150 x 65 mm | 0.55 kg |
| 620-0050 | Data Collection Module, 8 Analog Inputs | 200 x 120 x 55 mm | 0.400 kg |
| 620-0060 | Data Acquisition Module, 4 Digital Outputs | 220 x 130 x 60 mm | 0.450 kg |
| 620-0035 | Data Collection Module, 16 Digital Inputs | 210 x 120 x 58 mm | 0.460 kg |
| 620-0070 | Data Collection Module, Pulse Inputs and Outputs | 200 x 120 x 55 mm | 0.420 kg |
| 620-0055 | Analog Data Collection Module, 8 Channels | 200 x 120 x 55 mm | 0.410 kg |
Recommended Popular Honeywell الطرازs
| الطراز | الوصف | الوزن |
|---|---|---|
| 620-0636 | Industrial temperature sensor, RTD, 100Ω, Class A, for general-purpose use | 0.200 kg |
| 620-1633 | Pressure sensor, 0–100 PSI, for high-accuracy industrial applications | 0.230 kg |
| 620-0924 | Pressure sensor, 0–500 PSI, for low-to-mid range industrial applications | 0.210 kg |
| 620-1644 | Temperature sensor, thermocouple, high-temperature range (up to 800°C) | 0.220 kg |
| 620-0912 | Differential pressure sensor, 0–50 PSI, designed for HVAC and fluid systems | 0.240 kg |
| 620-0935 | High-pressure sensor, 0–2000 PSI, for heavy-duty industrial use | 0.250 kg |
