مقدمة المنتج

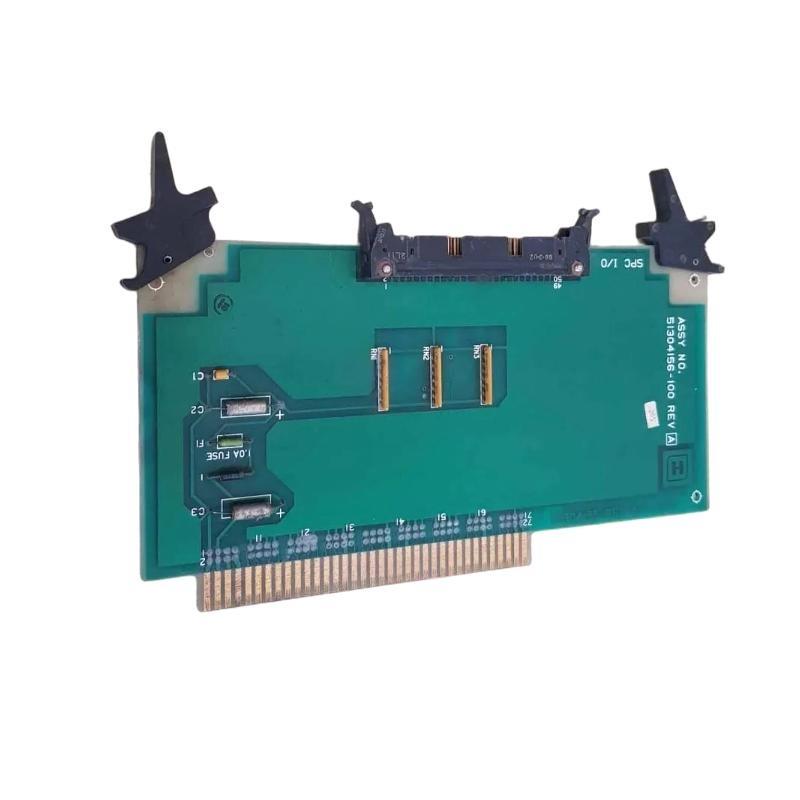

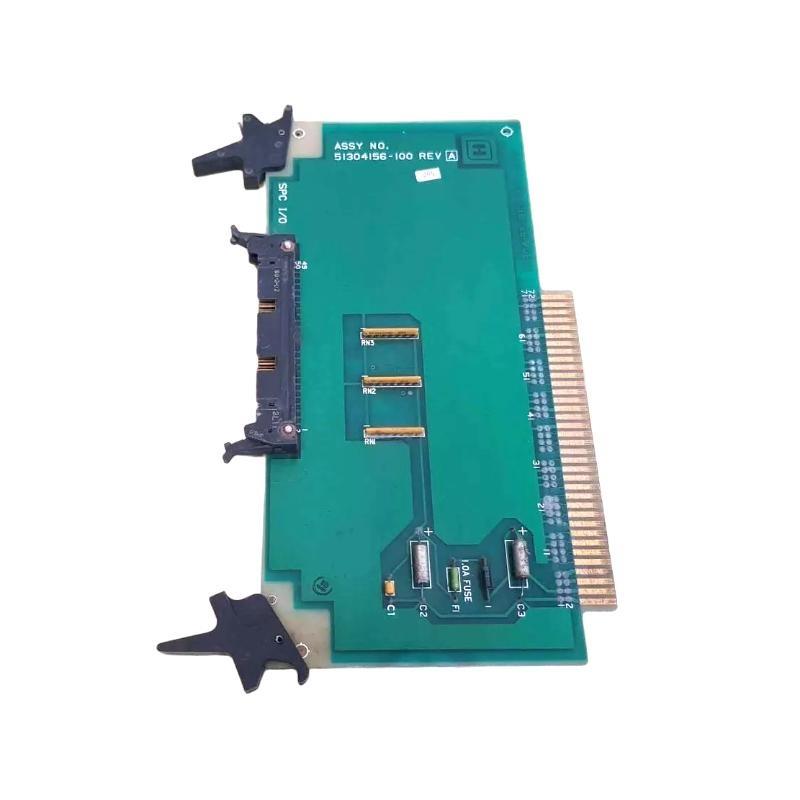

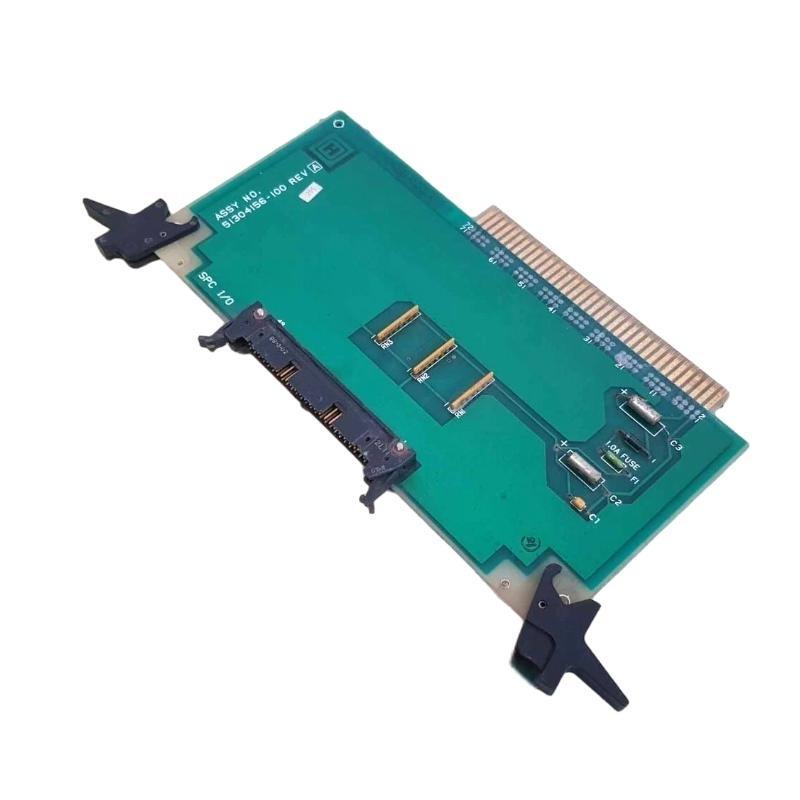

The Honeywell 51304156-100 I/O Board is a versatile and robust input/output control board designed specifically for integration within Honeywell’s automation and control systems. It acts as a central interface for processing and managing multiple digital and analog input/output signals, facilitating communication between field devices and the main control وحدة.
Engineered for industrial-grade reliability, the 51304156-100 I/O Board منfers precise signal handling and flexibility for various control applications. It supports diverse input and output configurations, making it suitable for process automation, safety monitoring, and real-time control systems where accuracy and stability are paramount.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | 51304156-100 |
| Type | Input/Output Control Board |
| Input Channels | الدعمs digital and analog inputs |
| Output Channels | Relay outputs and transistor outputs |
| Communication Interface | Compatible with Honeywell control protocols |
| Power Supply | 24 V DC nominal |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 130 x 105 x 40 mm |
| الوزن | 0.109 kg |
| Mounting | DIN rail or panel mounting compatible |
| Certifications | CE, UL Recognized |
Product Applications
The Honeywell 51304156-100 I/O Board is widely used in industries requiring precise and reliable signal processing in automated control systems. Key application areas include:
-
Manufacturing Automation: Controls and monitors actuators, sensors, and machinery in automated production lines.
-
Building Automation Systems: Manages inputs and outputs for HVAC, lighting, and security control systems.
-
Energy Sector: Controls distributed energy systems, power plants, and renewable energy equipment.
-
Process Industries: Chemical, oil & gas, and pharmaceutical plants employ the board for process control and safety monitoring.
-
Water Treatment Plants: Used to manage valves, pumps, and sensors for effective water processing.
-
Safety Systems: Interfaces with alarm and interlock systems requiring rapid and reliable signal handling.
Product Advantages
-
Flexible I/O Configuration: الدعمs both analog and digital signals, allowing integration with diverse field devices.
-
Reliable Signal Processing: Designed to maintain signal integrity in electrically noisy industrial environments.
-
Robust Industrial Design: Operates reliably over a wide temperature range and high humidity levels.
-
Compact and Easy to Install: Fits in tight spaces with options for DIN rail or panel mounting.
-
Seamless Integration: Fully compatible with Honeywell control protocols ensuring smooth system communication.
-
Energy Efficient: Low power consumption enables cost-effective long-term operation.
-
Service-Friendly: Modular construction allows for quick replacement and maintenance.
-
Safety Certified: Meets CE and UL standards ensuring compliance with international safety regulations.
الأسئلة الشائعة (FAQ)
-
What types من input signals are supported by the 51304156-100 I/O Board?
Both digital and analog input signals are supported for flexible application use. -
How many input and output channels does the board provide?
The board typically supports up to 12 digital inputs and 6 relay outputs, though configurations may vary. -
What communication protocols does the board support?
It is compatible with Honeywell proprietary control protocols used in local and networked automation systems. -
What is the rated voltage for powering the board?
The board operates at a nominal 24 V DC supply voltage. -
Can the board handle harsh environmental conditions?
Yes, it functions reliably from -20°C to +70°C and tolerates up to 95% non-condensing humidity. -
Does the board provide any diagnostic or status feedback?
Basic diagnostics are available via the control system to monitor input/output status and detect faults. -
Is firmware upgradeable for this I/O Board?
The board firmware is typically fixed; however, updates can be performed through Honeywell’s system tools if required. -
What is the maximum current rating for the relay outputs?
Relay outputs are rated up to 5A at 30 V DC or 250 V AC, depending on configuration. -
What mounting options are available?
The board supports DIN rail and panel mounting for installation flexibility. -
How is signal interference minimized on this board?
The board employs shielding and filtering techniques to ensure high signal integrity in industrial environments.
Related الطرازs from the Same Series or العلامة التجارية
| الطراز Number | الوصف | Input Channels | Output Channels | Dimensions (mm) | الوزن (g) |
|---|---|---|---|---|---|
| 51304156-101 | I/O Board with Expanded I/O | 16 digital | 8 relay outputs | 135 x 110 x 45 | 400 |
| 51304157-100 | Analog Input Module | 24 analog | N/A | 125 x 100 x 40 | 350 |
| 51304158-100 | Relay Output Module | N/A | 12 relay outputs | 125 x 100 x 40 | 370 |
| 51304159-100 | Digital Input Module | 32 digital | N/A | 140 x 110 x 45 | 420 |
| 51304160-100 | Mixed I/O Module | 8 digital, 16 analog | 8 relay | 130 x 110 x 45 | 430 |
| 51304161-100 | Network Interface Module | N/A | N/A | 125 x 90 x 35 | 300 |
Popular Honeywell الطرازs in Related Fields
| الطراز Number | Product Type | Key Features | Dimensions (mm) | الوزن (g) |
|---|---|---|---|---|
| 51304150-100 | CPU Controller | High-speed processing | 150 x 130 x 50 | 460 |
| 51304151-100 | Power Supply | Wide voltage range | 120 x 90 x 40 | 350 |
| 51304152-100 | Network Router | Multi-protocol communication | 130 x 110 x 40 | 370 |
| 51304153-100 | Display Panel | Touch screen interface | 140 x 120 x 45 | 430 |
| 51304154-100 | Temperature Input Module | High accuracy sensor input | 125 x 100 x 40 | 340 |
| 51304155-100 | Relay Expansion Module | Additional relay outputs | 130 x 110 x 45 | 400 |
