مقدمة المنتج

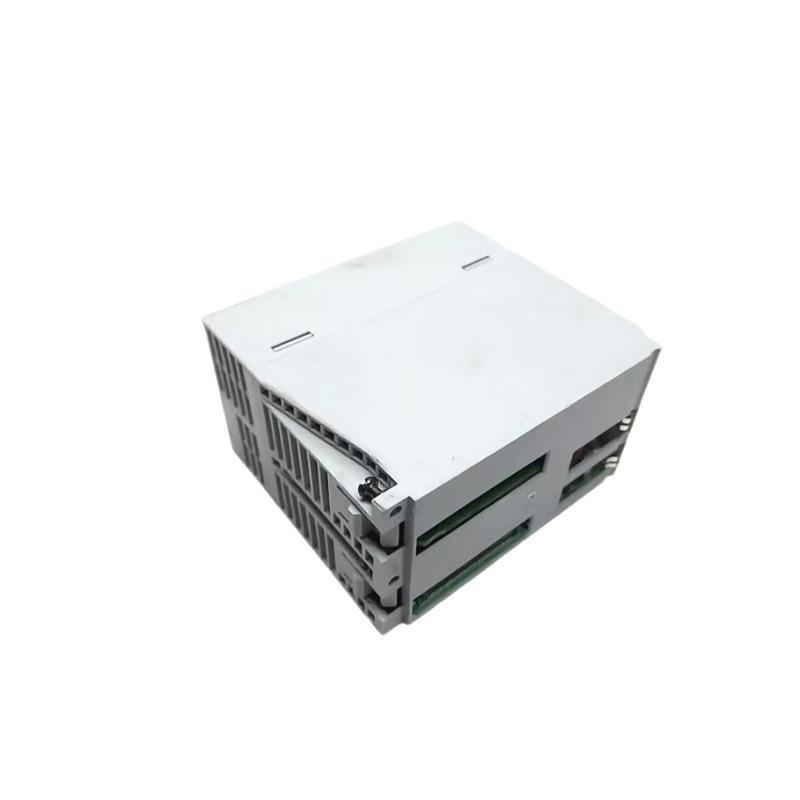

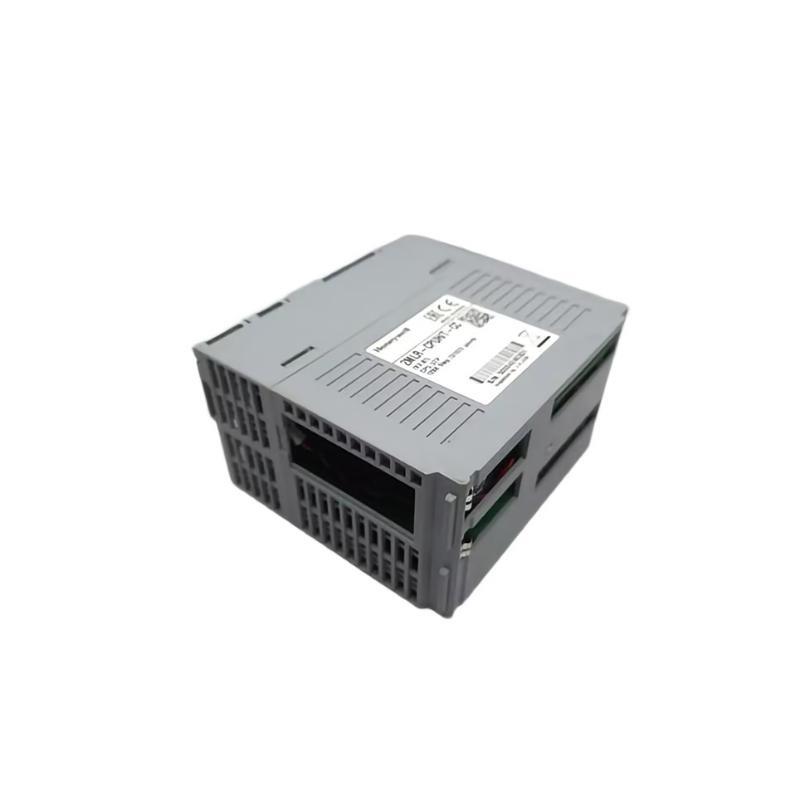

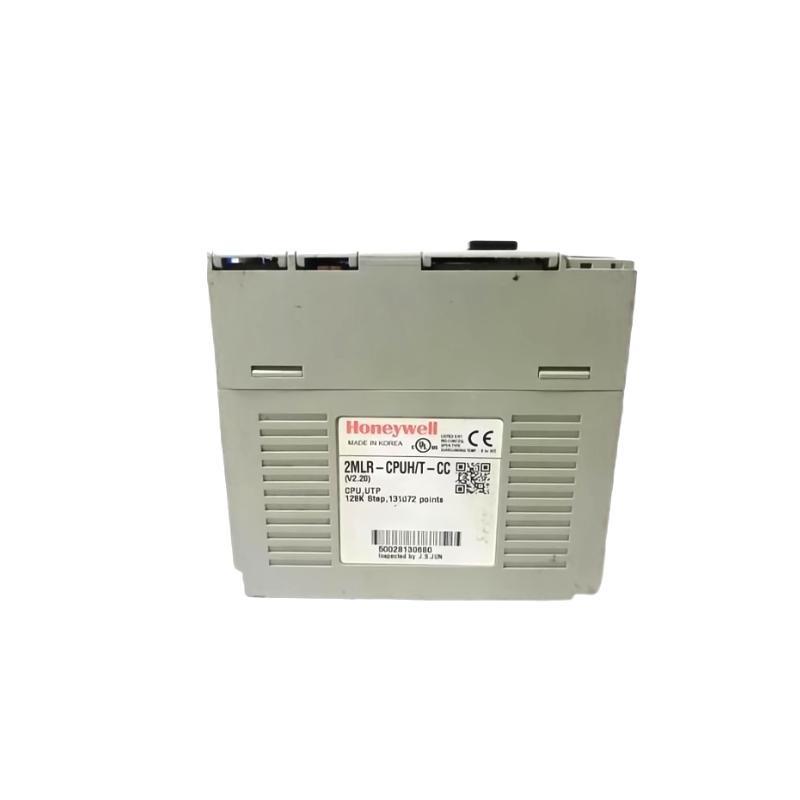

The Honeywell 2MLR-CPUH/S-CC is a high-performance CPU module engineered for industrial-grade control systems, specifically within Honeywell’s MasterLogic-200R (ML200R) series. Known for its robust performance, high-speed processing, and advanced networking capabilities, this module serves as the core controller in distributed automation architectures.
The CPUH/S-CC variant is designed with redundancy support and comes equipped with advanced features that include extensive memory, fast I/O processing, real-time data handling, and support for redundant system configurations. It seamlessly integrates with Honeywell’s industrial automation platforms and منfers superior scalability, security, and reliability for mission-critical applications.
Whether it’s oil & gas, power generation, chemical processing, or large-scale manufacturing, the 2MLR-CPUH/S-CC provides a dependable solution tailored to meet the demanding requirements من modern industrial environments.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 2MLR-CPUH/S-CC |
| Series | MasterLogic-200R (ML200R) |
| Processor Type | High-speed ARM-based processor |
| Memory (User Program) | 2 MB |
| Memory (Data) | 1 MB |
| Battery Backup | Yes (for memory retention) |
| Redundancy الدعم | Yes, CPU redundancy supported |
| Scan Time | < 1 ms for 1K steps |
| I/O Capacity | Up to 16,384 digital I/O points |
| Communication Ports | 2 × Ethernet, 1 × RS232, 1 × RS485 |
| الدعمed Protocols | Modbus TCP/RTU, Ethernet/IP, DNP3, OPC |
| Power Supply Voltage | 24 VDC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| Humidity | 5–95% RH, non-condensing |
| Dimensions (W × H × D) | 150 x 100 x 50 mm |
| الوزن | 0.12 kg |
| Mounting Type | DIN rail |
| Certifications | CE, UL, CSA, RoHS |
Product Applications
The Honeywell 2MLR-CPUH/S-CC CPU Module is ideal for use in a wide variety من industrial automation systems. Its key application areas include:
-
Oil and Gas Refineries: Control من distributed process equipment, pipeline management, and safety interlock systems.
-
Power Generation: Automation من turbine controls, boiler management, and plant safety systems.
-
Chemical and Petrochemical Plants: Reactor control, batch processing, and safety shutdown systems.
-
Water and Wastewater Treatment: Pump station control, filtration monitoring, and SCADA integration.
-
Manufacturing Facilities: Assembly line automation, robotics integration, and motion control.
-
Pharmaceutical Production: Precision batch control, validation logging, and audit trail management.
Product Advantages
-
Redundant CPU الدعم: Ensures maximum uptime and process continuity by allowing hot-standby configuration.
-
Fast Processing Speed: Enables real-time control for high-speed automation tasks.
-
Scalable Architecture: الدعمs large numbers من I/O modules for both local and remote expansion.
-
Open Communication: Compatible with widely-used industrial protocols for seamless third-party integration.
-
Robust Security: Equipped with cybersecurity measures and secure communication protocols.
-
Compact Design: Space-efficient DIN-rail mountable وحدة, ideal for control cabinets with limited space.
-
Field Proven Reliability: Extensively tested under harsh industrial conditions for superior durability.
-
User-Friendly Programming: Compatible with Honeywell’s MasterLogic programming tools and easy-to-use engineering sمنtware.
الأسئلة الشائعة (FAQ)
-
What does the ‘S-CC’ suffix in 2MLR-CPUH/S-CC indicate?
It signifies that this CPU module supports a secure, redundant control configuration with central control capabilities. -
Can I use this CPU in a redundant system architecture?
Yes, it fully supports CPU redundancy with auto-failover to minimize downtime. -
What sمنtware is used to program the 2MLR-CPUH/S-CC?
The module is programmed using Honeywell’s ML200R Engineering Tool, which supports ladder logic and function block programming. -
Does it support remote I/O modules?
Yes, it can communicate with both local and remote I/O stations, making it scalable for large systems. -
What type من industrial network can it be used on?
It supports Ethernet/IP, Modbus TCP, and DNP3, making it suitable for multiple network topologies. -
How do I ensure CPU redundancy is working?
The system automatically monitors active/passive CPU health and will switch over in the event من a failure. Indicators and diagnostics are provided. -
Can it log historical data?
Yes, it has internal data memory and supports logging for process trends and alarms. -
Is the module hot-swappable?
The CPU module itself is not hot-swappable, but I/O modules connected to it can be replaced depending on the configuration. -
Is cybersecurity supported?
Yes, it includes features like encrypted communication, role-based access control, and secure firmware updates. -
What happens if power is lost?
With battery backup and flash memory, all critical configuration data and logged information are preserved during power interruptions.
Related الطرازs from Same Series (MasterLogic-200R)
| الطراز | الوصف | Memory | Redundancy | Dimensions (mm) |
|---|---|---|---|---|
| 2MLR-CPUH/S-CC | High-end CPU with redundancy | 2MB | Yes | 100×130×100 |
| 2MLR-CPUH-CC | Standard high-performance CPU | 2MB | No | 100×130×100 |
| 2MLR-CPUL-CC | Mid-range CPU, no redundancy | 1MB | No | 100×130×90 |
| 2MLR-CPUH-RD | Redundant CPU for safety-critical systems | 2MB | Yes | 100×130×110 |
| 2MLR-IO16D | 16-point Digital Input module | — | — | 50×130×85 |
| 2MLR-IO16R | 16-point Relay Output module | — | — | 50×130×85 |
Popular Honeywell الطرازs (Same العلامة التجارية)
| الطراز | الوصف | System Type | Application | Certifications |
|---|---|---|---|---|
| C300 Controller | Advanced process control CPU | Experion PKS | Continuous & batch processes | CE, SIL2, UL |
| HC900-CPU650 | Hybrid controller for process + logic | HC900 Series | Food, pharma, water | CSA, CE, UL |
| ML50-IO16 | Compact PLC with I/O | MasterLogic 50 | Machine automation | CE, UL |
| UDC3500 | Universal digital controller | Standalone Controller | Temperature/process loops | NEMA 4X, IP66 |
| SMV800 | Smart positioner with HART | Field Device | Valve control systems | SIL2, FM, CSA |
| TDC3000 PM/APM | Legacy control processor module | TDC3000 Series | Legacy DCS upgrade systems | FM, UL |
