مقدمة المنتج

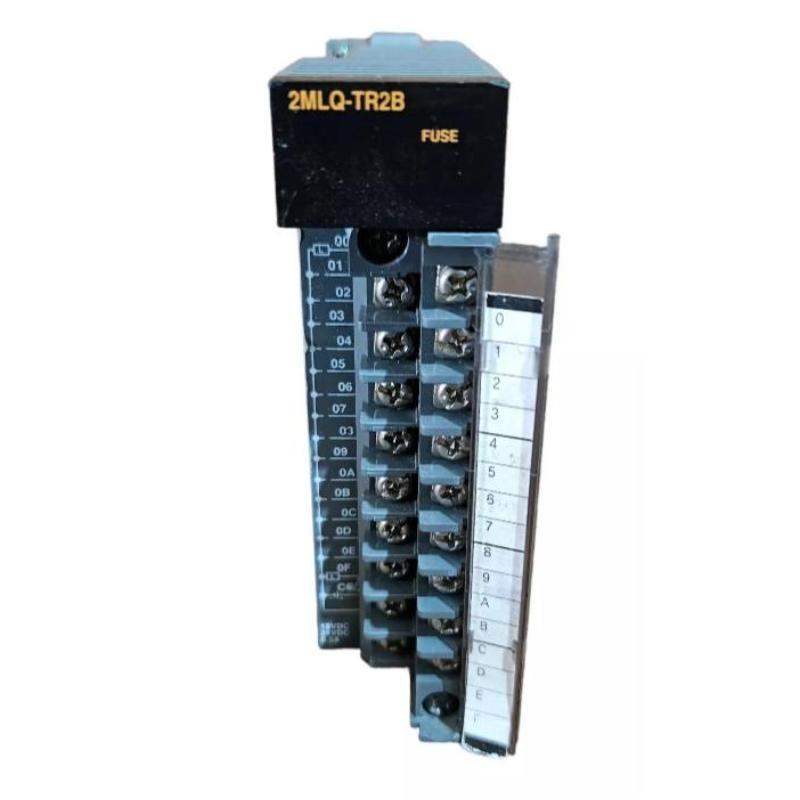

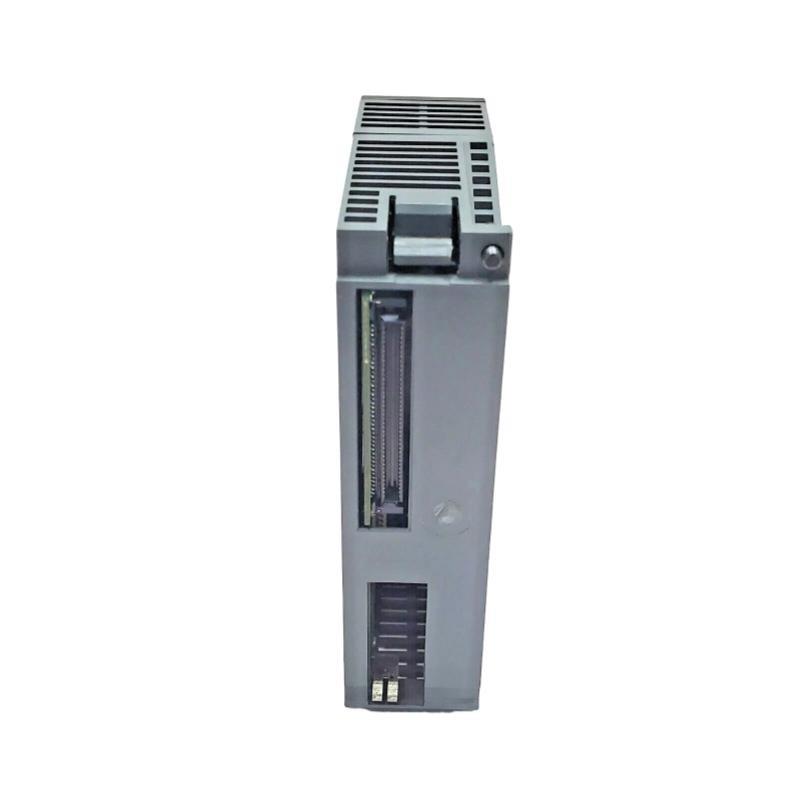

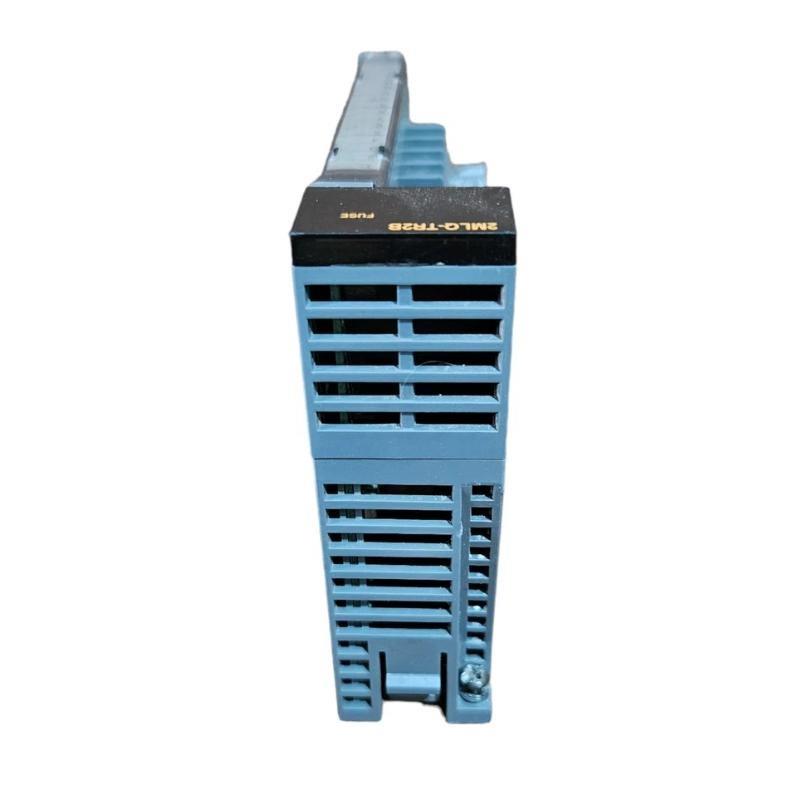

The Honeywell 2MLQ-TR2BA Digital Output Module is an industrial-grade control module designed for precise and reliable digital signal transmission in critical automation environments. Engineered as part من Honeywell’s robust and scalable control platform, this module delivers dependable operation in discrete output applications, particularly in safety and logic control systems.
The 2MLQ-TR2BA is built for harsh environments and high-performance applications. It is designed to interface directly with field actuators such as solenoids, indicators, and relays. With high-speed switching capability and galvanic isolation, this module ensures safe signal transmission and efficient device control in industrial automation systems.
مواصفات المنتج
| Parameter | Details |
|---|---|
| الطراز | 2MLQ-TR2BA |
| الشركة المصنعة | Honeywell |
| Type | Digital Output Module |
| Number من Channels | 16 channels |
| Output Type | Transistor (Sourcing) |
| Rated Voltage | 24 VDC |
| Output Current per Channel | 0.5 A (max) |
| Isolation | Channel-to-bus and channel-to-channel |
| Protection | Overload, short-circuit, reverse polarity |
| Response Time | < 1 ms |
| Diagnostics | Channel status indication, fault detection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting | DIN Rail |
| Communication Bus | Redundant I/O Link |
| Power Consumption | < 6 W |
| Dimensions (H x W x D) | 22 x 124 x 126 mm |
| الوزن | 0.12 kg |
| Compliance | CE, UL, CSA |
Product Applications
The 2MLQ-TR2BA Digital Output Module is designed for high-integrity industrial environments where digital control signals must be delivered quickly, reliably, and safely. Common applications include:
-
Oil & Gas: Control من on/منf valves, actuators, and indicators.
-
Power Generation: Turbine trip and protection systems.
-
Chemical & Petrochemical: Batch and process sequencing.
-
Pharmaceutical: Machine safety and interlocks.
-
Pulp & Paper: Machine control and alarm systems.
-
Water & Wastewater: Pump control and monitoring.
Product Advantages
-
High Reliability: Built to perform in safety-critical systems with minimal failure rates.
-
Fast Response Time: Sub-millisecond switching ensures timely actuator responses.
-
Integrated Diagnostics: Real-time channel-level diagnostics reduce downtime and ease troubleshooting.
-
Robust Protection: Overcurrent, short-circuit, and reverse polarity protection ensures module and system integrity.
-
Compact Form Factor: Slim design conserves panel space without compromising performance.
-
Modular Integration: Easily integrates with Honeywell’s process control systems and other I/O modules.
-
Redundancy الدعم: Compatible with redundant architectures for high-availability operations.
FAQ
-
What is the output switching mechanism used in the 2MLQ-TR2BA module?
It uses sourcing transistor outputs (typically PNP configuration). -
Does the module support hot-swapping during operation?
No, this module does not support hot-swapping. Power down is required before replacement. -
Can the output channels be configured independently?
No, all channels are pre-defined for digital output and share common electrical characteristics. -
Is the module compatible with Honeywell’s Safety Manager systems?
Yes, it is designed to integrate with Honeywell’s Safety Manager and C300 systems. -
What is the typical channel-to-channel isolation voltage?
Typically rated at 500 VDC minimum between channels and system. -
Does it support diagnostic feedback to the controller?
Yes, it provides diagnostics for short-circuit, open load, and output status via the control system. -
What is the recovery process after a channel protection trip?
The module automatically resets the output after the fault is cleared. -
Can this module be used in SIL-rated applications?
Yes, the module is suitable for SIL2/SIL3 applications when used within an approved safety system. -
What is the maximum total current the module can source simultaneously?
Total output current should not exceed 8 A across all channels to prevent overheating. -
How is firmware managed on this module?
Firmware is fixed and not user-upgradable. Updates are handled through Honeywell service programs.
Related الطرازs (Same Series or Function)
| الطراز | الوصف | Output Type | Channels | Voltage |
|---|---|---|---|---|
| 2MLQ-TR4DA | Digital Output Module, Sourcing, Extended Output | Transistor | 32 | 24 VDC |
| 2MLQ-TR2BB | Digital Output Module, High-Side Switch | Transistor | 16 | 24 VDC |
| 2MLQ-TR2CB | Digital Output Module with Feedback | Transistor | 16 | 24 VDC |
| 2MLQ-TR1BA | Digital Output Module, Compact Form | Transistor | 8 | 24 VDC |
| 2MLI-DI4AA | Digital Input Module, Standard Type | N/A | 16 | 24 VDC |
| 2MLI-DI2AB | Digital Input Module, Isolated | N/A | 16 | 24 VDC |
Popular Honeywell الطرازs
| الطراز | الوصف | Type | Application |
|---|---|---|---|
| C300 Controller | Process controller for distributed systems | Controller | Process Automation |
| HC900 Controller | Hybrid control system for batch and logic control | Controller | Industrial Control |
| UDC3500 | Universal Digital Controller | Temperature Controller | General Process Control |
| SMV3000 | Smart Multivariable Transmitter | Pressure Transmitter | Flow & Pressure Control |
| STG700 | SmartLine Pressure Transmitter | Pressure Transmitter | Oil & Gas |
| FSC TMR | Fault Tolerant Safety Controller (Triple Modular) | Safety System | SIL3 Safety Applications |
