Product الوصف

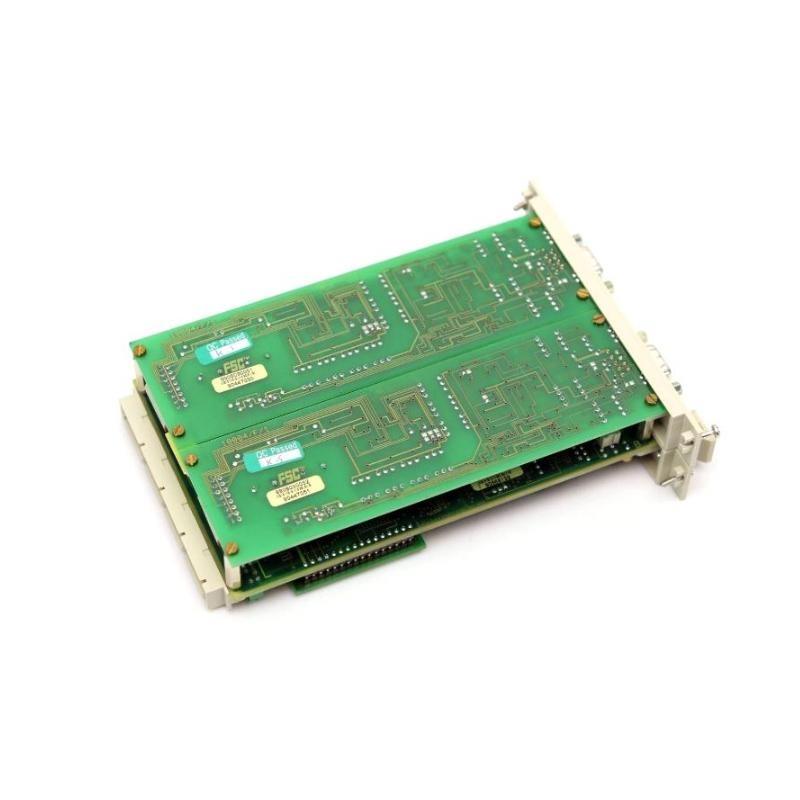

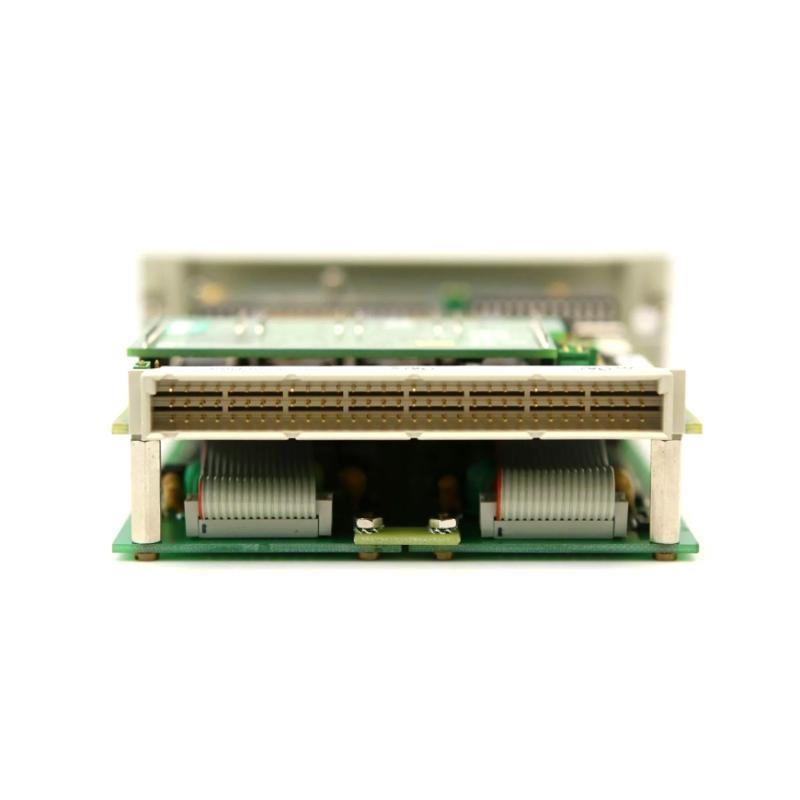

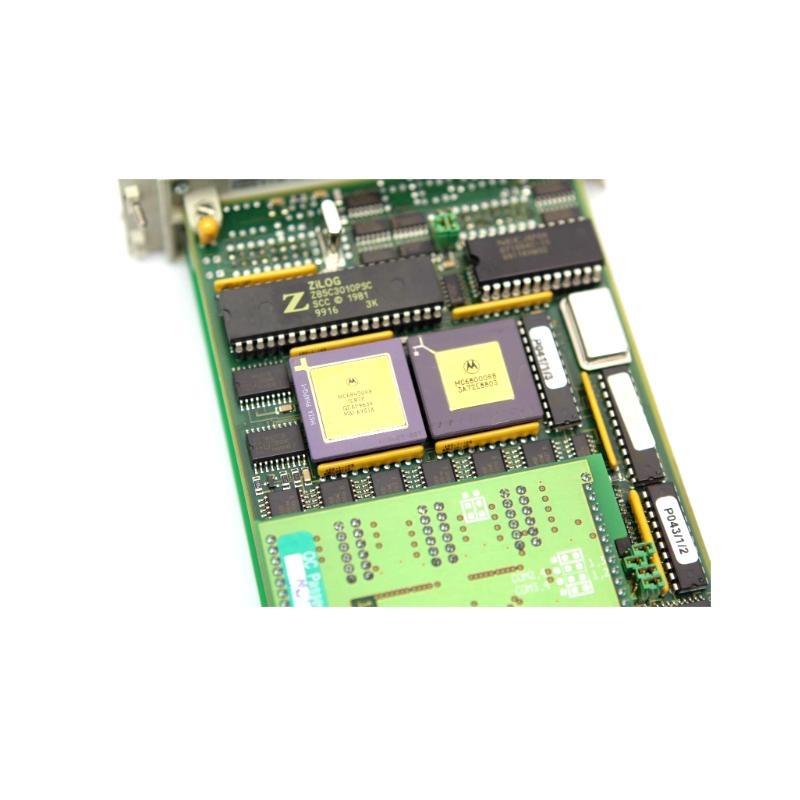

The Honeywell 10014/F/F is a communication module specifically designed for use with the Honeywell FSC (Fail Safe Controller) system. This module ensures reliable, high-speed data transfer within safety-critical environments. It facilitates communications between FSC modules and external systems, supporting deterministic and redundant data exchange for safety and control applications.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | 10014/F/F |
| Function | FSC Communication Module |
| Operating Voltage | 24 VDC (typical) |
| Communication Protocol | Peer-to-Peer FSC protocol |
| Interfaces الدعمed | Redundant Ethernet / Serial |
| Redundancy | الدعمed |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Cooling | Natural convection |
| Dimensions (W x H x D) | 40 x 185 x 128 mm |
| الوزن | 0.36 kg |
| Mounting Type | Rack-mounted |
| Certifications | SIL 3 (IEC 61508) |
Applications
-
Safety Instrumented Systems (SIS) in refineries and chemical plants
-
Emergency shutdown systems (ESD)
-
Burner management systems (BMS)
-
High-integrity pressure protection systems (HIPPS)
-
Critical infrastructure communication between FSC nodes
Advantages
-
الدعمs redundant communication for high system availability
-
SIL 3 certified for safety-critical use
-
Fast and deterministic data exchange
-
Reliable peer-to-peer networking with built-in fault tolerance
-
Seamless integration into Honeywell FSC architectures
-
Compact and lightweight form factor ideal for modular systems
FAQ (الأسئلة الشائعة)
Q1: What systems is the 10014/F/F module compatible with?
A1: It is designed for use with Honeywell FSC systems in safety-critical applications.
Q2: Does the module support redundant communication?
A2: Yes, it supports redundant Ethernet and serial interfaces for high availability.
Q3: What is the typical use من the module in industrial applications?
A3: It is mainly used for communication in Safety Instrumented Systems (SIS), such as ESD and BMS.
Q4: Can the 10014/F/F be used in high-temperature environments?
A4: It operates safely within a temperature range من 0°C to 60°C.
Q5: Is this module certified for safety compliance?
A5: Yes, it is SIL 3 certified according to IEC 61508 standards.
Q6: How is the module cooled?
A6: It uses natural convection for passive cooling.
Q7: What type من communication protocol does it use?
A7: It uses Honeywell’s proprietary peer-to-peer protocol for FSC systems.
Q8: How is the module mounted?
A8: It is rack-mounted, suitable for modular control panels.
Q9: What are its physical dimensions and weight?
A9: The module measures 40 x 185 x 128 mm and weighs 0.36 kg.
Q10: Can it be used for remote communication between FSC nodes?
A10: Yes, it facilitates remote, deterministic communication between distributed FSC modules.
Related الطرازs (Same Series or Functionality)
| الطراز | Function | Dimensions (mm) | الوزن |
|---|---|---|---|
| 10008/E/1 | FSC Processor Module | 40 x 185 x 128 | 0.42 kg |
| 10012/1/1 | FSC I/O Interface Module | 40 x 185 x 128 | 0.38 kg |
| 10020/1/1 | Digital Output Module | 40 x 185 x 128 | 0.40 kg |
| 10024/I/I | Analog Input Module | 40 x 185 x 128 | 0.36 kg |
| 10018/E/1 | Communication Processor | 40 x 185 x 128 | 0.39 kg |
| 10022/1/1 | Power Supply Module | 40 x 185 x 128 | 0.41 kg |
