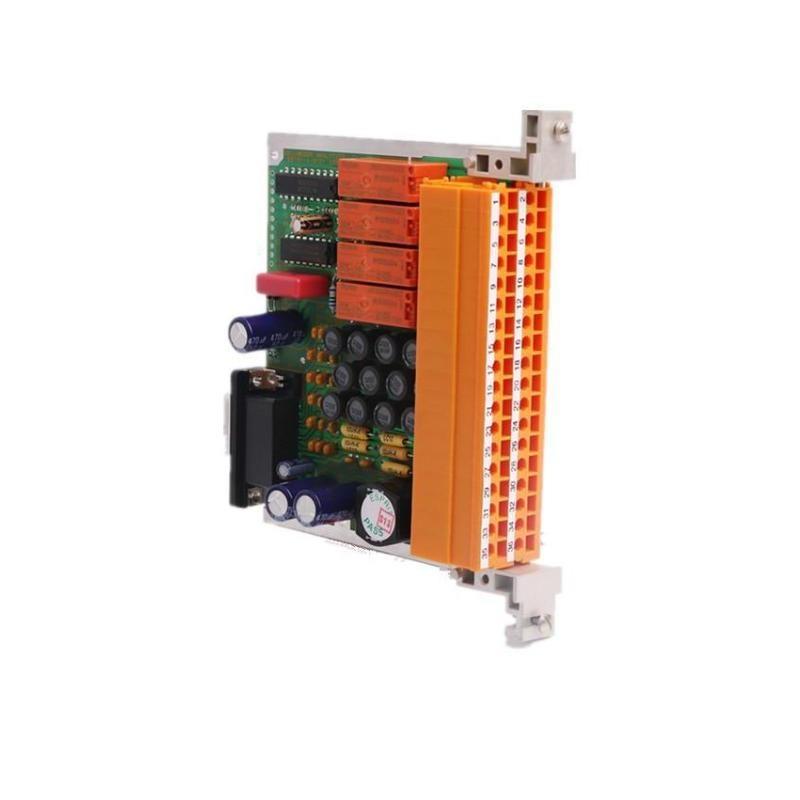

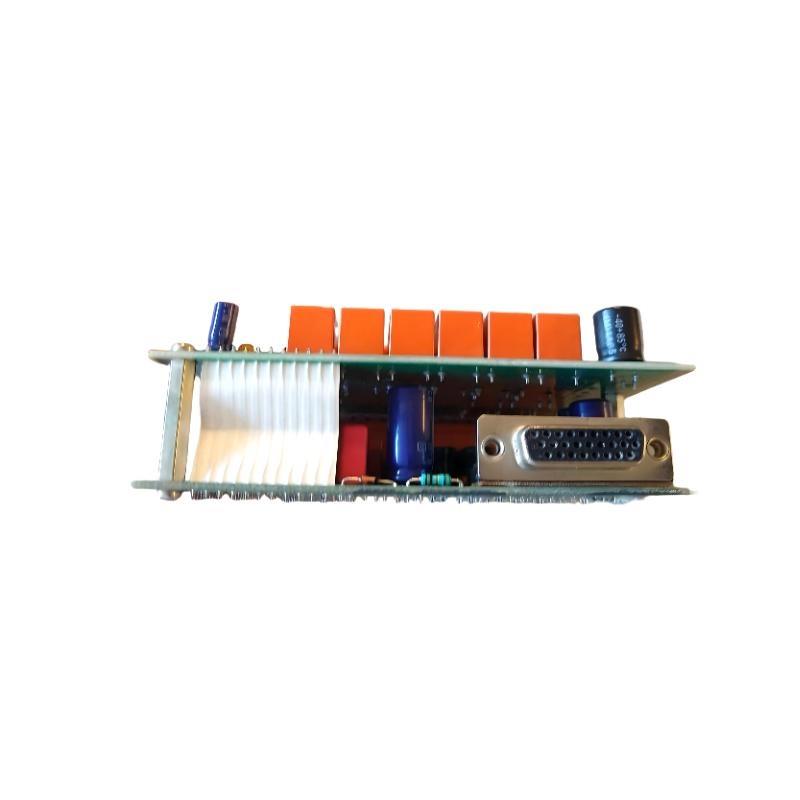

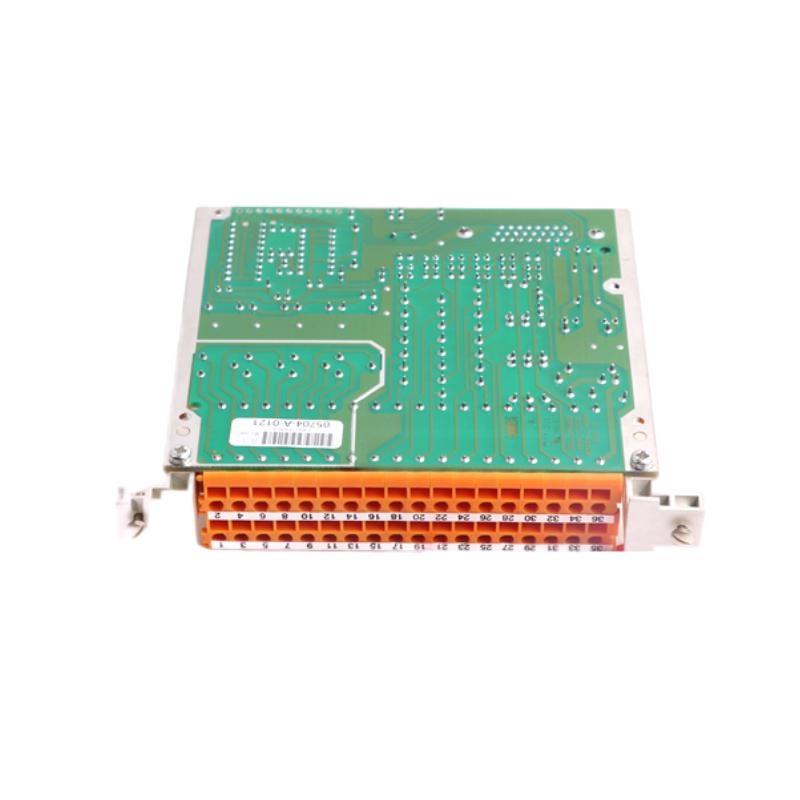

Honeywell 05704-A-0121 4-Relay Interface Card

مقدمة المنتج:

The Honeywell 05704-A-0121 is a 4-relay interface card designed for use with Honeywell’s process control and automation systems. It is an integral component used to interface control systems with various external devices, enabling reliable switching من electrical signals for process control. The card is specifically designed to handle up to four relays, each capable من controlling various types من output signals, providing versatility in its applications across multiple industries.

This interface card is built to support industrial automation processes, منfering robust performance in demanding environments where reliability and precision are critical. The compact design (with dimensions من 132 x 25 x 119mm and weight من 0.23kg) ensures that the card can be easily installed in control systems with limited space while still delivering optimal performance.

مواصفات المنتج:

Here are the detailed specifications for the Honeywell 05704-A-0121 4-Relay Interface Card:

Product Applications:

The Honeywell 05704-A-0121 4-Relay Interface Card is used in a wide variety من applications where precise control من external devices is needed. Some key industries and uses include:

1. Industrial Automation: It is widely used in industrial automation systems for controlling external equipment such as motors, valves, and heaters. The 4-relay card can act as a bridge to interface control signals with these devices.

2. Process Control: The card is used in process control systems, allowing users to manage outputs based on specific input conditions, ensuring that processes operate within set parameters.

3. Building Management Systems (BMS): It is an essential component in BMS, helping to interface with various building systems such as lighting, HVAC systems, and security devices.

4. Manufacturing Systems: In manufacturing environments, the relay card helps to automate various processes, such as controlling production lines or activating safety protocols based on system conditions.

5. Energy Management Systems: The card can be used in energy management systems to control energy distribution equipment, ensuring efficient power usage across plants or facilities.

6. Remote Monitoring: The card allows for remote control and monitoring, making it useful in critical infrastructure like water treatment plants or oil rigs, where automation and immediate response to conditions are essential.

Product Advantages:

1. Compact Design: With its dimensions من 132 x 25 x 119mm, the relay interface card is designed to fit into smaller spaces while منfering powerful functionality. Its lightweight construction (0.23 kg) makes it easy to handle and install.

2. High Reliability: The 4-SPDT relay outputs منfer high reliability, providing secure signal switching for critical applications. The 5A @ 240VAC or 30VDC contact rating ensures compatibility with a wide range من devices.

3. Wide Temperature Range: Operating in temperatures from -10°C to +60°C, the card performs reliably in a variety من harsh environments.

4. Durability: The card is built for durability, with resistance to humidity levels between 5% and 95% RH (non-condensing), making it ideal for use in various industrial and manufacturing environments.

5. Flexible Mounting Options: It can be mounted either via DIN Rail or screw mounting, providing flexibility in how the system is set up.

6. Compliance: The card is UL, CE, and RoHS compliant, ensuring it meets global standards for safety and environmental protection.

7. Ease من Integration: Designed to integrate smoothly into existing control systems, the card is compatible with a variety من Honeywell controllers and automation equipment.

8. Digital Control Logic Input: The card supports digital control logic inputs, ensuring fast and accurate operation based on system requirements.

9. Cost-Effective Solution: By providing four relays in a single وحدة, the Honeywell interface card منfers an affordable solution for managing multiple outputs without the need for additional equipment.

10. Enhanced Safety: The dry contact relay configuration provides enhanced safety by preventing any electrical shorts or failures between the connected devices.

الأسئلة الشائعة (FAQ):

1. What is the voltage required for the Honeywell 05704-A-0121 interface card?

   • The card requires a 24 VDC operating voltage.

2. What type من relays does the Honeywell 05704-A-0121 card use?

   • The card uses 4 x SPDT (Single Pole Double Throw) relays.

3. What is the weight من the Honeywell 05704-A-0121 interface card?

   • The card weighs 0.23 kg.

4. What is the size من the Honeywell 05704-A-0121 interface card?

   • The dimensions are 132 x 25 x 119mm.

5. What is the contact rating من the relays in this card?

   • The relay contacts are rated at 5A @ 240VAC or 30VDC.

6. What is the temperature range for operating the Honeywell 05704-A-0121 card?

   • The card operates in temperatures ranging from -10°C to +60°C.

7. Can the Honeywell 05704-A-0121 be mounted on a DIN Rail?

   • Yes, the card supports DIN Rail mounting, as well as screw mounting.

8. Is the Honeywell 05704-A-0121 card UL or CE certified?

   • Yes, the card is UL and CE certified, ensuring compliance with global safety standards.

9. What types من devices can the Honeywell 05704-A-0121 interface with?

   • The card can interface with a wide range من devices, such as motors, valves, heaters, and lighting systems, among others.

10. What is the input type for the Honeywell 05704-A-0121 card?

    • The card accepts digital (control logic) inputs.
