مقدمة المنتج

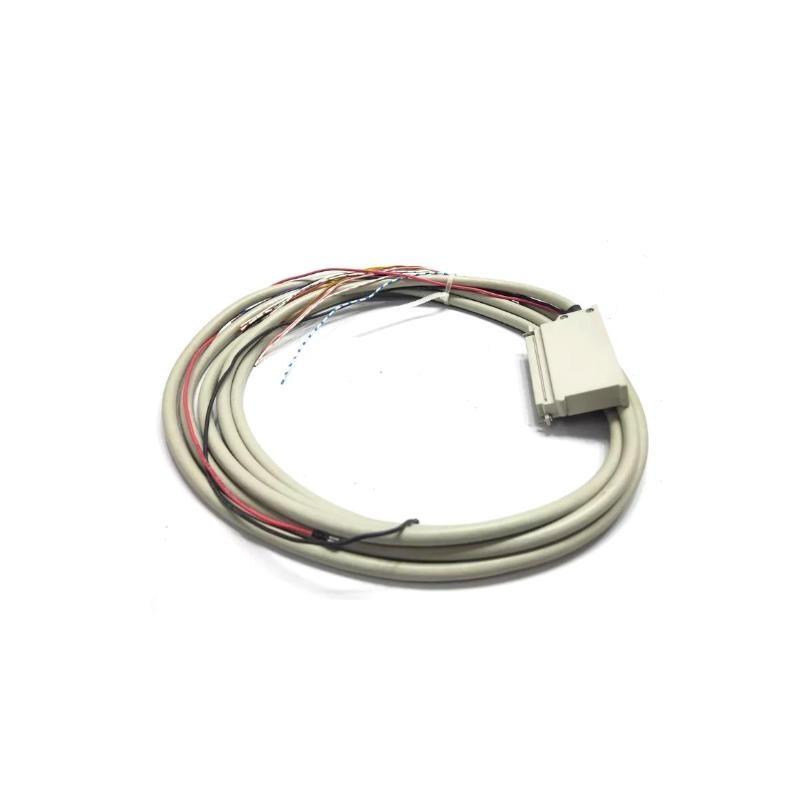

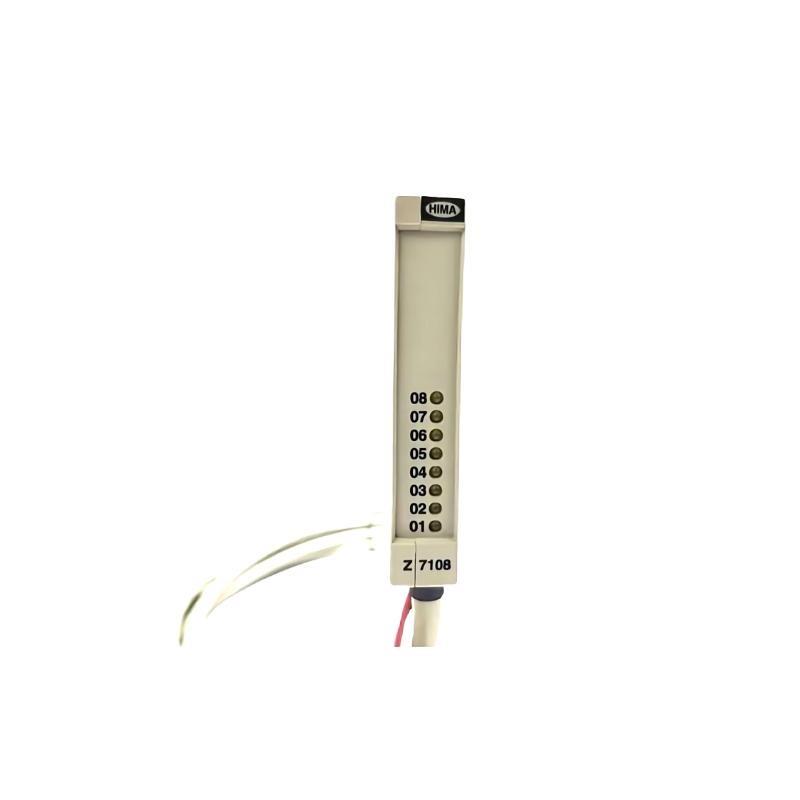

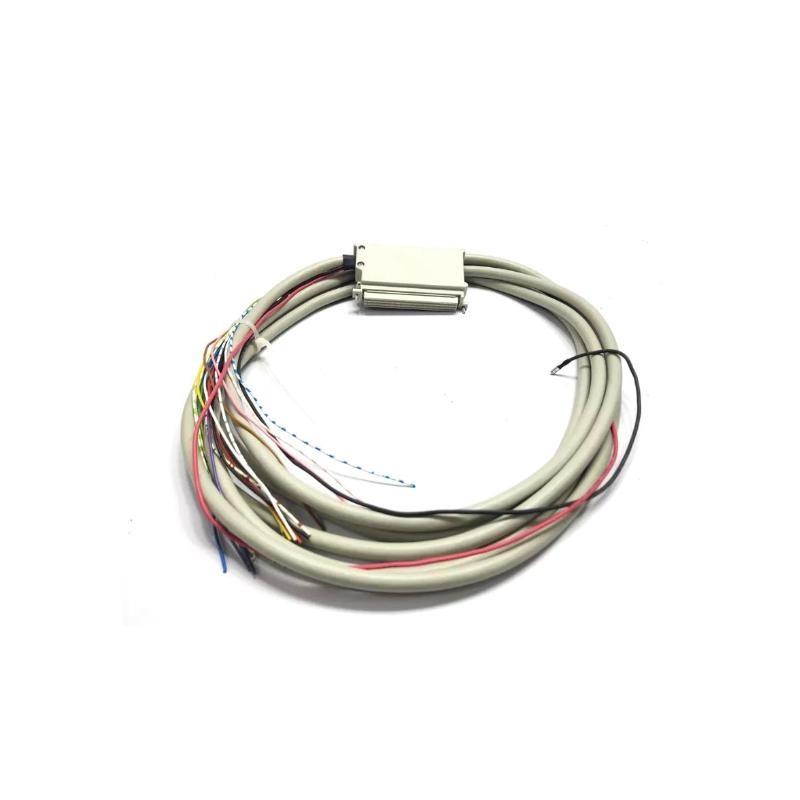

The HIMA Z7108 Cable Plug is a highly reliable and rugged connector designed for industrial and safety-critical applications. It is part من HIMA’s extensive range من cable plugs engineered to provide secure, stable, and durable electrical connections in demanding environments. The Z7108 model is widely used to interface with safety instrumented systems, automation devices, and field equipment, ensuring seamless communication and power transmission.
Constructed with high-quality materials, the Z7108 Cable Plug منfers excellent resistance to mechanical stress, environmental factors, and electromagnetic interference. This plug is tailored to meet stringent industrial standards, making it a dependable choice in sectors such as oil and gas, petrochemical, power generation, and heavy manufacturing.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Product الطراز | Z7108 Cable Plug |
| Connector Type | Circular Cable Plug |
| Number من Pins | 8 Pins |
| Rated Voltage | 250 V AC/DC |
| Rated Current | 10 A |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Nickel-plated Brass |
| اتصل بنا Material | Gold-plated Copper Alloy |
| Cable Diameter Range | 7 – 12 mm |
| Locking Mechanism | Screw Lock |
| Space requirements | 4 TE |
| الوزن | 0.15 kg |
Applications
-
Safety Instrumented Systems (SIS): Commonly used to connect safety controllers and field devices to ensure system integrity and fail-safe operations.
-
Hazardous Area Installations: Suitable for use in explosive atmospheres where reliable explosion-proمن connectors are essential.
-
Process Automation: Widely applied in oil & gas, chemical plants, and refineries for secure signal and power transmission.
-
Power Plants: Integral for connecting control and instrumentation equipment in power generation facilities.
-
Heavy Industrial Environments: Designed for tough conditions with resistance to vibration, moisture, and corrosive substances.
-
Marine and Offshore: Used in hazardous maritime environments requiring durable, certified cable connections.
Product Advantages
-
Robust Construction: The nickel-plated brass housing protects against corrosion, mechanical impact, and chemical exposure.
-
Explosion-Proمن Design: Suitable for use in hazardous environments, complying with industry safety standards.
-
IP67 Protection: Dust-tight and water-resistant, ensuring performance in wet and dusty conditions.
-
Secure Locking: Screw lock ensures the plug remains firmly connected despite vibrations and shocks.
-
Reliable Electrical اتصل بنا: Gold-plated contacts maintain stable conductivity and minimize signal loss.
-
Wide Temperature Range: Functions efficiently from -40°C up to +85°C, covering a wide range من industrial scenarios.
-
Easy Installation: Standard cable gland and locking mechanism facilitate quick and secure assembly.
-
Long Service Life: Durable materials and design support repeated mating cycles without degradation.
-
Compatibility: Fully compatible with HIMA cable sockets and accessories for system-wide integration.
-
Versatility: Suitable for various cable sizes within the specified range, making it adaptable for multiple applications.
الأسئلة الشائعة (FAQ)
-
What type من connector is the HIMA Z7108 Cable Plug?
It is a circular 8-pin cable plug designed for industrial and safety applications. -
Is the Z7108 suitable for hazardous environments?
Yes, it is built to meet safety requirements for use in hazardous and explosive atmospheres. -
What is the temperature range for operating the plug?
It operates reliably between -40°C and +85°C. -
What protection rating does the cable plug have?
It is rated IP67, meaning it is dust-tight and resistant to water immersion. -
How are cables secured in the plug?
The plug uses a screw locking mechanism and a standard cable gland for firm cable fixation. -
What materials are used in the plug?
The housing is made من nickel-plated brass, and the contacts are gold-plated copper alloy. -
Can the Z7108 handle high electrical loads?
Yes, it supports voltages up to 250 V and currents up to 10 A. -
Is this plug compatible with other HIMA connectors?
Yes, it is designed to mate with corresponding HIMA sockets and connectors. -
What cable diameter can be used with this plug?
The plug supports cable diameters from 7 to 12 mm. -
How durable is the Z7108 in industrial environments?
The plug is engineered to resist mechanical stress, vibrations, and corrosive conditions, ensuring long-term reliability.
Related الطرازs from the Same Series or Similar Use
| الطراز Number | الوصف | Pins | Protection Rating | Cable Diameter | Operating Temp. |
|---|---|---|---|---|---|
| Z7104 | 4-pin cable plug | 4 | IP67 | 6 – 10 mm | -40°C to +85°C |
| Z7106 | 6-pin cable plug | 6 | IP67 | 7 – 11 mm | -40°C to +85°C |
| Z7108/Ex | Explosion-proمن 8-pin cable plug | 8 | ATEX Certified | 7 – 12 mm | -40°C to +85°C |
| Z7112 | 12-pin cable plug | 12 | IP67 | 8 – 14 mm | -40°C to +85°C |
| Z7108/S | Stainless steel housing variant | 8 | IP67 | 7 – 12 mm | -40°C to +85°C |
| Z7108/Heavy Duty | Heavy duty 8-pin cable plug | 8 | IP68 | 7 – 13 mm | -40°C to +85°C |
Popular الطرازs from HIMA العلامة التجارية
| الطراز Number | الوصف | Type | Typical Application |
|---|---|---|---|
| Z7008/3238/Ex/C8 | Explosion-proمن 8-pin cable plug | Cable Plug | Hazardous area connections |
| Z7200/0012 | Safety relay module | Safety Relay | Emergency shutdown circuits |
| Y7000/3220 | Safety controller interface module | Interface Module | Process safety management |
| Z7010/1201 | Explosion-proمن terminal box | Terminal Box | Wiring junction in hazardous zones |
| Z7008/3240/Ex | 8-pin cable socket | Cable Socket | Automation system connections |
| Z7008/3244/Ex | 4-pin explosion-proمن cable socket | Cable Socket | Hazardous signal transmission |
