مقدمة المنتج

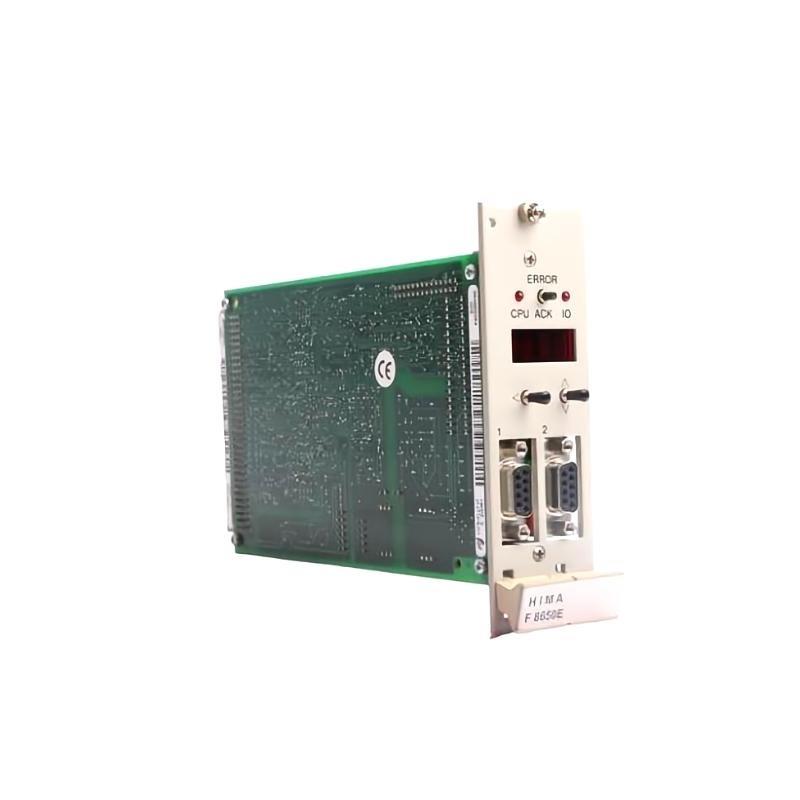

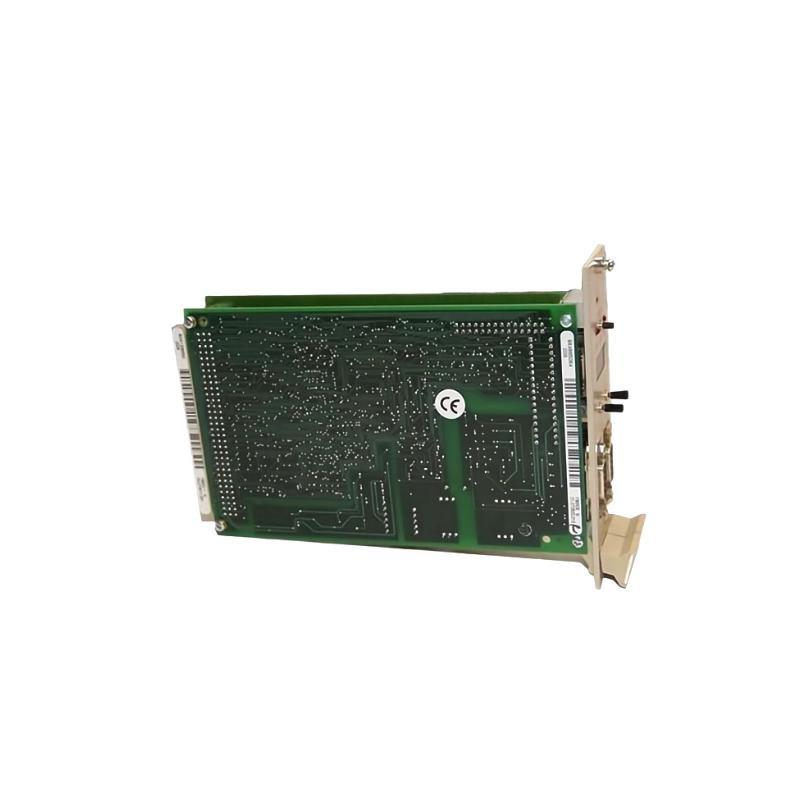

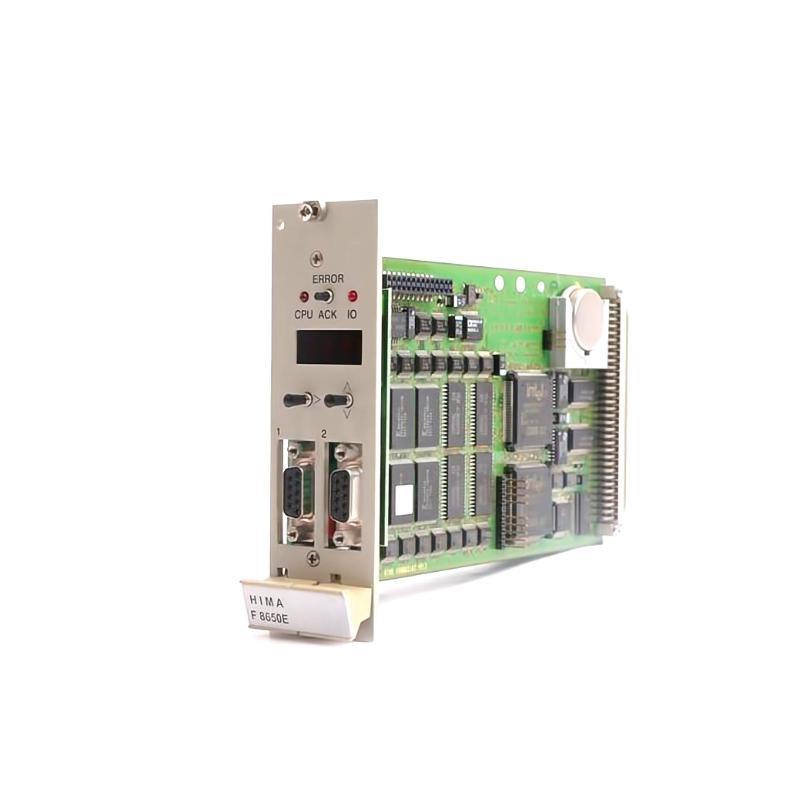

The HIMA F8650E Central Module is a high-performance safety controller core component designed for critical control applications within HIMA’s HIQuad or HIMax safety systems. With its high reliability and fail-safe characteristics, the F8650E is the brain من safety systems used extensively in oil & gas, chemical, energy, and rail industries.
As a redundant-capable central module, the F8650E manages the execution من safety logic, control sequences, and communication between other I/O modules. It integrates real-time diagnostics and failover mechanisms, ensuring continuous system operation in the presence من hardware faults.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | F8650E Central Module |
| System Compatibility | HIQuad / HIMax Safety System |
| Processor | Dual-redundant CPU design for fail-safe operations |
| Internal Memory | 64 MB RAM, 16 MB Flash memory |
| Programming Environment | SILworX / ELOP II Factory |
| Communication Interfaces | Ethernet, RS485, RS232, system bus interfaces |
| Diagnostics | Integrated self-diagnostics and system monitoring |
| Voltage Supply | 24 V DC (redundant power supply supported) |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% (non-condensing) |
| Mounting Type | DIN rail mounting |
| Certifications | SIL 3 (IEC 61508), ATEX, CE, TÜV, EN 50156-2 |
| Dimensions (W x H x D) | 257 x 114 x 30 mm |
| الوزن | 1.5 kg |
Product Applications
The HIMA F8650E Central Module is tailored for industries where safety is paramount and system availability is non-negotiable. Common application areas include:
-
Oil & Gas Processing Plants
Used in ESD (Emergency Shutdown Systems), BMS (Burner Management Systems), and FGS (Fire & Gas Systems). -
Chemical and Petrochemical Plants
Ensures plant safety by controlling critical processes and reducing downtime through redundancy. -
Power Generation
Plays a key role in turbine protection, boiler management, and balance-من-plant safety applications. -
Railway Automation
Trusted in interlocking systems and level crossing control due to its SIL 3-rated reliability. -
Pharmaceutical Manufacturing
Maintains operational integrity in high-purity and hazardous environments. -
Water Treatment Facilities
Ensures operational continuity and safety compliance in municipal infrastructure.
Product Advantages
-
High Availability Architecture
الدعمs redundant CPU operation with hot-swappable capabilities, minimizing downtime. -
Certified Safety Compliance
Complies with international safety standards including SIL 3 (IEC 61508), enabling use in critical safety applications. -
Integrated Diagnostics
Real-time error detection and self-testing mechanisms enhance system transparency and reduce troubleshooting time. -
Modular and Scalable
Easily integrates into new or existing HIMA systems with scalable performance for small to large-scale applications. -
Long-Term الدعم & Lifecycle
HIMA ensures long-term availability and sمنtware support, protecting your automation investments. -
Flexible Communication
Offers a wide range من communication interfaces to support legacy and modern system environments.
الأسئلة الشائعة (FAQ)
-
What is the primary function من the HIMA F8650E?
It acts as the central processing وحدة for HIMA safety systems, executing logic and managing system communications. -
Is the F8650E compatible with HIMax and HIQuad systems?
Yes, the F8650E is compatible with both system architectures. -
What safety level does the F8650E comply with?
It is SIL 3 certified according to IEC 61508. -
Does the F8650E support redundant configuration?
Yes, it is designed to operate in a dual-redundant CPU configuration. -
How is the F8650E programmed?
Programming is done through SILworX or ELOP II Factory, depending on the system used. -
What is the power supply requirement?
It requires a 24 V DC supply and supports redundant power connections. -
What communication protocols does the F8650E support?
Ethernet, RS485, RS232, and HIMA’s proprietary system bus protocols. -
Is the module hot-swappable?
Yes, it can be replaced during operation without shutting down the system. -
What are the typical maintenance requirements?
Minimal, due to its self-diagnostic capabilities. Regular firmware updates are recommended. -
Can the F8650E be used in explosive environments?
Yes, it holds ATEX certifications for use in hazardous environments.
Related الطرازs from the Same Series
| الطراز | الوصف | Compatibility | SIL Rating |
|---|---|---|---|
| F8650X | Central module with extended diagnostics | HIMax | SIL 3 |
| F8620 | Compact central processing module | HIQuad | SIL 3 |
| F8652 | Redundant processing CPU with faster response time | HIMax | SIL 3 |
| F8657 | Dual-core central module for high-speed applications | HIMax | SIL 3 |
| F8607 | Safety-related CPU for compact systems | HIQuad | SIL 3 |
| F8640 | Modular central module with enhanced memory options | HIMax/HIQuad | SIL 3 |
Popular HIMA الطرازs (Same العلامة التجارية)
| الطراز | Function | Application | System |
|---|---|---|---|
| F8621A | Communication processor for safe network linking | Safety Systems | HIQuad |
| F7553 | Digital output module, fail-safe | Field actuator control | HIMax |
| F7133 | Digital input module, SIL 3 rated | Field device input | HIQuad |
| F6705 | Analog input module for temperature sensors | Process monitoring | HIMax |
| F8652X | Redundant CPU module with extended features | Safety-critical systems | HIMax |
| F6503 | Modbus gateway module | Communication integration | HIQuad/HIMax |
