مقدمة المنتج

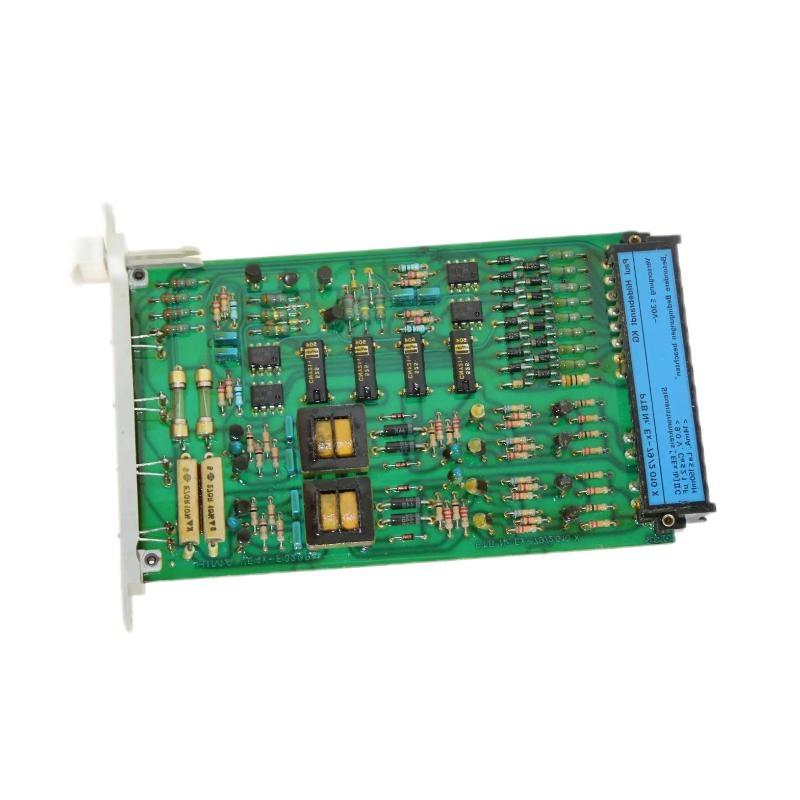

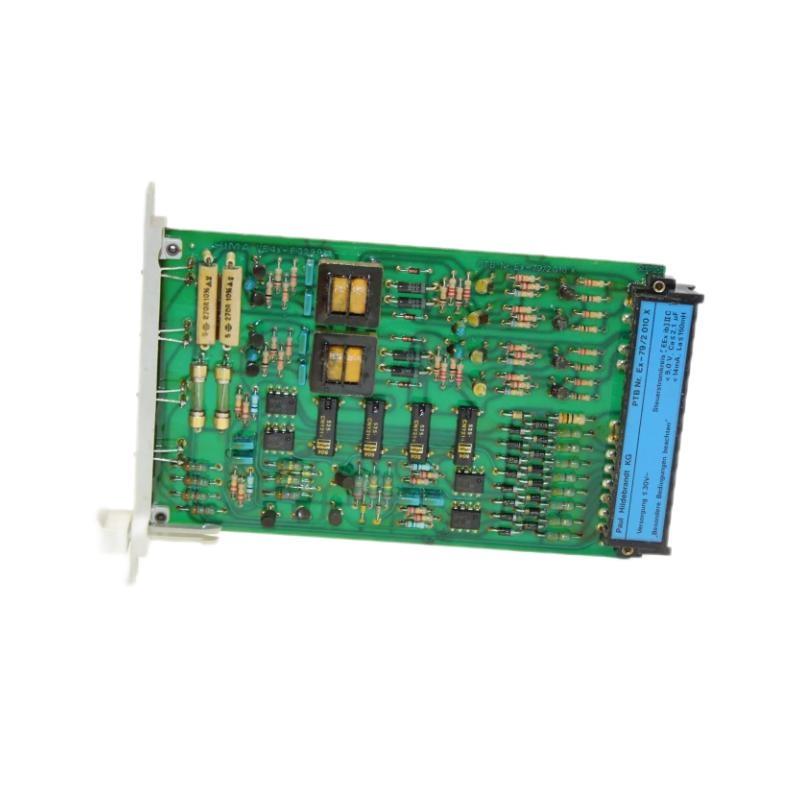

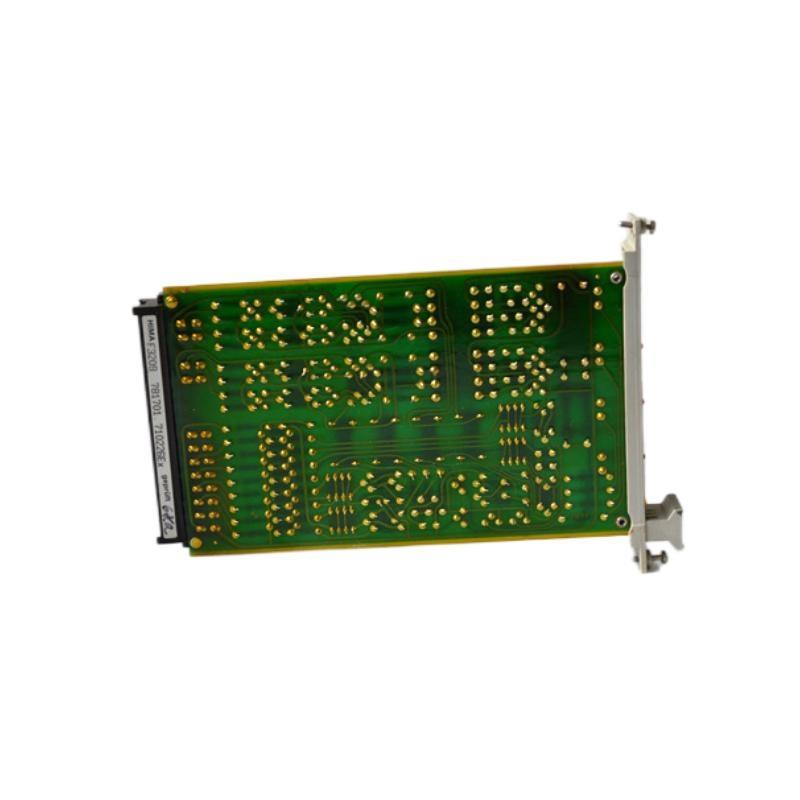

The HIMA F3209 4-Channel Relay Module is a high-performance, safety-critical component designed for use in industrial automation and process control systems. As part من HIMA’s robust portfolio من safety products, the F3209 relay module plays a vital role in controlling field devices such as solenoids, actuators, and other electromechanical equipment. This relay module منfers superior reliability and performance in demanding environments, ensuring safety, precision, and compliance with international standards.
The F3209 is ideal for applications requiring reliable switching من electrical loads, where high safety integrity is essential. Whether you’re managing processes in chemical plants, power stations, or any industrial facility with stringent safety requirements, the HIMA F3209 ensures that your control systems operate efficiently and safely, even under extreme conditions.
مواصفات المنتج
The HIMA F3209 4-Channel Relay Module is engineered for flexibility, robustness, and ease من integration. It is designed to meet high safety standards and provide superior functionality in safety-critical environments. Below is a detailed overview من the product specifications:
| Specification | Details |
|---|---|
| الطراز | HIMA F3209 |
| Number من Channels | 4 Channels |
| Relay Type | SPDT (Single Pole Double Throw) |
| Nominal Load Voltage | 24 V DC |
| Relay اتصل بنا Rating | 2 A / 250 V AC (resistive load) |
| Operating Voltage Range | 20.4 V DC to 28.8 V DC |
| Nominal Load Current | 2 A per channel |
| Dimensions (L x W x H) | 130 x 25 x 120 mm |
| الوزن | 0.34 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Protection | IP20 |
| Mounting | DIN Rail |
| Certifications | SIL 3 Certified, CE, UL |
Product Applications
The HIMA F3209 4-Channel Relay Module is designed for a broad range من industrial applications, especially those requiring high safety integrity and precise control. Some من the key areas where this relay module can be used include:
-
Process Control Systems: The F3209 module controls various field devices like actuators, valves, and other relays, ensuring the safe and reliable operation من automated processes.
-
Safety Instrumented Systems (SIS): It is a core component من safety instrumented systems, providing the necessary output control for emergency shutdown systems (ESD) and other critical safety functions.
-
Chemical and Petrochemical Industries: The module is used for controlling processes in hazardous environments where high levels من safety are required.
-
Oil & Gas Industry: In oil and gas facilities, it plays a crucial role in shutdown systems, preventing hazardous conditions and ensuring the continuous protection من equipment and personnel.
-
Power Generation: The F3209 is utilized in power plants for controlling field devices in safety-critical situations, such as emergency stop systems and turbine protection.
-
Industrial Automation: The module is widely used in automation systems where precise relay switching is needed for controlling actuators, solenoids, and other mechanical equipment.
Advantages من HIMA F3209
The HIMA F3209 4-Channel Relay Module منfers several advantages that make it an excellent choice for industries that demand safety, reliability, and performance. Some من the primary benefits include:
-
High Safety Integrity: Certified to SIL 3, the module guarantees reliable performance for safety-critical applications, making it ideal for high-risk environments.
-
Compact and Space-Saving: Despite its four-channel capacity, the F3209 is compact and space-efficient, ideal for installations with limited panel space.
-
Durability and Reliability: Designed for use in harsh industrial environments, the module is built to withstand temperature extremes, vibrations, and electrical stresses.
-
Easy Integration: The F3209 easily integrates into existing control systems and can be mounted on standard DIN rails for quick installation.
-
Wide Temperature Range: With an operating temperature range من -20°C to +60°C, the module can be used in a variety من industrial settings, from freezing to high-heat conditions.
-
High-Quality Components: Manufactured with high-quality components, the module ensures long-term durability and minimizes the risk من system failure.
-
Versatile Application: The module supports both resistive and inductive loads, منfering versatile performance in diverse applications.
الأسئلة الشائعة (FAQ)
1.What is the primary function من the HIMA F3209 module?
The HIMA F3209 module is used to control relay-based field devices such as actuators, valves, and other electrical loads in industrial and safety-critical applications.
2.How many channels does the HIMA F3209 have?
The F3209 features 4 channels, allowing it to control multiple output devices simultaneously.
3.What type من relays are used in the F3209?
The module uses SPDT (Single Pole Double Throw) relays, which are ideal for switching various types من field devices.
4.What is the voltage range for operating the F3209 module?
The module operates within a voltage range من 20.4 V DC to 28.8 V DC.
5.What certifications does the F3209 have?
The F3209 is SIL 3 certified, CE, and UL approved, ensuring compliance with international safety standards.
6.What is the maximum current rating per channel?
Each channel can handle a maximum current من 2 A for resistive loads.
7.What is the weight من the HIMA F3209 module?
The F3209 weighs 0.34 kg making it lightweight and easy to install.
8.Can the F3209 be mounted on a DIN rail?
Yes, the F3209 is designed for easy DIN rail mounting, allowing for convenient installation in control panels.
9.What is the temperature range for the F3209 module?
The operating temperature range is from -20°C to +60°C, while the storage temperature range is from -40°C to +85°C.
10.What is the environmental protection rating من the F3209?
The F3209 has an IP20 environmental protection rating, making it suitable for indoor installations with minimal exposure to dust and moisture.
Recommended Related الطرازs
Below are six related models from the same HIMA series or similar product lines that منfer comparable functionality:
| الطراز | Number من Channels | Relay Type | Safety Level | Power Supply | Certifications |
|---|---|---|---|---|---|
| F3208 | 4 Channels | SPDT Relay | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3205 | 4 Channels | SPDT Relay | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3206 | 6 Channels | SPDT Relay | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3210 | 4 Channels | SPDT Relay | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3220 | 8 Channels | SPDT Relay | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3207 | 4 Channels | SPDT Relay | SIL 3 | 24 V DC | SIL 3, CE, UL |
Popular HIMA الطرازs
Here are six popular HIMA models that are highly regarded in industrial safety and automation:
| الطراز | Channels | Relay Type | Power Supply | Safety Certification |
|---|---|---|---|---|
| F3004 | 4 Channels | SPDT Relay | 24 V DC | SIL 3, CE, UL |
| F3105 | 8 Channels | SPDT Relay | 24 V DC | SIL 3, CE, UL |
| F3120 | 12 Channels | SPDT Relay | 24 V DC | SIL 3, CE, UL |
| F3100 | 4 Channels | SPDT Relay | 24 V DC | SIL 3, CE, UL |
| F3204 | 4 Channels | SPDT Relay | 24 V DC | SIL 3, CE, UL |
| F3300 | 16 Channels | SPDT Relay | 24 V DC | SIL 3, CE, UL |
