Product Overview

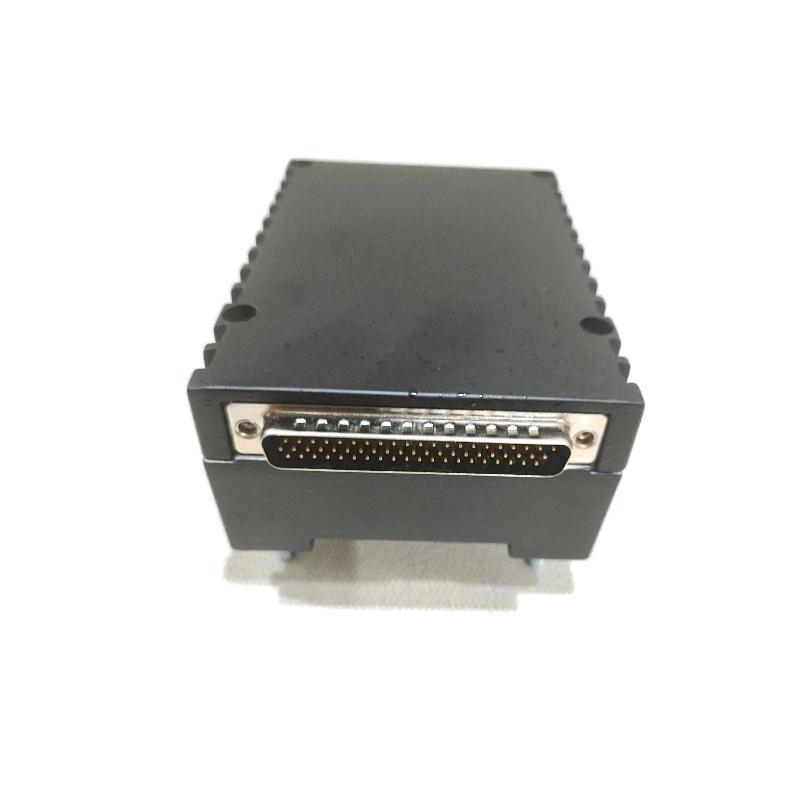

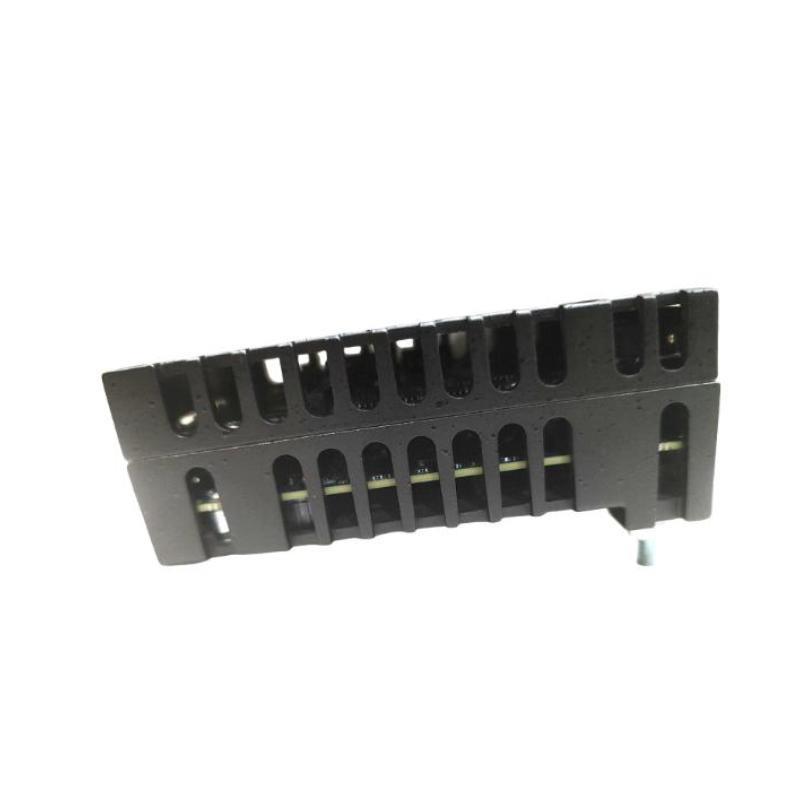

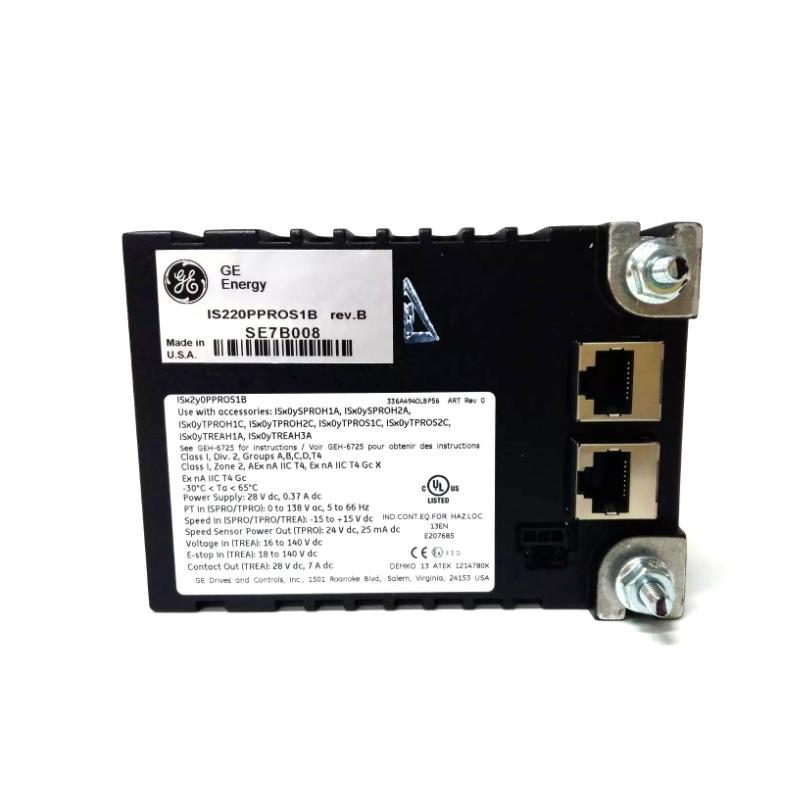

The GE IS220PPROS1B is an Emergency Turbine Protection I/O Pack within the Mark VIe Series, engineered to interface with emergency protection systems in gas and steam turbines. It plays a critical role in high-speed detection and rapid shutdown processes to ensure operational safety.
Technical Specifications
| Parameter | الوصف |
|---|---|
| Product الطراز | IS220PPROS1B |
| Series | Mark VIe |
| Function | Emergency Protection I/O Pack |
| Communication | Ethernet, IONet |
| Input Type | High-speed discrete inputs |
| Output Type | Relay outputs |
| Power Supply | 28 VDC nominal |
| Installation Method | DIN-rail mount |
| Dimensions | 143 x 231 x 64 mm |
| الوزن | 0.45 kg |
| Operating Temp Range | -30°C to +65°C |
| Protection Class | IP20 |
Applications
-
Gas turbine emergency trip systems
-
Steam turbine emergency stop systems
-
Overspeed protection systems
-
Auxiliary safety interlocks
-
High-speed signal processing in power plants
-
Critical event detection in turbine control environments
Product Advantages
-
Fast response time for turbine emergency events
-
Seamless integration into the GE Mark VIe control platform
-
الدعمs redundant and independent trip configurations
-
Rugged design suitable for harsh environments
-
Simplified installation and diagnostics via Ethernet
-
Designed for high-reliability turbine safety systems
الأسئلة الشائعة (FAQ)
Q1: What is the main function من IS220PPROS1B?
A1: It provides emergency protection by processing high-speed inputs and executing trip commands.
Q2: Can this module operate in harsh environments?
A2: Yes, it is built for industrial-grade use, with an operating range من -30°C to +65°C.
Q3: Does IS220PPROS1B support redundancy?
A3: Yes, it can be configured for redundant applications in critical systems.
Q4: What type من communication does it use?
A4: It communicates via Ethernet-based IONet protocol.
Q5: Is it compatible with other GE Mark VIe modules?
A5: Yes, it integrates seamlessly with other Mark VIe components.
Q6: What type من I/O does it handle?
A6: It processes high-speed discrete inputs and provides relay outputs.
Q7: Can it be mounted on standard DIN rails?
A7: Yes, the design supports DIN-rail mounting for ease من installation.
Q8: What is the power supply requirement?
A8: It operates on a nominal 28 VDC power supply.
Q9: Is there built-in protection for the I/O?
A9: Yes, it includes internal protection for signal reliability and safety.
Q10: What safety applications is it used in?
A10: It is typically used in overspeed, trip, and emergency stop circuits for turbines.
Related or Similar الطرازs from Mark VIe Series
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| IS220PDIOH1A | Discrete Input/Output Module | 143 x 231 x 64 | 0.45 kg |
| IS220PAOCH1A | Analog Output Module | 143 x 231 x 64 | 0.45 kg |
| IS220PPRCH1B | Relay Output Module | 143 x 231 x 64 | 0.45 kg |
| IS220PCAAH1B | Analog Input Module | 143 x 231 x 64 | 0.45 kg |
| IS220PPDAH1A | Digital Input Module | 143 x 231 x 64 | 0.45 kg |
| IS220PAICH1A | Current/Voltage Input Module | 143 x 231 x 64 | 0.45 kg |
Popular GE الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| DS200TCQAG1B | TC2000 Analog I/O Board | 330 x 200 x 50 | 1.2 kg |
| DS200LDCCH1A | Drive Control/LAN Communication Board | 350 x 180 x 60 | 1.1 kg |
| DS200SDCIG1A | Power Supply and Control Interface | 290 x 160 x 40 | 1.0 kg |
| IS200TRLYH1B | Relay Output Terminal Board | 143 x 231 x 64 | 0.45 kg |
| IS200DSPXH1D | Digital Signal Processor Module | 180 x 240 x 50 | 0.8 kg |
| DS200ADGIH1AAA | Analog/Digital General Interface Board | 300 x 200 x 50 | 1.3 kg |
