مقدمة المنتج

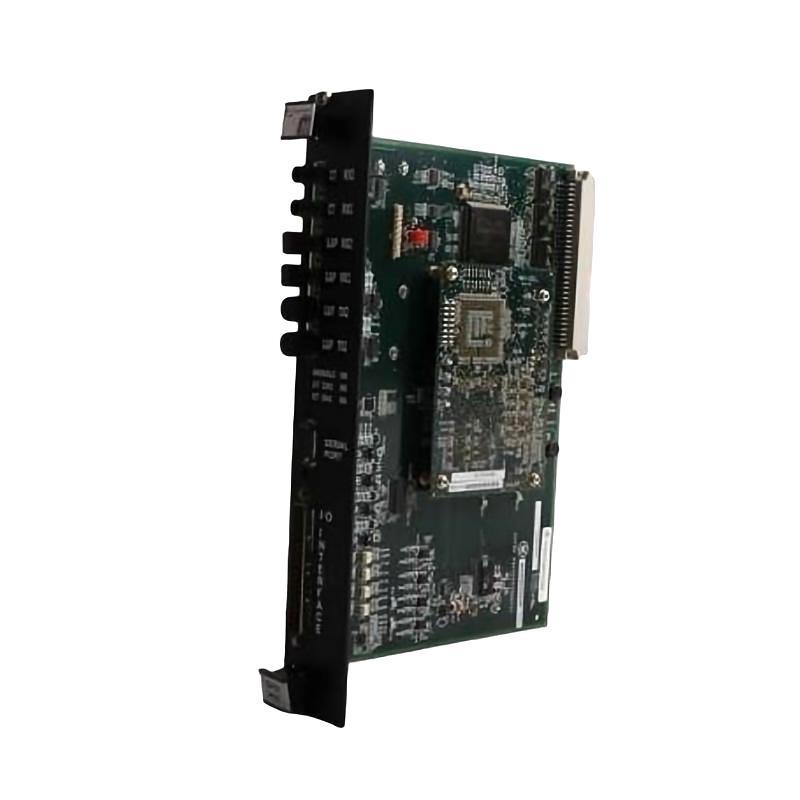

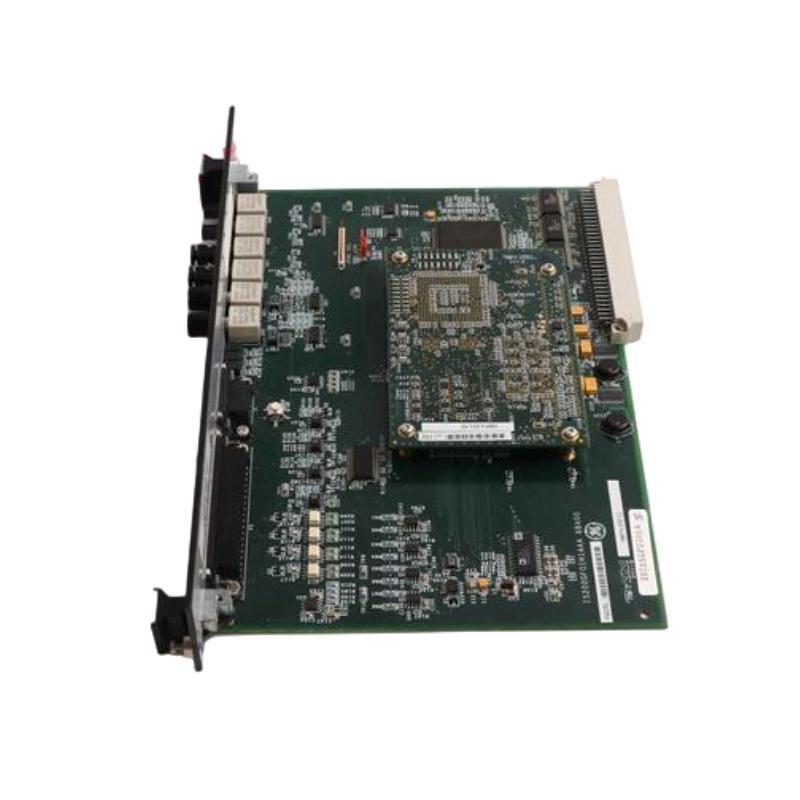

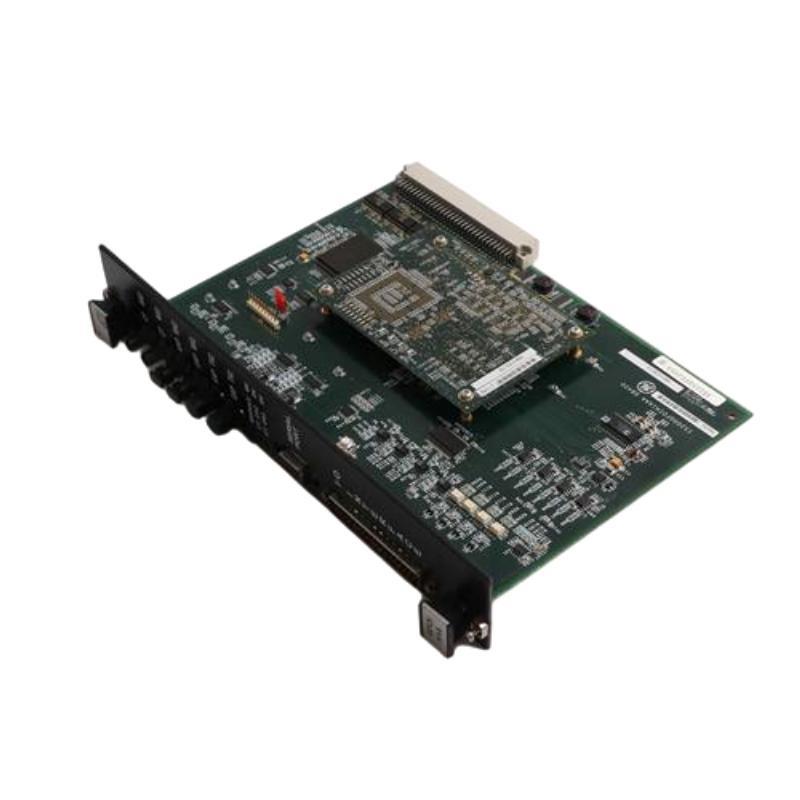

The GE IS215GFOIH1A KSPA Assembly Circuit Board is a precision-engineered control module designed for integration into the GE Mark VIe and Mark VIeS turbine and generator protection systems. This board functions as the core interface for high-speed processing من protective logic, fault detection, and signal conditioning. With advanced signal routing, high-reliability components, and robust industrial-grade construction, the KSPA Assembly ensures uninterrupted monitoring and control in critical power generation and industrial processes. Its architecture supports redundancy, real-time data communication, and seamless integration with other Mark VIe system modules.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | IS215GFOIH1A |
| Product Type | Assembly Circuit Board |
| Function | Executes protective logic, signal conditioning, and monitoring routines |
| Processor | High-performance industrial CPU for deterministic control |
| Memory | 512 MB DDR SDRAM, 128 MB non-volatile flash |
| Communication Interfaces | Dual redundant Ethernet (10/100 Mbps), RS-232/RS-485 serial ports |
| Power Supply Requirement | 28 V DC nominal (operating range 18–32 V DC) |
| Redundancy Options | الدعمs hot-standby and dual-channel redundancy |
| I/O Capability | Direct interface with Mark VIe I/O packs and Modbus-compatible devices |
| Environmental Rating | –40 °C to +70 °C, 5–95 % RH non-condensing |
| EMI/EMC Compliance | IEC 61000-6-2 immوحدةy, IEC 61000-6-4 emissions |
| Shock/Vibration Resistance | 30 g shock, 5 g vibration (10–2000 Hz) |
| Cooling Method | Passive convection |
| Dimensions (W×H×D) | 340 × 210 × 45 mm |
| الوزن | 1.2 kg |
| Mounting | Standard Mark VIe rack slot |
| Certifications | CE, UL, RoHS compliant |
Applications
-
Turbine Protection Systems – Implements high-speed protection logic and fault detection.
-
Generator Protection – Monitors key generator parameters and executes protective actions.
-
Industrial Process Control – Provides reliable signal processing in critical industrial environments.
-
Power Generation Plants – Interfaces with plant DCS and monitoring systems for real-time status updates.
-
Oil & Gas Facilities – Protects high-value rotating equipment with precise trip and alarm logic.
-
Combined-Cycle Plants – Integrates seamlessly with turbine and generator control boards to enhance plant reliability.
Advantages
-
Real-Time Processing – High-performance CPU ensures rapid execution من protective logic.
-
Redundant Design – الدعمs dual-channel and hot-standby operation to maintain continuous monitoring.
-
Industrial Reliability – Wide temperature range, vibration, and EMI resistance make it suitable for extreme conditions.
-
Flexible Communication – Dual Ethernet and serial ports allow easy integration with modern and legacy systems.
-
Seamless Integration – Works with other Mark VIe modules, supporting scalable and modular system designs.
-
Advanced Diagnostics – Onboard LEDs and event logging simplify troubleshooting and preventive maintenance.
الأسئلة الشائعة (FAQ)
-
How does the IS215GFOIH1A execute high-speed protection logic?
It uses a deterministic real-time CPU to process input signals and trigger protective responses within milliseconds. -
What redundancy mechanisms are available to ensure continuous operation?
Hot-standby and dual-channel redundancy allow automatic switchover in case من board failure. -
Which communication protocols can interface with this board?
Ethernet Global Data (EGD), Modbus TCP/RTU, and standard RS-232/485 interfaces are supported. -
Can the board integrate with third-party monitoring systems?
Yes, it communicates via standard protocols and gateway adapters, enabling integration with non-GE systems. -
What diagnostic capabilities are available on the KSPA Assembly?
Event logging, status LEDs, and self-test routines help identify faults and monitor operational health. -
Is firmware update possible without disrupting turbine operations?
Firmware can be updated online using GE ControlST sمنtware, maintaining operational continuity. -
How is electromagnetic interference mitigated?
The board meets IEC 61000-6-2 immوحدةy and IEC 61000-6-4 emissions standards, with robust shielding. -
Does the board support high-speed data acquisition for monitoring purposes?
Yes, the CPU and communication interfaces allow millisecond-level data sampling for precise monitoring. -
How does the board preserve configuration data during power interruptions?
Critical data is stored in non-volatile flash memory to ensure system integrity after power restoration. -
Can the module operate reliably in high-vibration turbine and generator environments?
It is rated for up to 30 g shock and 5 g vibration, ensuring stable operation in industrial enclosures.
